Lightbiz L900 20-inch Rechargeable Picture Light User Manual

1. Produk Lebihview

The Lightbiz L900 is a 20-inch rechargeable picture light designed to illuminate artwork, photos, and wall decor. It features a cordless, battery-operated design with adjustable brightness and color temperature, controlled via touch or remote.

Image 1.1: Lightbiz L900 Picture Light showing its 20-inch length, 4.3-inch main unit width, and 2-inch depth, along with the power display and light bars.

Ciri-ciri Utama:

• Bateri Berkapasiti Tinggi: Equipped with two 5000mAh detachable and replaceable rechargeable batteries, providing a total capacity of 10000mAh. Offers approximately 20 hours of operation at maximum brightness and 40 hours at medium brightness.
• Wide Illumination Range: The 20-inch light bar effectively illuminates artwork up to 80 inches wide, ideal for pieces 18 inches or larger.
• Suhu Warna Boleh Laras: Three color temperature options: Warm White (3000K), Natural (4500K), and Cool White (6500K).
• Kecerahan Boleh Dimalapkan: Five adjustable brightness levels (20%, 40%, 60%, 80%, 100%).
• Kaedah Kawalan Dwi: Control via touch buttons on the light unit or with the included remote control.
• Fungsi Pemasa: Remote control includes options for 15, 30, or 60-minute automatic shut-off.
• Penunjuk Tahap Bateri: An indicator light on the unit displays the remaining battery level.

2. Apa yang ada di dalam Kotak

• Picture Light (1 unit)
• Alat Kawalan Jauh (1 unit)
• Manual Arahan (1 unit)
• Kabel Pengecas USB (1 unit)
• Skru Pemasangan (2 unit)
• Penambat Dinding (2 unit)
• 3M Adhesive Pad (1 unit)

Image 2.1: Contents of the Lightbiz L900 package, including the picture light, remote control, and mounting hardware.

3. Persediaan dan Pemasangan

Follow these steps to assemble and install your Lightbiz L900 Picture Light.

3.1 Perhimpunan

1. Identify the left and right light bars.
2. Carefully insert each light bar into its corresponding interface on the central unit until fully seated.

3.2 Pilihan Pemasangan

The Lightbiz L900 offers two installation methods:

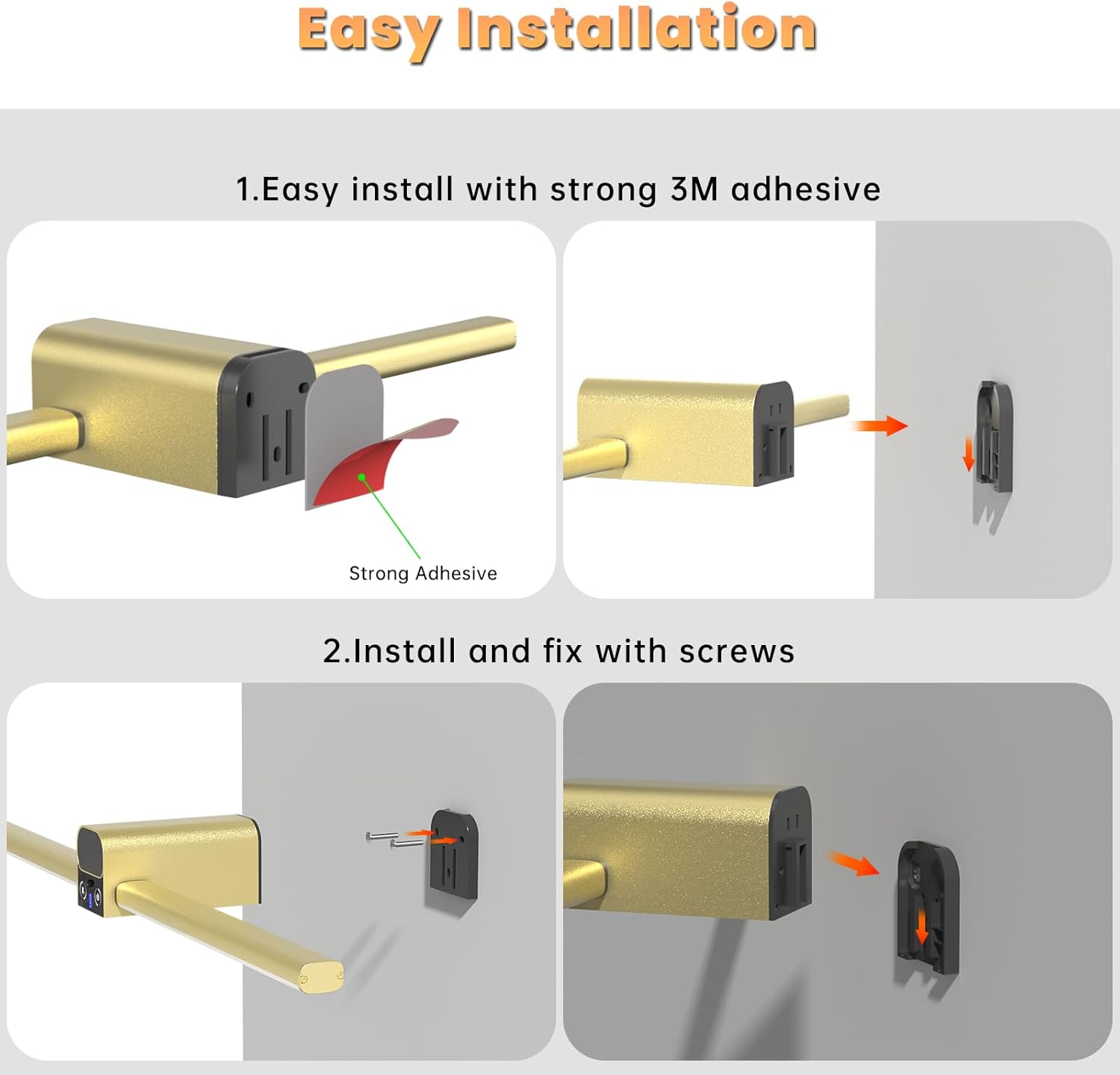

Image 3.1: Visual guide for installing the Lightbiz L900 using either 3M adhesive or screws.

1. Using 3M Adhesive:
   • Ensure the wall surface is clean, flat, and dust-free for optimal adhesion.
   • Peel the backing from the strong 3M adhesive pad and firmly press the mounting bracket onto the desired location on the wall.
   • Hold for 30 seconds to ensure a secure bond.
2. Menggunakan Skru:
   • This method provides a more stable installation and is recommended for uneven walls or if you prefer a permanent fixture.
   • Mark the desired mounting points on the wall using the bracket as a template.
   • Drill pilot holes if necessary and insert the wall anchors.
   • Pasangkan pendakap pelekap pada dinding menggunakan skru yang disediakan.

3.3 Pemasangan Bateri

The Lightbiz L900 features detachable and replaceable batteries for convenient charging.

Image 3.2: Illustration of the detachable 5000mAh batteries and USB-C charging port.

1. Ensure the batteries are charged using the provided USB charging cable.
2. Insert a charged battery into the battery compartment of the central unit. Press firmly until it clicks into place.
3. To remove, press the battery to pop it out.

3.4 Video Pemasangan

4. Arahan Operasi

Control your Lightbiz L900 Picture Light using either the touch buttons on the unit or the remote control.

Imej 4.1: Selesaiview of the two control methods: touch buttons on the light unit and the included remote control.

4.1 Hidupkan/Mati Kuasa

• Kawalan Sentuh: Press the power button on the central unit to turn the light on or off.
• Kawalan Jauh: Press the 'ON/OFF' button on the remote.

4.2 Pelarasan Kecerahan

The light offers 5 brightness levels (20%, 40%, 60%, 80%, 100%).

Image 4.2: Visual representation of the five adjustable brightness levels.

• Kawalan Sentuh: Repeatedly press the brightness button (usually indicated by a sun icon or '+' / '-' symbols) on the central unit to cycle through brightness levels.
• Kawalan Jauh: Use the '+' and '-' buttons to increase or decrease brightness.

4.3 Pelarasan Suhu Warna

Choose from three color temperatures: Warm White (3000K), Natural (4500K), and Cool White (6500K).

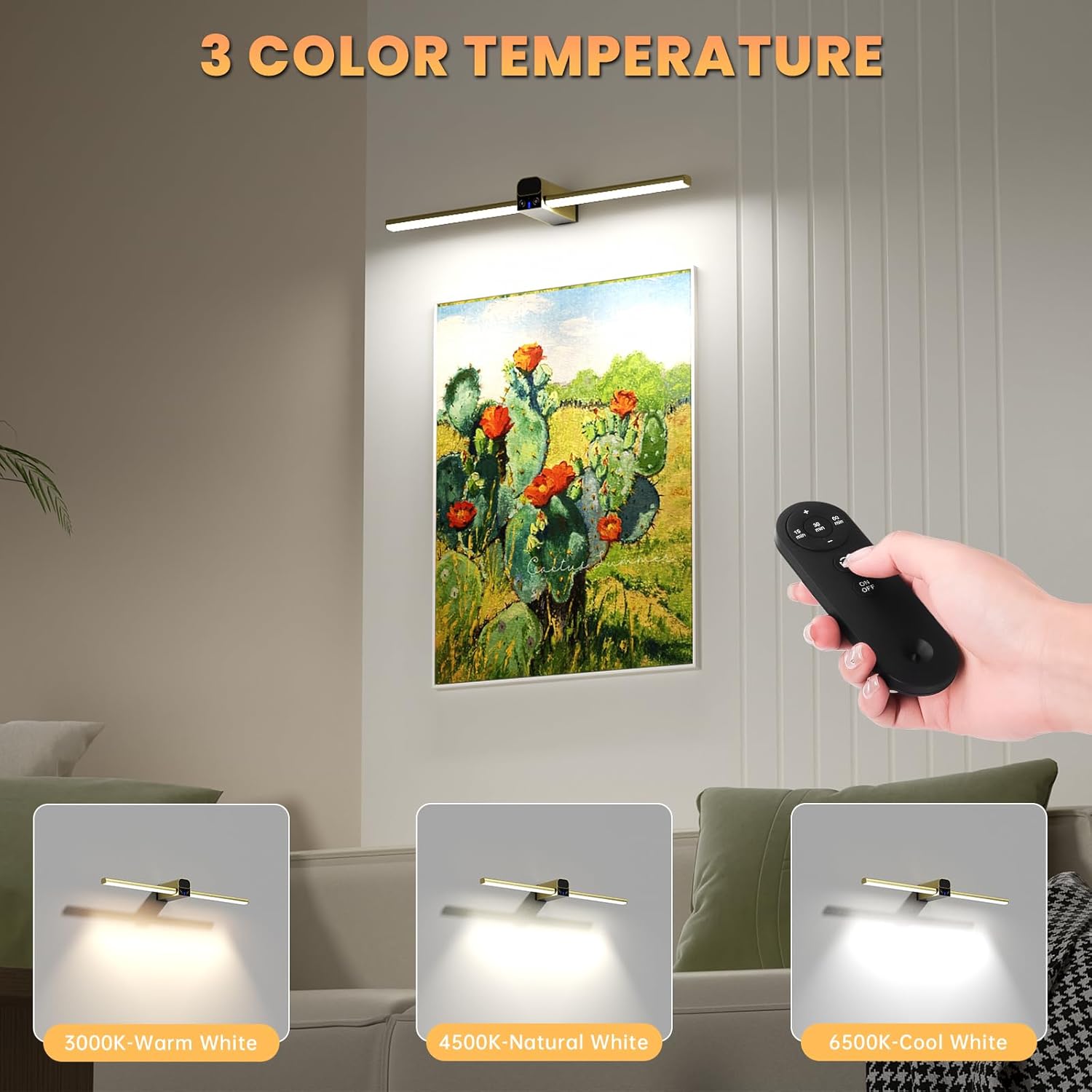

Imej 4.3: Cthamples of the three available color temperatures: Warm White, Natural, and Cool White.

• Kawalan Sentuh: Press the color temperature button (usually indicated by a 'K' icon) on the central unit to cycle through the temperature options.
• Kawalan Jauh: Press the 'K' button on the remote to switch between color temperatures.

4.4 Fungsi Pemasa

Set the light to automatically turn off after a specified period.

Image 4.4: Remote control buttons for setting the 15, 30, or 60-minute timer.

• Kawalan Jauh: Use the '15 min', '30 min', or '60 min' buttons on the remote to activate the timer. The light will turn off automatically after the selected duration.

5. Penyelenggaraan

To ensure the longevity and optimal performance of your Lightbiz L900 Picture Light, follow these maintenance guidelines:

• Pembersihan: Wipe the light unit and light bars with a soft, dry cloth. Avoid using abrasive cleaners or solvents that may damage the finish.
• Penjagaan Bateri: Recharge batteries regularly, even if not in constant use, to maintain battery health. Store spare batteries in a cool, dry place.
• Storan: If storing the light for an extended period, remove the batteries and store them separately.

6. Penyelesaian masalah

If you encounter any issues with your Lightbiz L900 Picture Light, refer to the following common troubleshooting steps:

• Lampu Tidak Dihidupkan:
  • Ensure the battery is fully charged and correctly inserted into the unit.
  • Check if the light bars are fully inserted into the central unit's interfaces.
  • Verify the remote control battery is functional and that there are no obstructions between the remote and the light.
• Alat Kawalan Jauh Tidak Menjawab:
  • Gantikan bateri kawalan jauh.
  • Pastikan anda berada dalam julat berkesan alat kawalan jauh.
• Hayat Bateri Pendek:
  • Pastikan bateri dicas sepenuhnya sebelum digunakan.
  • Operating at maximum brightness will consume battery faster. Consider using lower brightness settings for extended use.
  • If battery life significantly degrades, consider replacing the rechargeable batteries.

For further assistance, please contact Lightbiz customer support.

7. Spesifikasi

8. Waranti dan Sokongan

The Lightbiz L900 Picture Light comes with a Waranti Seumur Hidup.

Lightbiz is committed to product quality and customer satisfaction. If you have any product issues, questions, or require support, please do not hesitate to contact Lightbiz customer service. Refer to the contact information provided in your product packaging or visit the official Lightbiz webtapak untuk mendapatkan bantuan.
