Generic ST-126 Plus Wireless Handheld Vacuum Cleaner User Manual

1. Pengenalan

The Generic ST-126 Plus is a versatile wireless handheld vacuum cleaner designed for various cleaning needs. With its 120W motor and 20000PA suction power, it offers excellent performance for car interiors, homes, and offices. Featuring Type-C charging for convenience and a washable filter for easy maintenance, its compact and lightweight design ensures portability. This manual provides essential information for safe and effective operation.

2. Arahan Keselamatan

• Baca semua arahan sebelum digunakan.
• Keep the vacuum cleaner away from water or other liquids.
• Do not use to vacuum flammable or combustible materials, hot ashes, or sharp objects.
• Pastikan penapis dipasang dengan betul sebelum operasi.
• Jangan beroperasi dengan kord atau palam yang rosak.
• Jauhkan rambut, pakaian longgar, jari dan semua bahagian badan daripada bukaan dan bahagian yang bergerak.
• Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.
• Only use the charging cable provided or a compatible Type-C charger (DC5V/2A).

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• ST-126 Plus Handheld Vacuum Cleaner Unit
• Muncung Rata Panjang
• Lekapan Berus
• Slender Mouthpiece
• Inflatable Nozzles (Swimming Ring, Large)
• Kabel Pengecasan Jenis-C
• Manual Pengguna

4. Produk Lebihview

Familiarize yourself with the main components of your ST-126 Plus vacuum cleaner.

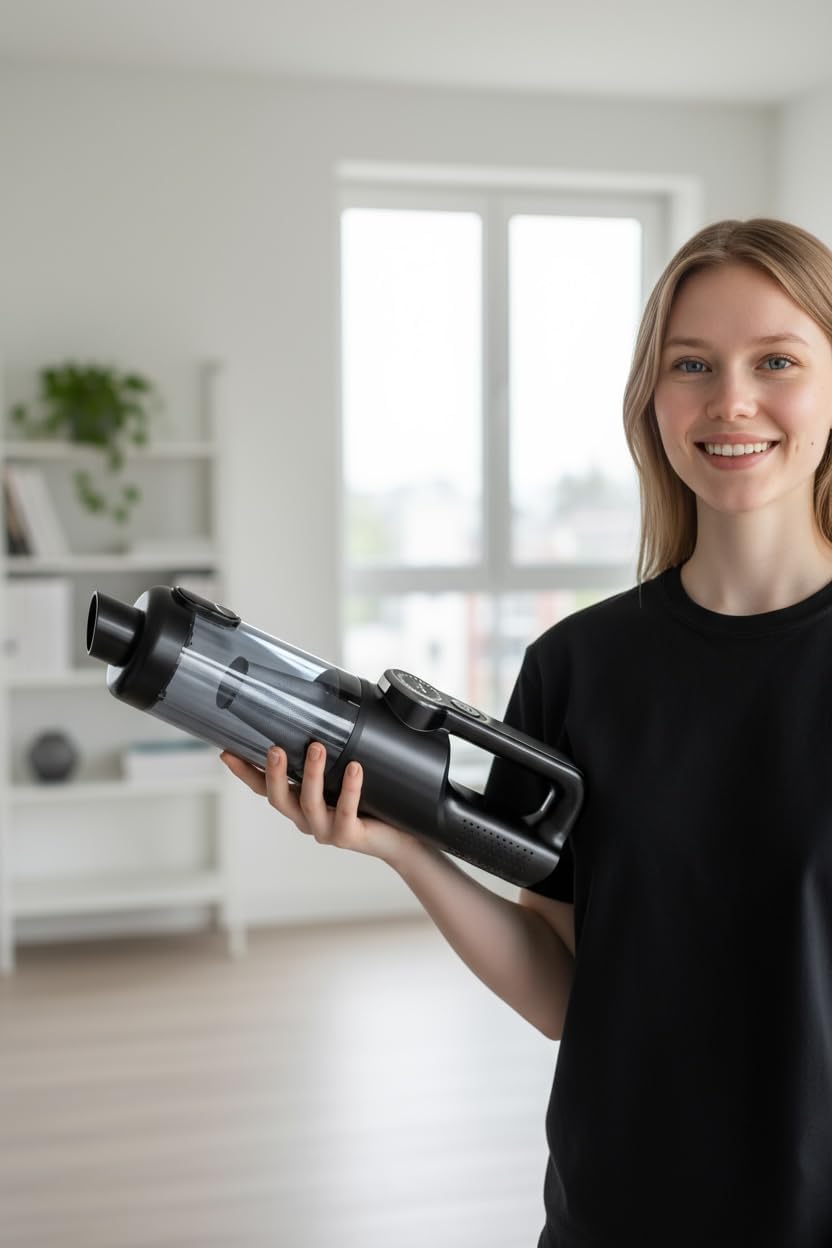

Rajah 1: The ST-126 Plus handheld vacuum cleaner, showcasing reka bentuknya yang padat.

Rajah 2: Digital display screen for real-time monitoring of battery level and power modes.

5. Persediaan

5.1 Charging the Vacuum Cleaner

1. Connect the Type-C charging cable to the charging port on the vacuum cleaner.
2. Plug the other end of the cable into a compatible USB power adapter (DC5V/2A recommended).
3. The digital display will indicate the battery charging status. Charge fully before first use.

5.2 Memasang Aksesori

Select the appropriate nozzle or brush for your cleaning task and firmly attach it to the suction inlet of the vacuum cleaner.

6. Arahan Operasi

6.1 Kuasa Hidup/Mati dan Pemilihan Mod

1. Press the power button to turn on the vacuum cleaner. It will typically start in ECO mode.
2. Press the power button again to switch to BOOST mode for maximum suction power.
3. Tekan butang kuasa untuk kali ketiga untuk mematikan pembersih vakum.

6.2 Menggunakan Lampiran Pembersihan

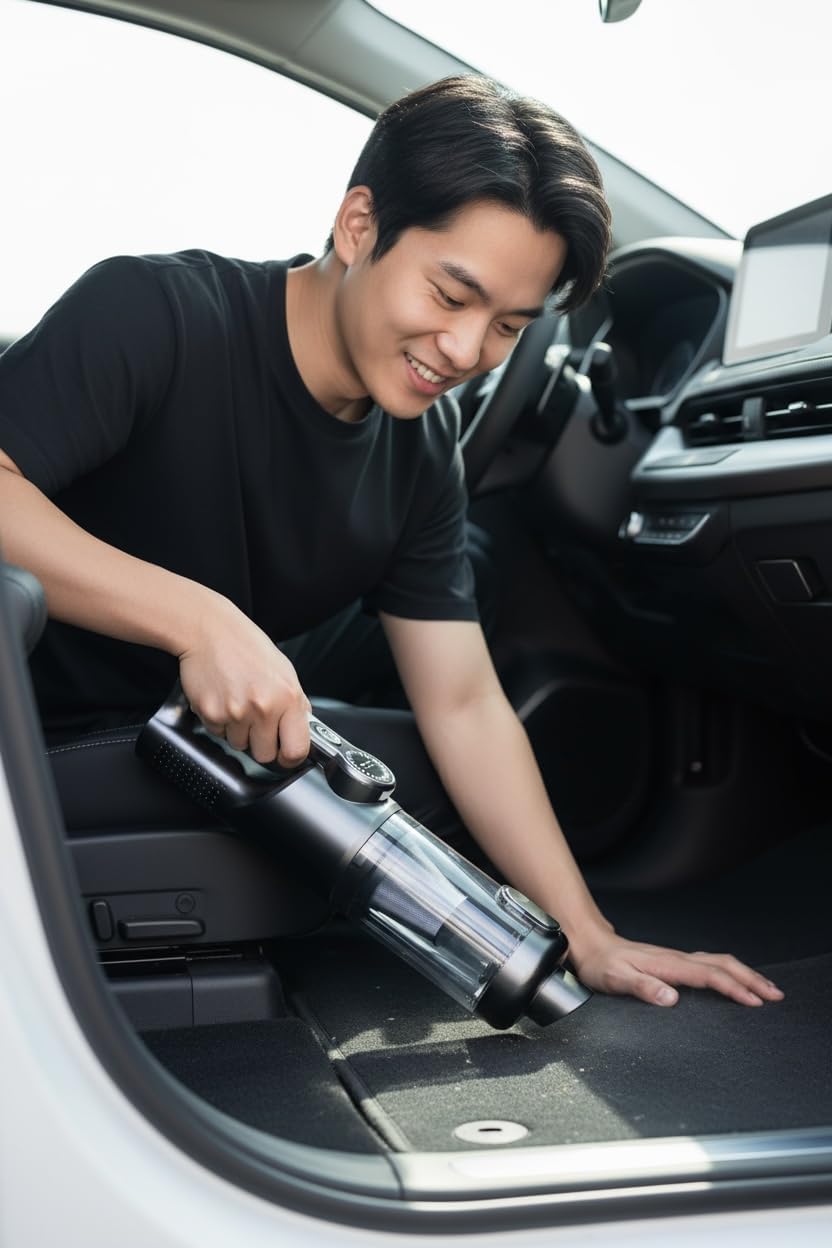

Rajah 3: The ST-126 Plus is ideal for cleaning car interiors.

• Long Flat Nozzle + Brush: This combination is effective for reaching narrow spaces, car door gaps, window corners, and other blind spots.

Rajah 4: Using the long flat nozzle and brush for detailed cleaning.

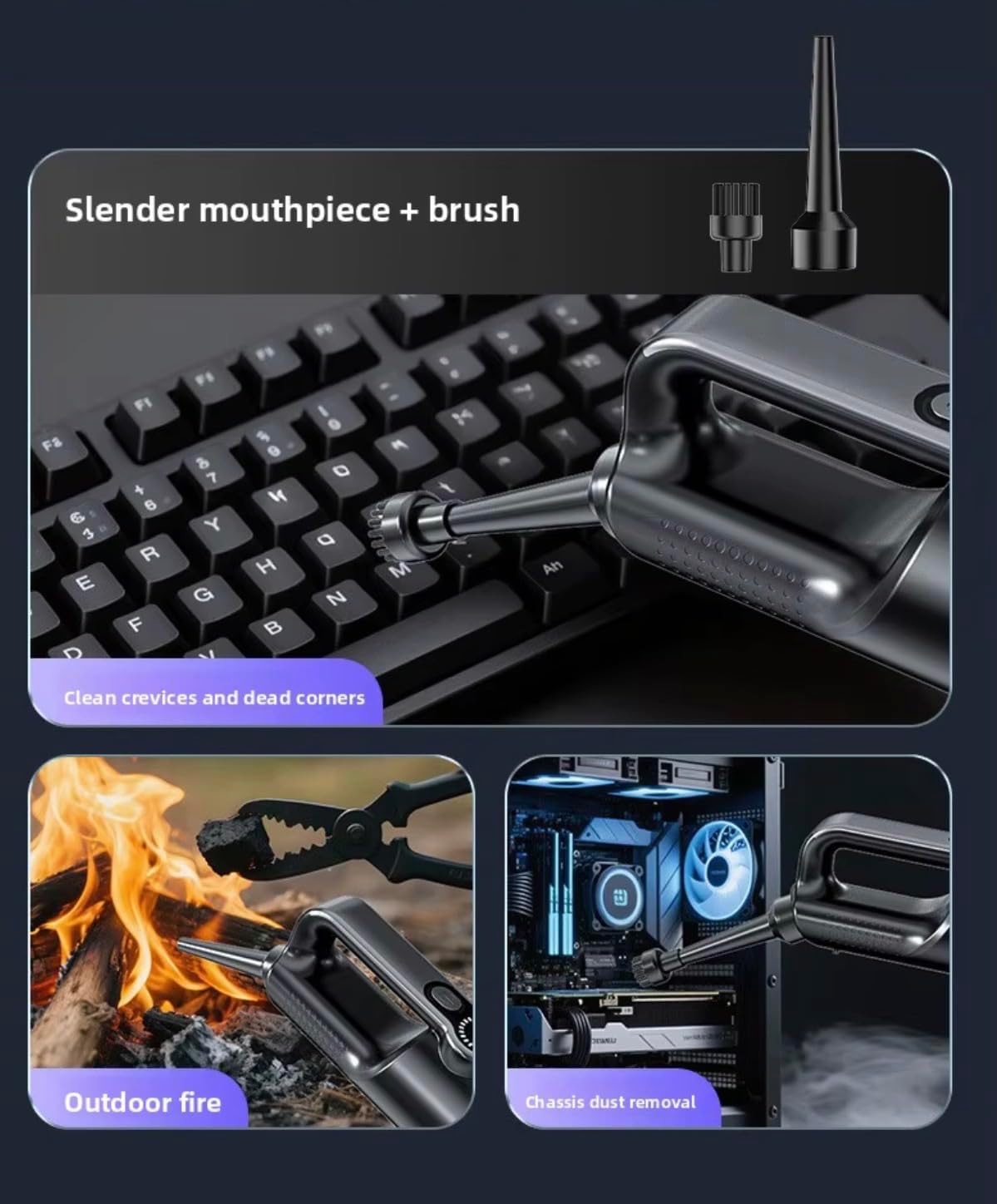

• Slender Mouthpiece + Brush: Use this for delicate tasks such as cleaning keyboard crevices, removing dust from computer chassis, or assisting with outdoor fire ignition by providing airflow.

Rajah 5: Versatile use of the slender mouthpiece and brush.

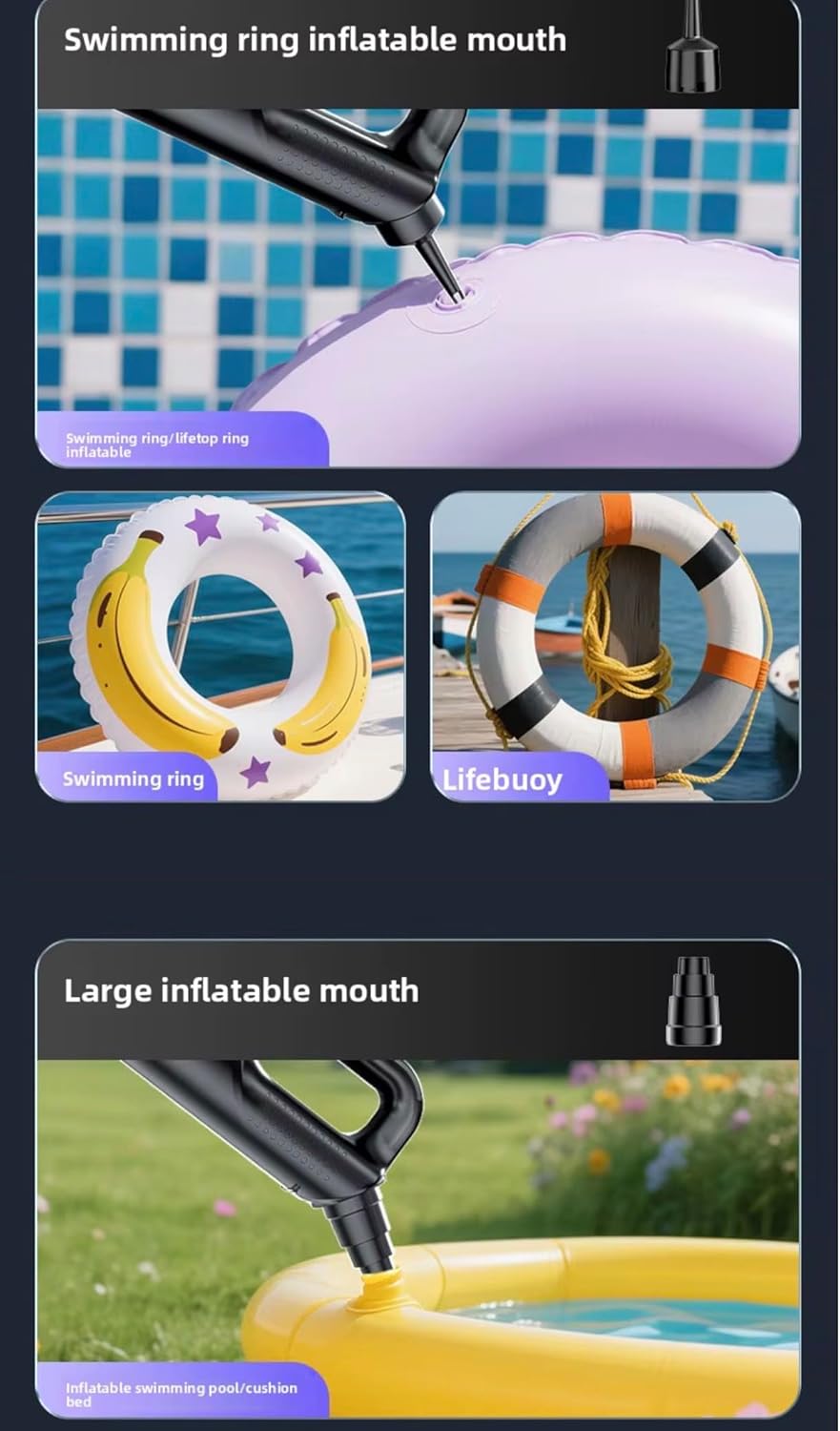

6.3 Using Inflatable Nozzles

The ST-126 Plus also functions as an air blower for inflation tasks.

• Swimming Ring Inflatable Mouth: Use for inflating small items like swimming rings or lifebuoys.
• Large Inflatable Mouth: Suitable for larger inflatables such as swimming pools or cushion beds.

Rajah 6: Inflatable nozzles for various items.

7. Penyelenggaraan

7.1 Mengosongkan Tong Sampah

Empty the dustbin regularly to maintain optimal suction power.

1. Pastikan pembersih vakum dimatikan.
2. Twist or unlatch the dustbin from the main unit.
3. Carefully empty the collected debris into a trash receptacle.

Rajah 7: Emptying the dustbin.

7.2 Membersihkan Penapis Boleh Dibasuh

The HEPA filter is washable and reusable. Clean it periodically to ensure efficient filtration and suction.

1. Keluarkan penapis dari tong sampah.
2. Bilas penapis di bawah air yang mengalir sehingga bersih.
3. Allow the filter to air dry completely before reinserting it into the dustbin. Do not use the vacuum with a wet filter.

8. Penyelesaian masalah

• Tiada Kuasa: Ensure the battery is charged. Check the charging cable and adapter.
• Penyedutan lemah: Empty the dustbin. Clean or replace the filter. Check for blockages in the nozzle or suction inlet.
• Bunyi Luar Biasa: Check for any foreign objects caught in the vacuum or attachments. Ensure all parts are securely assembled.
• Hayat Bateri Pendek: Ensure the unit is fully charged. Battery performance may decrease over time with prolonged use.

9. Spesifikasi

10. Waranti dan Sokongan

Untuk maklumat waranti dan sokongan pelanggan, sila rujuk dokumentasi yang diberikan semasa pembelian atau hubungi peruncit anda. Simpan bukti pembelian anda untuk sebarang tuntutan waranti.
