pengenalan
This manual provides detailed instructions for the assembly, operation, and maintenance of your CASAINC BASE-36W x 34.5H x 24D Kitchen Base Cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
The CASAINC kitchen base cabinet is designed for durability and functionality, featuring solid wood and plywood construction, HDF panels for stability, and soft-close doors for quiet operation. Its dimensions are 36 inches wide, 34.5 inches high, and 24 inches deep, providing ample storage for your kitchen needs.

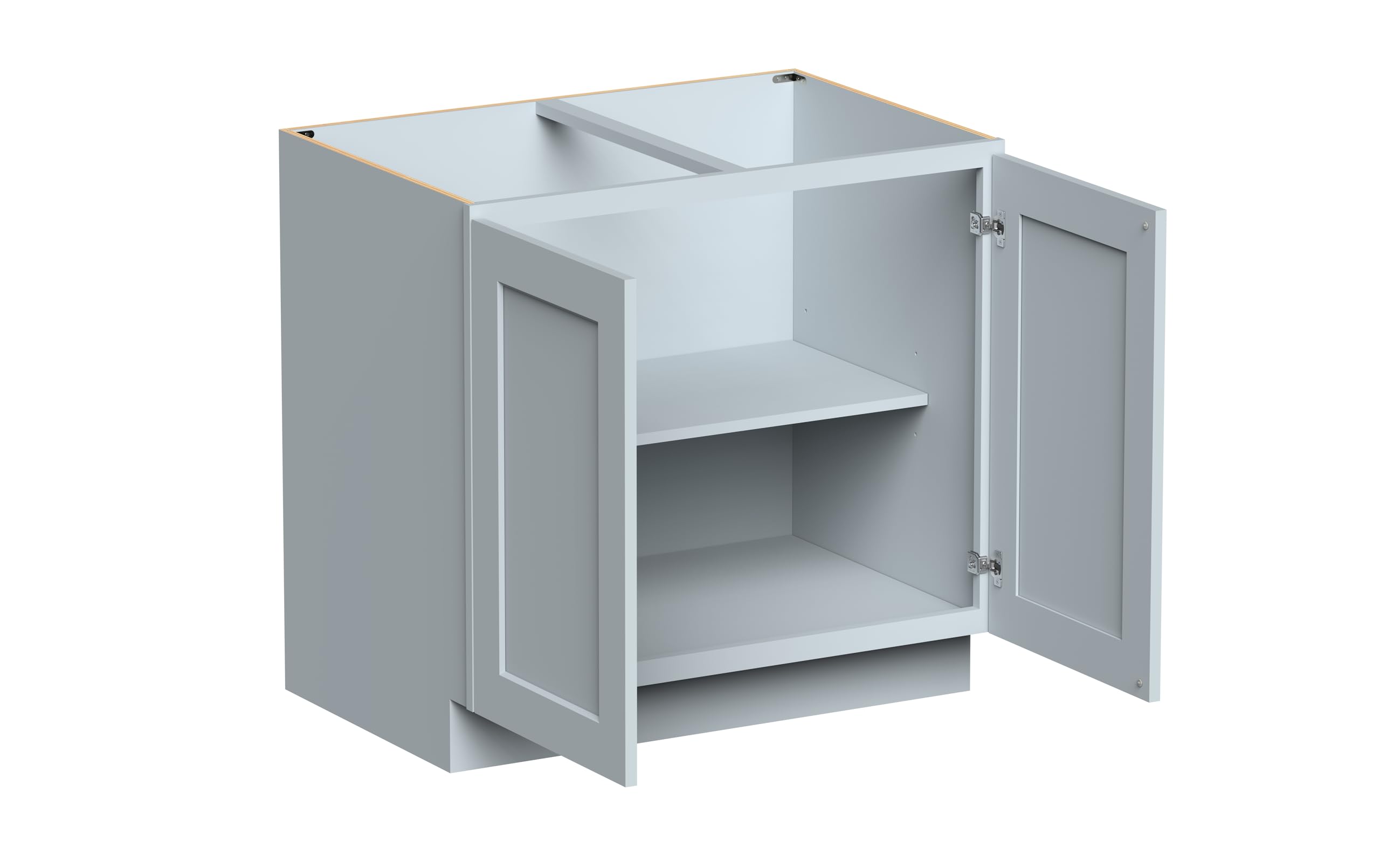

Imej: Bersudut view of the CASAINC BASE-36W x 34.5H x 24D kitchen base cabinet, providing a comprehensive look at its design and grey finish.
Maklumat Keselamatan
WARNING: Failure to follow these safety instructions could result in injury or property damage.
- Sentiasa pasang kabinet di atas permukaan yang bersih, rata dan lembut untuk mengelakkan calar.
- Pastikan semua perkakasan diketatkan dengan kukuh sebelum digunakan. Periksa secara berkala dan ketatkan semula jika perlu.
- Jangan membebankan rak. Agihkan berat secara merata.
- Jauhkan bahagian dan perkakasan kecil daripada kanak-kanak semasa pemasangan.
- Gunakan alat yang sesuai seperti yang dinyatakan dalam arahan pemasangan.
- If mounting to a wall, ensure proper wall anchors are used for your wall type. Consult a professional if unsure.
Kandungan Pakej
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact CASAINC customer support.
| item | Penerangan | Kuantiti |
|---|---|---|
| A | Panel Sisi | 2 |
| B | Panel Bawah | 1 |
| C | Kembali Panel | 1 |
| D | Front Frame/Stiles | Macam-macam |
| E | Pintu | 2 |
| F | Rak boleh laras | 1 |
| G | Engsel Tutup Lembut | 4 |
| H | Hardware Kit (screws, dowels, shelf pins, etc.) | 1 set |
Persediaan dan Perhimpunan
The CASAINC kitchen base cabinet is designed for easy assembly with pre-drilled holes and included tools. Follow these steps carefully:
Langkah 1: Buka Pembungkusan dan Kenalpasti Bahagian
Carefully unpack all components and lay them out on a soft, clean surface. Refer to the "Package Contents" list to ensure all parts are present.
Imej: Utama view of the CASAINC BASE-36W x 34.5H x 24D kitchen base cabinet, showing its two doors and grey finish. This image represents the fully assembled product, which helps in identifying the parts during unpacking.
Step 2: Assemble the Cabinet Box
- Attach the side panels (A) to the bottom panel (B) using the provided screws and dowels. Ensure the pre-drilled holes align.
- Slide the back panel (C) into the grooves on the side and bottom panels. Secure with small nails or screws if provided.
- Attach the remaining side panel (A) to complete the basic box structure.
Step 3: Install the Front Frame
Secure the front frame/stiles (D) to the assembled cabinet box using screws. This provides structural integrity and a finished look.
Step 4: Attach Doors and Hinges
- Attach the soft-close hinges (G) to the doors (E) using the short screws.
- Align the hinges with the pre-drilled holes on the cabinet frame and secure the doors. Adjust hinges as needed for proper door alignment and gap.
Imej: Depan view of the CASAINC kitchen base cabinet, focusing on the two flat panel doors and their grey finish.
Langkah 5: Pasang Rak
Insert the shelf pins into the desired height holes inside the cabinet. Place the adjustable shelf (F) onto the pins.
Step 6: Final Placement
Carefully move the assembled cabinet to its desired location. Ensure it is level. If necessary, use shims to stabilize the cabinet.
Arahan Operasi
Your CASAINC kitchen base cabinet is designed for convenient storage. Here are some operational guidelines:
- Pintu Tutup Lembut: The cabinet features soft-close hinges. Gently push the doors to close them; they will automatically slow down and close quietly. Avoid forcing them shut.
- Rak boleh laras: The interior shelf can be adjusted to different heights to accommodate various items. To adjust, remove items, lift the shelf, reposition the shelf pins to new holes, and then place the shelf back.
- Kapasiti Storan: Distribute items evenly across the shelf and within the cabinet to maintain balance and prevent strain on the structure.
Penyelenggaraan
Proper care will extend the life and appearance of your CASAINC kitchen base cabinet:
- Pembersihan: Lap permukaan dengan lembut, damp cloth. For stubborn stains, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive scrubbers, which can damage the finish.
- Tumpahan: Clean up spills immediately to prevent moisture damage, especially on wood and HDF panels.
- Perkakasan: Periodically check all screws and fasteners for tightness. Re-tighten as needed to ensure stability.
- Keadaan Persekitaran: Avoid placing the cabinet in direct sunlight or near extreme heat sources, which can cause fading or warping. Maintain a stable humidity level in the room.
Menyelesaikan masalah
Jika anda menghadapi sebarang masalah dengan kabinet anda, rujuk kepada penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Pintu tidak sejajar atau tidak ditutup dengan betul. | Engsel longgar atau tidak dilaraskan dengan betul. | Adjust the screws on the soft-close hinges to align the doors. Refer to hinge manufacturer's instructions for specific adjustment points. Ensure all hinge screws are tight. |
| Kabinet berasa goyah atau tidak stabil. | Perkakasan longgar atau lantai tidak rata. | Check and tighten all assembly screws. Ensure the cabinet is on a level surface; use shims if necessary to stabilize. |
| Shelf sags or is not secure. | Shelf pins are not fully inserted or shelf is overloaded. | Ensure shelf pins are fully seated in the holes. Reduce the weight on the shelf and distribute items evenly. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | BASE-36W x 34.5H x 24D |
| Dimensi (W x H x D) | 36" x 34.5" x 24" |
| bahan | Solid Wood and Plywood (Frame), HDF Panel (Stability) |
| warna | Kelabu |
| Gaya Pintu | Panel Rata |
| Engsel | Lembut-Dekat |
| Perhimpunan Diperlukan | ya |
| Jenis Pemasangan | Lantai Lantai |
Maklumat Waranti
CASAINC products are manufactured to high-quality standards. For specific warranty details regarding your kitchen base cabinet, please refer to the warranty card included with your purchase or visit the official CASAINC webtapak. Simpan bukti pembelian anda untuk sebarang tuntutan waranti.
Sokongan Pelanggan
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact CASAINC customer support:
- dalam talian: Lawati pegawai Kedai CASAINC di Amazon untuk Soalan Lazim dan pilihan hubungan.
- E-mel/Telefon: Refer to the contact information provided in your product packaging or on the CASAINC webtapak.
Please have your model number (BASE-36W x 34.5H x 24D) and purchase date ready when contacting support.
