Proxicast MSNswitch MAX UIS-801bc 2-Outlet Internet Enabled Power Switch User Manual

1. Pengenalan

The Proxicast MSNswitch MAX UIS-801bc is a 2-outlet internet-enabled power switch designed to provide advanced power management and control for your electronic devices. It features automatic reboot capabilities for network equipment, real-time power metering, surge protection, and noise filtration. Control is accessible via a smartphone application, web browser, or API, offering flexible management options for various environments.

Figure 1: Proxicast MSNswitch MAX UIS-801bc Product Overview

2. Ciri-ciri Produk

The MSNswitch MAX UIS-801bc offers a robust set of features for reliable power control and network stability:

• Automatic & Scheduled Power Cycles: Configure the device to automatically power cycle unresponsive equipment or set specific schedules.
• Pemeteran Kuasa: Monitor real-time power consumption for connected devices.
• Surge Protection & Noise Filtration: Protect connected equipment from power fluctuations and electrical noise.
• Auto Reboot for Internet Self-Healing: Automatically reboots modems and routers upon detection of internet connection loss.
• Kawalan Jauh: Manage power outlets from anywhere using the ezDevice smartphone app, web browser, or API.
• Ethernet & Wi-Fi Connectivity: Flexible network connection options.
• Resettable Breaker: Pemutus litar bersepadu untuk perlindungan beban lampau.

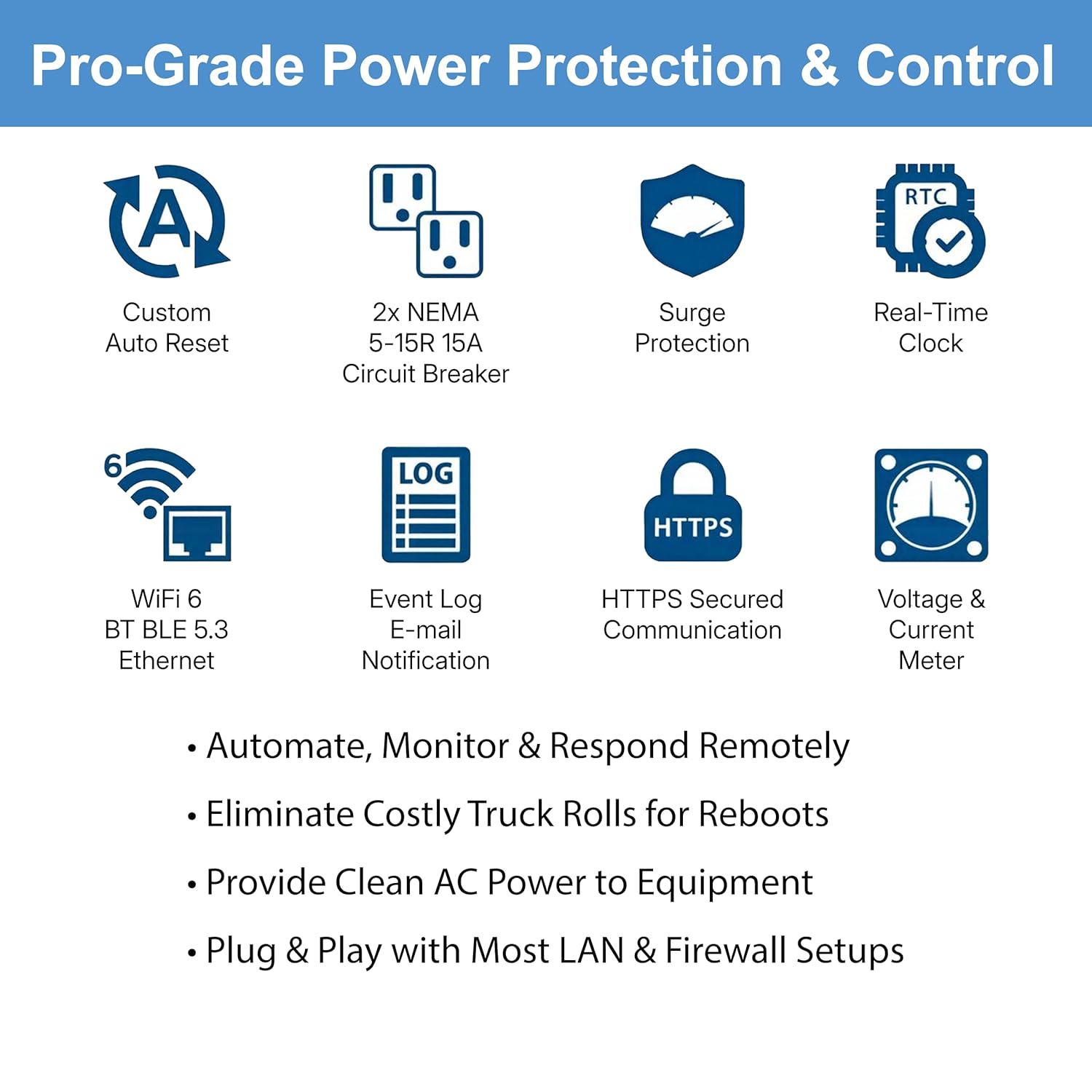

Figure 2: Key Features of the MSNswitch MAX

3. Arahan Persediaan

3.1 Perkakasan Selesaiview

Familiarize yourself with the physical components of your MSNswitch MAX:

Figure 3: MSNswitch MAX Hardware Features

• Tetapan semula kilang: Butang untuk memulihkan tetapan lalai.
• Pelabuhan RJ45: For Ethernet network connection.
• Penunjuk LED: Provide status for Cloud Link, Internet, and Outlet activity.
• Outlets #1 & #2: Standard NEMA 5-15R outlets for connecting devices.
• Pemutus litar: Resettable protection against overcurrent.
• Surge Protected Power Input: Main power connection for the unit.
• Butang Kuasa: Controls power to the outlets.

3.2 Sambungan Awal

1. Sambungan Kuasa: Plug the MSNswitch MAX into a standard 120V AC power outlet.
2. Sambungan Rangkaian: Connect the MSNswitch MAX to your network using either the RJ45 Ethernet port or configure Wi-Fi connectivity (refer to the device's web interface for Wi-Fi setup).
3. Sambungan Peranti: Plug the devices you wish to control into Outlet #1 and/or Outlet #2. For auto-reboot functionality, connect your modem to one outlet and your router to the other, or both to separate outlets if applicable.

Figure 4: Typical Network Setup with MSNswitch MAX

3.3 Mengakses Peranti

The MSNswitch MAX can be accessed and configured through multiple methods:

• ezDevice Smartphone App: Download the free ezDevice app for iOS or Android to control and monitor your switch remotely.
• Cloud4UIS.com Web Perkhidmatan: Access the Cloud4UIS management portal via a web browser for comprehensive control and monitoring.
• Dalaman Web Pelayan: Access the device's password-protected web interface directly via its local IP address on your network.
• HTTP REST API: For advanced users and integration into custom systems.

4. Arahan Operasi

4.1 Automatic Internet Self-Healing (Auto Reboot)

The MSNswitch MAX can automatically detect internet outages and power cycle your modem and/or router to restore connectivity.

1. Konfigurasi: Configure the auto-reset settings via the ezDevice app, Cloud4UIS portal, or local web interface. You can specify target IP addresses for ping tests to determine internet connectivity.
2. Operasi: If the internet connection is lost (ping timeout), the MSNswitch MAX will automatically power cycle the designated outlets (e.g., Outlet #1 for modem, Outlet #2 for router).
3. Pemberitahuan: The device can be configured to send email notifications when an auto-reboot event occurs.

Figure 5: Auto Reset Modem/Router Functionality

4.2 Kawalan Kuasa Jauh

Control your connected devices from anywhere using the available management platforms:

• ezDevice App: Use the intuitive smartphone app to toggle outlets on/off, view status, and manage settings.
• Cloud4UIS.com: The web portal provides a comprehensive interface for managing multiple MSNswitch devices, setting schedules, and monitoring data.
• Tempatan Web Antara muka: Access the device directly on your local network for control without cloud dependency.

Figure 6: Control Options for MSNswitch MAX

Figure 7: Cloud4UIS Management Portal Interface

4.3 Power Monitoring & Alarming

The MSNswitch MAX provides detailed power consumption data for each outlet:

• Data masa nyata: View semasa, voltage, dan wattage for each connected outlet.
• Makluman: Configure alerts for power fluctuations or when consumption exceeds predefined thresholds.
• Data Sejarah: Access historical power usage logs through the management portal.

Figure 8: Power Monitoring and Alarming Data

4.4 Scheduled Power Cycling

Automate power control by setting up schedules for your outlets:

• Event-Based Schedules: Program outlets to turn on/off at specific times or days.
• Proactive Reboots: Schedule regular reboots for devices to maintain optimal performance.

5. Penyelenggaraan

To ensure optimal performance and longevity of your MSNswitch MAX:

• Kemas kini Firmware: Regularly check for and apply firmware updates through the Cloud4UIS management portal or local web interface. These updates often include performance improvements and security enhancements.
• Pembersihan: Keep the device clean and free from dust. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
• Keadaan Persekitaran: Ensure the device is operated within its specified temperature and humidity ranges (refer to Specifications section).
• Pemutus litar: If the circuit breaker trips, disconnect some devices, then press the breaker button to reset. Investigate the cause of the overload.

6. Penyelesaian masalah

If you encounter issues with your MSNswitch MAX, consider the following:

• Peranti Tidak Membalas:
  • Check power connection and ensure the unit is receiving power.
  • Verify network connectivity (Ethernet cable or Wi-Fi signal). The Internet LED should be active.
  • Attempt to access the device via its local IP address if cloud access is unavailable.
  • Perform a soft reboot by unplugging and replugging the unit.
• Auto Reboot Not Working:
  • Ensure the auto-reset feature is enabled and correctly configured in the settings.
  • Verify the target IP addresses for ping tests are correct and reachable when the internet is functional.
  • Check that the modem/router is connected to the correct outlet(s) designated for auto-reboot.
• Outlets Not Switching:
  • Check the circuit breaker on the unit; if tripped, reset it.
  • Ensure the device is not in a scheduled 'off' state or an auto-reboot cycle.
  • Test with a different device to rule out issues with the connected appliance.
• Cannot Connect to Cloud4UIS / ezDevice App:
  • Confirm your MSNswitch MAX has active internet access (Internet LED).
  • Ensure your smartphone or computer has internet access.
  • Verify your login credentials for the Cloud4UIS portal or ezDevice app.

For further assistance, refer to the manufacturer's support resources.

7. Spesifikasi

Detailed technical specifications for the Proxicast MSNswitch MAX UIS-801bc:

Figure 9: MSNswitch MAX Dimensions

8. Waranti dan Sokongan

For information regarding product warranty, technical support, and additional resources, please visit the official Proxicast weblaman web atau hubungi khidmat pelanggan mereka secara langsung. Butiran biasanya terdapat dalam pembungkusan produk atau pada halaman sokongan pengeluar.
