KU XIU X40 Turbo 3-in-1 Magnetic Wireless Charging Station User Manual

Maklumat Keselamatan Penting

Please read all instructions carefully before using this product. Failure to follow these instructions may result in electric shock, fire, or other hazards.

Do not expose the device to liquids, moisture, or extreme temperatures.
Jangan buka, baiki atau ubah suai produk.
Jauhkan daripada kanak-kanak.
Use only the provided 45W USB-C GaN Adapter and USB-C Charging Cable.
Pastikan pengudaraan yang betul semasa digunakan.

Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej anda:

X40 Turbo 3-in-1 Charging Station ×1
45W USB-C GaN Adapter ×1
Kabel Pengecas USB-C ×1
Beg simpanan ×1
Manual Pengguna ×1

Produk Selesaiview

The KU XIU X40 Turbo is a versatile 3-in-1 magnetic wireless charging station designed for Apple devices. It features Qi2.2 fast charging for compatible iPhones, along with dedicated charging spots for Apple Watch and AirPods. Its foldable design enhances portability and allows for various viewsudut-sudut.

KU XIU X40 Turbo 3-in-1 Charging Station in folded and unfolded states

Image: The X40 Turbo charging station shown in both its compact, folded state and its expanded, upright charging configuration, highlighting its portability and versatility.

Arahan Persediaan

Sambungkan Penyesuai Kuasa: Insert the USB-C end of the provided charging cable into the USB-C port on the X40 Turbo charging station. Plug the other end of the cable into the provided 45W USB-C GaN Adapter, then plug the adapter into a wall outlet.
Buka lipatan Pengecas: Gently unfold the charging station to your desired configuration. It can be used in a flat mode or an upright stand mode for optimal viewing.
penempatan: Letakkan stesen pengecas di atas permukaan yang stabil dan rata.

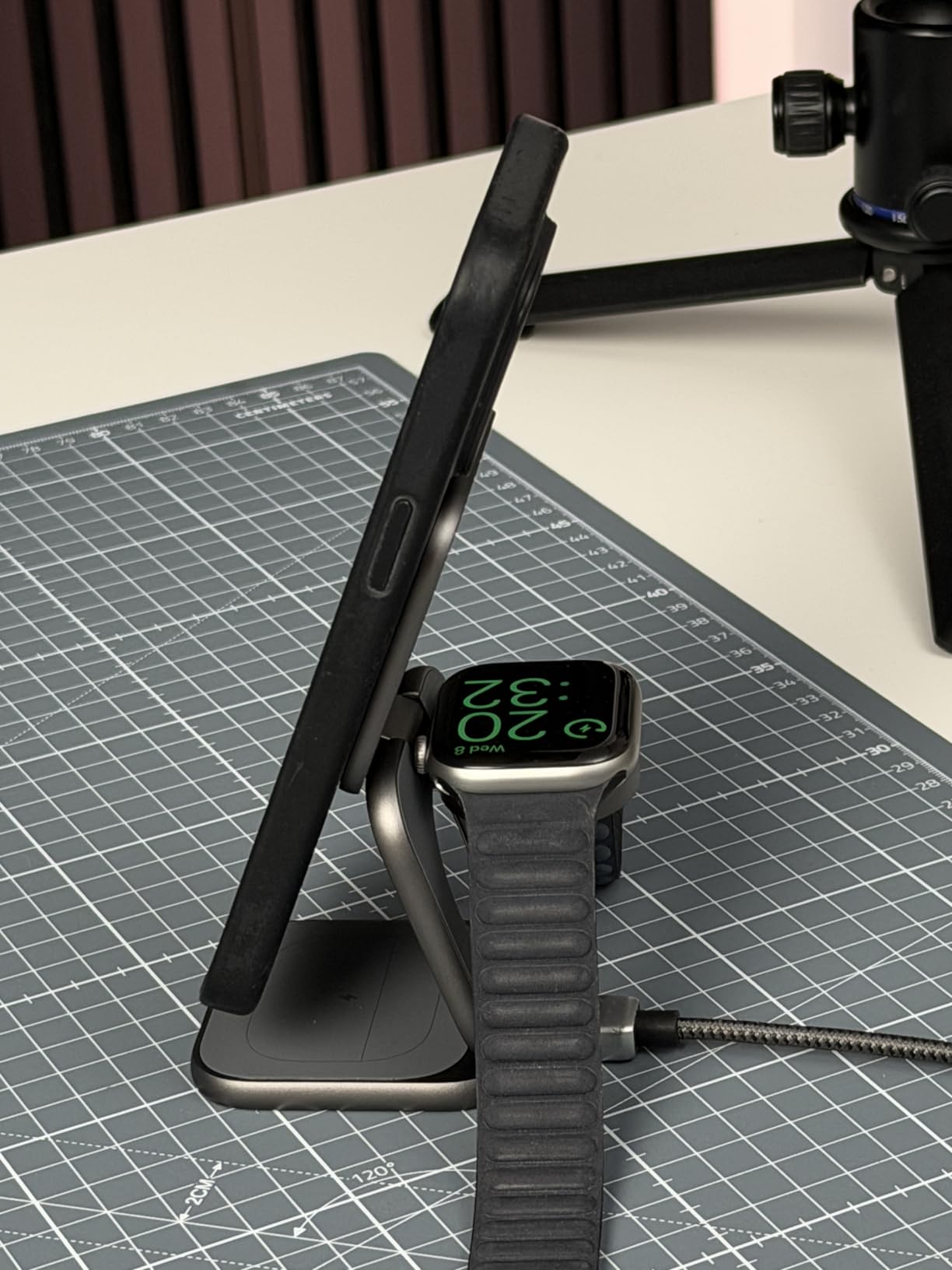

KU XIU X40 Turbo connected to power adapter

Image: The X40 Turbo charging station with the USB-C cable connected to the power adapter, illustrating the initial setup step.

Arahan Operasi

Mengecas Peranti Anda

For iPhone (Magnetic Charging Pad): Align your compatible iPhone (iPhone 12-17 series) with the magnetic charging pad. The strong N52 magnets will ensure precise alignment. Charging will begin automatically.
For Apple Watch (Watch Charging Module): Place your Apple Watch on the dedicated watch charging module. Ensure the watch is properly seated for charging to initiate.
For AirPods (Base Charging Pad): Place your AirPods (with wireless charging case) on the base charging pad.

The charging station allows simultaneous charging of all three devices. An LED indicator (if present, refer to product for specific location) typically illuminates to confirm charging status.

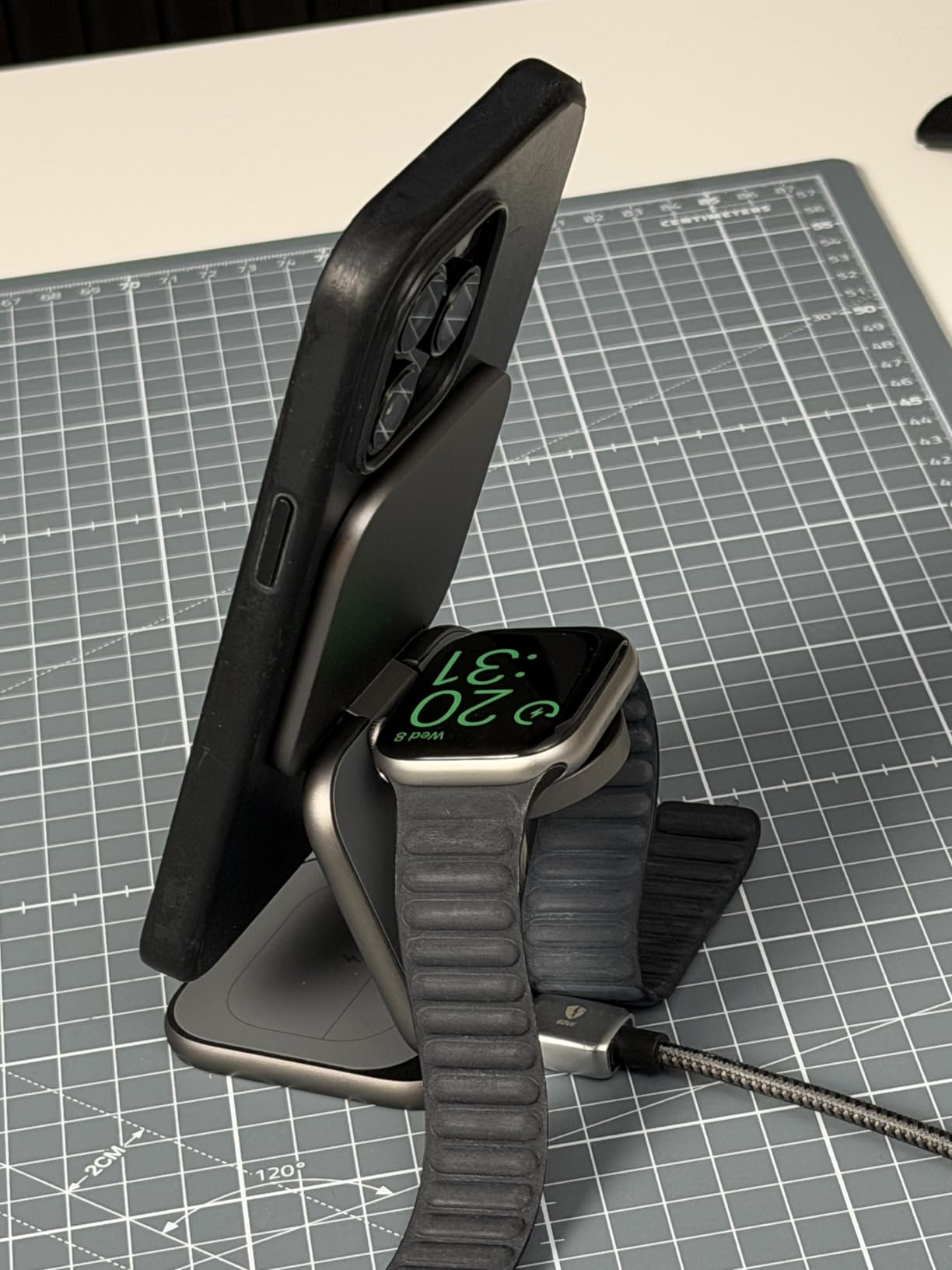

KU XIU X40 Turbo charging iPhone, Apple Watch, and AirPods

Image: The X40 Turbo charging station actively charging an iPhone, Apple Watch, and AirPods simultaneously, demonstrating its 3-in-1 functionality.

Reka Bentuk Boleh Laras

The X40 Turbo features an adjustable hinge, allowing it to be used in various orientations:

Mod Rata: For compact storage or when a low profile diutamakan.
Mod Berdiri: For upright viewing of your iPhone in portrait or landscape orientation while charging.

Keserasian

The KU XIU X40 Turbo is compatible with a wide range of devices:

iPhone:
- Qi2.2 25W: iPhone 17/16 Series, Pixel 10 Pro XL
- Qi2.2 20W: iPhone Air (2025)
- Qi2 15W: iPhone 12-15 Series (including mini, Pro, Pro Max models), Pixel 10/10 Pro/10 Pro Fold
Apple Watch (Max 5W): Ultra 3/2/1, SE 1-3, Series 4-11
AirPods (Max 5W): 2/3/4/Pro/Pro 2 (with Wireless Charging Case/ANC)

Penyelenggaraan

Pembersihan: Disconnect the charger from the power source before cleaning. Use a soft, dry, lint-free cloth to wipe the surface. Do not use abrasive cleaners, solvents, or chemical sprays.
Storan: When not in use, store the charging station in a cool, dry place, preferably in its original storage pouch to protect it from dust and scratches.
Pengendalian: Avoid dropping or subjecting the device to strong impacts. The aluminum construction is durable but can be damaged by excessive force.

Menyelesaikan masalah

Masalah	Penyelesaian yang Mungkin
Peranti tidak dicas.	Ensure the power adapter is securely plugged into both the wall outlet and the charging station. Verify that you are using the provided 45W USB-C GaN Adapter and cable. Check if your device is properly aligned on the charging pad (especially for magnetic charging). Keluarkan sebarang sarung telefon tebal yang mungkin mengganggu pengecasan wayarles. Restart the charging station by unplugging and re-plugging the power adapter.
Pengecasan perlahan.	Ensure your device supports fast wireless charging and is compatible with Qi2.2. Confirm you are using the provided 45W GaN adapter, as lower wattagPenyesuai elektronik boleh menyebabkan pengecasan lebih perlahan. Elakkan mengecas dalam persekitaran yang terlalu panas, kerana ini boleh mencetuskan perlindungan haba dan memperlahankan pengecasan.
Penunjuk LED tidak berfungsi.	Periksa sambungan kuasa. If the device is charging correctly despite the LED, contact customer support.
Device gets warm during charging.	It is normal for wireless chargers and devices to become slightly warm during charging. If the device becomes excessively hot, remove it immediately and contact customer support. Pastikan pengudaraan yang mencukupi di sekitar stesen pengecasan.

Spesifikasi

Nombor Model	X40 Turbo (YSEU-X40T-HEI)
Jenama	KU XIU
Wireless Charging Standard	Qi2.2
Max iPhone Output	25W (Qi2.2)
Max Apple Watch Output	5W
Max AirPods Output	5W
Penyesuai Disertakan	45W USB-C GaN Adapter
Jenis Penyambung	USB Jenis C
bahan	Aluminium, Silikon
Berat Barang	210 Gram
Ciri Khas	Magsafe Compatible, Foldable

Waranti dan Sokongan

The KU XIU X40 Turbo 3-in-1 Charging Station comes with a Waranti 24 bulan from the date of purchase. This warranty covers manufacturing defects and ensures reliable performance under normal use.

For technical support, warranty claims, or any questions regarding your product, please contact KU XIU customer service through the retailer where you purchased the product or visit the official KU XIU webtapak untuk maklumat hubungan.

Sila simpan bukti pembelian anda untuk perkhidmatan waranti.
