LAPOND K100-022G1 30HP/22KW Variable Frequency Drive User Manual

1. Maklumat Keselamatan Penting

This Variable Frequency Drive (VFD) is designed for controlling three-phase asynchronous motors. Adhere to all safety precautions during installation, operation, and maintenance to prevent injury or equipment damage.

• Keserasian Motor: This VFD is ONLY applicable to three-phase asynchronous motors.
• Horsepower Selection: If your motor operates under heavy load, select a VFD with higher horsepower than your motor's rating.
• Air Compressor Application: For air compressors, due to large instantaneous starting currents, select a VFD with twice the horsepower of the motor. For example, a 2 HP compressor requires a 4 HP or 5 HP VFD.
• Soft-Start Function: The VFD provides a soft-start capability to prevent high current surges to the power grid and mechanical shock to the machine system. Do NOT start the motor directly after the VFD is powered on.
• Ensure proper grounding of the VFD and motor.
• All electrical work should be performed by qualified personnel.

2. Produk Lebihview dan Ciri

The LAPOND K100-022G1 VFD is a high-performance inverter designed for precise motor control. It features robust construction and advanced functionalities for various industrial and home applications.

Ciri-ciri Utama:

• Input/Output: 1-phase/3-phase 220VAC input (±15%, 50/60Hz); 3-phase 220VAC output (0-400Hz, 22KW).
• Keserasian Motor: Suitable for ≤25HP (18kW) 75Amps 200-230V 3-Phase Motors.
• Operasi Fleksibel: Enhanced digital/analog terminals for flexible control, supporting Mach3 function & RS-485 communication (no 485 card required), remote potentiometer, switch start/stop, and braking resistor.
• Prestasi Tinggi: Utilizes high stability, low failure rate IGBT modules, ensuring superior performance and stability with low noise.
• Penyejukan yang cekap: Built-in cooling fan and multi-grid design with copper coils ensure excellent heat dissipation and durability.
• Antara Muka Mesra Pengguna: Display and keys enable quick setup. Detachable panel allows for remote control and easy installation.
• Pembinaan Teguh: Made from flame-retardant material for high impact resistance and heat resistance.
• Full Chip Design: All internal components are designed as chips, greatly increasing the stability of the VFD.

Figure 2.1: LAPOND K100-022G1 Variable Frequency Drive unit.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• LAPOND K100-022G1 VFD Inverter
• Manual Pengguna (dokumen ini)

4. Spesifikasi

5. Pemasangan dan Pendawaian

Proper installation and wiring are crucial for the safe and efficient operation of the VFD. Refer to the following diagrams and instructions.

5.1 Terminal Control Overview

Figure 5.1: Internal terminal block for control wiring. This section includes connections for +10V, GND, RS485+, RS485-, AI1, AI2, AO1, COM, DI1, DI2, DI3.

The VFD features a comprehensive terminal block for various control inputs and outputs. These include analog inputs (AI1, AI2), analog output (AO1), digital inputs (DI1, DI2, DI3), and communication ports (RS485). Ensure all connections are secure and correctly identified according to the full wiring diagram in the detailed manual.

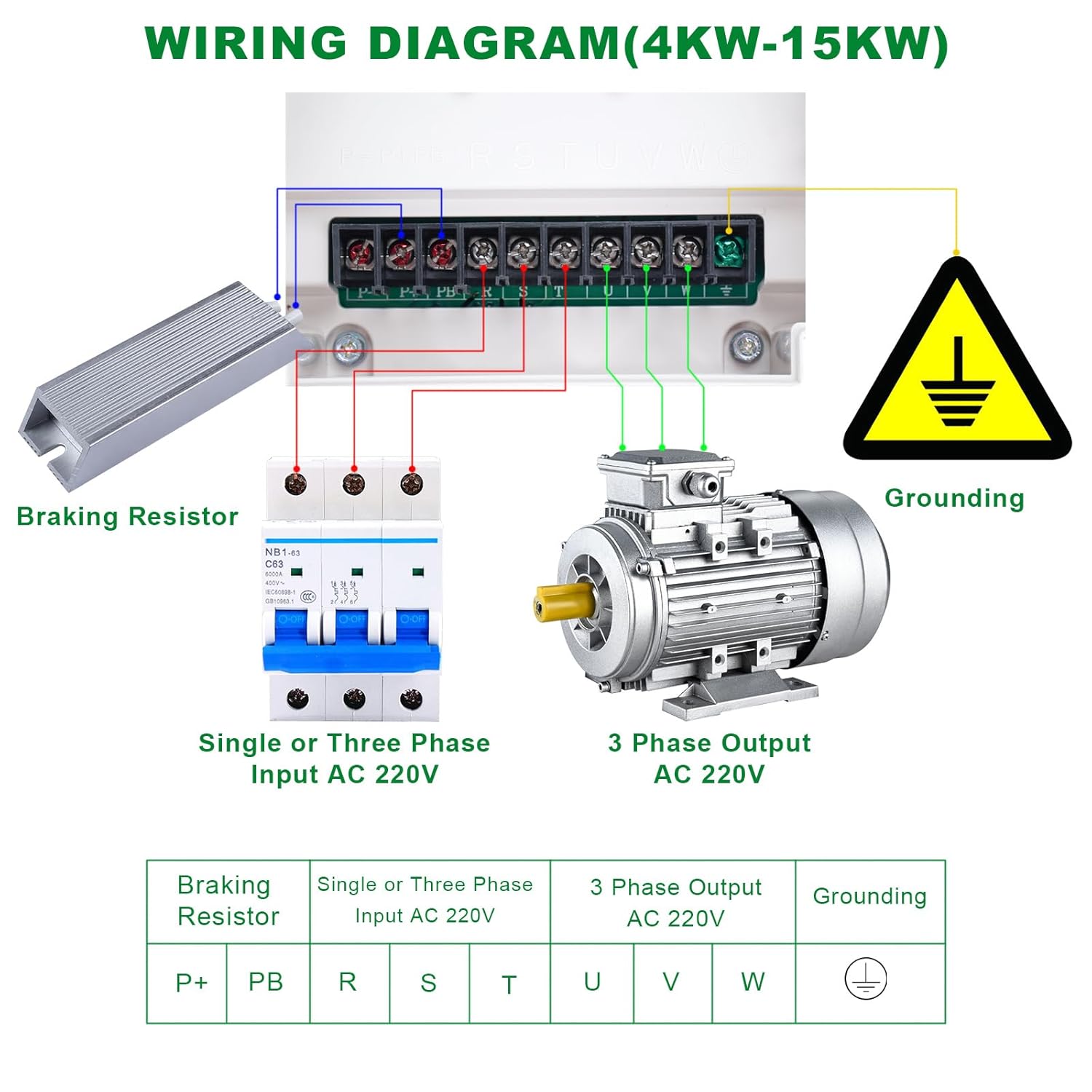

5.2 Power and Motor Wiring Diagram (4KW-15KW Example)

Gambar 5.2: Cthample wiring diagram for VFD models between 4KW and 15KW. This diagram illustrates connections for single or three-phase AC 220V input, 3-phase AC 220V output to the motor, grounding, and an optional braking resistor.

Input Power (R, S, T): Connect the AC 220V single or three-phase power supply to the R, S, T terminals. For single-phase input, connect to R and S (or R and T) as per the detailed manual. Ensure a circuit breaker is installed upstream for protection.

Output to Motor (U, V, W): Connect the three-phase motor to the U, V, W terminals. Ensure correct phase sequence for desired motor rotation.

Pembumian: Connect the grounding terminal (marked with earth symbol) to a reliable earth ground. This is critical for safety.

Braking Resistor (P+, PB): For applications requiring rapid deceleration, connect an external braking resistor between P+ and PB terminals. Refer to the VFD's specifications for appropriate resistor values.

Note: The provided diagram is an example for 4KW-15KW models. For the 22KW/30HP model, ensure to consult the specific wiring instructions in the comprehensive manual for terminal designations and current ratings.

6. Arahan Operasi

The VFD features a user-friendly control panel for setting parameters and operating the motor.

6.1 Susun atur Panel Kawalan

Rajah 6.1: Terperinci view of the VFD control panel with numbered components.

1. Frequency Knob: Adjusts the output frequency, thereby controlling motor speed.
2. RUN Key: Memulakan operasi motor.
3. STOP/RESET Key: Stops motor operation or resets fault conditions.
4. PRG (Program) Key: Enters or exits the parameter programming menu.
5. Shift Key (>>): Moves the cursor or shifts digits during parameter editing.
6. Numerical Modification Key (Up Arrow): Increases numerical values or scrolls up through menu options.
7. Numerical Modification Key (Down Arrow): Decreases numerical values or scrolls down through menu options.
8. FUNC (Function) Key: Selects according to function toggle.
9. Kunci ENTER: Confirms parameter settings or menu selections.

6.2 Langkah Operasi Asas

1. Hidupkan kuasa: Ensure all wiring is correct and secure. Apply power to the VFD.
2. Persediaan Parameter: Tekan ke PRG key to enter the parameter menu. Use the Up/Down arrow keys to navigate through parameters and the Shift key to move between digits. Use the MASUK key to confirm changes. Refer to the detailed manual for specific parameter settings (e.g., motor parameters, acceleration/deceleration times).
3. Pelarasan Kekerapan: Gunakan Frequency Knob to set the desired output frequency (motor speed).
4. Mulakan Motor: Tekan ke LARI key to start the motor. The motor will accelerate to the set frequency according to the programmed acceleration time.
5. Berhenti Motor: Tekan ke BERHENTI / RESET key to stop the motor. The motor will decelerate according to the programmed deceleration time.

For advanced functions, such as external control, Mach3 integration, or RS-485 communication, refer to the detailed programming guide in the complete user manual.

6.3 Removable Operation Panel

Figure 6.2: The VFD unit with its removable operation panel, allowing for remote control and flexible installation.

The VFD's operation panel can be detached from the main unit and mounted remotely. This feature provides flexibility in installation and allows for convenient control from a distance. Ensure the connection cable is securely attached when using the panel remotely.

7. Protections and Internal Design

The LAPOND VFD incorporates multiple protection mechanisms and a robust internal design to ensure reliable and safe operation.

7.1 Perlindungan Terbina Dalam

Figure 7.1: Visual representation of the nine protection features integrated into the VFD.

• Overvoltage Perlindungan: Perlindungan terhadap volum input yang berlebihantage.
• Undervoltage Perlindungan: Prevents operation during insufficient input voltage.
• Perlindungan lebihan arus: Protects the VFD and motor from excessive current draw.
• Perlindungan Lebihan: Monitors motor load and prevents damage from sustained overloads.
• Perlindungan Suhu: Prevents overheating of the VFD components.
• Perlindungan Modul: Protects internal power modules (IGBTs).
• Perlindungan Tanah: Ensures safety in case of ground faults.
• Perlindungan Litar pintas: Detects and reacts to short circuits in the output.
• Phase Protection: Monitors input/output phases for anomalies.

7.2 Internal Design and Cooling

Figure 7.2: Internal components and design features of the VFD, highlighting the mainboard, full chip design, flame-retardant casing, and cooling fan.

• Newest Mainboard: Features an extremely protective and fully functional mainboard.
• Full Chip Design: All internal components are designed as chips, significantly increasing the stability and reliability of the VFD.
• Bahan Kalis Api: The VFD casing is constructed from high-impact and heat-resistant flame-retardant material for enhanced safety.
• Powerful Cooling Fan: A low-noise, durable, and powerful cooling fan is integrated to ensure efficient heat dissipation, maintaining optimal operating temperatures.

8. Penyelenggaraan

Regular maintenance helps ensure the longevity and optimal performance of your VFD.

• Pembersihan: Periodically clean the VFD's exterior and cooling fan vents to prevent dust accumulation, which can hinder heat dissipation. Use a soft, dry cloth. Do not use liquid cleaners.
• Pemeriksaan: Periksa dengan kerap semua sambungan pendawaian untuk kesesakan dan tanda haus atau kerosakan. Periksa sebarang bunyi atau bau yang luar biasa semasa operasi.
• Keadaan Persekitaran: Ensure the VFD operates within its specified environmental conditions (temperature, humidity, dust level).
• Pemeriksaan Kipas: Verify that the cooling fan is operating correctly when the VFD is running. A non-functional fan can lead to overheating.
• Capacitor Life: Electrolytic capacitors have a finite lifespan. While designed for durability, consider professional inspection after several years of continuous operation.

9. Penyelesaian masalah

This section provides basic troubleshooting steps for common issues. For complex problems, consult a qualified technician or the manufacturer's support.

• VFD Does Not Power On:
  • Check input power supply and circuit breaker.
  • Verify all power wiring connections are secure.
• Motor Does Not Start:
  • Check if the VFD is displaying any fault codes. Refer to the detailed manual for fault code explanations.
  • Ensure the RUN command is active (either from the control panel or external input).
  • Verify motor wiring (U, V, W) is correct and secure.
  • Check motor parameters in the VFD settings.
• Motor Runs at Incorrect Speed:
  • Verify the frequency setting on the control panel or external potentiometer.
  • Check motor nameplate data and VFD motor parameters (e.g., rated frequency, poles).
• VFD Trips Frequently (Overcurrent, Overload, etc.):
  • Check for mechanical issues with the motor or driven equipment (e.g., binding, excessive load).
  • Ensure the VFD's horsepower rating is appropriate for the motor and application, especially for heavy loads or air compressors (as noted in Safety Information).
  • Review acceleration/deceleration times; increasing them might reduce current spikes.
  • Check for proper ventilation and ensure the cooling fan is operating.

10. Waranti dan Sokongan

Tempoh Waranti: This LAPOND VFD is covered by a Waranti 1 Tahun dari tarikh pembelian.

The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, unauthorized modifications, or external factors such as power surges or natural disasters.

For warranty claims, technical support, or service inquiries, please contact LAPOND customer service through your purchase platform or the official LAPOND website. Please have your model number (K100-022G1) and purchase details ready.
