EYEFEAT W07-1 Portable Carpet & Upholstery Spot Cleaner Instruction Manual

1. Pengenalan

Thank you for choosing the EYEFEAT W07-1 Portable Carpet & Upholstery Spot Cleaner. This manual provides essential information for the safe and effective use of your new appliance. Please read all instructions carefully before operation and retain this manual for future reference.

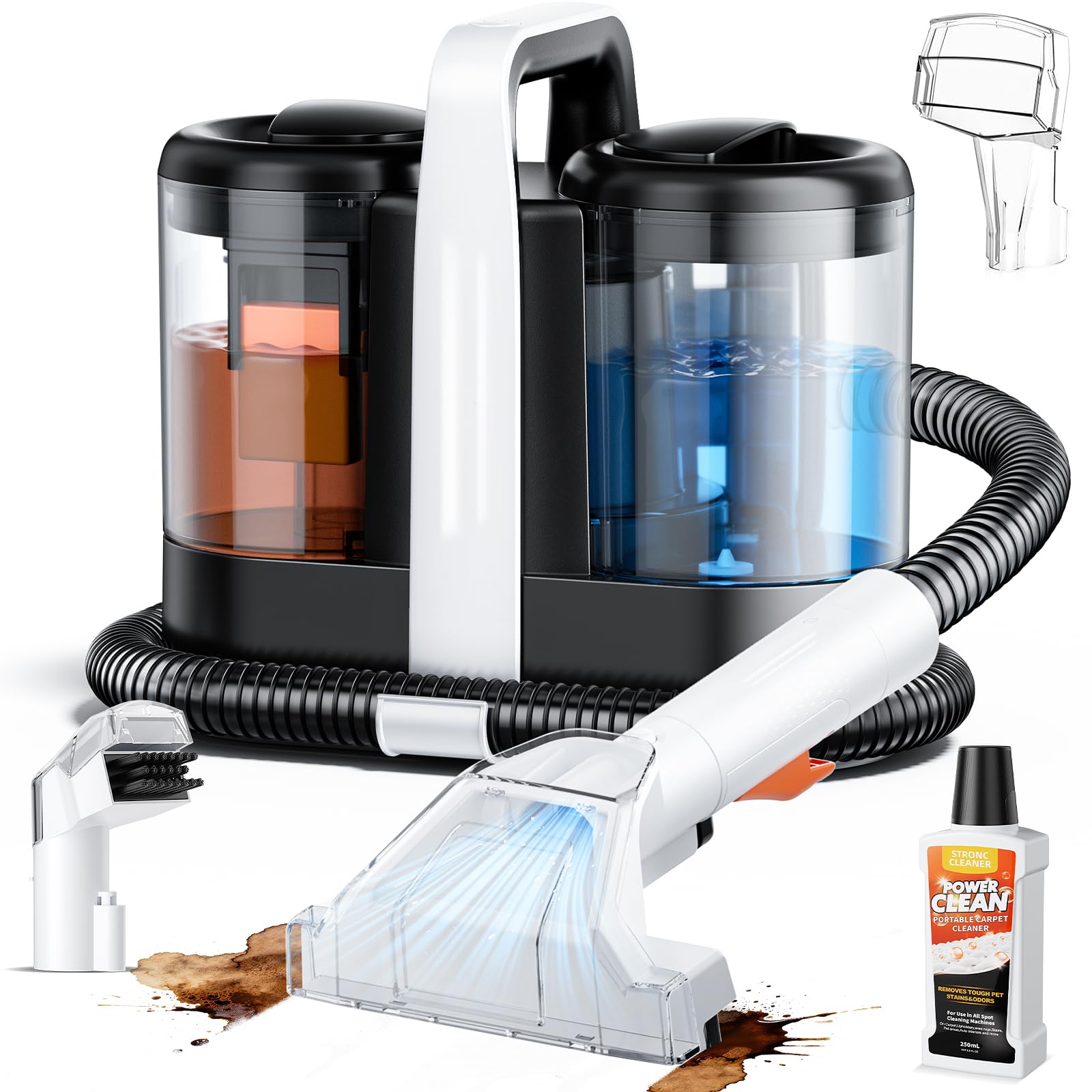

Figure 1: EYEFEAT W07-1 Portable Carpet & Upholstery Spot Cleaner.

2. Arahan Keselamatan Penting

Apabila menggunakan perkakas elektrik, langkah berjaga-jaga asas hendaklah sentiasa dipatuhi, termasuk yang berikut:

• Baca semua arahan sebelum menggunakan perkakas.
• Jangan rendamkan perkakas dalam air atau cecair lain.
• Jangan gunakan dengan kord atau palam yang rosak. Jika perkakas tidak berfungsi sebagaimana mestinya, telah terjatuh, rosak, ditinggalkan di luar atau terjatuh ke dalam air, kembalikan ke pusat servis.
• Jangan tarik atau bawa tali pusat, gunakan tali sebagai pegangan, tutup pintu pada tali, atau tarik tali di sekitar tepi atau sudut yang tajam. Jauhkan tali pusat dari permukaan yang dipanaskan.
• Jangan biarkan digunakan sebagai mainan. Perhatian yang rapi diperlukan apabila digunakan oleh atau berhampiran kanak-kanak.
• Gunakan hanya seperti yang diterangkan dalam manual ini. Gunakan hanya lampiran yang disyorkan pengilang.
• Cabut plag dari soket apabila tidak digunakan dan sebelum diservis.
• Jangan pegang palam atau perkakas dengan tangan yang basah.
• Jangan letakkan sebarang objek ke dalam bukaan. Jangan gunakan dengan mana-mana bukaan yang disekat; jauhkan daripada habuk, serabut, rambut dan apa sahaja yang boleh mengurangkan aliran udara.
• Jauhkan rambut, pakaian longgar, jari dan semua bahagian badan daripada bukaan dan bahagian yang bergerak.
• Matikan semua kawalan sebelum mencabut plag.
• Gunakan lebih berhati-hati semasa membersihkan di tangga.
• Jangan gunakan untuk mengambil cecair mudah terbakar atau mudah terbakar, seperti petrol, atau gunakan di kawasan yang mungkin terdapat.
• Jangan ambil apa-apa yang terbakar atau berasap, seperti rokok, mancis, atau abu panas.
• Jangan gunakan tanpa tangki di tempat.
• Sambungkan ke alur keluar yang dibumikan dengan betul sahaja. Lihat arahan pembumian.

3. Kandungan Pakej

Sahkan bahawa semua komponen terdapat dalam pakej:

• Main Unit with Hose
• Large Brush Tool
• Small Brush Tool
• Self-cleaning Unit
• Cleaning Solution (8.8 FL OZ)
• Manual Pengguna

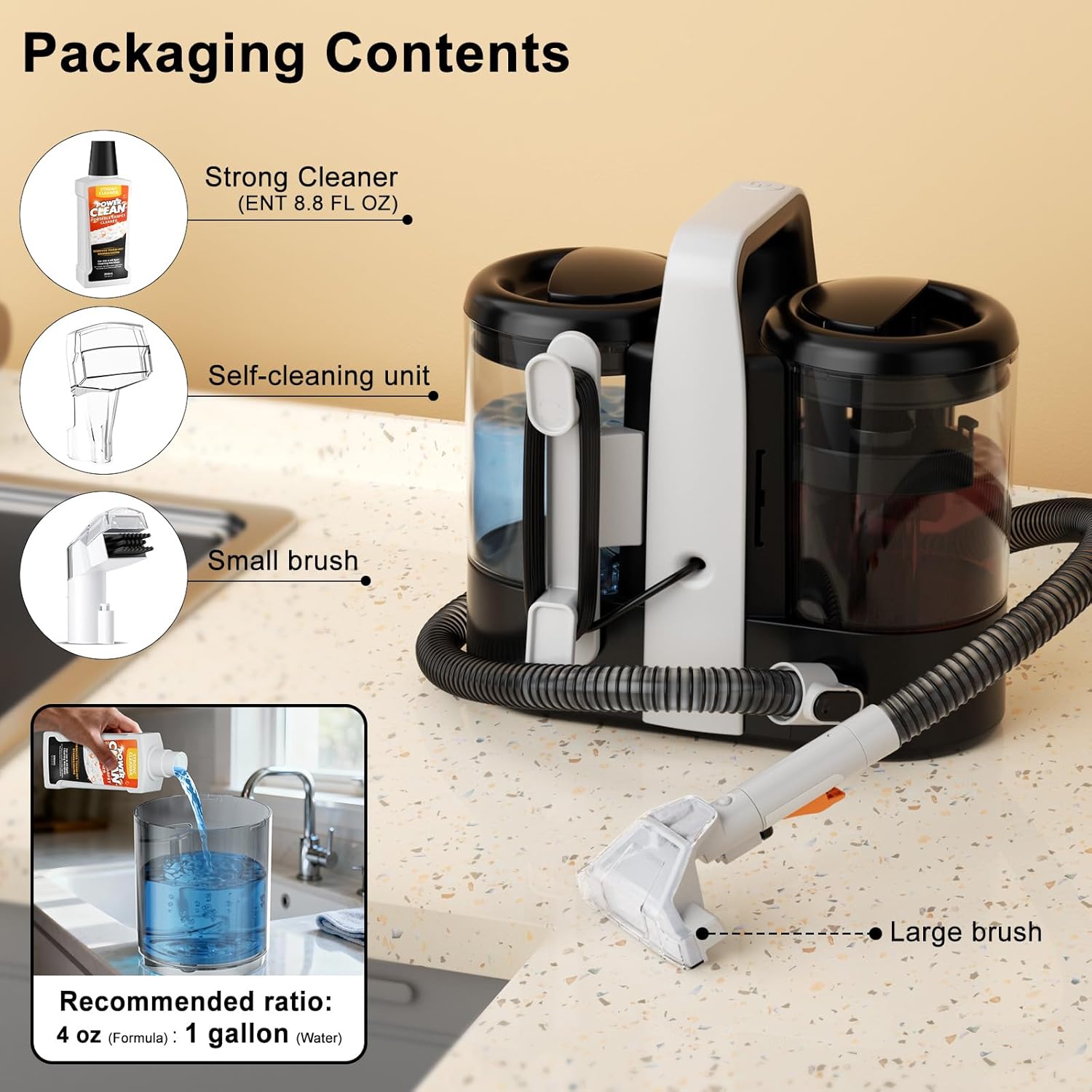

Figure 2: All components included in the EYEFEAT W07-1 package.

4. Ciri-ciri Produk

• Powerful 18KPa Suction: Equipped with an upgraded motor for strong suction to effectively remove embedded dirt, liquid spills, and pet messes.
• Sistem Tangki Berkembar: Features separate clean water (1.5L) and dirty water (0.8L) tanks to ensure hygienic operation and consistent cleaning performance.
• Pembersihan Berbilang Permukaan: Versatile for use on sofas, rugs, stairs, upholstery, and car interiors.
• Jangkauan Lanjutan: A 4.3 ft hose and 16.4 ft power cord provide ample reach for hard-to-access areas.
• Reka Bentuk Mudah Alih: Lightweight and compact for easy carrying and storage, with built-in storage for accessories.
• Self-Rinsing System: Integrated function to flush the hose and brush after use, maintaining cleanliness and readiness.

Figure 3: Illustration of the powerful 18KPa suction for deep cleaning.

Figure 4: The Super Large Dual Tank System keeps clean and dirty water separate.

Figure 5: Extended reach for cleaning larger areas effortlessly, including car interiors.

5. Arahan Persediaan & Pengendalian

5.1 Persediaan Awal

1. Pasang Kepala Berus: Select the appropriate brush head (large or small) for your cleaning task. Align the brush head with the handle and push until it clicks into place.
2. Isi Tangki Air Bersih: Remove the clean water tank (labeled 1.5L) from the main unit. Unscrew the cap at the bottom, fill with water (maximum 140°F / 60°C), and add the recommended amount of cleaning solution (4 oz formula to 1 gallon water). Securely close the cap and reinsert the tank into the unit.
3. Pasang Hos: Connect the hose to the main unit by aligning and pushing until it clicks.
4. Pasangkan: Palamkan kord kuasa ke salur keluar elektrik yang dibumikan.

Figure 6: Recommended solution ratio and tank management.

5.2 Operating the Cleaner

5. Hidupkan: Press the power switch located on the main unit to turn on the cleaner.
6. Larutan Semburan: Hold the brush tool over the stained area. Press the trigger on the handle to spray the cleaning solution onto the fabric.
7. Gosok: Gently scrub the stained area with the brush bristles to loosen dirt.
8. sedutan: Release the trigger and slowly pull the brush tool over the wet area to suction up the dirty water. Repeat steps 6-8 until the stain is removed and the water being extracted is clear.

Figure 7: Three easy steps for effortless cleaning.

6. Penyelenggaraan & Pembersihan

6.1 Selepas Setiap Penggunaan

1. Tangki Air Kotor Kosong: Remove the dirty water tank (labeled 0.8L) and empty its contents. Rinse thoroughly with clean water.
2. Self-Clean Hose: Fill the clean water tank with clean water only. Attach the self-cleaning unit to the hose. Turn on the machine and press the spray trigger to flush clean water through the hose, cleaning any residue.
3. Clean Brush Tools: Detach the brush tool from the hose. Rinse the brush head under running water. The brush plate can be removed for deeper cleaning if necessary.
4. Lap ke bawah: Lap bahagian luar unit dengan lembut, damp kain.
5. Kedai: Wrap the hose and power cord around the designated storage areas on the unit. Store the brush tools in their integrated holders.

Figure 8: The compact and lightweight design allows for easy storage.

7. Penyelesaian masalah

• Aksesori Tiada: Some small accessories are packed inside the clean water tank or dirty water tank to keep them secure during shipping. Please open both tanks and check inside.
• Penyedutan lemah: Check if the dirty water tank is above the MAX line. This can reduce suction. Empty and clean the tank after each use. Ensure water is kept below the MAX line.
• Can I use cleaning solution with this machine? Yes. You can use the cleaning solution included in the package. Add it to the clean water tank and follow the mixing ratio instructions on the product label.
• Can I use it outside the U.S.? Only with a 110V–120V power supply or a proper voltage penukar.

8. Spesifikasi

9. Sokongan

For any questions regarding setup, operation, or troubleshooting, please message us directly through Amazon. Our support team is available to assist you as soon as possible.
