pengenalan
This manual provides essential information for the safe and effective use of your ZELUS Vibration Plate Exercise Machine, Model LCF. Please read this manual thoroughly before operation and retain it for future reference.
Arahan Keselamatan Penting
Before using the ZELUS Vibration Plate Exercise Machine, please observe the following safety precautions:
- Dapatkan nasihat doktor sebelum memulakan sebarang program senaman baharu, terutamanya jika anda mempunyai keadaan kesihatan yang sedia ada.
- Jauhkan kanak-kanak dan haiwan peliharaan dari mesin semasa operasi.
- Pastikan mesin diletakkan pada permukaan yang stabil dan rata.
- Do not use the machine if you weigh more than the maximum recommended weight capacity (330 lbs).
- Pakai kasut sukan yang sesuai semasa digunakan.
- Berhenti bersenam serta-merta jika anda berasa pitam, pening, atau mengalami kesakitan.
- Jangan masukkan sebarang objek ke dalam bukaan mesin.
- Cabut plag mesin apabila tidak digunakan dan sebelum membersihkan.
Komponen Produk
The ZELUS Vibration Plate Exercise Machine LCF package includes the following:
- 1x Vibration Platform
- 2x Resistance Bands
- 2x Wrenches (for assembly)
Image: ZELUS Vibration Plate Exercise Machine LCF showing its dimensions and the included package list.
Ciri-ciri Utama
The ZELUS Vibration Plate Exercise Machine LCF is designed with several features to enhance your workout experience:
- Pemegang ergonomik: Foam-padded handles provide a comfortable and secure grip during exercise.
- Bingkai Logam Teguh: Ensures stability and durability for long-term use.
- Non-slip ABS Platform: A textured surface provides secure footing during vibrations.
- Stable Rubber Feet: Prevents movement and protects floors during operation.
- Integrated Pulse Sensors: Allows real-time heart rate monitoring directly from the handles.
- Operasi senyap: Engineered for low noise levels during use.
- Built-in Bottle Holder: Conveniently keeps your hydration within reach.
Imej: Terperinci view highlighting the comfortable foam handles, sturdy metal frame, non-slip ABS platform, and stable rubber feet.
Image: A close-up of the textured, non-slip surface of the vibration platform.
Image: Illustration showing the ZELUS Vibration Plate operating at a low noise level (≤40db).
Imej: Dari dekat view of the convenient built-in bottle holder.
Persediaan dan Perhimpunan
Follow these steps to assemble your ZELUS Vibration Plate Exercise Machine:
- Bongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
- jawatan: Place the main vibration platform on a flat, stable surface.
- Lampirkan Pemegang: Securely attach the ergonomic handles to the main unit using the provided wrenches and hardware. Ensure all bolts are tightened.
- Sambungkan Jalur Rintangan: If desired, attach the resistance bands to the designated connection points on the base of the machine.
- Sambungan Kuasa: Palamkan kord kuasa ke salur keluar elektrik yang dibumikan.
Image: The fully assembled ZELUS Vibration Plate Exercise Machine LCF, ready for use.
Arahan Operasi
The ZELUS Vibration Plate Exercise Machine features an intuitive control panel and various modes to customize your workout.
Panel Kawalan Terlaluview
Imej: Terperinci view of the control panel, showing display areas for PROGRAM, TIME/PULSE, and SPEED, along with control buttons.
Panel kawalan termasuk:
- PROGRAM Display: Shows the selected preset program (P1, P2, P3) or 'HL' for Custom Mode.
- TIME/PULSE Display: Shows remaining workout time or real-time heart rate when pulse sensors are gripped.
- SPEED Display: Shows the current vibration speed level (1-99).
- Butang MULA/BERHENTI: Memulakan atau menghentikan getaran.
- PROGRAM SELECT Button: Cycles through preset programs (P1, P2, P3) and Custom Mode.
- Butang MASA: Adjusts workout duration in Custom Mode.
- Butang PULSE: Activates heart rate monitoring via handle sensors.
- SPEED+ / SPEED- Buttons: Adjusts vibration intensity in Custom Mode.
Memulakan Senaman
- Step onto the non-slip textured platform.
- Tekan ke MULA/BERHENTI butang untuk bermula.
- Pilih mod yang anda inginkan:
- Preset Programs (P1, P2, P3): Tekan ke PILIH PROGRAM button to cycle through the 3 pre-programmed modes. These modes offer auto-intensity adjustments.
- Mod Tersuai: Select 'HL' using the PILIH PROGRAM butang. Gunakan MASA button to set your desired duration and the SPEED+ / SPEED- buttons to adjust the vibration intensity from 1 to 99 levels.
- To monitor your heart rate, grip the pulse sensors on the ergonomic handles and press the NADI button. Your heart rate will display on the TIME/PULSE screen.
- To end your workout, press the MULA/BERHENTI butang.
Image: A user demonstrating a plank position on the vibration plate, highlighting the 99 speed settings.
Imej: Dari dekat view of the integrated pulse sensors located on the handle of the vibration plate.
Penyelenggaraan dan Penjagaan
Proper maintenance ensures the longevity and optimal performance of your ZELUS Vibration Plate Exercise Machine.
- Pembersihan: Lap mesin dengan iklanamp kain selepas setiap penggunaan. Jangan gunakan pembersih atau pelarut yang melelas. Pastikan mesin dicabut plag sebelum dibersihkan.
- Storan: Simpan mesin di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan kelembapan.
- Pemeriksaan: Periodically check all bolts and connections to ensure they are secure. Tighten if necessary.
- Menggerakkan Mesin: The machine is equipped with wheels for easy relocation. Tilt the machine and roll it to your desired position.

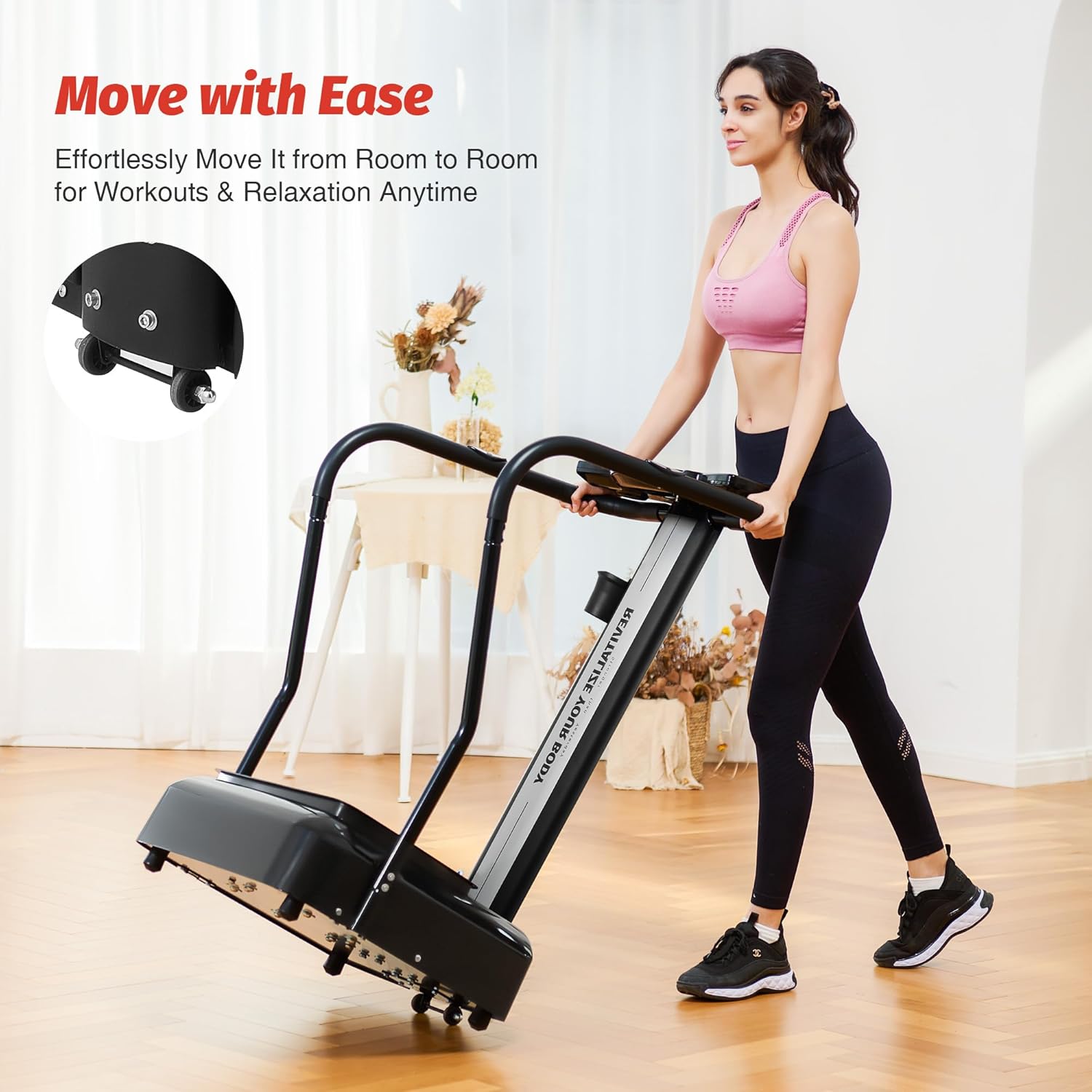

Image: A user tilting and moving the ZELUS Vibration Plate Exercise Machine LCF, demonstrating its portability with built-in wheels.
Menyelesaikan masalah
If you encounter issues with your ZELUS Vibration Plate Exercise Machine, refer to the following common solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Mesin tidak dihidupkan. | Kord kuasa tidak disambung dengan betul. Tiada kuasa dari soket. | Ensure power cord is securely plugged into both the machine and a working electrical outlet. Check the circuit breaker. |
| Getaran lemah atau tidak konsisten. | Low speed setting. Machine not on a level surface. | Increase the speed level using the SPEED+ button. Ensure the machine is on a flat, stable surface. |
| Heart rate monitor not working. | Hands not properly placed on sensors. PULSE button not pressed. | Ensure both hands are firmly gripping the pulse sensors. Press the PULSE button to activate monitoring. |
| Bunyi luar biasa semasa operasi. | Loose components. Obstruction under the machine. | Check all assembly bolts and tighten if loose. Ensure no objects are under the machine. If noise persists, discontinue use and contact support. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nama Model | LCF |
| Jenama | ZELUS |
| bahan | Alloy Steel, ABS, Foam |
| warna | Hitam |
| kuasa | 500W |
| Amplilitan | ±0.7 in. |
| Tahap Kelajuan | 1-99 |
| Kapasiti Berat | 330 lb. |
| Komponen yang Disertakan | Vibration Platform, 2 Resistance Bands, 2 Wrenches |
| Pengeluar | ZELUS |
Maklumat Waranti
For detailed warranty information, please refer to the warranty card included with your product or visit the official ZELUS webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.
Sokongan Pelanggan
If you have any questions, require assistance, or need to report an issue, please contact ZELUS customer support. Refer to the contact information provided on the product packaging or the official ZELUS webtapak.
Jenama: ZELUS
Pengeluar: ZELUS
