1. Pengenalan
Thank you for choosing the Techomey 1.4 Cu.ft Propane Refrigerator. This compact and versatile appliance is designed for various applications, offering three power options: 12V DC, 110V AC, and LPG gas. Its efficient cooling system maintains temperatures between 32-50℉ (0-10℃), making it ideal for RVs, camping, outdoor activities, and small spaces. Please read this manual thoroughly before operation to ensure safe and optimal performance.
Image: The Techomey 1.4 Cu.ft Propane Refrigerator, a compact black unit with its top lid open, revealing fresh fruits and beverages inside. A blue propane tank stands beside it, illustrating its gas power capability.
2. Maklumat Keselamatan
- Always ensure proper ventilation when operating the refrigerator on LPG gas to prevent carbon monoxide buildup.
- Do not store flammable materials or explosives inside the refrigerator.
- Keep the appliance away from direct heat sources and open flames.
- Ensure the refrigerator is placed on a stable, level surface to prevent tipping.
- Putuskan sambungan kuasa sebelum membersihkan atau melakukan sebarang penyelenggaraan.
- Do not block the ventilation openings on the appliance.
- Kanak-kanak harus diawasi untuk memastikan mereka tidak bermain dengan perkakas.
3. Ciri-ciri Produk
- Bekalan Kuasa 3-Cara: Operates on 12V DC, 110V AC, or LPG gas for versatile use.
- Penyejukan yang cekap: Achieves temperatures from 32-50℉ (0-10℃) quickly.
- Padat & Mudah Alih: 40L (1.4 Cu.ft) capacity, lightweight, and easy to move.
- Operasi senyap: Advanced absorption cooling system ensures quiet running (less than 21dB).
- Penyahbekuan automatik: Memudahkan penyelenggaraan.
- Pemegang ceruk: Integrated handle for easy transport.
- Pintu Terbuka Atas: Convenient access to contents.
Image: A visual representation of the refrigerator's three power options: AC 110V, DC 12V, and Propane LPG Gas, accompanied by an image of the refrigerator's rear panel displaying its power input ports and ventilation.
4. Apa yang ada di dalam Kotak
Setelah membuka bungkusan, sila sahkan bahawa semua komponen yang disenaraikan di bawah ada dan tidak rosak:
- Techomey 1.4 Cu.ft Propane Refrigerator Unit
- Manual Arahan
- Hos dan Pengatur Gas
- 12V DC Power Cable (Car Charger Adapter)
- Kabel Kuasa AC 110V

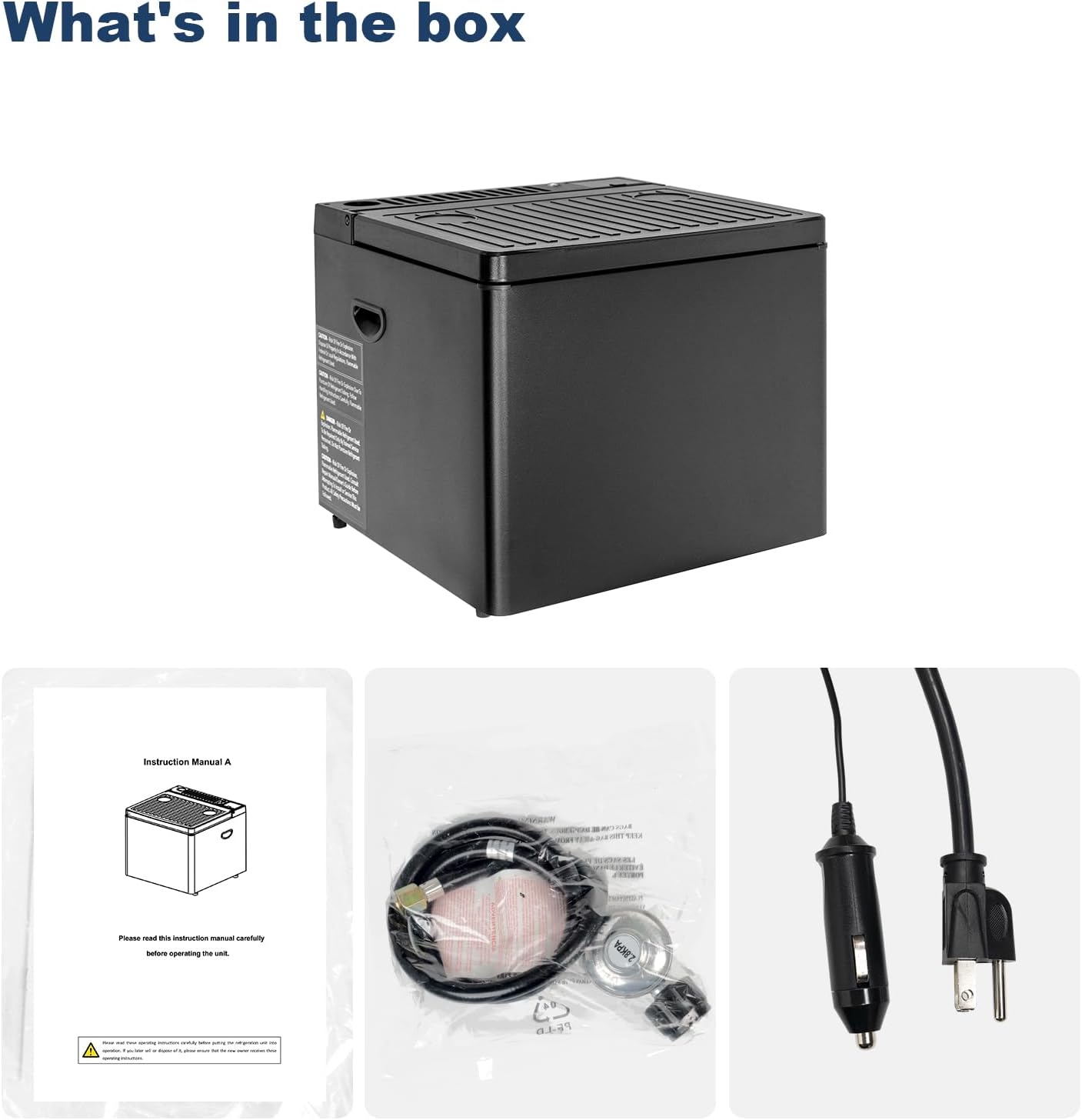

Image: A clear display of the product's packaging contents, including the main refrigerator unit, the user manual, a gas hose with regulator, a 12V DC car charger adapter, and a 110V AC power plug.
5. Persediaan
5.1 Penempatan dan Pengudaraan
Place the refrigerator on a firm, level surface. Ensure there is adequate space around the unit for proper air circulation, especially around the rear ventilation grille. Avoid placing it in direct sunlight or near heat-emitting appliances.
5.2 Pembersihan Awal
Before first use, wipe the interior and exterior of the refrigerator with a damp cloth and mild detergent. Rinse with clean water and dry thoroughly.
5.3 Kuasa Penyambung
Depending on your desired power source, connect the appropriate cable (12V DC, 110V AC) or gas hose. Ensure all connections are secure before operation.
6. Operasi
6.1 Kawalan Am
The control panel typically includes a thermostat knob, a gas indicator, a piezo ignitor, and a safety valve button. Familiarize yourself with these controls before operating.
Image: A detailed diagram highlighting the controls for gas operation, including the flame indicator, piezo ignitor, safety valve button, and thermostat knob, with a close-up view daripada panel kawalan.
6.2 DC 12V Operation
- Do not turn the thermostat knob (D) to AC mode.
- Connect the 12V power supply cable to your vehicle's 12V outlet.
Image: A visual guide detailing the two steps for operating the refrigerator using a 12V DC power source, showing the thermostat knob setting and the 12V power connection.
6.3 AC 110V Operation
- Turn the thermostat knob (D) to AC mode.
- Connect the 110V power supply cable to a standard wall outlet.
- Adjust the thermostat knob (D) to MAX and keep it there for five hours for initial cooling. After five hours, you can adjust the thermostat knob (D) to your desired temperature.
Image: A step-by-step visual instruction set for operating the refrigerator with 110V AC power, including setting the thermostat and connecting to a power outlet.
6.4 LPG Gas Operation
- Do not turn the thermostat knob (D) to AC mode.
- Depress the safety valve button (C) and hold it down while depressing the piezo ignitor (A).
- Check the flame indicator (B) to see whether the flame is alight. The pointer should move from the red to the green section after the flame is lit.
- Keep the safety valve button (C) depressed for a further 10-15 seconds.
- Release the safety valve button (C) and again check that the flame is alight.
- Adjust the thermostat knob (D) to the desired temperature setting and allow for 6 to 8 hours of operation to achieve the desired temperature.
Image: A comprehensive visual guide outlining the six steps required to operate the refrigerator using LPG gas, including ignition and temperature adjustment.
6.5 Kawalan Suhu
The thermostat knob allows you to adjust the internal temperature. Turn the knob towards 'MAX' for colder temperatures and 'MIN' for warmer temperatures. Allow several hours for the temperature to stabilize after adjustment.
Image: The refrigerator is shown with a visual representation of its cooling capability, maintaining temperatures between 32-50℉ (0-10℃), suitable for keeping various fruits and vegetables fresh.
7. Penyelenggaraan
7.1 Pembersihan
Regularly clean the interior with a mild detergent and warm water. For the exterior, use a soft cloth. Avoid abrasive cleaners or solvents. Ensure the unit is unplugged or gas supply is off before cleaning.
7.2 Menyahbeku
This refrigerator features automatic defrost. However, if excessive ice buildup occurs, manually defrost by turning off the unit and leaving the lid open until ice melts. Wipe away any water.
7.3 Penyimpanan
When storing the refrigerator for extended periods, ensure it is clean and dry. Leave the lid slightly ajar to prevent odors and mold growth.
8. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Peti sejuk tidak menyejukkan | No power supply; Thermostat set too high; Poor ventilation; Gas supply off or empty. | Check power connection/gas supply; Adjust thermostat to a lower setting; Ensure adequate ventilation around the unit. |
| Gas flame not igniting | Gas supply off; Air in gas line; Ignitor not sparking. | Check gas cylinder and valve; Purge air from gas line by attempting ignition several times; Ensure ignitor is clean and functioning. |
| Kebisingan yang berlebihan | Unit not level; Obstruction in fan (if applicable). | Ensure the refrigerator is on a level surface; Check for any obstructions. (Note: This model is designed for silent operation, typically below 21dB). |
| Water inside refrigerator | Lid not closed properly; High humidity; Automatic defrost cycle. | Ensure lid is sealed; This is normal during defrost cycles, wipe away excess water. |
9. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Jenama | Techomey |
| Nombor Model | HSG-40B2U-P-FBM |
| Kapasiti | 40 Liter (1.4 Kaki Kubik) |
| Sumber Kuasa | 12V DC, 110V AC, LPG Gas |
| Julat Suhu | 32-50℉ (0-10℃) |
| Dimensi Produk (W x D x H) | 19.7 x 19.4 x 17.4 inci |
| Berat Barang | 43 paun |
| Sistem Pencairan | Automatik |
| Tahap Kebisingan | Kurang daripada 21dB |
| warna | Hitam |
Image: A visual representation of the refrigerator's dimensions (17.4in H, 19.4in D, 19.7in W) and detailed close-ups of its recessed handle design.
10. Waranti dan Sokongan
For warranty information and technical support, please refer to the contact details provided in the packaging or visit the official Techomey webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk sebarang tuntutan waranti.
Untuk sumber tambahan dan maklumat produk, anda boleh melawati Techomey Store on Amazon.
