1. Pengenalan
Thank you for choosing the Generic Criss Cross Leg Chair. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new chair. Please read these instructions carefully before use and retain them for future reference.

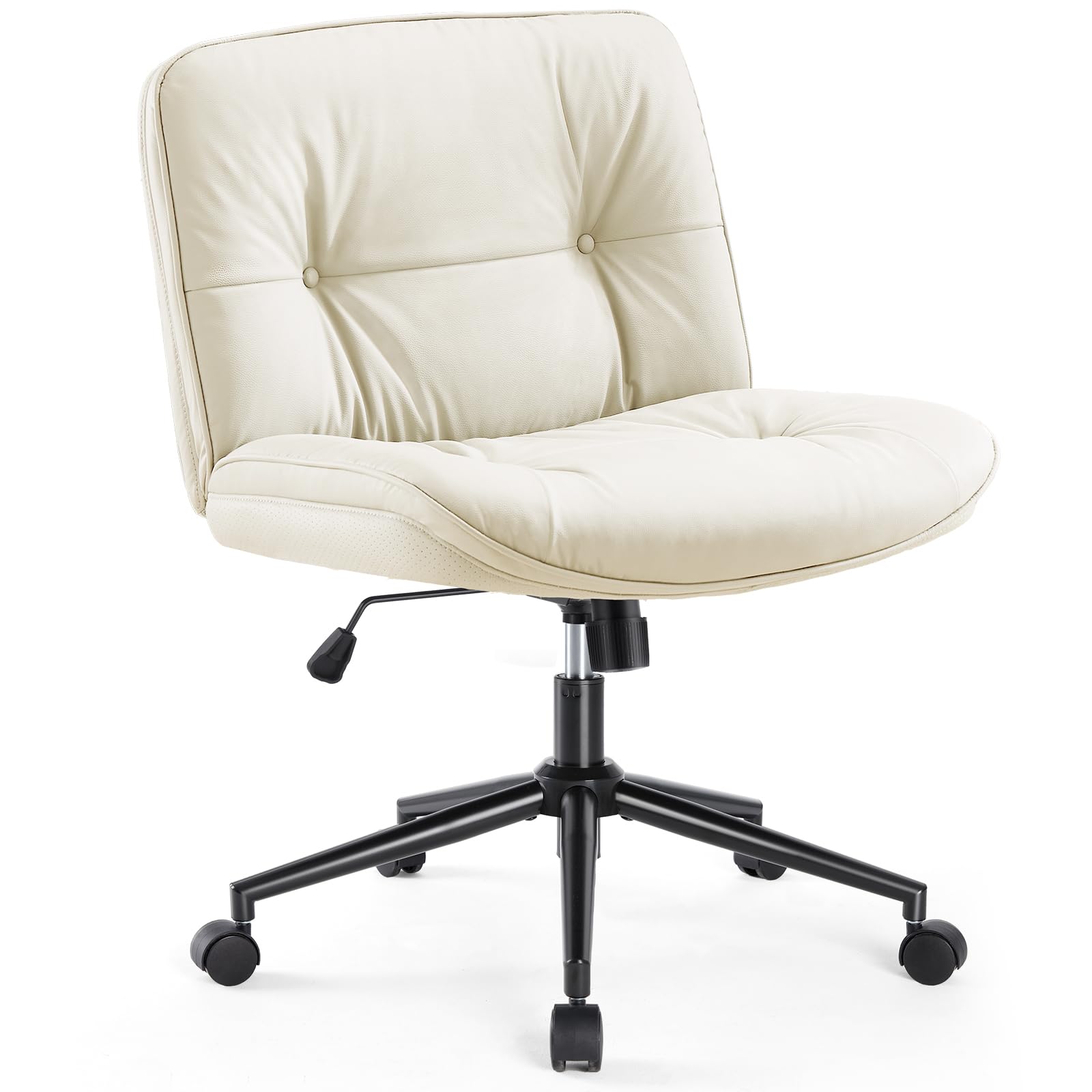

Image 1.1: The Criss Cross Leg Chair in white, featuring a wide seat, armless design, and a five-star base with wheels.
2. Maklumat Keselamatan
- Pastikan semua komponen ada dan tidak rosak sebelum dipasang. Jangan gunakan jika ada bahagian yang hilang atau patah.
- Pasang kerusi pada permukaan yang lembut dan bersih untuk mengelakkan calar.
- Jangan berdiri di atas kerusi. Gunakannya hanya untuk duduk.
- Jangan melebihi kapasiti berat maksimum 300 lbs (136 kg).
- Jauhkan kanak-kanak daripada bahagian kecil semasa pemasangan.
- Periodically check all bolts and screws to ensure they are tight.
3. Persediaan dan Pemasangan
Follow these steps to assemble your Criss Cross Leg Chair. It is recommended to have two people for easier assembly.
- Buka Pembungkusan Komponen: Carefully remove all parts from the packaging and lay them out on a soft, flat surface. Verify all parts are present according to the packing list (not provided in this manual, refer to product packaging).
- Pasangkan Roda ke Tapak: Insert the five caster wheels into the holes at the end of each leg of the chair base. Push firmly until they click into place.
- Masukkan Pengangkat Gas: Place the larger end of the gas lift cylinder into the center hole of the assembled chair base.
- Mekanisme Pemasangan Tempat Duduk: Align the seat mechanism (the metal plate with levers) to the underside of the seat cushion. Secure it with the provided screws, ensuring the front of the mechanism faces the front of the seat.
- Sambungkan Tempat Duduk ke Lif Gas: Carefully place the assembled seat onto the gas lift cylinder, ensuring the tapered hole in the seat mechanism fits securely over the top of the gas lift. Press down firmly to secure.
Image 3.1: Illustration of chair components including the metal structure, wheels, seat height adjustment handle, and rocking mode knob.
4. Arahan Operasi
Your Criss Cross Leg Chair offers several adjustable features for personalized comfort.
4.1. Pelarasan Ketinggian Tempat Duduk
Untuk menyesuaikan ketinggian tempat duduk:
- Untuk menaikkan kerusi: While seated, lift the seat height adjustment handle (typically on the right side under the seat) and slightly lift your weight off the seat. The seat will rise automatically. Release the handle at the desired height.
- Untuk menurunkan tempat duduk: While seated, lift the seat height adjustment handle and apply downward pressure to the seat. The seat will lower. Release the handle at the desired height.
4.2. Fungsi Pusing 360°
The chair seat is designed to rotate 360 degrees, allowing for easy movement and access to different areas of your workspace without needing to reposition the entire chair.
4.3. Rocking/Tilt Function
The chair features a rocking function that allows the seat and backrest to tilt back up to 22 degrees for relaxation.
- To engage rocking mode: Locate the knob under the seat cushion (often on the left side). Rotate this knob to activate the rocking mechanism. Adjust the tension by turning the knob clockwise for stiffer tilt or counter-clockwise for easier tilt.
- To lock upright position: If your chair has a locking mechanism for the upright position, push the rocking knob inwards or pull the height adjustment lever outwards (depending on design) to lock the chair in an upright position.
Image 4.1: Demonstrates the 360-degree rotating feature and the 108-130 degree rocking range of the chair.
5. Penyelenggaraan
Regular maintenance will prolong the life and appearance of your chair.
- Pembersihan: For the PU leather surface, wipe with a soft, damp cloth. For stubborn spots, use a mild soap solution and immediately wipe dry. Avoid harsh chemicals or abrasive cleaners.
- Pengikat: Periodically check all screws and bolts to ensure they are tight. Re-tighten as necessary to maintain stability and safety.
- Roda: Clean the caster wheels regularly to remove dust, hair, and debris that can impede smooth movement.
- Penjagaan Am: Elakkan mendedahkan kerusi kepada cahaya matahari langsung atau suhu yang melampau untuk tempoh yang lama, kerana ini boleh menyebabkan bahan tersebut pudar atau retak.
6. Penyelesaian masalah
Jika anda menghadapi masalah dengan kerusi anda, rujuk masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kerusi tidak melaraskan ketinggian | Gas lift malfunction or lever not engaged | Ensure the lever is fully pulled. If still not working, the gas lift may need replacement. Contact customer support. |
| Kerusi goyah/tidak stabil | Skru longgar atau lantai yang tidak rata | Periksa dan ketatkan semua skru pemasangan. Pastikan kerusi berada di atas permukaan yang rata dan rata. |
| Bunyi-bunyi berdecit | Loose connections or friction between parts | Tighten all screws. Apply a small amount of silicone lubricant to moving parts if necessary, avoiding contact with upholstery. |
| Roda tidak bergolek dengan lancar | Debris in casters | Keluarkan sebarang rambut, habuk atau serpihan dari roda kastor. |
7. Spesifikasi
Detailed specifications for the Criss Cross Leg Chair, Model ZHUMI-C-7295L-BG:
- Jenama: Generik
- Nama Model: ZHUMI-C-7295L-BG
- warna: putih
- Bahan: Leather, Suede (Faux Leather)
- Dimensi Produk (Keseluruhan): 26.2"D x 26.8"W x 36.8"H
- Seat Height Adjustment Range: 33.1" - 36.8"
- Lebar Tempat Duduk: 26.4"
- Kapasiti Berat: Sehingga 300 paun (136 kg)
- Pusing: 360 darjah
- Tilt/Rocking Angle: Sehingga 22 darjah
- Jenis asas: Metal 5-star base with caster wheels
Image 7.1: Diagram illustrating the key dimensions of the Criss Cross Leg Chair, including overall height, width, depth, and seat height range.
8. Waranti dan Sokongan
For warranty information or technical support, please refer to the documentation provided with your purchase or contact the retailer from whom you purchased this product. Please have your model number (ZHUMI-C-7295L-BG) and purchase date available when contacting support.
