LVYUAN CSSP-30 Foldable Solar Panel User Manual

1. Pengenalan

This manual provides essential information for the safe and efficient operation of your LVYUAN CSSP-30 Foldable Solar Panel. Please read it thoroughly before use and retain it for future reference.

The LVYUAN CSSP-30 Foldable Solar Panel is a portable and lightweight solar charger designed for outdoor activities and emergency power backup. It features USB-A and Type-C outputs, a maximum 25W power output, high conversion efficiency, and an IP65 waterproof rating, along with an anti-reverse current design.

2. Ciri-ciri Utama

• Maximum 25W Output with USB-A & Type-C: Equipped with two ports, USB-A and USB-C, providing a maximum output of 25W. Compatible with a wide range of devices including smartphones, tablets, and mobile batteries. Supports fast charging standards such as QC3.0, Apple 2.4A, and Samsung AFC.
• Foldable & Ultra-Lightweight Design: Weighs only 850g and folds to less than 3cm thick. Approximately A4 size when folded, fitting neatly into bags and backpacks. Features hanging holes on all four corners for easy use during outdoor activities or emergencies.
• High Conversion Efficiency for All Conditions: Utilizes high-efficiency solar panels, capable of generating over 18W in clear weather, over 1W on cloudy days, and approximately 3W indoors through a window. Designed to maximize solar energy utilization, ensuring reliable power during disasters or outdoor adventures.
• Anti-Reverse Current Design for Power Outages: Equipped with an anti-reverse current function to prevent power backflow to smartphones and other devices. Ensures stable charging even with minimal power, minimizing the risk of battery depletion during power outages atau bencana.

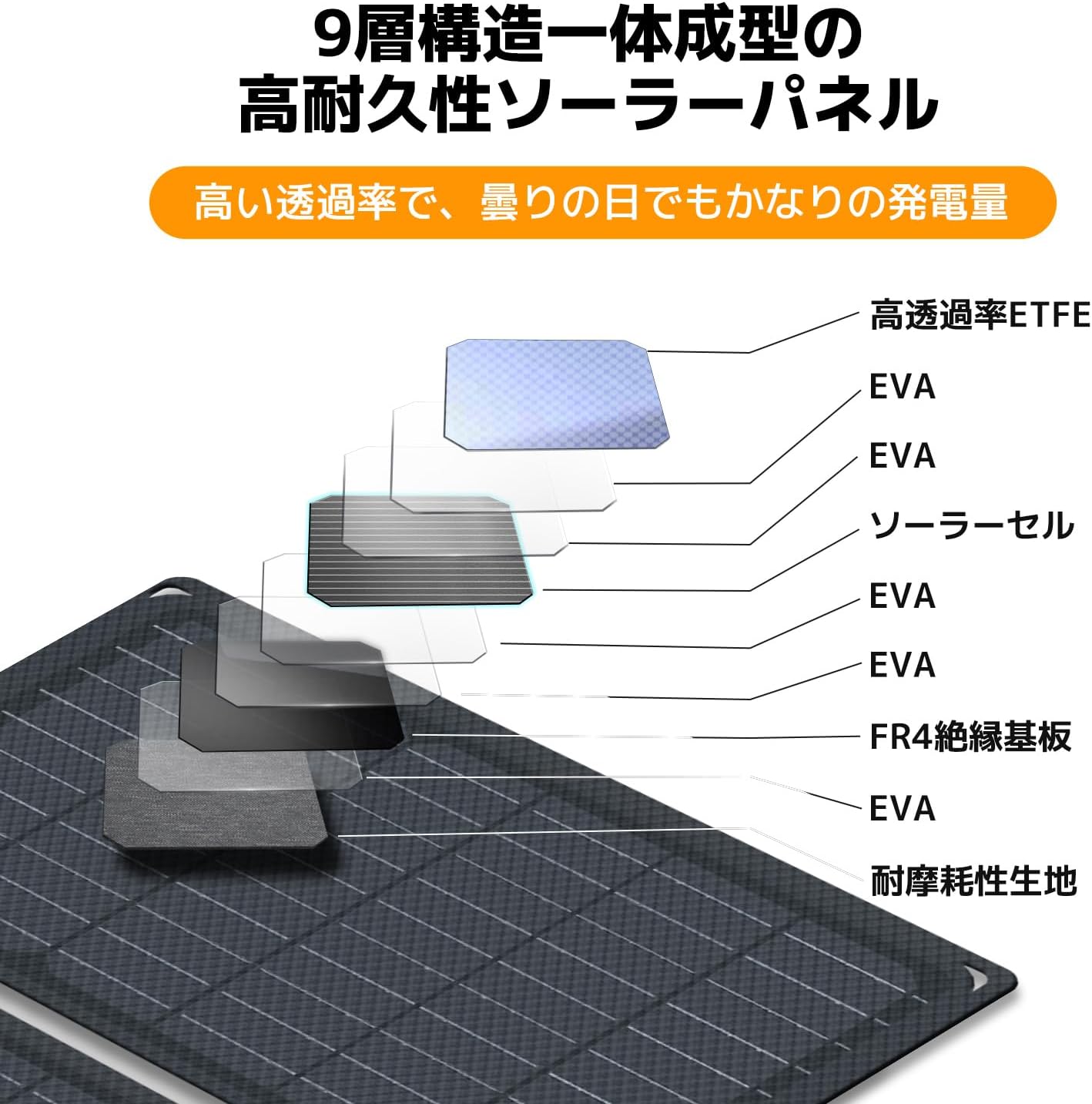

• Durable & Waterproof (IP65 & Multi-Layer Structure): Features an integrated multi-layer construction (ETFE/EVA/monocrystalline cell/fabric) for both durability and flexibility. IP65 waterproof rating provides resistance to rain and dust, making it suitable for various scenarios such as mountaineering, camping, and emergency preparedness.

3. Produk Lebihview

4. Arahan Persediaan

1. Buka Panel: Carefully unfold the solar panel completely to expose all solar cells.
2. Kedudukan untuk Cahaya Matahari: Place the solar panel in direct sunlight. For optimal performance, ensure the panel is angled directly towards the sun.
3. Lindungi Panel: Use the integrated hanging holes and carabiners (if included) to secure the panel to a backpack, tent, or other stable surface, especially in windy conditions.
4. Sambungkan Peranti: Open the integrated pocket to access the USB-A and Type-C output ports. Connect your device(s) using appropriate charging cables.
5. Sahkan Pengecasan: Check your device's screen to confirm that charging has begun.

5. Arahan Operasi

The LVYUAN CSSP-30 solar panel is designed for straightforward operation:

• Pengecasan Automatik: The panel automatically begins charging when exposed to sufficient sunlight and a device is connected.
• Pengecasan Peranti Dwi: You can charge up to two devices simultaneously using the USB-A and Type-C ports. The total maximum output is 25W.
• Cahaya matahari yang optimum: For best results, ensure the panel is positioned to receive maximum direct sunlight. Adjust its angle periodically as the sun moves.
• Anti-Reverse Current: The built-in anti-reverse current feature protects your devices from power backflow when sunlight is intermittent or insufficient.
• Power Storage (Optional): This solar panel does not store power internally. To store energy for later use, connect the solar panel to a compatible mobile battery or portable power station.

6. Penyelenggaraan

• Pembersihan: Lap panel solar secara berkala dengan kain lembutamp kain untuk menghilangkan habuk, kotoran atau serpihan yang boleh mengurangkan kecekapan. Jangan gunakan bahan kimia yang keras atau bahan yang kasar.
• Storan: Apabila tidak digunakan, lipat panel solar dan simpan di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.
• Pemeriksaan: Periksa panel dan kabel secara berkala untuk sebarang tanda kerosakan, haus atau kakisan. Pastikan semua sambungan kukuh.
• Pendedahan Air: While IP65 rated, avoid prolonged exposure to heavy rain or submersion. If the panel gets wet, ensure all ports are dry before connecting devices.

7. Penyelesaian masalah

Q: Why is the maximum output only 25W for a 30W solar panel?

A: The 30W rating is a theoretical maximum under Standard Test Conditions (STC). In real-world usage, factors like sunlight intensity, angle, temperature, shading, and dirt can cause the actual output to be lower than the nominal value. Therefore, a stable output of around 25W for a 30W solar panel is normal.

Q: Why doesn't each port reach its maximum output of 18W even with sufficient sunlight?

A: Even with strong sunlight, actual output depends on various factors. These include whether the connected device supports fast charging standards like QC or AFC, the quality and length of the charging cable, and the device's battery level. Maximum output may not be reached, especially with incompatible devices or devices that are nearly fully charged.

Q: If it's IP65 waterproof, is it okay to leave it out in the rain?

A: IP65 indicates dust resistance and protection against water jets from any direction, but it does not protect against prolonged exposure to heavy rain or submersion. If heavy or prolonged rain is expected, it is recommended to store the solar panel or place it in a location not directly exposed to rain. This helps extend its lifespan and prevent malfunctions due to water ingress at connection points.

Q: Does frequent starting and stopping of charging on cloudy days affect devices like smartphones?

A: On cloudy days or with unstable sunlight, the solar panel's power generation may fluctuate, causing devices to repeatedly connect and disconnect. This typically does not directly harm smartphones or other devices, but it can lead to intermittent or unstable charging. When charging two devices simultaneously, if power generation is insufficient, one device might stop charging, or the device might automatically adjust its current. For users concerned about device stability, it is recommended to first charge a mobile battery and then use the mobile battery to power devices, ensuring more stable charging.

Q: Can this product store electricity?

A: This product does not have a power storage function. It is a solar panel that generates electricity when exposed to sunlight and directly supplies power to devices or mobile batteries. If you wish to store power for later use, please combine it with a mobile battery or portable power station. This allows for stable power supply even when there is no sunlight.

8. Spesifikasi

9. Waranti dan Sokongan

LVYUAN offers a Waranti pengilang selama 1 tahun for this product. For any inquiries or support, please contact our customer service:

• BARIS: @763yvtt
• TEL: 050-5536-3547
• E-mel: service@lvyuan.jp

We provide reliable after-sales service in Japan.
