pengenalan
The Talkpod N39plus is an innovative nationwide Push-to-Talk (PTT) radio designed for long-distance communication. Utilizing mobile cellular networks, it offers extended coverage beyond traditional radio signals. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your N39plus radio.
Image: Two Talkpod N39plus radios highlighting key features like no programming required, nationwide coverage, and global usage options.
Apa yang ada dalam Kotak
Your Talkpod N39plus package includes the following components:
- 2 × N39plus Radios
- 2 × Antena
- 2 × Lithium-ion Batteries
- 2 × Kabel Pengecas USB-C
- 2 × Klip Tali Pinggang
- 2 × Lanyards
Image: All components included in the Talkpod N39plus package.
Produk Selesaiview
Familiarize yourself with the various parts of your Talkpod N39plus radio:
Image: Labeled diagram of the Talkpod N39plus radio components.
- Antena: Untuk penghantaran dan penerimaan isyarat.
- Turn on/off volume knob: Controls power and audio level.
- Battery removal clip: Secures and releases the battery.
- Headphone/Data Interface: Connects accessories or for data transfer.
- Function shortcut key 1 & 2: Customizable keys for quick access to features.
- Seat charging card slot: For desktop charger connection.
- Port pengecasan USB: Untuk pengecasan USB-C terus.
- Lampu LED: Menunjukkan status.
- mikrofon: Untuk input suara.
- PTT launch key: Press to transmit your voice.
- Pembesar suara: Untuk output audio.
- Skrin: Displays operational information.
- Kekunci fungsi: Navigate menus and control features.
- Numeric key: For direct input and channel selection.
Persediaan
1. Pasang Bateri
- Pastikan radio dimatikan.
- Selaraskan bateri dengan petak di belakang radio.
- Tekan bateri dengan kuat sehingga ia klik pada tempatnya.
2. Install SIM Card (Pre-installed)
The Talkpod N39plus comes with a pre-installed SIM card. No manual installation is typically required. The 1-year SIM data plan (up to 800MB/Month) is suitable for regular voice-only communication. Note that SIM card plans are billed on a natural month basis, with the billing cycle running from the 27th of each month to the 26th of the following month.

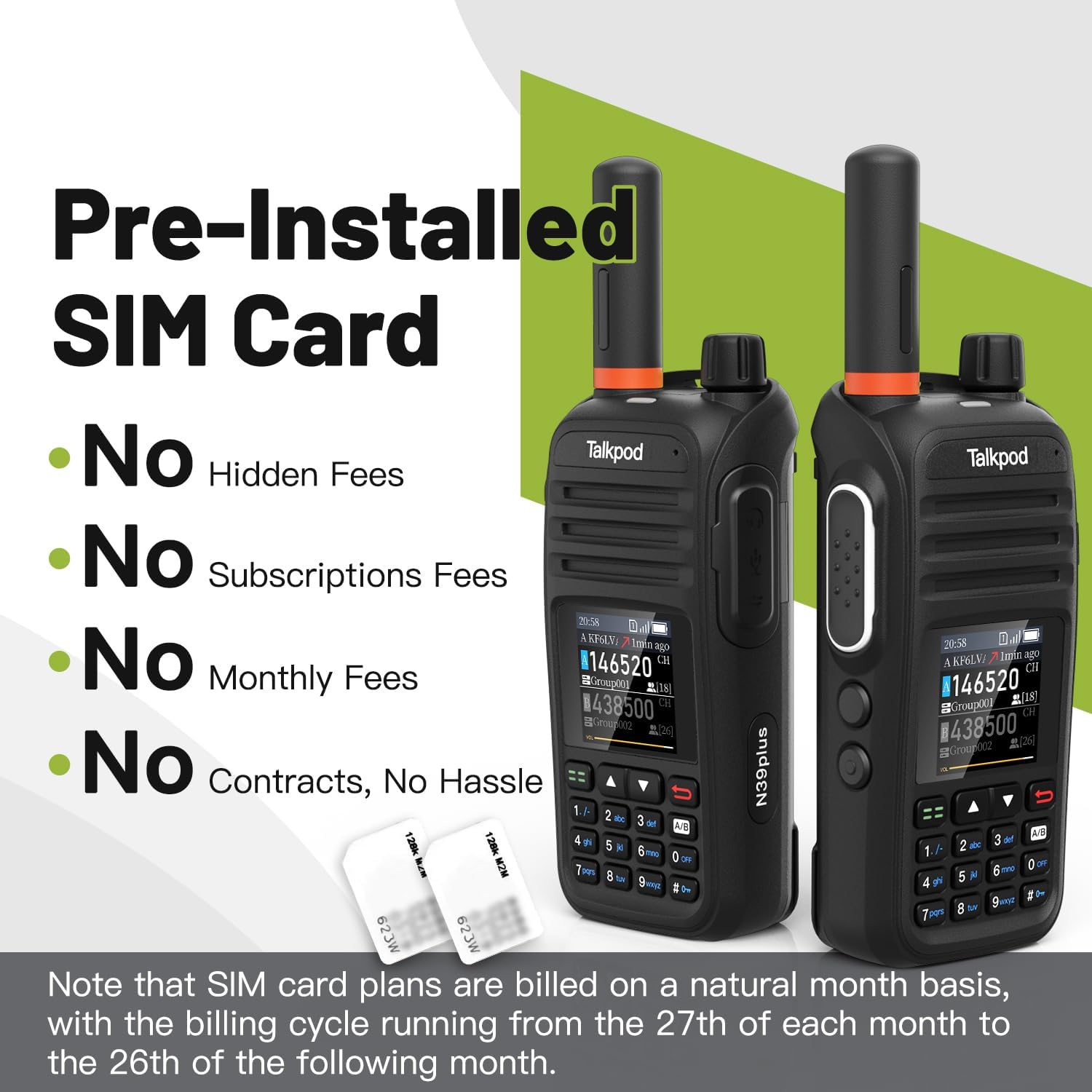

Image: Talkpod N39plus radios and SIM cards, illustrating the pre-installed SIM feature.
3. Attach Antenna
- Skrukan antena mengikut arah jam ke dalam penyambung di bahagian atas radio sehingga ia rapat dengan jari. Jangan terlalu ketat.
4. Pengecasan Awal
Before first use, fully charge the radio's battery. Connect the USB-C charging cable to the radio's USB-C port and to a compatible USB power adapter. The LED indicator will show charging status.
5. Hidupkan/Mati Kuasa
Untuk menghidupkan radio, putar Turn on/off volume knob clockwise until you hear a click and the screen illuminates. To power off, rotate the knob counter-clockwise until it clicks off.
Arahan Operasi
Komunikasi Asas
- Pilih Saluran: Use the numeric keypad or function keys to select your desired virtual channel or frequency.
- Hantar: Tekan dan tahan butang PTT launch key on the side of the radio. Speak clearly into the microphone. Release the PTT key to listen.
- Laraskan Kelantangan: Putar Turn on/off volume knob untuk melaraskan kelantangan mendengar.
User Interface and Features
- Dual Virtual Channel Monitoring: The radio's interface allows monitoring of two virtual channels simultaneously.
- Virtual Frequency Display: The screen displays virtual frequencies for easy identification.
- Input papan kekunci: Use the numeric keypad for quick channel selection or menu navigation.
- Sistem Menu: Access various settings and features through the user-friendly menu system using the function keys.
- Callsigns and Caller ID: Users can set their own callsigns. The radio displays the caller ID of the last incoming transmission.
- Call History Log: Access a log of past communications.
Linkpoon HAM App and Nationwide Communication
Each N39plus device includes free authorization to use the Linkpoon HAM App for at least 5 years. This app enhances the radio's capabilities, allowing for expanded communication over mobile cellular networks, providing nationwide coverage and breaking free from conventional radio signal limitations.
Image: Various usage scenarios for the Talkpod N39plus radio.
Penyelenggaraan
Mengecas
The Talkpod N39plus supports fast charging via USB-C. Connect the radio to a power source using the provided USB-C cable. A full charge provides up to 24 hours of standby and talk time.
Penjagaan Bateri
- Elakkan menyahcas sepenuhnya bateri dengan kerap.
- Simpan radio dan bateri di tempat yang sejuk dan kering apabila tidak digunakan untuk tempoh yang lama.
- Jangan dedahkan bateri kepada suhu yang melampau.
Pembersihan
Lap radio dengan lembut, damp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar. Pastikan semua port kering sebelum mengecas atau menggunakan.
Tahan Air
The Talkpod N39plus is tidak kalis air. Avoid exposing the device to water or high humidity to prevent damage.
Menyelesaikan masalah
Radio Does Not Power On
- Pastikan bateri dipasang dengan betul dan dicas sepenuhnya.
- Try removing the battery, reseating the SIM card (if accessible), and then reinstalling the battery. Sometimes the SIM card can become dislodged during shipping.
Masalah Sambungan
- Verify that you are in an area with cellular network coverage.
- Mulakan semula radio.
- Ensure your SIM data plan is active and has available data.
Isu Audio
- Laraskan tombol kelantangan.
- Check for any obstructions on the loudspeaker or microphone.
Spesifikasi
| Jenama | Talkpod |
| Nombor Model | N39plus |
| warna | Hitam |
| Bilangan Saluran | 2 |
| Ciri Khas | Long Range, Rechargeable |
| Tahap Ketahanan Air | Bukan Tahan Air |
| Bilangan Bateri | 1 bateri Lithium Ion diperlukan (termasuk) |
| Hayat Bateri (Purata) | 24 Jam |
| Protokol Ketersambungan | LTE |
| Tempoh Ketersediaan Alat Ganti EU | 5 Tahun |
Waranti dan Sokongan
Authorization and Data Plan
Each Talkpod N39plus device comes with free authorization to use the Linkpoon HAM App for at least 5 years. Additionally, a 1-year SIM data plan (up to 800MB/Month) is included, suitable for regular voice-only communication.
Sokongan Pelanggan
For any product issues, technical assistance, or after-sales service, please contact Talkpod support directly.
Image: Talkpod customer support contact details.
e-mel: Support@talkpod.com
We are committed to providing assistance and ensuring your satisfaction.
