TWOFISH M5-PRO-E Electric Scooter User Manual

1. Pengenalan

Thank you for choosing the TWOFISH M5-PRO-E Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure proper use and to maximize the lifespan of your product.

The TWOFISH M5-PRO-E is designed for urban commuting and leisure rides, featuring a robust design and EEC certification for legal use on public roads.

Image: The TWOFISH M5-PRO-E Electric Scooter, showcasing its overall design and green color.

2. Maklumat Keselamatan

Your safety is paramount. Always adhere to local traffic laws and regulations. This scooter is EEC certified, meaning it meets European safety standards for road use. However, specific local regulations regarding helmet use, insurance, and age limits may apply.

• Penggunaan topi keledar: Always wear a certified helmet when riding the scooter.
• Semakan Pra-Tunggangan: Before each ride, inspect the brakes, tires, and all components to ensure they are in good working order.
• Had Berat: Jangan melebihi kapasiti beban maksimum 120 kg.
• Keadaan jalan raya: Exercise caution on wet, uneven, or slippery surfaces.
• Keterlihatan: Ensure the headlight and reflectors are clean and functional, especially when riding at night.
• Insurans: Verify if specific insurance is required for electric scooters in your region.

3. Persediaan dan Pemasangan

Your TWOFISH M5-PRO-E Electric Scooter comes partially assembled. Follow these steps for initial setup:

1. Membongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati. Sahkan bahawa semua item yang disertakan ada:
   • Electric Scooter × 1
   • Pengecas × 1
   • Manual Pengguna × 1
   • Pemegang Telefon × 1
   • Bicycle Lock × 1
   • Tool Bag × 1
2. Pemasangan Hendal: Securely attach the handlebars to the stem. Ensure all bolts are tightened.
3. Pelarasan Tempat duduk: Adjust the seat height for comfortable riding. Note that the seat has limited adjustability.
4. Caj Permulaan: Before first use, fully charge the scooter's battery. Connect the charger to the charging port and then to a power outlet. The charging indicator on the charger will change when fully charged. Charging typically takes 6-8 hours.
5. Inflasi Tayar: Check and inflate tires to the recommended pressure, if necessary.

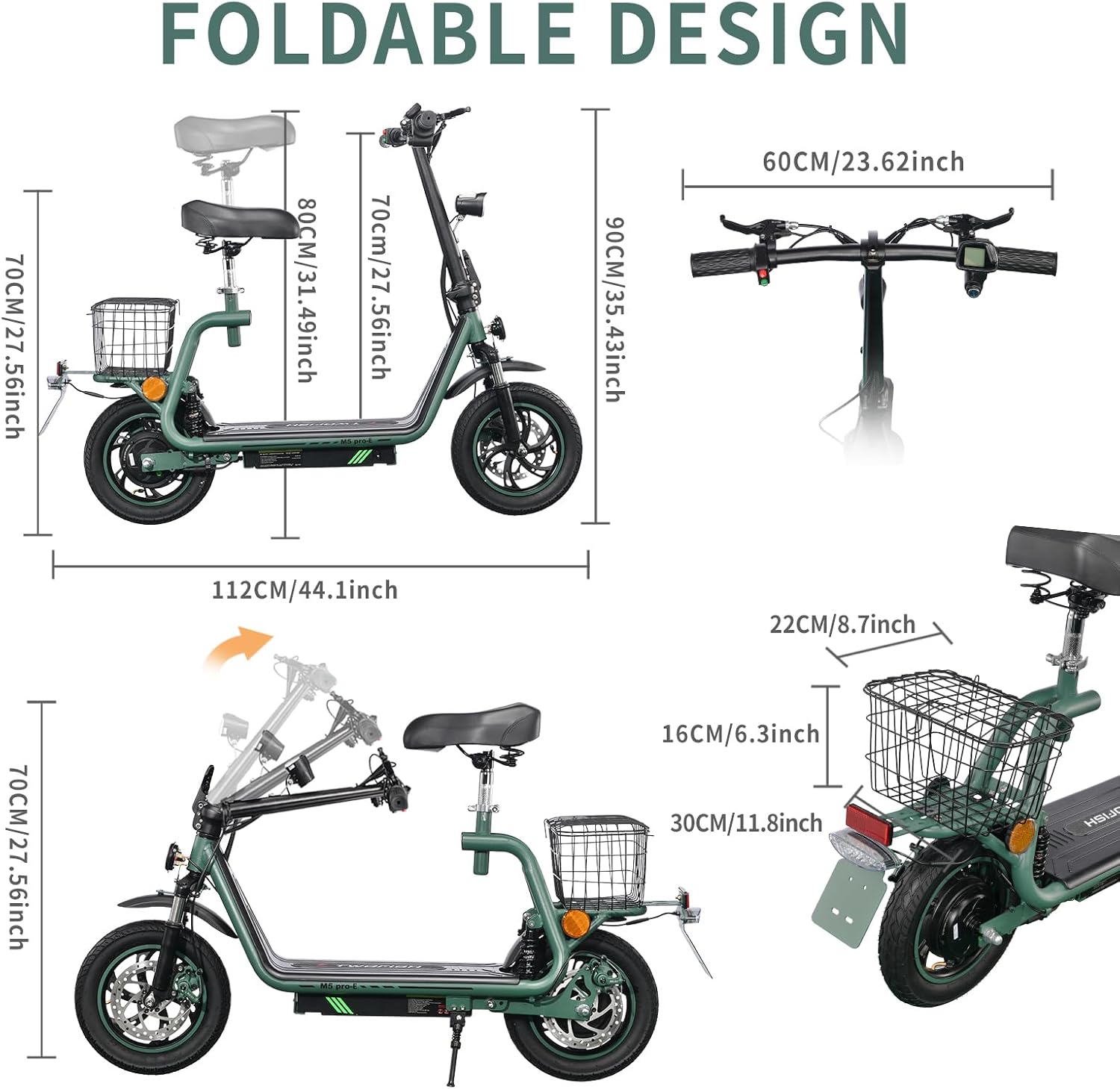

Image: Illustration of the scooter's foldable design and key dimensions for storage and transport.

4. Arahan Operasi

4.1 Menghidupkan/Mematikan

To power on the scooter, press and hold the power button on the LED display. To power off, press and hold the same button until the display turns off.

4.2 Fungsi Paparan LED

Paparan LED bersepadu menyediakan maklumat masa nyata:

• Kelajuan: Menunjukkan kelajuan tunggangan semasa.
• Tahap Bateri: Menunjukkan baki cas bateri.
• Perbatuan: Displays total distance traveled.
• Tahap Bantuan: Shows the current speed mode.

Image: Close-up of the LED display, illustrating its various indicators for speed, battery, and distance.

4.3 Mod Kelajuan

The scooter features three adjustable speed modes to suit different riding conditions:

• Mod 1: Approximately 20 km/h
• Mod 2: Approximately 30 km/h
• Mod 3: Approximately 40 km/h (Maximum Speed)

Switch between modes using the designated button on the display or handlebar controls.

Image: Visual representation of the scooter's key performance metrics, including range, motor power, and speed settings.

4.4 Sistem Brek

The TWOFISH M5-PRO-E is equipped with dual-disc brakes (front and rear) for reliable stopping power. Always apply both brakes simultaneously for optimal braking performance and safety.

Imej: Terperinci view of the scooter's robust dual-disc braking system and durable 12-inch tires.

4.5 Suspensi dan Tayar

The scooter features full suspension with front and rear shock absorbers, providing a comfortable ride even on uneven surfaces. The large 12-inch air tires offer excellent grip and stability.

Image: Illustration highlighting the scooter's front and rear double suspension for enhanced ride comfort.

4.6 Ciri Tambahan

• Reka Bentuk Lipat: The scooter can be folded for easier storage and transport.
• Bakul boleh tanggal: A large, removable basket is included for carrying personal items.
• Removable Seat: The seat can be removed if preferred for standing operation.
• Headlight and Reflectors: Equipped with a bright LED headlight and reflectors for improved visibility.
• Dual Belakangview Cermin: For enhanced situational awareness.

Imej: Selesaiview of various practical features such as the foldable frame, storage basket, and lighting system.

5. Penyelenggaraan

Penyelenggaraan tetap memastikan umur panjang dan operasi selamat skuter anda.

• Penjagaan Bateri:
  • Cas bateri secara berkala, walaupun tidak digunakan, untuk mengekalkan kesihatannya.
  • Elakkan daripada menghabiskan bateri sepenuhnya sebelum mengecas semula.
  • Store the scooter in a cool, dry place when not in use for extended periods.
• Penyelenggaraan Tayar:
  • Check tire pressure monthly and inflate to the recommended PSI (refer to tire sidewall for details).
  • Periksa tayar untuk haus, pancit atau kerosakan.
• Pemeriksaan Brek:
  • Regularly check brake pads and discs for wear. Replace if necessary.
  • Ensure brake levers provide firm and responsive braking. Adjust if they feel loose.
• Pembersihan:
  • Bersihkan skuter dengan iklanamp kain. Jangan gunakan pancutan air bertekanan tinggi atau pembersih menghakis.
  • Elakkan air masuk ke dalam komponen elektrik.
• Cek Am: Periksa secara berkala semua bolt dan pengikat untuk memastikan ia ketat.

6. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact TWOFISH customer support.

7. Spesifikasi

Key technical specifications for the TWOFISH M5-PRO-E Electric Scooter:

Imej: Dalaman view illustrating the 48V 13Ah battery and 500W motor, highlighting long range and high performance.

8. Waranti dan Sokongan

For warranty information, please refer to the documentation provided with your purchase or contact the seller directly. TWOFISH is committed to providing quality products and customer satisfaction.

If you have any questions, require technical assistance, or need to report an issue, please contact TWOFISH customer support. They are generally responsive and helpful.

Maklumat Hubungan: Please refer to your purchase receipt or the official TWOFISH webtapak untuk butiran hubungan terkini.
