Manual Pengguna Mini Monitor Suhu dan Kelembapan Pintar Xiaomi 3

1. Pengenalan

Thank you for choosing the Xiaomi Smart Temperature and Humidity Monitor 3 Mini. This device is designed to provide accurate, real-time measurements of indoor temperature and humidity, helping you maintain a comfortable and healthy environment. Its compact design and smart features make it a valuable addition to any home.

2. Produk Lebihview dan Ciri

The Xiaomi Smart Temperature and Humidity Monitor 3 Mini combines precision with convenience. Key features include:

• Reka bentuk padat: Small footprint for versatile placement.
• Penderia Ketepatan Tinggi: Accurate detection of temperature and humidity changes.
• Paparan LCD yang jelas: Shows temperature and humidity simultaneously.
• Ideal Range Indicator: Visual cues for optimal environmental conditions.
• Penggunaan Kuasa Ultra Rendah: Hayat bateri yang dilanjutkan.
• Peletakan Fleksibel: Suitable for tabletop or wall mounting.
• Keserasian Rumah Pintar: Bluetooth connectivity for integration with smart home systems.

The monitor features a compact design with a 42.8 x 35.1 mm LCD screen, making it easy to read and place. Device dimensions are approximately 62.6 x 53.2 mm.

Equipped with a high-precision sensor, the monitor accurately detects changes in temperature (0.1°C resolution) and humidity (1% RH resolution).

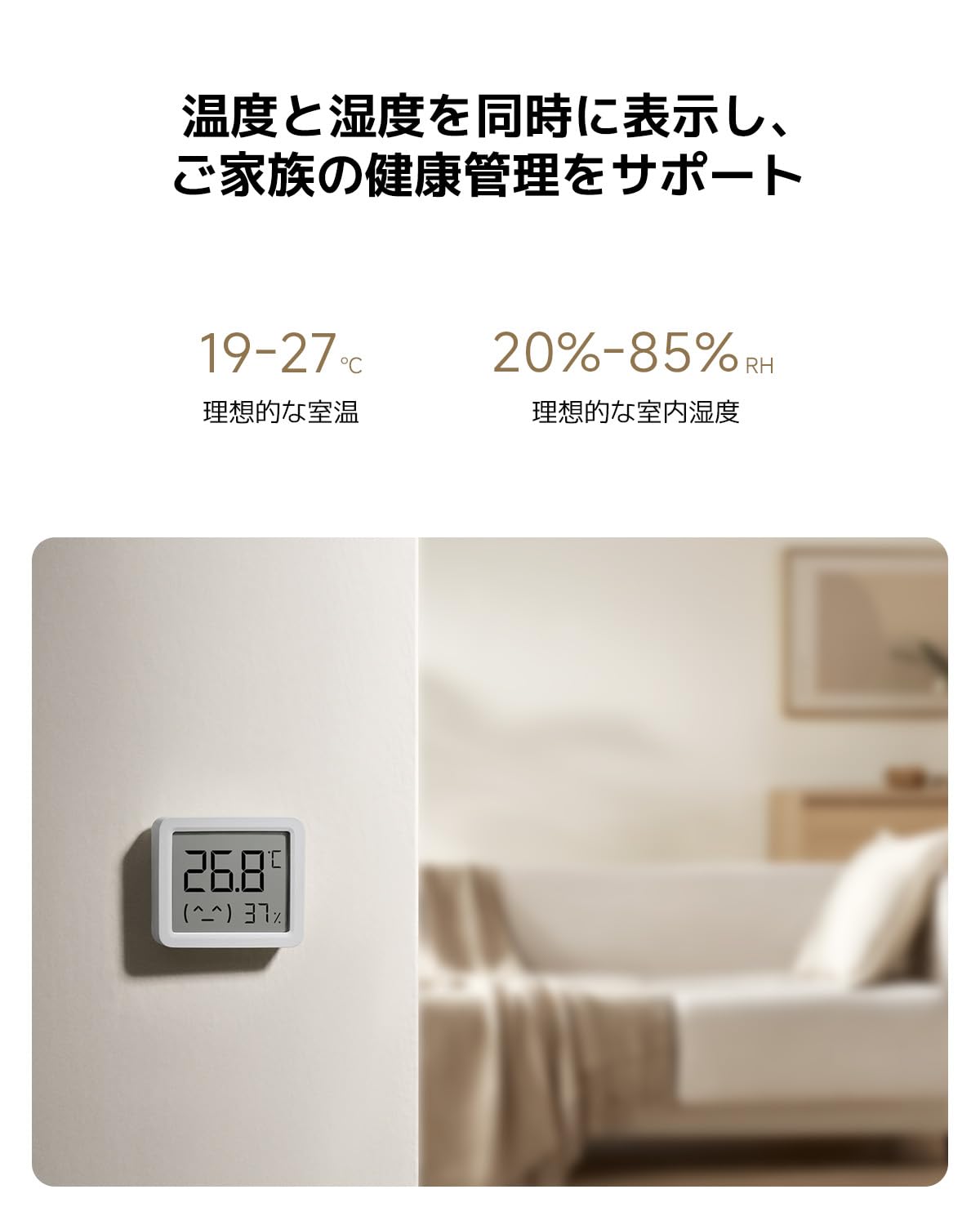

The display simultaneously shows current temperature and humidity. Ideal indoor conditions are indicated as 19-27°C for temperature and 20-85% RH for humidity.

3. Persediaan

3.1 Membuka Kotak dan Pemeriksaan Awal

Carefully remove the monitor from its packaging. Inspect the device for any signs of damage. The package should include the Xiaomi Smart Temperature and Humidity Monitor 3 Mini and this user manual.

3.2 Pemasangan Bateri

1. Cari penutup petak bateri di bahagian belakang peranti.
2. Buka penutupnya dengan lembut.
3. Insert one CR2450 button cell battery, ensuring the positive (+) side faces upwards as indicated inside the compartment.
4. Close the battery compartment cover securely. The display should activate automatically.

The monitor uses a CR2450 button cell battery, offering ultra-low power consumption for up to 2 years in standard mode and 3 years in battery-saving mode.

3.3 Penempatan

The monitor can be placed on a flat surface using its integrated stand or mounted on a wall. For accurate readings, place the device away from direct sunlight, heat sources, and strong drafts.

Its versatile design allows for flexible placement, either on a tabletop using its integrated stand or mounted on a wall.

3.4 Smart Home Pairing (Optional)

To connect the monitor to your smart home system via Bluetooth, follow these general steps:

1. Download the official Xiaomi Home app (or compatible smart home app) on your smartphone.
2. Pastikan Bluetooth didayakan pada telefon pintar anda.
3. Open the app and follow the on-screen instructions to add a new device. The monitor should appear as an available device for pairing.
4. Sahkan pasangan dalam aplikasi.

4. Arahan Operasi

4.1 Membaca Paparan

The LCD screen continuously displays the current temperature in Celsius (°C) and relative humidity (RH%). The display is designed for clear visibility from a distance.

4.2 Understanding Ideal Ranges

The monitor may provide visual indicators or a simple emoji to represent comfort levels. Generally, ideal indoor conditions are:

• Suhu: 19°C hingga 27°C
• Kelembapan: 20% RH hingga 85% RH

Adjust your environment (e.g., heating, cooling, humidifiers, dehumidifiers) as needed to stay within these ranges for optimal comfort and health.

5. Penyelenggaraan

5.1 Pembersihan

Wipe the device gently with a soft, dry cloth. Do not use liquid cleaners, abrasive materials, or immerse the device in water.

5.2 Penggantian Bateri

When the battery is low, a low battery indicator may appear on the display. Replace the CR2450 battery by following the installation steps in Section 3.2. Dispose of used batteries responsibly according to local regulations.

5.3 Penyimpanan

Jika menyimpan peranti untuk tempoh yang lama, tanggalkan bateri untuk mengelakkan kebocoran. Simpan di tempat yang sejuk dan kering.

6. Penyelesaian masalah

• Tiada Paparan: Periksa sama ada bateri dipasang dengan betul dan mempunyai cas yang mencukupi. Gantikan bateri jika perlu.
• Bacaan Tidak Tepat: Ensure the device is placed in an appropriate location, away from direct heat, cold, or drafts. Allow some time for the sensor to stabilize after placement or battery change.
• Isu Kesambungan Bluetooth: Ensure Bluetooth is enabled on your smartphone and the device is within range. Try restarting both the monitor (by reinserting the battery) and your smartphone.
• Display Not Changing: If readings appear stuck, try replacing the battery. If the issue persists, contact customer support.

7. Spesifikasi

8. Waranti dan Sokongan

8.1 Maklumat Waranti

The Xiaomi Smart Temperature and Humidity Monitor 3 Mini comes with a standard manufacturer's warranty. Please refer to your purchase documentation or the official Xiaomi webtapak untuk terma dan syarat waranti terperinci khusus untuk wilayah anda.

8.2 Sokongan Pelanggan

For technical support, troubleshooting assistance, or warranty claims, please visit the official Xiaomi support website or contact their customer service department. Contact details can typically be found on the Xiaomi official webtapak atau dalam pembungkusan produk anda.

Sokongan dalam talian: www.mi.com/global/support
