This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your KETELES K800 Electric Bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your e-bike.
The KETELES K800 is an advanced electric bike designed for adults, featuring powerful dual motors and a high-capacity removable battery for extended range. Its 26-inch by 4-inch fat tires ensure excellent traction and stability across various terrains, including sand, snow, gravel, and flat roads. With 21 speeds and hydraulic brakes, it offers a versatile and secure riding experience for both daily commuting and off-road adventures.
Figure 1: KETELES K800 Electric Bike with included accessories.
Persediaan dan Perhimpunan
Your KETELES K800 electric bicycle is 85% pre-installed. The following steps outline the final assembly process. For a visual guide, please refer to the assembly video below.
Video 1: K800 Unboxing and Assembly Tutorial. This video demonstrates the complete unboxing and assembly process for your electric bike, including handlebar, seat, wheel, fender, rack, and pedal installation, as well as battery insertion and initial checks.
Unboxing and Component Removal
Carefully open the packaging and remove all components. Ensure all parts are accounted for before proceeding with assembly. The main frame, wheels, handlebars, seat post, pedals, fenders, rear rack, and battery are individually protected.
Pemasangan Hendal
Attach the handlebars to the stem. Ensure the handlebars are centered and the brake levers and shifters are in a comfortable and accessible position. Tighten all bolts securely.
Figure 2: The LCD display and handlebar controls, including the throttle and gear shifters.
Pemasangan Pos Tempat Duduk
Insert the seat post into the frame's seat tube. Adjust the seat height to a comfortable riding position, ensuring your feet can touch the ground when stopped. Secure the quick-release clamp dengan tegas.
Pemasangan Roda Depan
Carefully align the front wheel with the fork. Ensure the brake rotor slides correctly into the brake caliper. Secure the wheel using the quick-release skewer or axle nuts, depending on your model.
Fender and Headlight Installation
Attach the front and rear fenders to their designated mounting points on the frame and fork. Install the headlight on the front fork and connect its power cable. Ensure all connections are secure.
Rear Rack Installation (if applicable)
If your model includes a rear rack, attach it to the designated mounting points on the rear frame. Secure all bolts tightly.
Pemasangan Pedal
Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Apply a small amount of grease to the threads before installation. Tighten firmly with a wrench.
Pemasangan Bateri
Insert the 48V 23AH removable battery into its housing on the bike frame. Ensure it clicks securely into place. Use the provided key to lock the battery, if applicable, for security and to prevent accidental removal.
Figure 3: The removable 48V 23AH lithium battery integrated into the bike frame.
Pengurusan Kabel
Organize and secure any loose cables using zip ties or cable clips to prevent them from interfering with moving parts or getting damaged.
Operating Your KETELES K800
The KETELES K800 offers five distinct riding modes to adapt to various terrains and preferences:
- Mod Kuasa: Provides electric assistance as you pedal, extending your range and reducing effort.
- Mod Pendikit: Allows for pure electric propulsion without pedaling, similar to a motorcycle.
- Normal Riding Mode: Functions as a traditional bicycle, relying solely on pedal power.
- Mod Pelayaran: Maintains a set speed without continuous throttle input (refer to LCD display for activation).
- Mod Berjalan: Provides low-speed assistance for easy maneuvering while walking alongside the bike.
The intuitive color LCD display provides real-time information including battery level, current speed, power assist gear, and travel distance. Familiarize yourself with the controls on the handlebars for safe and effective operation.

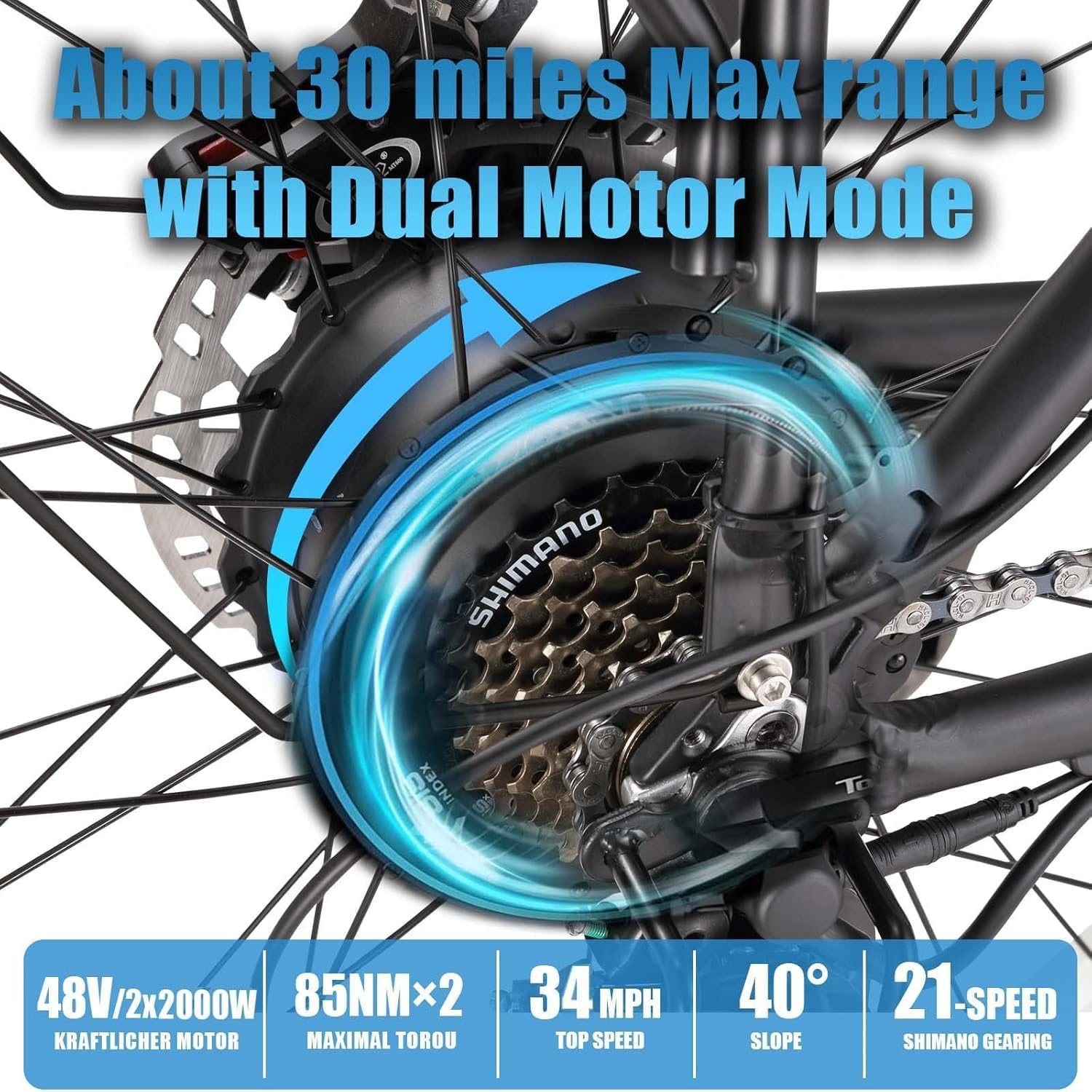

Figure 4: Illustration highlighting the powerful dual motors of the KETELES K800.
Penyelenggaraan
Regular maintenance is crucial for the longevity and safe operation of your KETELES K800 Electric Bike.
Penjagaan Am
- Pembersihan: Gunakan iklanamp cloth to wipe down the frame and components. Avoid high-pressure water jets directly on electrical components.
- Tekanan Tayar: Regularly check and maintain the recommended tire pressure for the 26" x 4" fat tires. Proper inflation ensures optimal performance and prevents punctures.
- Brek: Inspect hydraulic disc brakes for wear on pads and rotors. Ensure brake levers provide firm and responsive stopping power.
- rantai: Pastikan rantai bersih dan dilincirkan untuk memastikan pertukaran gear yang lancar dan mencegah karat.
- Pengikat: Periodically check all bolts and fasteners for tightness, especially on critical components like the handlebars, wheels, and seat post.
Penjagaan Bateri
The 48V 23AH removable lithium battery is a high-performance component. To maximize its lifespan:
- mengecas: Charge the battery fully before your first ride and after each use. Charging typically takes 7-9 hours.
- Storan: If storing the bike for an extended period, charge the battery to about 50-70% and store it in a cool, dry place. Recharge every 2-3 months.
- kitaran: The battery is designed for more than 1000 charging cycles.
- Bahan kalis air: While the battery features waterproof material, avoid submerging it in water.
Menyelesaikan masalah
This section addresses common issues you might encounter with your KETELES K800 Electric Bike. For more complex problems, please contact customer support.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Basikal tidak dihidupkan | Battery not inserted correctly; Battery low/dead; Power button not pressed. | Ensure battery is fully seated and locked; Charge the battery; Press and hold the power button on the display. |
| Motor tidak membantu | Motor cable disconnected; Pedal Assist System (PAS) level set to zero; Throttle not engaged. | Check motor cable connection at the front wheel; Increase PAS level on the display; Engage throttle fully. |
| Brek berasa spongy | Air in hydraulic lines; Worn brake pads. | Bleed the hydraulic brake system (professional recommended); Replace brake pads. |
| Unusual noises from drivetrain | Dry or dirty chain; Misaligned derailleur. | Clean and lubricate the chain; Adjust derailleur (professional recommended). |
Spesifikasi
Below are the key specifications for the KETELES K800 Electric Bike:
- Jenis Basikal: Basikal Elektrik
- Julat Umur: Dewasa
- Jenama: KETELE
- Nama Model: Puncak 4000W
- Bilangan Kelajuan: 21
- warna: Blue (variant shown in product details)
- Saiz Roda: 26 Inci
- Lebar Roda: 4 Inci (Tayar Gemuk)
- Jenis Penggantungan: Depan
- Ciri Khas: Tempat Duduk Boleh Laras
- Gaya Brek: Hydraulic Disc Brake with power cut-off Feature
- Sumber Kuasa: Electric motor (rechargeable battery-powered)
- Kandungan Tenaga Bateri Litium: 1104 Watt Jam (48V 23AH)
- Hayat Bateri (Anggaran): 4 Hours (Pure electric mode: 40-50Km; Electric assist mode: 80-100Km)
- Bahan: Aluminium (Bingkai)
- Bicycle Drivetrain Type: Motor Hub
- Perhimpunan Diperlukan: Ya (85% telah dipasang)
Dimensions and Load Capacity
Figure 5: Detailed dimensions and load capacity of the KETELES K800 Electric Bike.
- Kapasiti Muatan Maks: 200kg / 440 paun
- Berat Basikal: 37kg / 81 paun
- Ketinggian yang disyorkan: 170-195cm / 5.7-6.4ft
Waranti dan Sokongan
KETELES is committed to providing excellent customer service. We offer professional warranty services for our electric bicycles.
- Waranti: The battery, motor, and controller have a 12-month protection period.
- Sokongan Teknikal: Sokongan teknikal seumur hidup disediakan.
- Perkhidmatan Pelanggan: Our professional team is available to provide solutions within 24 hours.
For any questions or assistance, please feel free to contact us. Your satisfaction is our greatest motivation!
Figure 6: KETELES customer service team ready to assist.
