Maklumat Keselamatan Penting
Read all instructions carefully before assembly and operation. Failure to follow these safety guidelines may result in serious injury.
- Pengawasan Dewasa Diperlukan: Produk ini bertujuan untuk kanak-kanak berumur 6-12 tahun. Pengawasan orang dewasa yang berterusan adalah wajib semasa pengendalian.
- Alat Pelindung: Always ensure the rider wears a helmet, knee pads, and elbow pads.
- Had Berat: Jangan melebihi kapasiti berat maksimum 110 paun (50 kg).
- Permukaan Menunggang: Operate the go kart only on flat, dry, private surfaces free from obstacles. Avoid public roads, sidewalks, steep inclines, or wet conditions.
- Keselamatan Bateri: Handle the battery with care. Do not short-circuit, puncture, or expose to extreme temperatures. Only use the provided charger.
- Semakan Pra-Tunggangan: Before each use, inspect the go kart for loose parts, damaged components, and proper tire inflation.
- Tiada Penumpang: This go kart is designed for a single rider only.
- Hentian kecemasan: Instruct the rider on how to use the brake pedal for immediate stopping.
Produk Selesaiview
Ciri-ciri Utama
- Prestasi Kuat: Equipped with a 24V 7Ah battery and dual 200W motors, providing speeds up to 8.1 MPH.
- Drifting Capability: Features specialized rear drift wheels and a high-torque system for performing drifts and 360-degree spins.
- Tempat Duduk Boleh Laras: The ergonomic seat offers multiple adjustment positions to accommodate children aged 6 to 12 years.
- Kestabilan yang Dipertingkatkan: Constructed with a reinforced frame and a low center of gravity for stability during turns.
- Ciri-ciri Keselamatan: Includes high-grip front tires and a sturdy chassis for reliable control.
- Pencahayaan LED: Integrated bright LED lights enhance visibility and visual appeal.
Komponen
The Garvee Electric Go Kart includes several key components designed for performance and safety.
Imej: Terperinci view of the go kart's brake pedal, gas pedal, ergonomic seat, adjustable safety harness, responsive steering wheel, and wear-resistant drift wheels.
Arahan Perhimpunan
Follow these steps to assemble your Garvee Electric Go Kart. It is recommended to watch the assembly video for visual guidance.
Panduan Video Perhimpunan
Video: A detailed guide on how to assemble the Garvee Electric Go Kart, demonstrating each step of the process.
Perhimpunan Langkah demi Langkah
- Buka Pembungkusan Komponen: Carefully remove all parts from the packaging and verify against the parts list in your included manual.
- Pasang Roda: Attach the front and rear wheels to their respective axles, securing them with the provided washers and nuts. Ensure they spin freely.
- Connect Steering Column: Insert the steering column into the main chassis and secure it according to the instructions.
- Pasangkan Stereng: Mount the steering wheel onto the steering column, ensuring it is aligned and securely fastened.
- Pasang Tempat Duduk: Position the seat onto the chassis and secure it. Adjust the seat to the desired position for the rider.
- Sambungkan Bateri: Connect the battery terminals as indicated in the manual. Ensure all electrical connections are secure.
- Pemeriksaan Akhir: Before first use, perform a thorough check of all connections, fasteners, and moving parts to ensure proper assembly and safety.
Operating Your Go Kart
Familiarize yourself with the controls and operating procedures before riding.
Kawalan
- Butang Kuasa: Located on the dashboard, press to turn the go kart on or off.
- Pedal Gas: Press the right pedal to accelerate. Release to slow down.
- Pedal Brek: Press the left pedal to apply the brakes.
- Roda stereng: Turn left or right to steer the go kart.
- Pemilih Kelajuan: Switch between high and low-speed modes as appropriate for the rider's skill level and riding environment.
Arahan Memandu
- Mulakan: Ensure the go kart is on a flat surface. Press the power button.
- Mempercepatkan: Gently press the gas pedal to begin moving.
- Kemudi: Use the steering wheel to navigate.
- Brek: Release the gas pedal and press the brake pedal to stop.
- Drifting: To initiate a drift, turn the steering wheel sharply while accelerating, then counter-steer to maintain control. Practice in an open area.
Video: A child demonstrating the operation of the electric go kart, including driving and turning.
Imej: A child operating the go kart on a track, highlighting its speed and dual motor performance.
Imej: The go kart demonstrating its 360-degree drift function and wear-resistant tires on a track.
Imej: The go kart being driven on a dirt path, illustrating its suitability for various terrains.
Video: Tayangan video pendekasing the Garvee Electric Go Kart in action, highlighting its features and fun for children.
Penyelenggaraan dan Penjagaan
Proper maintenance ensures the longevity and safe operation of your go kart.
- Pengecasan Bateri: Charge the battery fully before first use (approximately 8-12 hours). Do not overcharge. Recharge after each use and at least once a month during storage.
- Pembersihan: Wipe the go kart with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Avoid spraying water directly onto electrical components.
- Storan: Store the go kart in a dry, cool place away from direct sunlight and moisture. Disconnect the battery if storing for extended periods.
- Pemeriksaan Tayar: Regularly check tires for wear and tear. Ensure they are free from punctures or damage.
- Pemeriksaan Pengikat: Periodically inspect all nuts, bolts, and other fasteners to ensure they are tight and secure.
Panduan Penyelesaian Masalah
Rujuk jadual ini untuk isu biasa dan penyelesaiannya.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Go kart does not start or move. | Battery is low or not connected. Power switch is off. Loose wiring. | Charge the battery. Ensure battery connectors are secure. Turn the power switch on. Check all wiring connections. |
| Kelajuan atau kuasa yang berkurangan. | Low battery charge. Overloaded weight. Riding on unsuitable terrain. | Recharge the battery. Ensure rider weight is within limits. Operate on flat, smooth surfaces. |
| Go kart makes unusual noises. | Loose parts. Debris in wheels/motors. | Inspect for loose components and tighten. Clear any debris from wheels and motor areas. |
| Brakes are not working effectively. | Brake mechanism issue. | Inspect the brake pedal and mechanism for obstructions or damage. Contact customer support if the issue persists. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact Garvee customer support.
Spesifikasi Produk
Detailed specifications for the Garvee 24V Electric Go Kart.
- Jenama: Garvee
- Nombor Model: Ob-AkUXSuSb_9nmasJInSgY6f
- Bateri: 24V 7Ah
- Motor: 2 x 200W (jumlah 400W)
- Kelajuan Maksimum: 8.1 MPH
- Umur Disyorkan: 6-12 tahun
- Kapasiti Berat Maksimum: 110 paun (50 kg)
- Bahan: Casis logam
- Berat Barang: 66.5 paun
- Dimensi Produk (L x W x H): 49.21 x 26.57 x 10.83 inci
- Komponen yang Disertakan: Elektrik Go Kart untuk Kanak-kanak

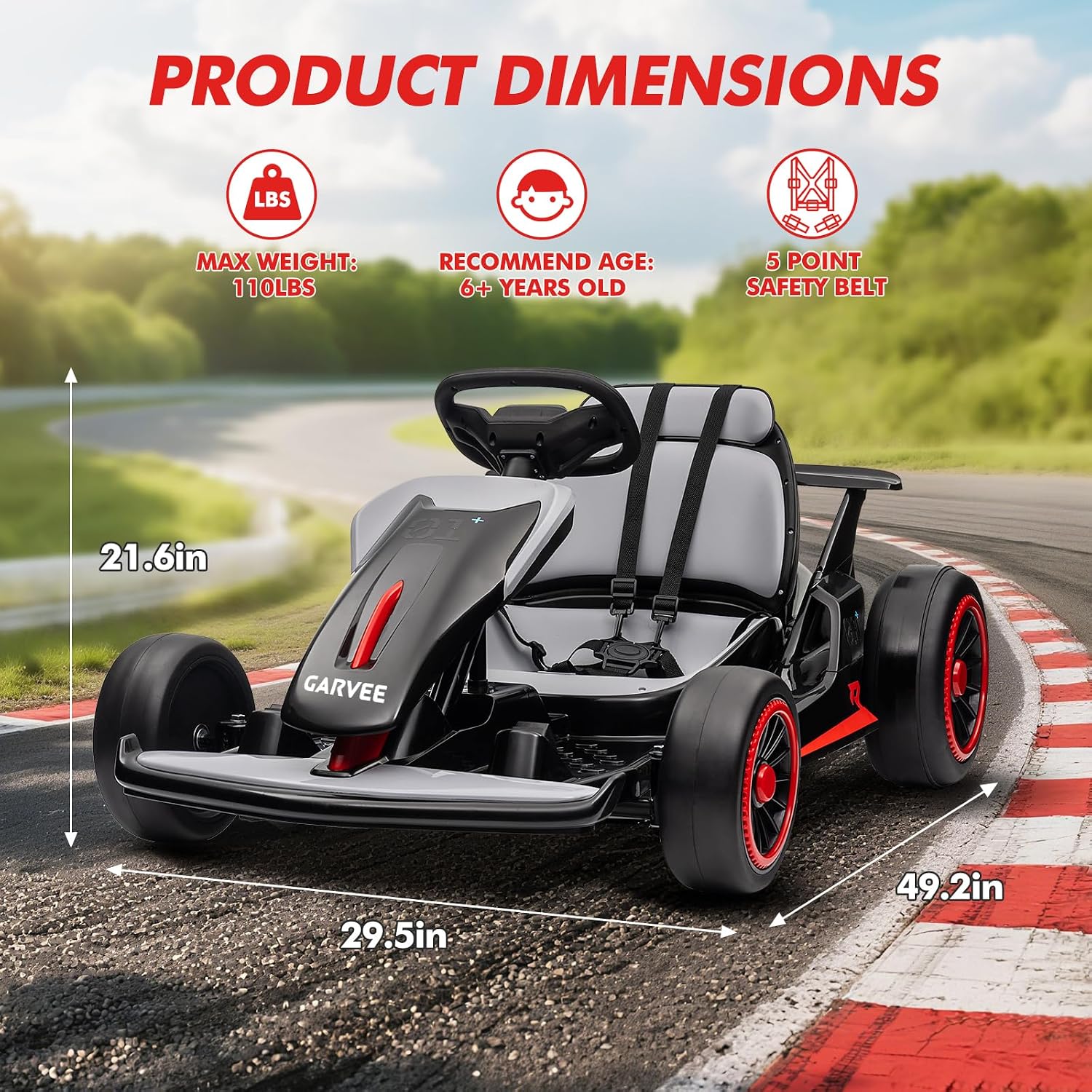

Imej: Visual representation of the go kart's dimensions and key specifications.
Waranti dan Sokongan Pelanggan
For warranty information, please refer to the documentation included with your purchase or contact Garvee customer support directly. Garvee is committed to providing quality products and support.
If you have any questions, require assistance with assembly, operation, or troubleshooting, please reach out to the seller or manufacturer through your purchase platform for prompt support.
