DEVAISE Metal Garage Storage Cabinet (Model AHDG095) User Manual

1. Pengenalan

Thank you for choosing the DEVAISE Metal Garage Storage Cabinet, Model AHDG095. This versatile storage solution is designed to help organize your garage, warehouse, home, or office with its robust construction, adjustable shelving, and secure locking system. This manual provides essential information for safe assembly, proper usage, and effective maintenance to ensure long-lasting performance.

Image: The DEVAISE Metal Garage Storage Cabinet in a garage environment, illustrating its practical storage capabilities.

2. Maklumat Keselamatan

Please read all safety warnings and instructions carefully before assembling and using this product. Failure to follow these instructions may result in injury or product damage.

• Peranti Anti-Tipping: Always mount the cabinet securely to the wall using the provided anti-tip hardware. Do not overload the shelves to prevent tipping and potential injuries.
• Perhimpunan: Assembly requires two people for stability and safety. Ensure all parts are correctly aligned and screws are tightened before use.
• Kapasiti Berat: Do not exceed the maximum weight capacity of 120 pounds per shelf and a total caster capacity of 720 pounds. Distribute weight evenly.
• penempatan: Place the cabinet on a level, stable surface. Avoid placing it in areas with excessive moisture or direct heat.
• Kanak-kanak: Keep children away from the cabinet during assembly. Do not allow children to climb on or play with the cabinet, especially when loaded.
• bergerak: When moving the cabinet, ensure all doors and drawers are locked and casters are unlocked. Lock casters once the cabinet is in its desired position.

3. Kandungan Pakej

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer service.

Video: The initial screen of the installation guide video displays a comprehensive list of all parts included with the DEVAISE Metal Garage Storage Cabinet.

The package includes various metal panels, shelves, a drawer, casters, hardware (screws, washers, pins), and an anti-tipping device. Refer to the detailed parts list in the assembly video for specific quantities and identifiers.

4. Arahan Perhimpunan

Follow these step-by-step instructions carefully. It is recommended to have two people for assembly to ensure stability and ease of installation.

Panduan Video Perhimpunan

Video: Detailed installation guide for the DEVAISE Wheeled Storage Cabinet, demonstrating each assembly step visually.

Step-by-Step Written Instructions

1. Step 1: Assemble the Base Panels. Connect the bottom panels (A and B) using the provided screws (N) and screwdriver.
2. Step 2: Attach Side Panels. Secure the side panels (C and D) to the assembled base using screws (N). This step requires two people for stability.
3. Step 3: Install Lower Crossbar. Attach the lower crossbar (E) to the front of the cabinet base.
4. Step 4: Install Bottom Panel. Place and secure the bottom panel (F) into the cabinet structure.
5. Step 5: Install Middle Crossbar. Attach the middle crossbar (G) to the cabinet frame.
6. Step 6: Install Middle Panel. Secure the middle panel (H) into the cabinet structure.
7. Step 7: Attach Casters and Leveling Feet. Install the 4 lockable casters (V) and 4 leveling feet (W) to the bottom of the cabinet using the provided screws.
8. Step 8: Install Drawer Support. Insert the drawer support (labeled '4UP' in the video) into its designated slots.
9. Step 9: Install Top Shelf. Place and secure the top shelf (F) into the upper section of the cabinet.
10. Step 10: Disassemble Drawer Slides. Separate the inner and outer parts of the drawer slides (GG/g and HH/h).
11. Step 11: Install Shelf Pins. Insert the plastic shelf pins (U) into the desired height adjustment holes for the adjustable shelves.
12. Step 12: Install Cabinet Drawer Slides. Attach the outer parts of the drawer slides (GG and HH) to the cabinet frame where the drawer will be located.
13. Langkah 13: Pasang Laci. Assemble the drawer components (R, X, Z, Y) as shown in the video, ensuring the drawer back panel (Y) is correctly installed.
14. Langkah 14: Masukkan Laci. Carefully slide the assembled drawer into the cabinet, aligning it with the installed drawer slides.
15. Step 15: Install Adjustable Shelves. Place the adjustable shelves (I) onto the previously installed shelf pins (O).
16. Step 16: Attach Doors. Install the cabinet doors (J and K) using the hinges (S, T, U1). Ensure they open and close smoothly.
17. Step 17: Install Anti-Tipping Device. Secure the cabinet to the wall using the anti-tipping screws (L) and wall anchors (M) as instructed.

5. Ciri-ciri Utama

• Mobiliti: Equipped with four lockable 360° casters, allowing for smooth movement across various surfaces and secure positioning.
• Ample Ruang Storan: Features two height-adjustable shelves and a full-extension drawer, providing flexible storage for large items, office supplies, or small tools.
• Sistem Penguncian Selamat: Includes three independent locking mechanisms for the doors and drawer, offering enhanced security for valuable contents.
• Pembinaan Teguh & Tahan Lama: Made from premium cold-rolled steel with a powder-coated finish, ensuring resistance to rust and scratches. Each shelf supports up to 120 pounds.
• Peranti Anti-Tipping: For added safety, an anti-tipping device is included to secure the cabinet to the wall.
• Pintu Magnetik: Doors are designed with magnetic closures for a secure and quiet seal.

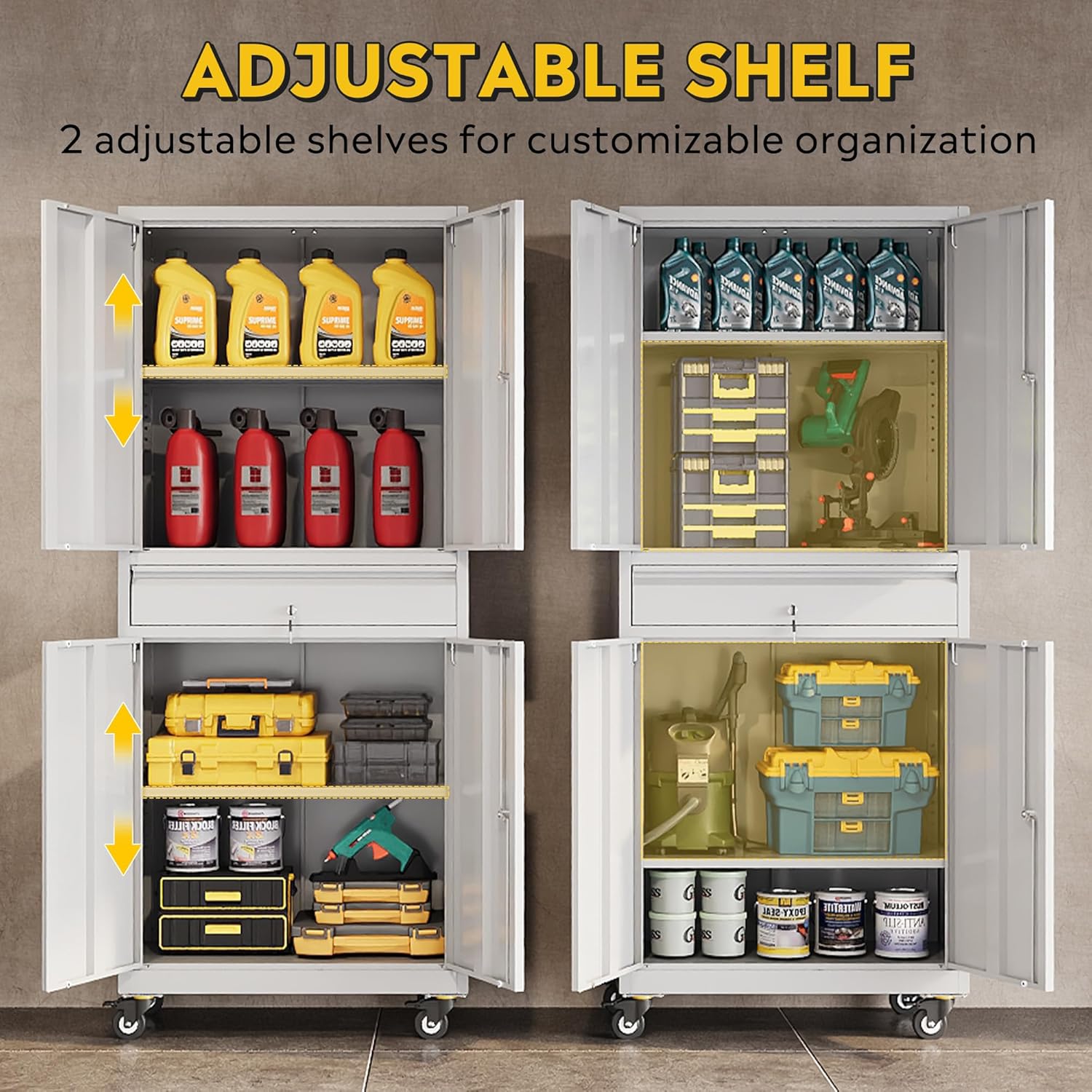

Imej: Dalaman view highlighting the adjustable shelves for customizable organization.

Imej: Terperinci view of the full extension drawer, magnetic door, lockable casters, and anti-tipping device.

6. Penggunaan dan Operasi

Rak boleh laras

The cabinet features two adjustable shelves. To adjust a shelf, remove all items from the shelf. Lift the shelf slightly and pull it out from the shelf pins. Reinsert the shelf pins into the desired height holes on the side panels, then place the shelf back onto the pins, ensuring it is level and secure.

Sistem Mengunci

The cabinet is equipped with a three-point locking system for the doors and a separate lock for the drawer. Insert the key into the lock and turn to secure or unlock. Ensure the doors and drawer are fully closed before locking.

mobiliti

The cabinet includes four lockable casters for easy movement. To move the cabinet, unlock all four casters by flipping their levers. Once the cabinet is in the desired location, lock the casters to prevent accidental movement.

Image: Two DEVAISE cabinets in a garage, demonstrating their use for storing tools and supplies.

Image: The cabinet's versatility is shown across different environments, including a garage, kitchen, living room, and office.

7. Penyelenggaraan

Pembersihan

The powder-coated steel surface is easy to clean. Use a soft, damp cloth with mild soap and water to wipe down the exterior and interior surfaces. Avoid abrasive cleaners or harsh chemicals that could damage the finish.

Video: A segment from the product introduction video showing the cabinet's easy-to-clean surface.

Pemeriksaan Biasa

Periodically check all screws and fasteners to ensure they remain tight. Inspect the casters for smooth operation and the locking mechanisms for proper function. Ensure the anti-tipping device remains securely attached to the wall.

8. Penyelesaian masalah

• Kabinet goyah:
  - Pastikan semua skru pemasangan diketatkan sepenuhnya.
  - Verify that the cabinet is placed on a level surface. Adjust leveling feet if necessary.
  - Confirm casters are locked when stationary.
• Pintu Tidak Tertutup Dengan Betul:
  - Check hinges for proper alignment and ensure they are securely fastened.
  - Make sure the cabinet is on a level surface.
  - Verify that nothing inside the cabinet is obstructing the doors.
• Laci Tidak Meluncur dengan lancar:
  - Inspect the drawer slides for proper installation and ensure they are not bent or damaged.
  - Check for any obstructions within the drawer tracks.
  - A small amount of silicone lubricant can be applied to the slides if needed.
• Bahagian Hilang atau Komponen Rosak:
  - Review the package contents list and assembly video to confirm all parts. If any are missing or damaged upon arrival, contact DEVAISE customer service immediately for assistance.

9. Spesifikasi Produk

Image: Visual representation of the product dimensions and individual shelf weight capacity.

10. Waranti dan Sokongan

DEVAISE is committed to providing high-quality products and customer satisfaction. For any questions, concerns, or assistance with your product, please contact DEVAISE customer service. Information regarding specific warranty details may be available on the product's purchase page or by contacting customer support directly.

This product is eligible for 30-day easy returns. Please refer to the retailer's return policy for more details.
