Hikity Android Car Stereo User Manual

1. Produk Lebihview

This manual provides instructions for the Hikity 9-inch Android Car Stereo, designed for Honda CRV models from 2012 to 2016. This system integrates advanced features such as Wireless CarPlay, Android Auto, WiFi, GPS Navigation, Bluetooth, Digital Sound Processor (DSP), FM/RDS radio, and includes a backup camera for enhanced driving experience.

The stereo operates on the Android system, offering a responsive interface and access to various applications. It features a 4-core CPU, 2GB RAM, and 64GB ROM for smooth performance.

Image: Hikity Android Car Stereo installed in a Honda CRV dashboard.

2. Persediaan dan Pemasangan

2.1 Semakan Keserasian

Before installation, verify the compatibility of your vehicle's original CD player back panel with the provided images. This unit is compatible with Honda CRV models from 2012 to 2016. Ensure your vehicle's original CD player matches 'Picture A' for proper fitment. If it matches 'Picture B' or 'Picture C', the product is not compatible.

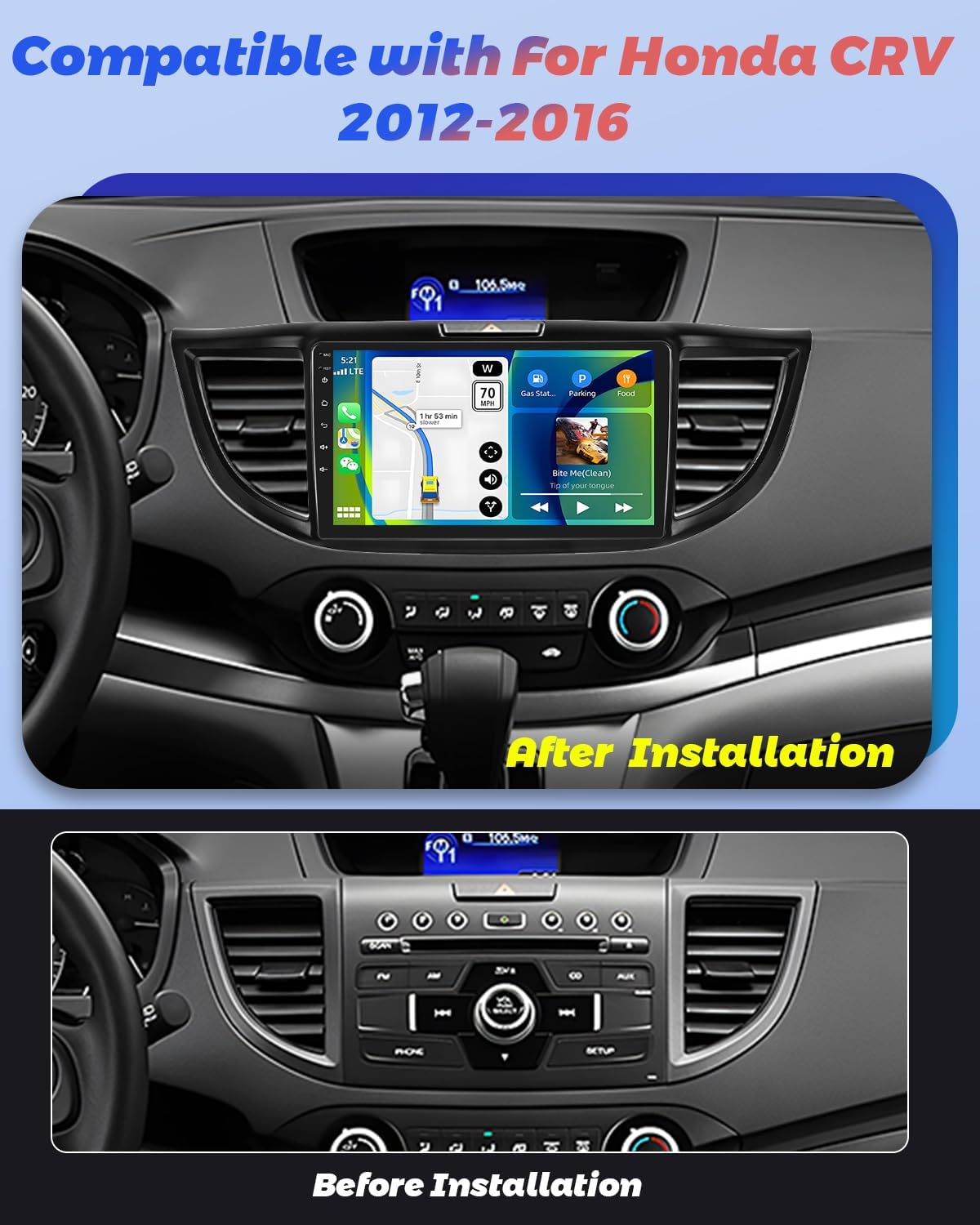

Image: Comparison of Honda CRV dashboard before and after installation of the Hikity Android Car Stereo.

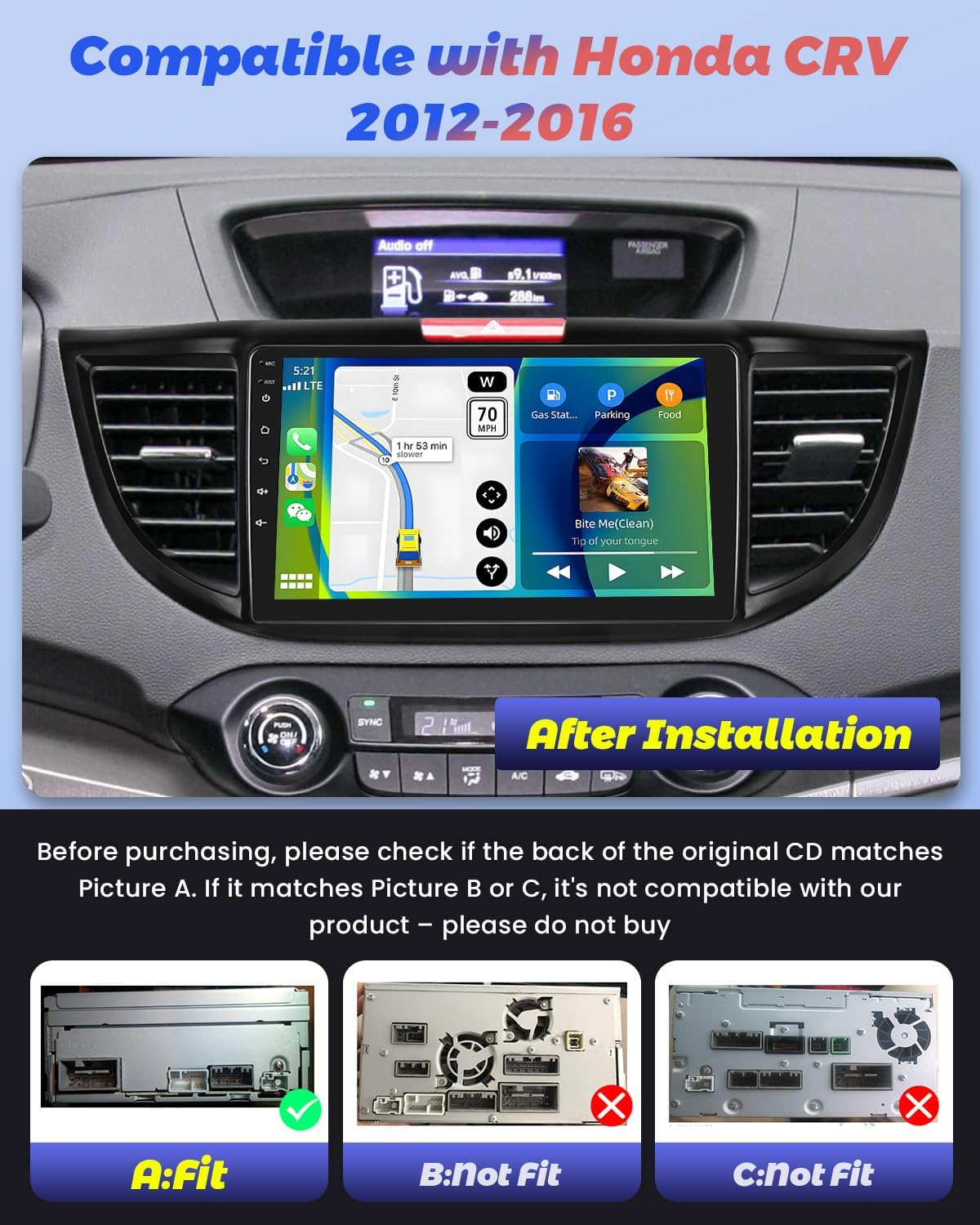

Image: Detailed compatibility check showing the back of the original CD player. Only 'A: Fit' is compatible.

2.2 Kandungan Pakej

Sahkan bahawa semua komponen terdapat dalam pakej sebelum memulakan pemasangan:

• 1 x Stereo Kereta Android
• 1 x Kabel kuasa
• 1 x Backup camera
• 2 x penyesuai USB
• 1 x Antena Radio
• 1 x Antena GPS
• 1 x CAM-VIN cable
• 1 x Manual Pengguna
• 1 x Alat Pemasangan
• 1 x Kabel RCA
• 1 x Garisan Terbalik
• 1 x Mikrofon

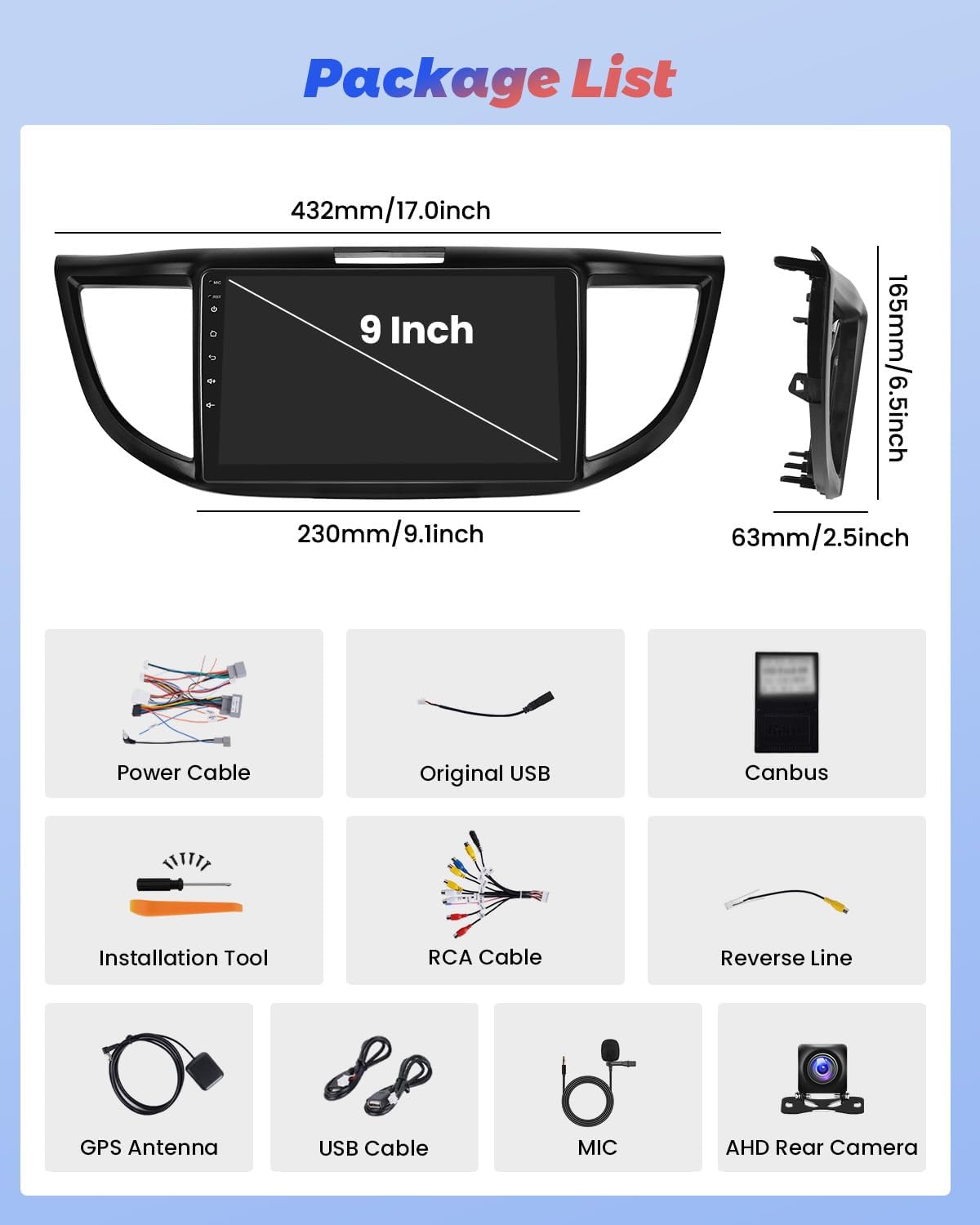

Imej: Perwakilan visual semua item yang disertakan dalam pakej produk.

2.3 Gambarajah Pendawaian

Refer to the following diagram for proper connection of the car stereo components. Ensure all cables are securely connected to their respective ports.

Image: Detailed wiring diagram showing connections for power, RCA, USB, camera input, radio antenna, and GPS antenna.

3. Arahan Operasi

3.1 CarPlay Wayarles & Android Auto

The car stereo supports both wireless and wired CarPlay and Android Auto. Connect your smartphone via Bluetooth or a USB data cable to access your phone's apps, navigation, and voice control features (Siri or Google Assistant).

Imej: Selesaiview of Wireless CarPlay, Android Auto, and Mirror Link functionalities.

3.2 Navigasi GPS

Utilize the built-in GPS navigation system with support for both online and offline maps. Connect to WiFi or a mobile hotspot to receive real-time traffic updates and avoid congestion.

3.3 WiFi & Bluetooth Connectivity

Connect to the internet via WiFi or a mobile hotspot to browse, stream videos, and download applications. Bluetooth 4.2 ensures fast and stable connections for hands-free calling, phonebook synchronization, and music streaming.

3.4 DSP & FM/RDS Radio

The integrated Digital Sound Processor (DSP) allows for precise audio adjustments, including frequency and sound effects, for crystal-clear audio output. The FM/RDS radio provides access to local stations, traffic information, and weather forecasts.

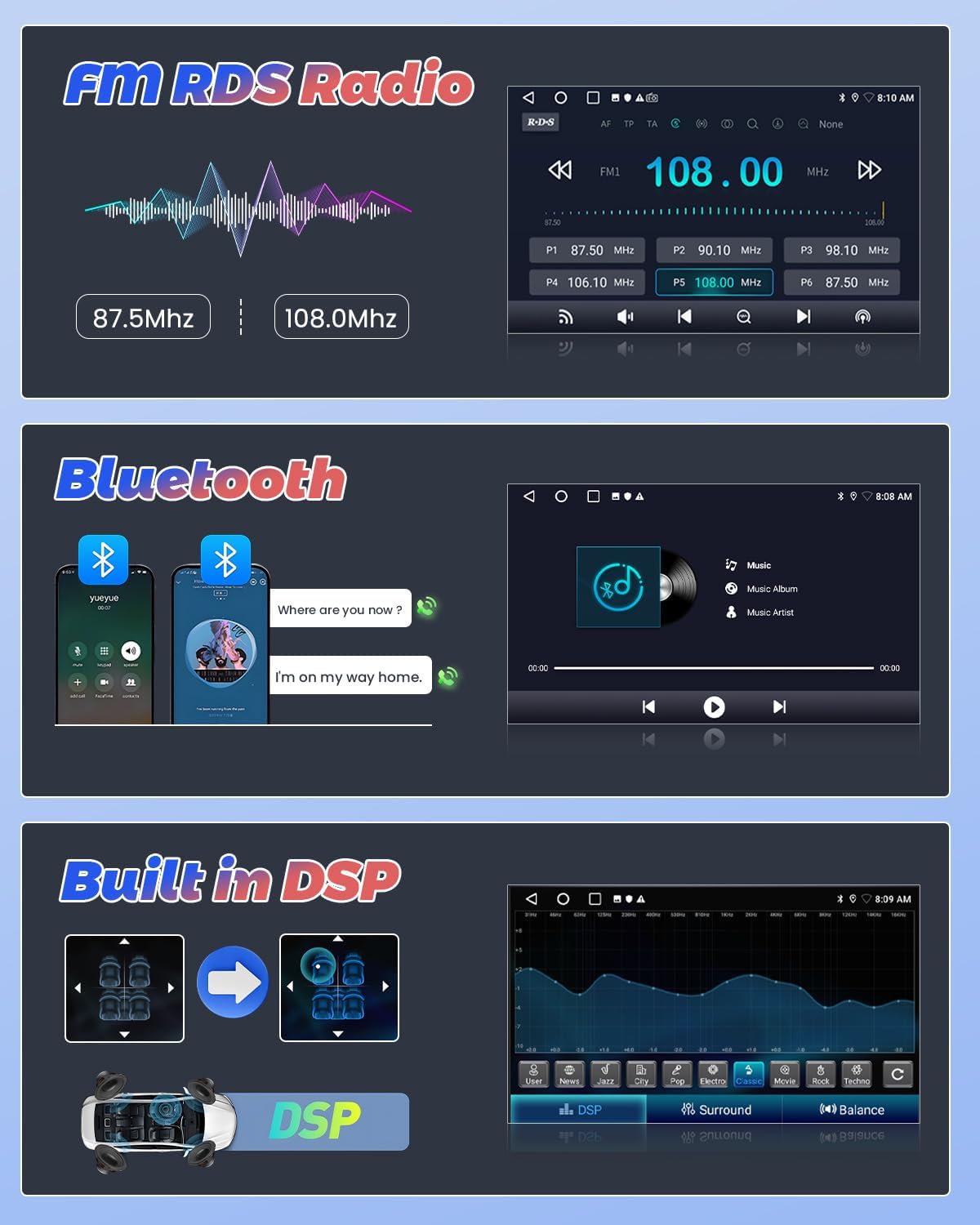

Image: Display of FM RDS radio interface, Bluetooth music streaming, and DSP sound settings.

3.5 Kamera Sandaran AHD

The included AHD backup camera provides a 170-degree wide-angle view with night vision, automatically displaying the rearview when reversing for safe parking.

3.6 Kawalan Roda Stereng (SWC)

The unit supports steering wheel controls, allowing you to manage audio, calls, and navigation without taking your hands off the wheel. Configuration may be required in the settings menu.

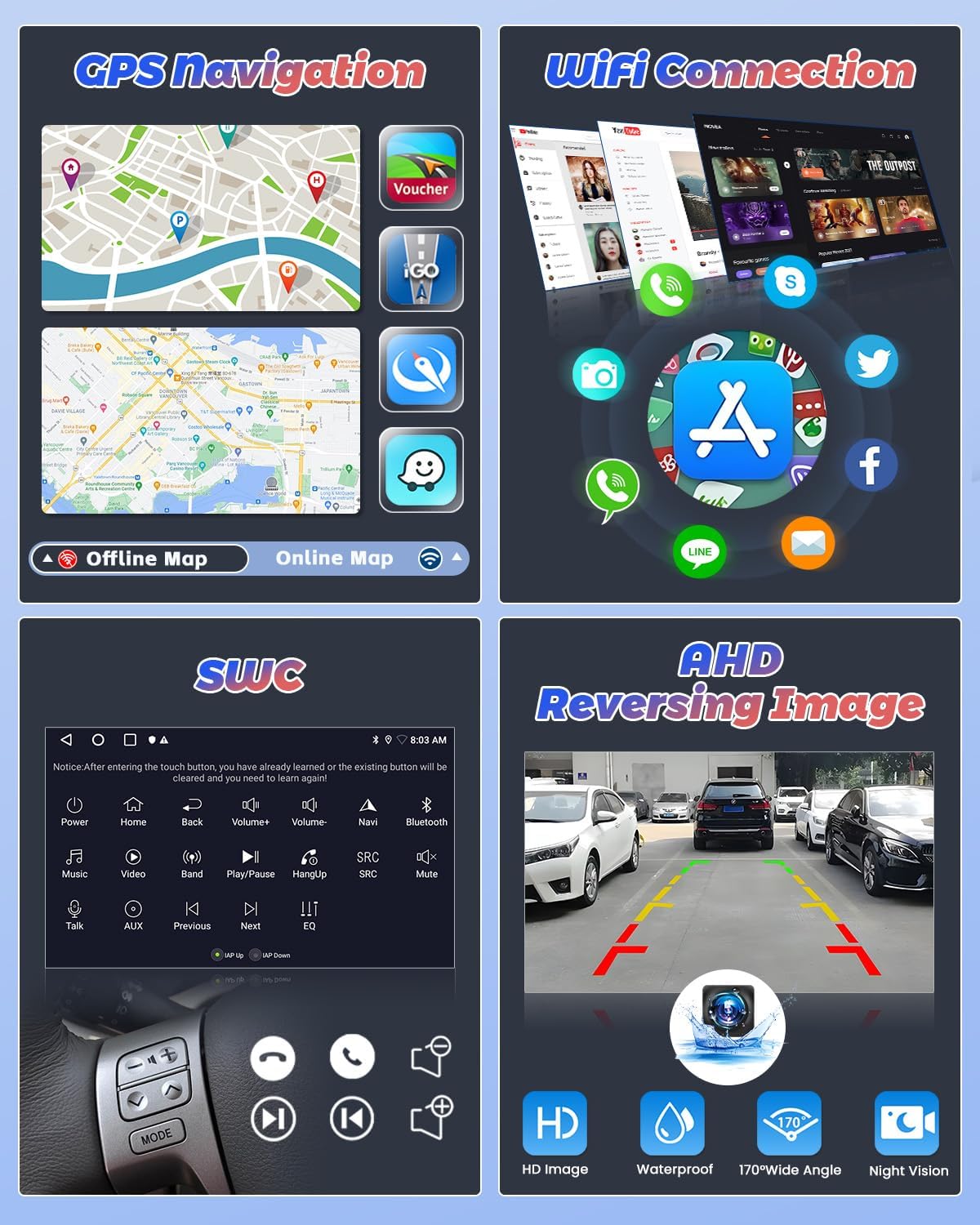

Image: Visuals demonstrating GPS navigation, WiFi connectivity, steering wheel control functions, and the AHD reversing camera display.

3.7 Split Screen Function & UI Themes

Enhance multitasking with the split-screen function, allowing two applications to run simultaneously. Customize your interface with various UI themes available in the system settings.

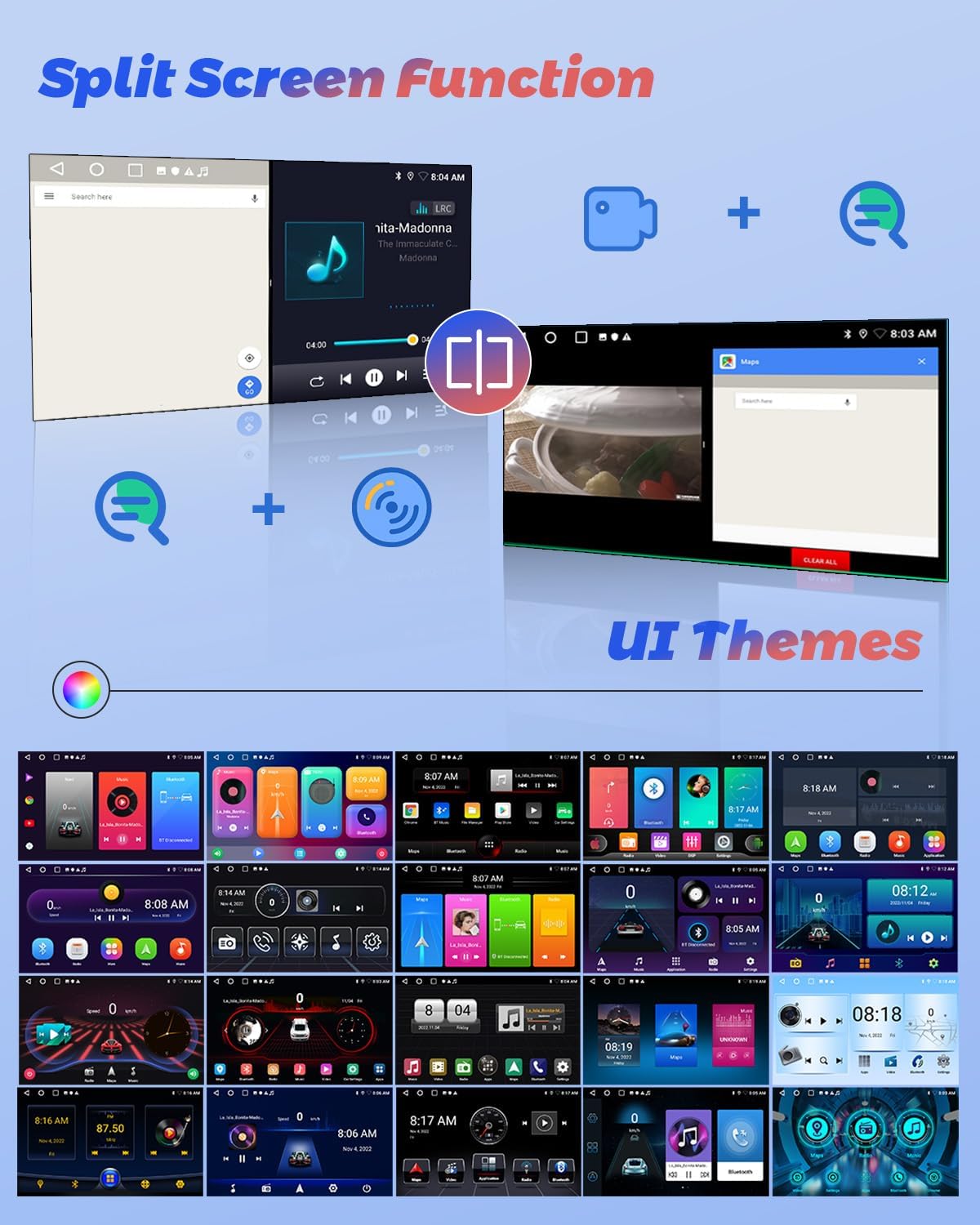

Image: Demonstration of the split-screen feature and a selection of customizable user interface themes.

3.8 Demonstrasi Video

Tonton video ini untuk penjelasan yang komprehensifview of the Hikity Android Car Stereo's features and user interface.

4. Penyelenggaraan

To ensure the longevity and optimal performance of your Hikity Android Car Stereo, follow these maintenance guidelines:

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan skrin sentuh dan bahagian luar. Elakkan pembersih atau pelarut yang melelas.
• Kemas Kini Perisian: Periodically check for system software updates through the device settings to ensure you have the latest features and security patches.
• Suhu: Elakkan daripada mendedahkan unit kepada suhu yang melampau, panas dan sejuk, untuk tempoh yang lama.
• Pengurusan tenaga: Ensure your vehicle's electrical system is in good condition to prevent power fluctuations that could affect the stereo.

5. Penyelesaian masalah

5.1 Amplifier Not Working

Sekiranya amplifier is not working after installation, ensure the amplifier cable is correctly connected to the red ACC (Accessory) cable. This connection provides power to the amplifier when the vehicle's ignition is on.

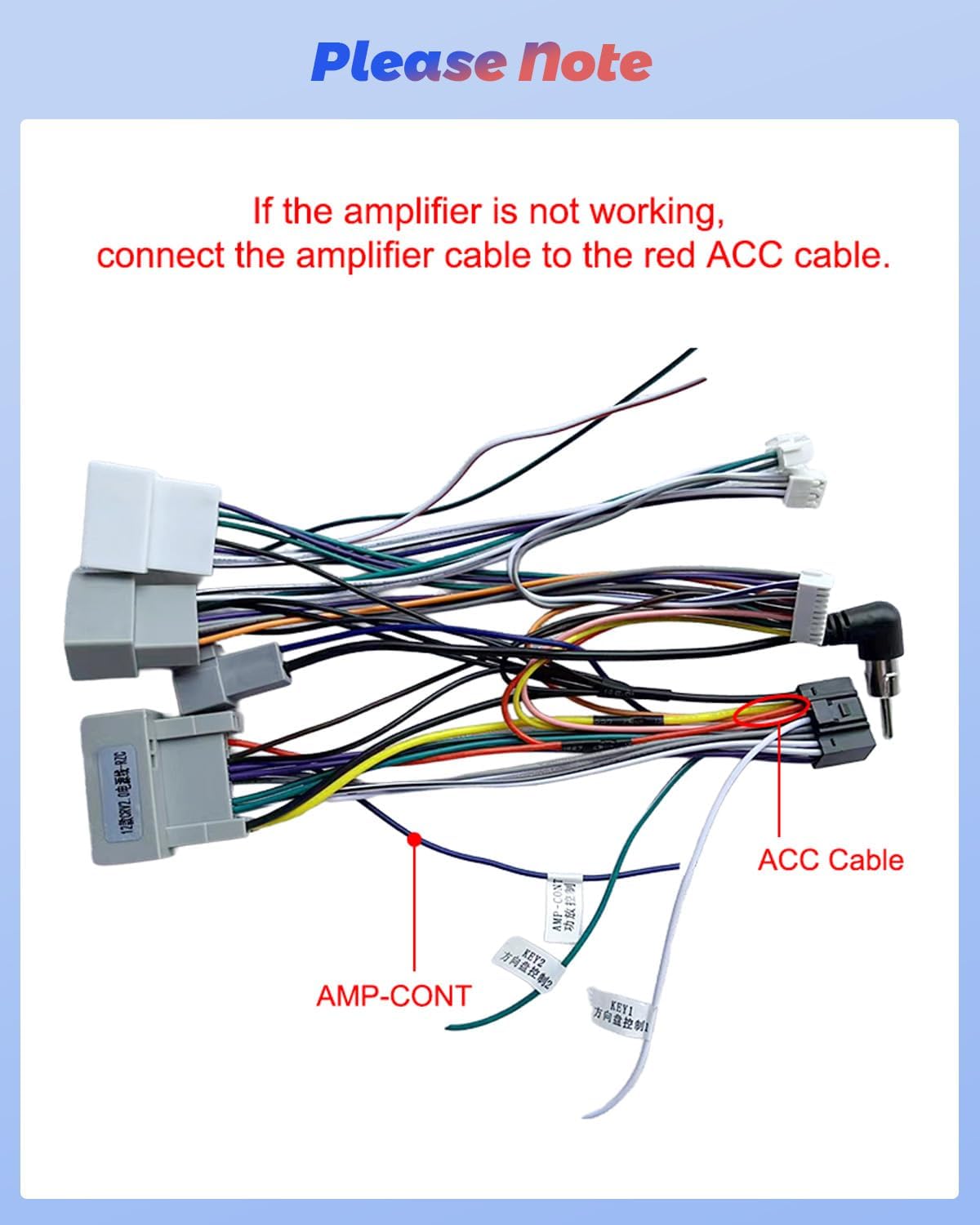

Image: Wiring detail showing the connection of the AMP-CONT cable to the red ACC cable for ampfungsi penguat.

5.2 Isu Umum

• Tiada Kuasa: Check all power connections, including the ACC and battery wires. Ensure the vehicle's fuse for the stereo is intact.
• Tiada Bunyi: Sahkan sambungan pembesar suara, amplifier connection (as above), and audio settings (volume, mute, DSP settings).
• Isu Sambungan Bluetooth: Ensure Bluetooth is enabled on both the stereo and your phone. Delete previous pairings and try re-pairing. Check device visibility settings.
• Kehilangan Isyarat GPS: Pastikan antena GPS dipasang dengan betul dan mempunyai garis penglihatan yang jelas ke langit.
• Skrin sentuh Tidak Responsif: Try restarting the unit. If the issue persists, a factory reset might be necessary (refer to system settings).

6. Spesifikasi

7. Waranti dan Sokongan

Hikity offers the following support for this product:

• Jaminan Wang Dikembalikan: Polisi wang dikembalikan selama 15 hari.
• Waranti Gantian: 12-month replacement warranty.
• Sokongan Teknikal: Life-time technical support.

For further assistance, please contact Hikity electronic directly through the seller contact options on the purchase platform.
