HWWR T25T Karaoke Machine Instruction Manual

pengenalan

Thank you for choosing the HWWR T25T Portable Bluetooth Karaoke Speaker. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

The HWWR T25T is designed to deliver a powerful and immersive audio experience with its dual 5.25-inch full-range drivers and 360-degree sound projection. It includes two wireless microphones for enhanced vocal performance and dynamic lighting effects to complement your audio.

Kandungan Pakej

Sila sahkan bahawa semua item yang disenaraikan di bawah terdapat dalam pakej anda:

• 1 x HWWR T25T Karaoke Machine
• 2 x Mikrofon Tanpa Wayar
• 1 x Kabel Pengecas USB
• 1 x Kabel AUX

Image: The HWWR T25T Karaoke Machine with its two accompanying wireless microphones, USB charging cable, and AUX cable.

Produk Selesaiview

Unit utama

The main unit features a control panel on the top for easy access to functions, a speaker grille on the front, and dynamic RGB lighting. It includes various input ports for versatile connectivity.

Imej: A terperinci view of the HWWR T25T's control panel and various connection methods including Bluetooth, USB, TF Card, and AUX In.

Mikrofon Tanpa Wayar

The two included wireless microphones utilize 2.4G Bluetooth technology with APTX HD decoders for clear, low-latency sound transmission. They are designed for comfortable handling and reliable performance.

Image: A close-up of one of the wireless microphones, highlighting its design and controls.

Persediaan

1. Charging the Main Unit

• Connect the provided USB charging cable to the USB Type-C port on the karaoke machine and to a compatible USB power adapter (not included).
• Penunjuk pengecasan akan menyala. Cas penuh mengambil masa kira-kira 2 jam.
• The unit provides over 12 hours of playback time on a full charge.

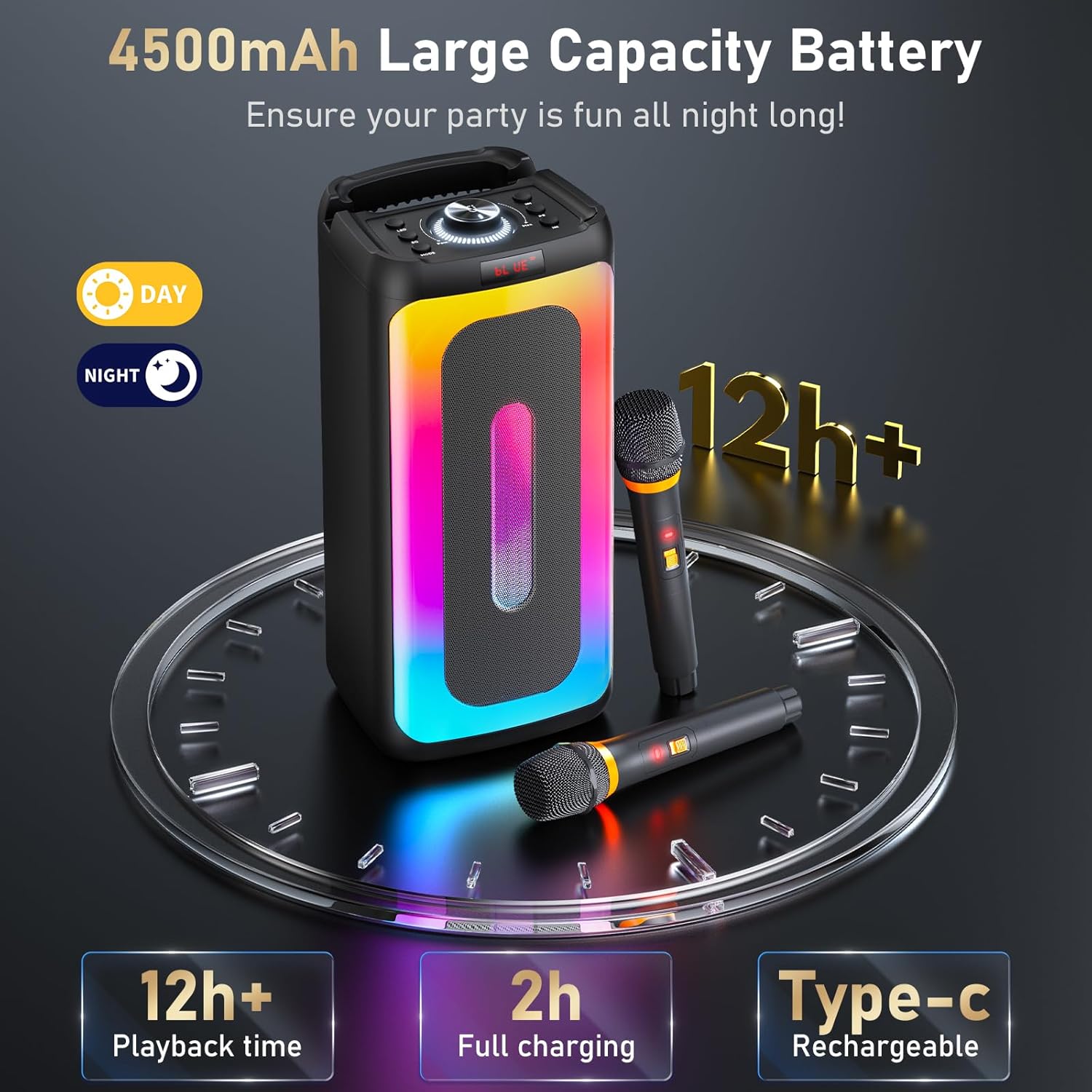

Image: Illustration of the 4500mAh large capacity battery, showing 2 hours for full charging and 12+ hours of playback time.

2. Memasang Bateri Mikrofon

• The wireless microphones do not come with batteries installed. Open the battery compartment on each microphone.
• Masukkan dua bateri AA (tidak disertakan) ke dalam setiap mikrofon, pastikan kekutuban yang betul.
• Tutup petak bateri dengan selamat.

3. Menghidupkan

• Press and hold the Power button on the main unit to turn it on.
• Press the power button on each wireless microphone to turn them on. They will automatically pair with the main unit.

Arahan Operasi

Sambungan Bluetooth

1. Ensure the karaoke machine is powered on and in Bluetooth mode (indicated by 'BLUE' on the display). If not, press the 'MODE' button to switch modes.
2. Dayakan Bluetooth pada telefon pintar, tablet atau komputer anda.
3. Cari untuk 'HWWR T25T' in the list of available devices and select it to pair.
4. Once connected, you can play audio from your device through the karaoke machine.

Main Semula Kad USB/TF

1. Masukkan pemacu USB atau kad TF yang mengandungi audio files into the respective port on the main unit.
2. The machine will automatically switch to USB or TF card mode and begin playing audio. If not, press the 'MODE' button to select the correct input.
3. Use the control panel buttons to play, pause, skip tracks, and adjust volume.

Input AUX

1. Connect one end of the provided AUX cable to the AUX In port on the karaoke machine.
2. Connect the other end to the audio output jack of your external device (e.g., TV, MP3 player).
3. Press the 'MODE' button to select AUX input. Audio from your external device will now play through the speaker.

Penggunaan Mikrofon

• Ensure microphones are powered on and paired with the main unit.
• Adjust microphone volume using the dedicated controls on the main unit.
• The microphones feature intelligent noise reduction for clear vocal pickup.

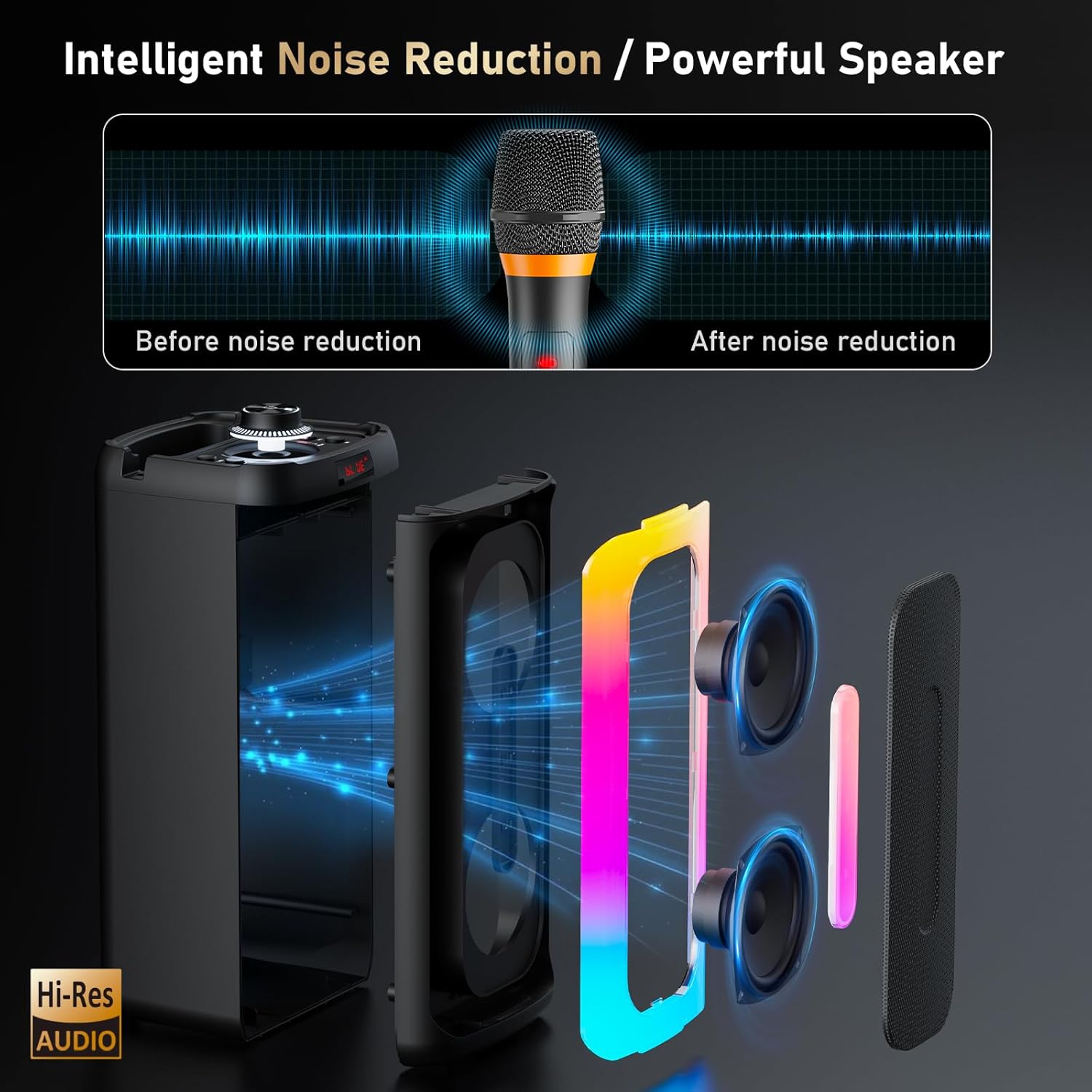

Image: A visual representation of the intelligent noise reduction feature, illustrating sound before and after processing by the microphone.

Kesan Pencahayaan Dinamik

• The karaoke machine features open passive light and a vibrant gradient light ring that syncs with your music.
• Press the 'LED' button on the control panel to cycle through different light modes or turn the lights off.

Image: Several HWWR T25T units showcasing different multicolor light patterns, demonstrating the dynamic lighting feature.

Penyelenggaraan

• Pembersihan: Use a soft, dry cloth to clean the exterior of the karaoke machine and microphones. Do not use liquid cleaners or abrasive materials.
• Storan: Apabila tidak digunakan untuk tempoh yang lama, simpan peranti di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• Penjagaan Bateri: For optimal battery life, fully charge the unit before long-term storage and recharge it every 3 months. Remove batteries from microphones if not used for a long time.
• Elakkan Air: Jauhkan peranti daripada air dan lembapan untuk mengelakkan kerosakan.

Menyelesaikan masalah

Spesifikasi

• model: T25T
• Berat Barang: 5.29 paun
• Dimensi Produk: 8.5 x 8 x 16 inci
• Output Kuasa: 80W
• Ketersambungan: Bluetooth, USB, TF Card, AUX In
• Jenis Mikrofon: 2.4G Wayarles
• Kapasiti Bateri: 4500mAh
• Masa Pengecasan: Lebih kurang 2 jam
• Masa Main Semula: Lebih 12 jam
• Peranti Serasi: Smartphones, Tablets, Computers, Bluetooth-enabled devices, Musical instruments with a 6.35 mm cable
• Komponen yang Disertakan: Karaoke machine, 2 Wireless microphones, USB Cable, AUX Cable

Waranti dan Sokongan

Maklumat Waranti

HWWR provides a 12-month warranty for any quality-related problems from the date of purchase. Please retain your proof of purchase for warranty claims.

Sokongan Pelanggan

Should you encounter any questions or problems with your HWWR T25T Karaoke Machine, please do not hesitate to contact our support team. We are dedicated to assisting you.

• telefon: 757-943-7037
• e-mel: service@hwwr.net

Image: A graphic illustrating customer support contact information, including phone and email.
