CRONY S32 Kids Foldable E-Scooter User Manual

1. Pengenalan

Thank you for choosing the CRONY S32 Kids Foldable E-Scooter. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new e-scooter. Please read this manual thoroughly before first use to ensure proper function and to prevent injury.

Maklumat Keselamatan Penting

WARNING: Not suitable for children under 6 years of age. Adult supervision is required at all times. Always wear appropriate safety gear, including a helmet, knee pads, and elbow pads, when riding the e-scooter. Do not ride in traffic, on wet surfaces, or on uneven terrain. Ensure the scooter is fully charged and all components are securely fastened before each use.

The CRONY S32 E-Scooter is designed for children aged 6 and above, supporting a maximum load of 100KG. It features a 130W motor, adjustable speed (10-16 KM/H), LED lights, and a convenient folding mechanism.

2. Komponen Produk

Familiarize yourself with the different parts of your CRONY S32 E-Scooter:

Gambar 2.1: Lebihview of CRONY S32 E-Scooter components including LED Headlamp, LED Light, Foldable Area, Tyre, and LED Colorful Light.

Figure 2.2: Close-up of the CRONY S32 E-Scooter handlebar showing the Speed Display, Hand Brake, Accelerator, Battery Indicator, Power ON/OFF button, and Hook.

• Kepala LEDamp: Front light for visibility.
• Bar Lampu LED: Integrated light bar on the stem for enhanced visibility.
• Foldable Area: Mechanism for folding the scooter for storage and transport.
• Tayar: Durable wheels for riding.
• LED Colorful Light (Deck Lights): RGB lights on the deck for aesthetic appeal and visibility.
• Paparan Kelajuan: Digital screen showing current speed.
• Brek Tangan: Lever for engaging the front brake.
• Pemecut: Thumb or finger control to adjust speed.
• Penunjuk Bateri: Menunjukkan baki hayat bateri.
• Butang ON / OFF Kuasa: To turn the scooter on or off.
• cangkuk: For securing the scooter when folded or for carrying light items.
• Extended Footrest: Menyediakan ample space for comfortable foot placement.

3. Persediaan dan Penggunaan Awal

3.1 Membuka Lipatan Skuter

1. Letakkan skuter di atas permukaan yang rata dan stabil.
2. Locate the folding mechanism (usually a latch or lever near the base of the stem).
3. Release the latch and carefully lift the handlebar stem until it locks into an upright position. Ensure it clicks securely into place.
4. Check that all connections are firm and the handlebar is stable.

3.2 Mengecas Bateri

Before first use, fully charge the scooter's battery. The CRONY S32 is equipped with a 21V/2.5AH lithium battery.

1. Locate the charging port on the scooter (typically near the battery compartment).
2. Sambungkan pengecas ke port pengecas, kemudian pasangkan pengecas ke soket kuasa standard.
3. The charging indicator light on the charger will typically turn red while charging and green when fully charged.
4. Charging time is approximately 2-3 hours for a full charge. Do not overcharge.
5. Putuskan sambungan pengecas setelah pengecasan selesai.

4. Arahan Operasi

4.1 Hidupkan/Mati Kuasa

Press and hold the Power ON/OFF button on the handlebar display to turn the scooter on or off. The LED display will illuminate when powered on.

4.2 Menunggang Skuter

1. Letakkan sebelah kaki dengan kukuh di atas dek skuter.
2. Tolak dengan kaki anda yang lain untuk mendapatkan momentum awal.
3. Gently press the accelerator (E-Accelerator) to engage the motor and increase speed. The scooter offers a speed range of 10-16 KM/H.
4. To slow down or stop, release the accelerator and gently apply the hand brake or use the rear foot brake.
5. Maintain balance and keep both hands on the handlebars while riding.

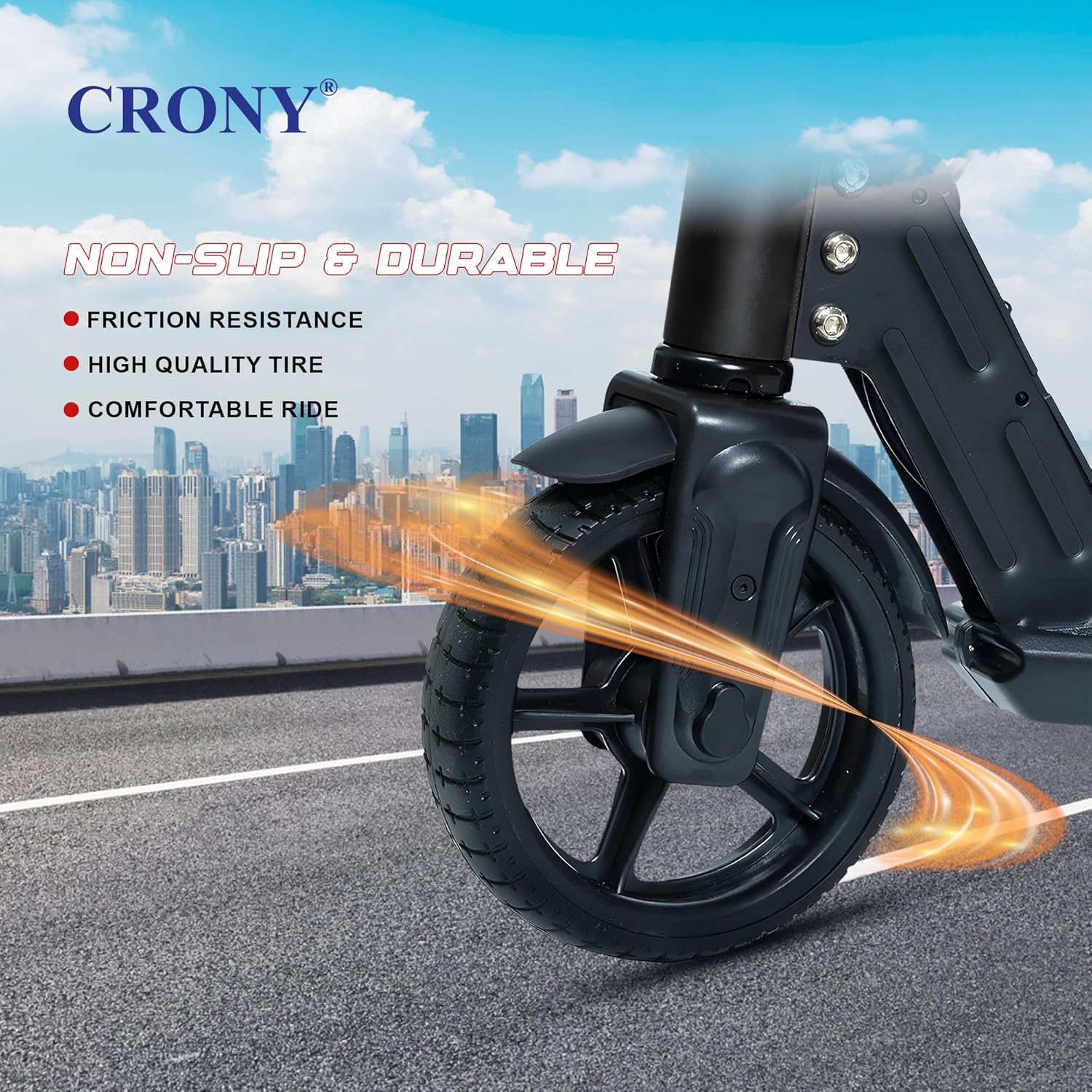

Figure 4.1: The CRONY S32 features a non-slip deck and durable, high-quality tires for a comfortable and stable ride.

Figure 4.2: The integrated LED base lights enhance visibility and safety during rides.

Figure 4.3: The CRONY S32 is designed with lightweight materials, high-quality wheels, and a shock-absorbing deck for a comfortable and easy riding experience.

Figure 4.4: The scooter's design emphasizes ease of folding, integrated LED base lights, lightweight construction, and portability.

Figure 4.5: The LED Headlamp and LED Light bar contribute to safe riding, making the S32 a reliable choice for kids.

4.3 Melipat Skuter

To fold the scooter for storage or transport, reverse the unfolding process:

1. Pastikan skuter dimatikan.
2. Locate and release the folding latch.
3. Carefully fold the handlebar stem downwards until it clicks into the folded position.

5. Penyelenggaraan

5.1 Pembersihan

Regularly clean your scooter to maintain its appearance and function:

• Lap skuter dengan iklanamp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
• Elakkan menyembur air terus ke atas komponen elektrik.

5.2 Penjagaan Bateri

Proper battery care extends its lifespan:

• Cas bateri sepenuhnya selepas setiap penggunaan, terutamanya jika disimpan untuk tempoh yang lama.
• Jangan biarkan bateri habis sepenuhnya sebelum dicas semula.
• Simpan skuter di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.

5.3 Pemeriksaan Am

• Periksa semua skru dan pengikat secara berkala untuk memastikan ia ketat.
• Inspect tires for wear and tear.
• Pastikan brek berfungsi dengan betul.

6. Penyelesaian masalah

If you encounter issues with your CRONY S32 E-Scooter, refer to the following common problems and solutions:

7. Spesifikasi

Detailed technical specifications for the CRONY S32 Kids Foldable E-Scooter:

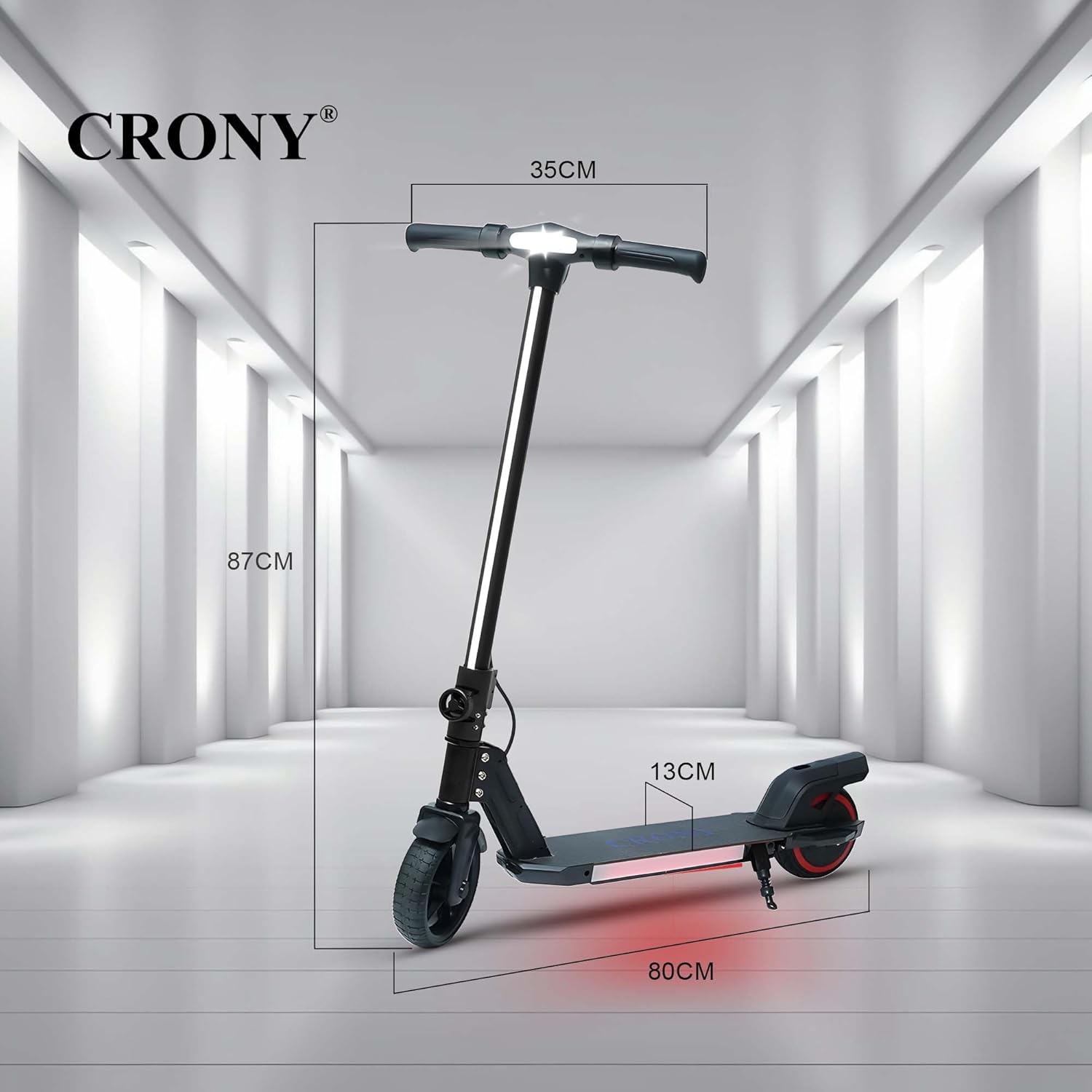

Figure 7.1: CRONY S32 E-Scooter dimensions.

8. Maklumat Waranti

CRONY provides the following warranty for the S32 E-Scooter:

• Motor: Waranti 1 tahun.
• Battery and Control Box: jaminan 3 bulan.

Please note that man-made damage not related to product quality is not covered by the free warranty. Keep your purchase receipt as proof of purchase for warranty claims.

9. Sokongan Pelanggan

For any inquiries, technical assistance, or repair services, please contact the authorized seller:

Gulf Land Auto Parts Trading FZCO

Products purchased from this store are guaranteed authentic and can enjoy offline high-quality repair and maintenance services. For specific contact details or to arrange service, please refer to your purchase documentation or the seller's information on the platform where the product was purchased.
