Newsoul 18.5-inch 120Hz Portable Monitor User Manual

1. Pengenalan

This manual provides essential information for the setup, operation, and maintenance of your Newsoul 18.5-inch 120Hz Portable Monitor. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage.

2. Ciri-ciri Produk

• Paparan HD Penuh 18.5 inci: Experience vibrant visuals with a 1080P Full HD resolution and 100% sRGB color gamut on a wide-view IPS panel. HDR technology enhances contrast and detail.
• Kadar Segar Semula Tinggi 120Hz: Enjoy smooth, blur-free motion, ideal for gaming on platforms like PS5, Switch, and PC. The non-glare screen reduces eye strain during extended use.
• Ketersambungan Serbaguna: Equipped with HDMI and two full-function USB Type-C ports, allowing easy connection to laptops, smartphones, gaming consoles (PS5/PS4/PS3/Switch), and more. A single Type-C cable can transmit both video and power (external power adapter recommended for optimal brightness).
• Pilihan Persediaan Fleksibel: Supports both vertical and horizontal display orientations. VESA mount compatibility (75x75mm) allows for integration with monitor arms or wall mounts. The integrated stand offers 0-180 degree tilt adjustment.
• Reka Bentuk Mudah Alih: The lightweight and slim profile makes this monitor easy to transport. The built-in stand facilitates quick setup for remote work or on-the-go entertainment.
• Audio Bersepadu: Built-in speakers provide convenient audio output without the need for external devices.

3. Kandungan Pakej

Sila sahkan bahawa semua item terdapat dalam pakej:

• Monitor Mudah Alih Newsoul 18.5 inci
• Kabel USB Type-C to Type-C
• Kabel HDMI ke Mini HDMI
• USB Type-A to Type-C Power Cable
• Penyesuai Kuasa
• Manual Pengguna

4. Produk Lebihview

Biasakan diri anda dengan port dan kawalan monitor:

Imej: Belakang view of the Newsoul portable monitor showing the Mini HDMI, two USB-C ports, power button, menu button, and earphone jack.

• Port HDMI Mini: For video input from devices like gaming consoles, PCs, and cameras.
• Port USB Jenis-C (x2): Full-function ports for video input, power delivery, and data transfer. Compatible with Thunderbolt 3/4 and DP Alt Mode devices.
• Butang Kuasa: Press and hold to power on/off the monitor. Short press to access or exit the OSD menu.
• Butang Menu: Used to navigate and select options within the On-Screen Display (OSD) menu.
• Jack fon telinga: Untuk menyambungkan fon kepala atau pembesar suara luaran.

5. Persediaan

5.1 Sambungan Awal

1. Sambungan Kuasa: Connect the provided power adapter to the monitor's USB Type-C power input port and then to a power outlet. This ensures stable power and optimal brightness.
2. Sambungan Video:
   • USB Type-C (Full-Function): If your device (laptop, smartphone) supports DP Alt Mode or Thunderbolt 3/4, connect it to one of the monitor's USB Type-C ports using the provided USB Type-C to Type-C cable. This single cable can transmit both video and power.
   • HDMI: Connect your device to the monitor's Mini HDMI port using the provided HDMI to Mini HDMI cable. Ensure the monitor is also powered via a USB Type-C power connection.
3. Hidupkan kuasa: Press and hold the Power Button on the monitor to turn it on.

5.2 Pelarasan Pendirian

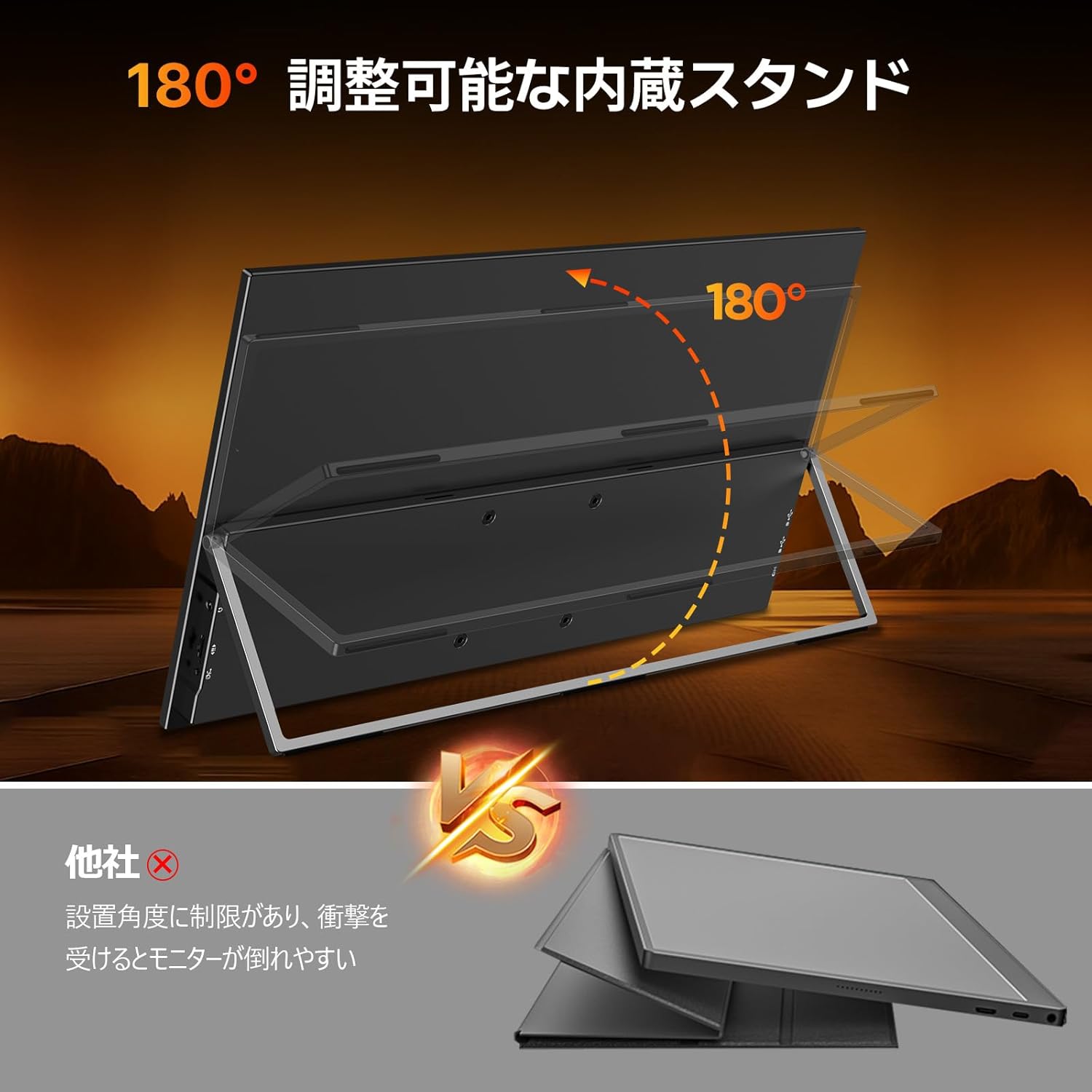

Image: The integrated stand of the Newsoul portable monitor, demonstrating its 180-degree tilt capability.

The integrated stand allows for flexible viewing angles. Adjust the stand to your preferred tilt between 0 and 180 degrees for comfortable use.

5.3 Pemasangan VESA

Image: Diagram illustrating the VESA mount points (75x75mm) on the back of the monitor for arm or wall mounting.

The monitor features 75x75mm VESA mounting holes. To mount the monitor on a VESA-compatible arm or wall mount:

1. Ensure the monitor is powered off and disconnected from all cables.
2. Carefully attach the VESA mount bracket to the back of the monitor using appropriate screws (M4*4mm, not included with the monitor).
3. Secure the monitor to your VESA-compatible arm or stand.

6. Arahan Operasi

6.1 Menu Paparan Pada Skrin (OSD).

Press the Power Button briefly to access the OSD menu. Use the Menu Button to navigate through options and the Power Button to select. Common settings include:

• Kecerahan/Kontras: Laraskan tahap pencahayaan dan kontras paparan.
• Tetapan Warna: Ubah suai suhu warna, rona dan ketepuan.
• Sumber Input: Manually select between USB Type-C and HDMI inputs.
• Mod HDR: Enable or disable High Dynamic Range for enhanced visual detail.
• FreeSync: Enable or disable FreeSync for smoother gaming (if supported by your connected device).
• Nisbah Aspek: Adjust the display aspect ratio.
• Cahaya Biru Rendah: Reduce blue light emission to minimize eye strain.

6.2 Mod Paparan

Image: The portable monitor displaying an extended desktop from a laptop, illustrating multi-screen functionality.

When connected to a computer, you can configure the display mode:

• Mod Lanjutkan: Meluaskan desktop anda merentasi kedua-dua skrin, menyediakan lebih banyak ruang kerja.
• Mod Pendua: Mirrors your primary display, showing the same content on both screens.
• Skrin Kedua Sahaja: Displays content only on the portable monitor.

These settings are typically adjusted through your operating system's display settings.

6.3 Orientasi Skrin

The monitor supports both landscape (horizontal) and portrait (vertical) orientations. You can change the orientation through your connected device's display settings. Portrait mode is beneficial for reading long documents or coding.

7. Penyelenggaraan

• Pembersihan: Lap skrin perlahan-lahan dengan kain lembut yang tidak berbulu. Untuk kesan degil, gunakan penyelesaian pembersihan khusus skrin yang digunakan pada kain, bukan terus pada skrin.
• Storan: When not in use, store the monitor in a cool, dry place. If transporting, use a protective case to prevent scratches or damage.
• Pengendalian: Avoid applying excessive pressure to the screen. Do not drop the monitor or expose it to extreme temperatures or humidity.

8. Penyelesaian masalah

9. Spesifikasi

10. Waranti dan Sokongan

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support or inquiries, please contact Newsoul customer service at supportjp@newsoul.store.
