1. Pengenalan
Welcome to the Evobike M1 Electric Folding Scooter user manual. This document provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before using the scooter to ensure optimal performance and safety.
The Evobike M1 is designed for efficient and agile urban commuting and longer rides, featuring a powerful 1200W motor, a range of up to 40 km, and integrated Bluetooth connectivity.
Image 1.1: The Evobike M1 Electric Folding Scooter in its upright, ready-to-ride position.
2. Maklumat Keselamatan
Keselamatan anda adalah yang paling utama. Sentiasa patuhi garis panduan berikut:
- Sentiasa pakai topi keledar dan peralatan pelindung yang sesuai (pelindung lutut, pelindung siku, sarung tangan) semasa menunggang.
- Biasakan diri anda dengan undang-undang dan peraturan tempatan mengenai penggunaan skuter elektrik.
- Do not ride in adverse weather conditions (heavy rain, snow, ice).
- Avoid riding on uneven surfaces, potholes, or obstacles that could cause loss of control.
- Kekalkan jarak selamat dari kenderaan lain dan pejalan kaki.
- Jangan melebihi kapasiti berat maksimum 150 kg.
- Pastikan skuter dicas sepenuhnya dan semua komponen dipasang dengan kukuh sebelum setiap tunggangan.
- Children should only operate the scooter under direct adult supervision.
3. Kandungan Pakej
Setelah membuka bungkusan, sila sahkan bahawa semua barang ada:
- Evobike M1 Electric Scooter
- Penyesuai Kuasa/Pengecas
- Manual Pengguna (dokumen ini)
- Alat Pemasangan (jika perlu)
4. Persediaan dan Pengecasan Awal
4.1 Membuka Lipatan Skuter
Carefully remove the scooter from its packaging. The M1 features a practical folding design. To unfold, release the folding mechanism latch, lift the handlebar stem until it locks into place, and ensure all locking pins are engaged. Refer to the folding section for detailed instructions.
4.2 Pelarasan Hendal
The handlebar height is adjustable to suit your preference. Loosen the quick-release clamp on the handlebar stem, adjust the handlebar to the desired height, and securely tighten the clampPastikan hendal kukuh dan tidak goyah.
Image 4.1: Illustration showing the adjustable handlebar mechanism for personalized comfort.
4.3 Caj Bateri Permulaan
Before first use, fully charge the scooter's battery. Connect the charger to the charging port on the scooter and then to a power outlet. The charging indicator on the charger will typically change color (e.g., red to green) when fully charged. A full charge takes approximately 6-8 hours.
5. Arahan Operasi
5.1 Menghidupkan/Mematikan
To power on the scooter, press and hold the power button on the LED display for a few seconds. To power off, press and hold the power button again.
5.2 Menunggang Skuter
- Letakkan satu kaki dengan kuat di atas geladak.
- Gunakan kaki anda yang sebelah lagi untuk menolak dari tanah bagi mendapatkan momentum awal.
- Tekan tuil pendikit perlahan-lahan untuk menghidupkan motor.
- Kekalkan keseimbangan dan stereng dengan menyandarkan dan memusingkan hendal.
- To brake, use the electronic brake lever or the disc brake lever.
Image 5.1: The Evobike M1 Electric Scooter being ridden in an urban setting, highlighting its suitability for city travel.
5.3 Fungsi Paparan LED
Paparan LED bersepadu menyediakan maklumat masa nyata:
- Speedometer: Memaparkan kelajuan semasa.
- KM Traveled: Shows distance covered.
- Tahap Bateri: Menunjukkan baki cas bateri.
- Kawalan Cahaya: Activates/deactivates front and rear lights.
- Directionals: Indicates turn signals (if equipped).

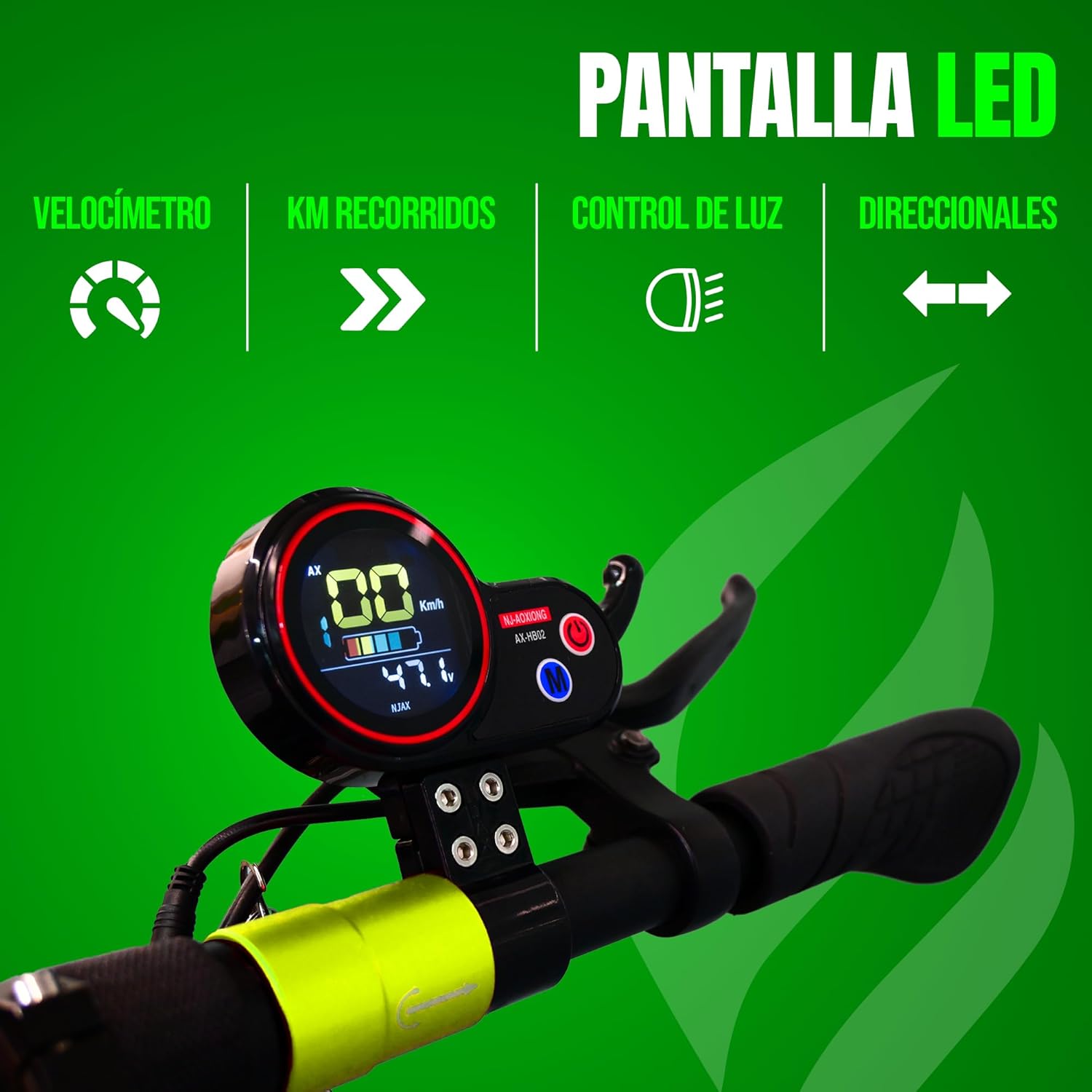

Imej 5.2: Jarak dekat view of the Evobike M1's LED display, showing speedometer, distance, battery, and light controls.
5.4 Kesambungan Bluetooth
The M1 scooter features integrated Bluetooth. To connect:
- Pastikan Bluetooth didayakan pada peranti mudah alih anda.
- Cari untuk available devices and select "Evobike M1".
- Once connected, you can use your mobile device to play music or access additional features via a dedicated app (if available).
6. Melipat dan Melipat
The Evobike M1 is designed for easy portability and storage thanks to its folding mechanism.
6.1 Melipat Skuter
- Pastikan skuter dimatikan.
- Locate the folding latch at the base of the handlebar stem.
- Release the latch and carefully fold the handlebar stem downwards until it clicks into its folded position.
- Ensure the folding mechanism is securely locked to prevent accidental unfolding during transport.
Image 6.1: Visual representation of the Evobike M1's folding mechanism, demonstrating its compact storage capability.
6.2 Membuka Lipatan Skuter
To unfold, reverse the folding process. Release the locking mechanism, lift the handlebar stem until it is fully upright, and ensure the latch securely engages to prevent accidental folding while riding.
7. Penyelenggaraan
Regular maintenance ensures the longevity and safe operation of your Evobike M1 scooter.
- Pembersihan: Lap skuter dengan iklanamp cloth. Do not use high-pressure water or immerse the scooter in water.
- Penjagaan Bateri: Cas bateri secara berkala, walaupun tidak digunakan, untuk mengekalkan kesihatannya. Elakkan daripada menghabiskan bateri sepenuhnya.
- Tekanan Tayar: Check tire pressure periodically and inflate to the recommended PSI (refer to tire sidewall for details).
- Brek: Inspect brake pads and cables regularly. Adjust or replace as needed.
- Pengikat: Periksa semua skru dan bolt secara berkala untuk memastikan ia ketat.
- Storan: Simpan skuter di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
8. Penyelesaian masalah
If you encounter issues with your Evobike M1, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Skuter tidak dihidupkan | Low battery; Loose connections | Charge the battery; Check all cable connections |
| Motor tidak terlibat | Throttle issue; Brake engaged; Low battery | Ensure throttle is pressed correctly; Release brake; Charge battery |
| Julat/kelajuan dikurangkan | Tekanan tayar rendah; Lebihan beban; Kemerosotan bateri | Inflate tires; Reduce load; Contact support for battery check |
| Brek tidak berkesan | Pad brek haus; Kabel brek longgar | Periksa dan gantikan pad brek; Laraskan ketegangan kabel brek |
If the problem persists, please contact Evobike customer support.
9. Spesifikasi
Key technical specifications for the Evobike M1 Electric Folding Scooter:
- Kuasa Motor: 1200W
- Kelajuan Maksimum: Up to 80 km/h (Note: Actual speed may vary based on rider weight, terrain, and battery level)
- Julat: Sehingga 40 km
- Masa Pengecasan: 6-8 jam
- Kapasiti Berat Maksimum: 150 kg
- Jenis Brek: Disc brakes and electronic brakes
- Bahan: aluminium
- Penggantungan: Dual suspension (Hydraulic front shock absorbers)
- Saiz Roda: 6.5 inci
- Ketersambungan: Aplikasi Bluetooth
- Dimensi Produk: 130 x 28 x 130 cm
- Berat produk: 18 kg
- Handlebar Type: Boleh laras
10. Waranti dan Sokongan
For warranty information, product support, or to purchase replacement parts, please visit the official Evobike store or contact customer service.
You can visit the Evobike store online: Evobike Official Store
Sila simpan bukti pembelian anda untuk tuntutan waranti.
