MONOZEL Handheld Vacuum Cleaner VC028 User Manual

1. Pengenalan

Thank you for choosing the MONOZEL Handheld Vacuum Cleaner VC028. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new device. Please read it thoroughly before use and retain it for future reference.

2. Arahan Keselamatan

Untuk mengurangkan risiko kebakaran, renjatan elektrik atau kecederaan, sila patuhi langkah berjaga-jaga keselamatan berikut:

• Jangan gunakan di luar atau di permukaan basah.
• Jangan biarkan digunakan sebagai mainan. Perhatian yang rapi diperlukan apabila digunakan oleh atau berhampiran kanak-kanak.
• Gunakan hanya seperti yang diterangkan dalam manual ini. Gunakan hanya lampiran yang disyorkan pengilang.
• Jangan gunakan dengan kord atau palam yang rosak. Jika perkakas tidak berfungsi sebagaimana mestinya, telah terjatuh, rosak, ditinggalkan di luar rumah, atau terjatuh ke dalam air, kembalikannya ke pusat servis.
• Jangan tarik atau bawa dengan kord, gunakan kord sebagai pemegang, tutup pintu pada kord, atau tarik kord di sekeliling tepi atau sudut yang tajam. Jangan jalankan perkakas di atas kord. Jauhkan kord dari permukaan yang dipanaskan.
• Jangan cabut plag dengan menarik kord. Untuk mencabut palam, pegang palam, bukan kordnya.
• Jangan pegang palam atau perkakas dengan tangan yang basah.
• Jangan letakkan sebarang objek ke dalam bukaan. Jangan gunakan dengan mana-mana bukaan yang disekat; jauhkan daripada habuk, serabut, rambut dan apa sahaja yang boleh mengurangkan aliran udara.
• Jauhkan rambut, pakaian longgar, jari dan semua bahagian badan daripada bukaan dan bahagian yang bergerak.
• Jangan ambil apa-apa yang terbakar atau berasap, seperti rokok, mancis, atau abu panas.
• Jangan gunakan untuk mengambil cecair mudah terbakar atau mudah terbakar, seperti petrol, atau gunakan di kawasan yang mungkin terdapat.
• Jangan ambil bahan toksik, seperti peluntur klorin, ammonia atau pembersih longkang.
• Jangan gunakan tanpa cawan habuk dan penapis di tempatnya.
• Matikan semua kawalan sebelum mencabut plag.
• Gunakan lebih berhati-hati semasa membersihkan di tangga.
• Jangan gunakan untuk mengutip objek keras atau tajam seperti kaca, paku, skru, syiling, dll.

3. Kandungan Pakej

Sila semak kandungan pakej untuk memastikan semua item ada dan tidak rosak:

• MONOZEL Handheld Vacuum Cleaner (VC028)
• Kabel Pengecas USB-C
• Penyesuai Dinding
• Alat Muncung Celah
• Alat Berus
• Hos Sambungan Fleksibel
• 2 Reusable HEPA Filters
• Manual Pengguna

Image: The MONOZEL VC028 handheld vacuum cleaner displayed with its full set of accessories, including various nozzles, brushes, charging cable, and spare filters.

4. Produk Lebihview

Familiarize yourself with the components of your MONOZEL VC028 handheld vacuum cleaner:

Image: A diagram highlighting key components of the vacuum: LED light, digital screen displaying battery and mode, one-click dump button, 0.18L dust cup, and the power button for turning on/off and switching modes.

• Unit Utama: Contains the brushless motor, battery, and control panel.
• Cawan habuk: Transparent container for collecting dust and debris (0.14L capacity).
• Penapis HEPA: Washable and reusable filter located inside the dust cup.
• Lampu LED: Illuminates dark areas during cleaning.
• Skrin Digital: Displays battery level and current suction mode (Eco/Max).
• Butang Kuasa: Activates the vacuum and switches between suction modes.
• One-Click Dump Button: Releases the dust cup for emptying.

5. Persediaan dan Pengecasan

5.1 Pengecasan Awal

Before first use, fully charge the vacuum cleaner. The device features a 6000mAh battery capacity and Type-C charging for convenience.

1. Connect the USB-C charging cable to the charging port on the vacuum cleaner.
2. Connect the other end of the USB-C cable to the provided wall adapter, a car charger, a power bank, or a computer USB port.
3. The digital screen will indicate charging status. A full charge typically takes 3.5-4 hours.
4. Setelah dicas sepenuhnya, cabut pengecas.

Image: The vacuum cleaner connected via a Type-C cable, illustrating various charging methods including car charger, power bank, computer, and wall adapter.

5.2 Memasang Aksesori

Select the appropriate attachment for your cleaning task and firmly push it onto the vacuum's suction inlet.

• Crevice Nozzle Tool: Ideal for narrow gaps, corners, and hard-to-reach areas like car seats or sofa crevices.
• Alat Berus: Suitable for cleaning surfaces that require agitation, such as upholstery, carpets, or keyboards, and for picking up pet hair.
• Hos Sambungan Fleksibel: Provides extended reach for dusting baseboards, blinds, or ceiling corners. Connect other attachments to the end of the hose.

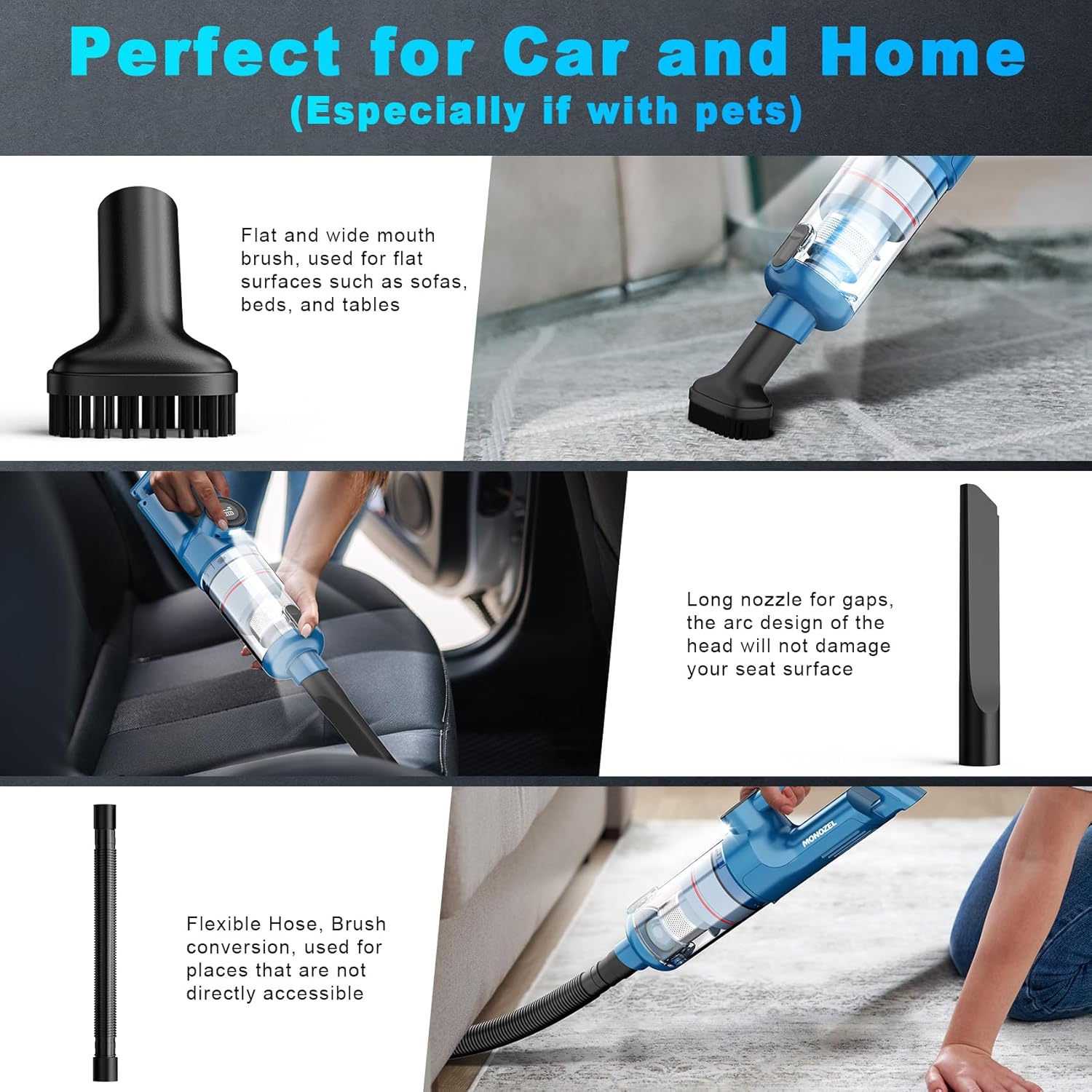

Image: Demonstrates the use of the flat and wide mouth brush for sofas, the long nozzle for car interiors, and the flexible hose for reaching under furniture or into tight spaces.

6. Arahan Operasi

6.1 Kuasa Hidup/Mati dan Pemilihan Mod

1. To turn on the vacuum, press and hold the power button for 0.5 seconds. The vacuum will start in Eco mode (10000Pa suction).
2. To switch to Max mode (15000Pa suction), short press the power button again. The digital screen will indicate the current mode.
3. To turn off the vacuum, short press the power button once more.

The integrated LED light will automatically illuminate when the vacuum is operating, assisting in cleaning dark areas.

Image: Illustrates the powerful brushless motor operating at 64000 RPM, generating 15000 Pa maximum suction for efficient cleaning.

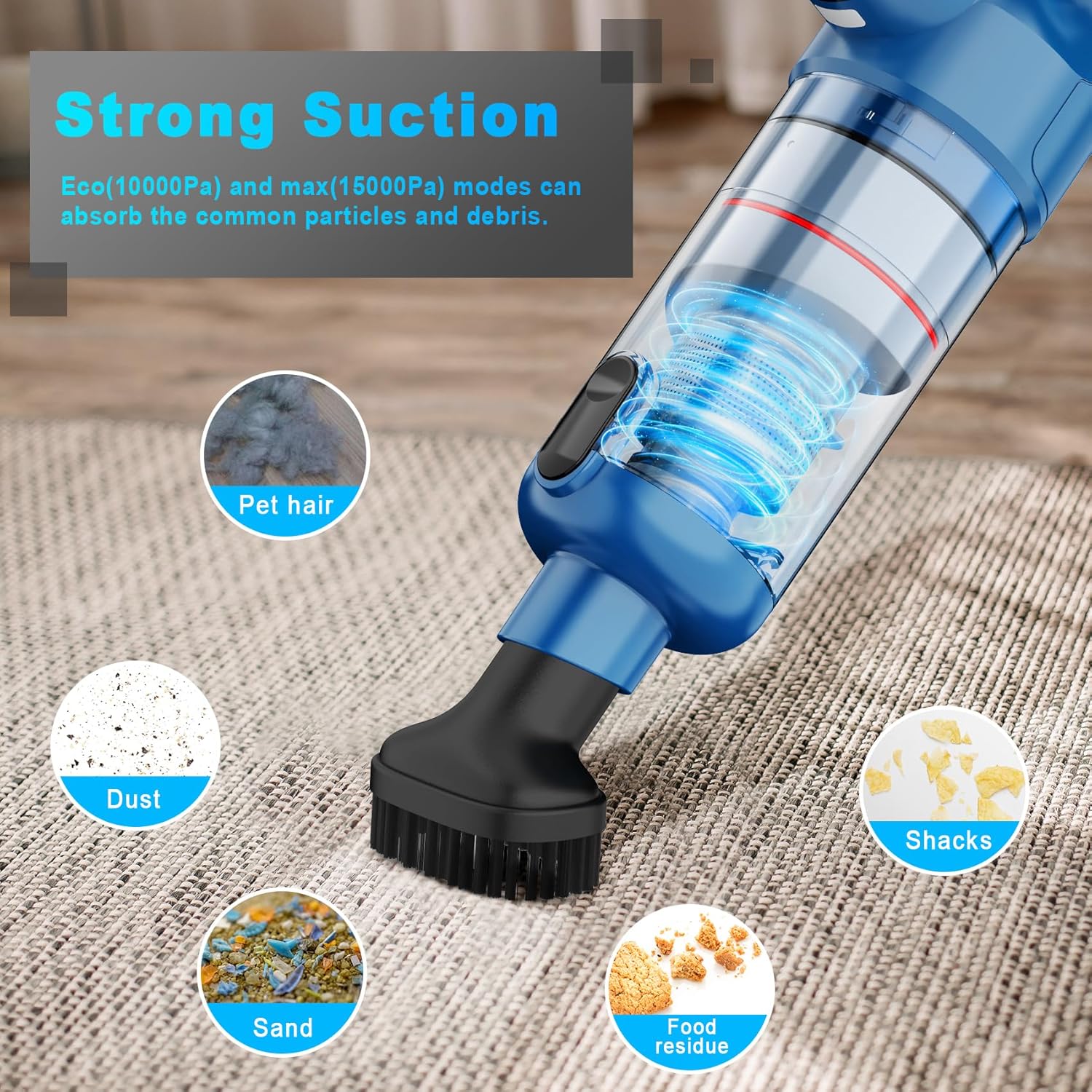

Image: Shows the vacuum effectively absorbing various common particles and debris, including pet hair, dust, sand, and food residue, using both Eco (10000Pa) and Max (15000Pa) modes.

7. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat pembersih vakum anda.

7.1 Mengosongkan Dust Cup

1. Pastikan vakum dimatikan.
2. Press the one-click dump button to release the dust cup from the main unit.
3. Hold the dust cup over a trash bin and empty its contents.

Image: Depicts the process of emptying the dust cup into a trash bin and the separate cleaning of the HEPA filter with water.

7.2 Membersihkan Penapis HEPA

The HEPA filter is washable and reusable. Clean it regularly to maintain suction power.

1. After emptying the dust cup, remove the HEPA filter.
2. Bilas penapis di bawah air yang mengalir sehingga bersih. Jangan gunakan detergen.
3. Allow the filter to air dry completely for at least 24 hours before reinserting it into the dust cup. Ensure it is completely dry to prevent damage to the motor.
4. Pasang semula penapis dan cawan habuk, kemudian pasangkannya kembali ke unit utama.

Two reusable HEPA filters are included to ensure continuous use while one is drying.

8. Penyelesaian masalah

Jika anda menghadapi sebarang masalah dengan pembersih vakum anda, sila rujuk masalah dan penyelesaian biasa berikut:

If the problem persists after trying these solutions, please contact MONOZEL customer support.

9. Spesifikasi

10. Waranti dan Sokongan Pelanggan

MONOZEL provides a quality guarantee and money-back services for its products. For any questions, problems, or technical support regarding your MONOZEL Handheld Vacuum Cleaner VC028, please do not hesitate to contact the MONOZEL customer team. They offer 24-hour technical support.

Please refer to your purchase documentation or the MONOZEL official weblaman web untuk terma jaminan khusus dan maklumat hubungan.
