DOINOW T80 150 PSI Wireless Electric Portable Air Pump User Manual

1. Pengenalan

This manual provides detailed instructions for the safe and efficient operation of your DOINOW T80 150 PSI Wireless Electric Portable Air Pump. Please read this manual thoroughly before first use and retain it for future reference.

1.1 Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:

• 1 x Wireless Air Pump
• 1 x 30 cm Air Hose
• 1 x 24 cm Air Hose
• 1 x 30 cm Power Cable (for 12V DC connection)
• 1 x Kabel Pengecas Jenis-C
• 4 x Multi-function Nozzles
• 1 x Waterproof Storage Bag

2. Maklumat Keselamatan

Sentiasa patuhi langkah berjaga-jaga keselamatan berikut untuk mengelakkan kecederaan atau kerosakan pada peranti:

• Jangan biarkan pam tanpa pengawasan semasa operasi.
• Jauhkan daripada kanak-kanak.
• Jangan dedahkan pam kepada hujan atau lembapan.
• Elakkan operasi berterusan yang berpanjangan untuk mengelakkan terlalu panas. Biarkan peranti sejuk jika ia menjadi panas.
• Ensure the correct pressure is set for the item being inflated to avoid over-inflation and potential damage or injury.
• Gunakan hanya aksesori dan kabel pengecas yang disediakan.

3. Produk Lebihview

Familiarize yourself with the components and features of your portable air pump.

Rajah 3.1: The DOINOW T80 portable air pump and its included accessories, such as air hoses and nozzles.

3.1 Paparan dan Kawalan

The pump features a dual LCD screen for clear display of real-time and preset pressure values, along with intuitive controls.

Rajah 3.2: Close-up of the dual LCD display, indicating current pressure, target pressure, selected unit (PSI, BAR, KPA, kg/cm²), and battery level.

3.2 Mod Inflasi

The pump offers five preset inflation modes for various items, along with a manual mode for custom pressure settings.

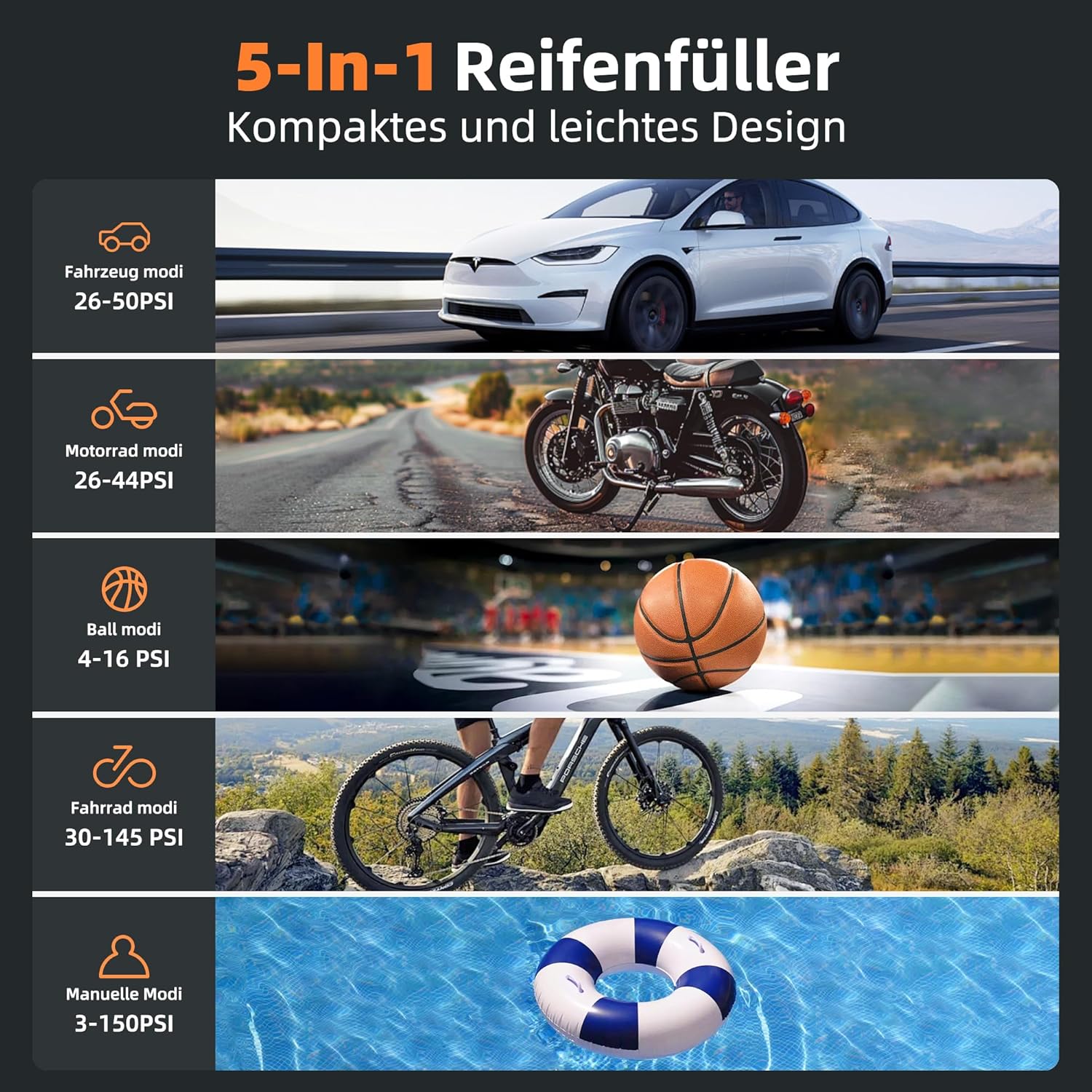

Rajah 3.3: Visual representation of the five inflation modes: Car (26-50 PSI), Motorcycle (26-44 PSI), Ball (4-16 PSI), Bicycle (30-145 PSI), and Manual (3-150 PSI).

3.3 Lampu LED

The pump includes three LED light modes for visibility and emergencies.

Rajah 3.4: The three LED light modes: Illumination (press once), Slow Flashing Warning (press twice), and Fast Flashing SOS (press three times).

4. Persediaan

4.1 Mengecas Pam

Before first use, fully charge the pump using the provided Type-C charging cable. Connect the Type-C end to the pump's charging port and the USB-A end to a compatible USB power adapter (not included).

4.2 Attaching the Air Hose and Nozzle

1. Screw one end of the air hose securely onto the pump's air outlet.
2. Select the appropriate nozzle for your item (e.g., Presta valve adapter for bicycles, needle for balls) and screw it onto the other end of the air hose.

5. Arahan Operasi

5.1 Menghidupkan/Mematikan

Press and hold the power button (usually the center button) to turn the pump on or off.

5.2 Memilih Unit Tekanan

With the pump powered on, press the unit button (often labeled 'M' or a similar icon) to cycle through available pressure units: PSI, BAR, KPA, and kg/cm².

5.3 Choosing an Inflation Mode

Press the mode selection button (often an icon representing different vehicles/items) to choose from the preset modes: Car, Bicycle, Motorcycle, or Ball. Each mode has a default pressure range. For custom pressure, select the Manual mode.

5.4 Menetapkan Tekanan Sasaran

Once a mode is selected, use the '+' and '-' buttons to adjust the desired target pressure. The display will show both the current real-time pressure and your preset target pressure.

5.5 Memulakan dan Menghentikan Inflasi

1. Connect the nozzle securely to the item's valve.
2. Press the power/start button to begin inflation. The pump will automatically stop once the preset target pressure is reached.
3. To manually stop inflation at any time, press the power/start button again.

Rajah 5.1: The pump in action, demonstrating its fast inflation capability for a car tire. A car tire can be inflated from 30 PSI to 36 PSI in approximately 1 minute, or from 0 PSI to 36 PSI in about 5 minutes.

5.6 Menggunakan sebagai Power Bank

The pump can also function as a power bank. Connect your device (e.g., smartphone, tablet) to the pump's USB-A output port using a compatible charging cable to charge it on the go.

Rajah 5.2: The pump's high-capacity battery (7800 mAh) allows for multiple inflations: approximately 6 car tires, 35 bicycle tires, 25 motorcycle tires, 90 balls, or 100 swimming rings on a single charge.

6. Penyelenggaraan

6.1 Pembersihan

Lap bahagian luar pam dengan lembut, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the pump is dry before storage.

6.2 Penyimpanan

Store the pump and its accessories in the provided waterproof storage bag in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the pump is fully charged before long-term storage to maintain battery health.

7. Penyelesaian masalah

8. Spesifikasi

9. Waranti dan Sokongan

9.1 Maklumat Waranti

This product comes with a comprehensive 2-year warranty. Please retain your proof of purchase for warranty claims.

9.2 Sokongan Pelanggan

For any questions, technical assistance, or warranty support, please contact our customer service team. Our support is available 24/7 to assist you.

Maklumat perhubungan (cth., emel, nombor telefon, website) would typically be provided here by the manufacturer.
