1. Maklumat Keselamatan Penting
Read and understand all safety warnings and instructions before operating this snow blower. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
Amaran Keselamatan Am:
- Pastikan kawasan kerja bersih dan terang. Kawasan bersepah atau gelap mengundang kemalangan.
- Jangan mengendalikan alat kuasa dalam atmosfera meletup, seperti dalam kehadiran cecair mudah terbakar, gas, atau habuk. Alat kuasa menghasilkan percikan api yang boleh menyalakan habuk atau asap.
- Jauhkan kanak-kanak dan orang yang melihat semasa mengendalikan alat kuasa. Gangguan boleh menyebabkan anda hilang kawalan.
Keselamatan Elektrik:
- Elakkan sentuhan badan dengan permukaan yang dibumikan atau dibumikan seperti paip, radiator, julat dan peti sejuk. Terdapat peningkatan risiko kejutan elektrik jika badan anda dibumikan atau dibumikan.
- Jangan dedahkan alatan kuasa kepada hujan atau keadaan basah. Air yang memasuki alat kuasa akan meningkatkan risiko kejutan elektrik.
Keselamatan Diri:
- Sentiasa berwaspada, perhatikan apa yang anda lakukan, dan gunakan akal fikiran when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication.
- Berpakaian dengan betul. Jangan memakai pakaian atau barang kemas yang longgar. Jauhkan rambut dan pakaian anda daripada bahagian yang bergerak.
- Elakkan permulaan yang tidak disengajakan. Pastikan suis berada dalam kedudukan mati sebelum menyambungkan ke pek bateri, mengambil atau membawa alat.
2. Kandungan Pakej
Verify that all items listed below are included in your package. If any parts are missing or damaged, do not operate the snow blower and contact customer service.
- CUSHYBITE RY40890 40V HP Brushless 18-inch Cordless Electric Snow Blower Unit
- Bateri 6.0 Ah
- Pengecas Bateri
- Manual Arahan
Figure 1: The CUSHYBITE RY40890 40V HP Brushless 18-inch Cordless Electric Snow Blower, shown with its included 6.0 Ah battery and charger.
3. Arahan Perhimpunan
Follow these steps to assemble your snow blower. Refer to the diagrams for visual guidance.
Langkah 1: Mengendalikan Perhimpunan
- Unfold the handle assembly until it locks into place. Ensure all locking pins or levers are securely fastened.
- Attach the upper handle to the lower handle using the provided bolts and knobs. Tighten securely.
Rajah 2: Sisi view of the snow blower, illustrating the handle assembly and overall structure.
Step 2: Chute Assembly
- Position the discharge chute onto the snow blower housing.
- Secure the chute with the retaining clips or bolts as indicated in the manual. Ensure the chute rotates freely.

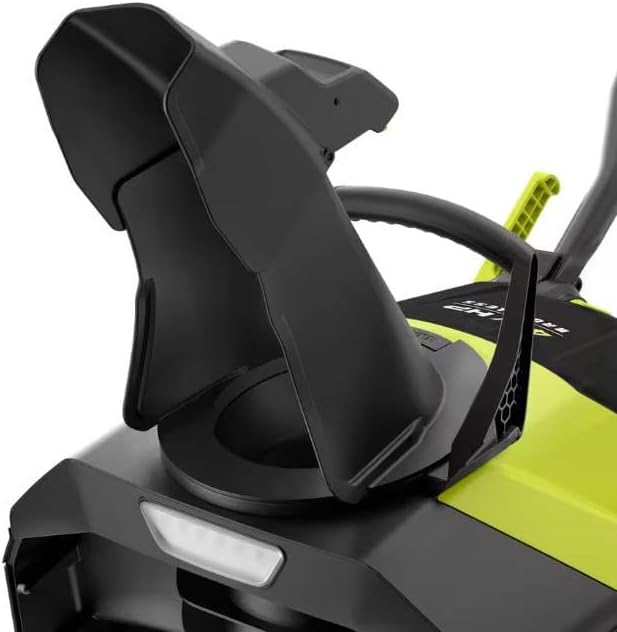

Rajah 3: Jarak dekat view of the 180-degree directional chute, showing its attachment points and rotation mechanism.
4. Persediaan
Pemasangan Bateri:
- Pastikan bateri dicas sepenuhnya sebelum penggunaan pertama.
- Open the battery compartment cover on the snow blower.
- Slide the 6.0 Ah battery into the compartment until it clicks securely into place.
- Tutup penutup petak bateri.
Mengendalikan Pelarasan:
Adjust the handle height to a comfortable operating position by loosening the adjustment knobs, setting the desired height, and then re-tightening the knobs.
5. Arahan Operasi
Memulakan Peniup Salji:
- Ensure the battery is installed and the compartment is closed.
- Tekan dan tahan butang keselamatan.
- While holding the safety button, squeeze the switch lever to start the motor. Release the safety button once the motor starts.
Membersihkan Salji:
- Push the snow blower forward at a steady pace. Do not force the unit through heavy snow.
- For deep or heavy snow, clear a narrower path or make multiple passes.
- The 18-inch clearing width and 10-inch clearing depth are designed for efficient removal of moderate snowfalls.
Rajah 4: Depan view of the snow blower, highlighting the auger and clearing path.
Kawalan Pelongsor:
Use the 180-degree directional chute to control the direction of snow discharge. Adjust the chute to throw snow away from cleared areas, windows, or other obstacles.
6. Penyelenggaraan
Pembersihan:
- Always remove the battery pack before cleaning or performing any maintenance.
- Clean the snow blower thoroughly after each use. Remove any snow, ice, or debris from the auger housing, chute, and exterior surfaces.
- Gunakan iklanamp cloth and mild soap for cleaning. Do not use harsh chemicals or abrasive cleaners.
Storan:
- Store the snow blower in a dry, protected area away from children.
- Remove the battery pack from the snow blower before storing for extended periods. Store the battery in a cool, dry place.
Penjagaan Bateri:
- Charge the battery fully before storing and periodically during long storage periods to maintain battery health.
- Do not expose the battery or charger to extreme temperatures.
7. Penyelesaian masalah
If you encounter issues with your snow blower, refer to the table below for common problems and solutions.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Peniup salji tidak bermula | Battery not charged or improperly installed; Safety button/switch not engaged. | Ensure battery is charged and correctly inserted; Fully engage safety button and switch. |
| Reduced snow clearing performance | Clogged auger housing or chute; Low battery charge. | Clear any obstructions (with battery removed); Recharge battery. |
| Peniup salji berhenti semasa operasi | Overload due to heavy snow; Low battery charge. | Reduce load by clearing narrower paths; Recharge battery. |
8. Spesifikasi
- model: RY40890
- Jenama: CUSHYBITE
- Sumber Kuasa: Bateri 40V
- Jenis Motor: HP Tanpa Berus
- Lebar Pembersihan: 18 inci
- Kedalaman Membersihkan: 10 inci
- Chute Rotation: 180 darjah
- Bateri: 6.0 Ah Lithium-Ion (included)
- Pengecas: Termasuk
9. Waranti dan Sokongan
For warranty information or technical support, please refer to the warranty card included with your product or contact CUSHYBITE customer service directly. Keep your proof of purchase for any warranty claims.
