CRONY V10 Electric Scooter User Manual

pengenalan

Welcome to the CRONY V10 Electric Scooter user manual. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

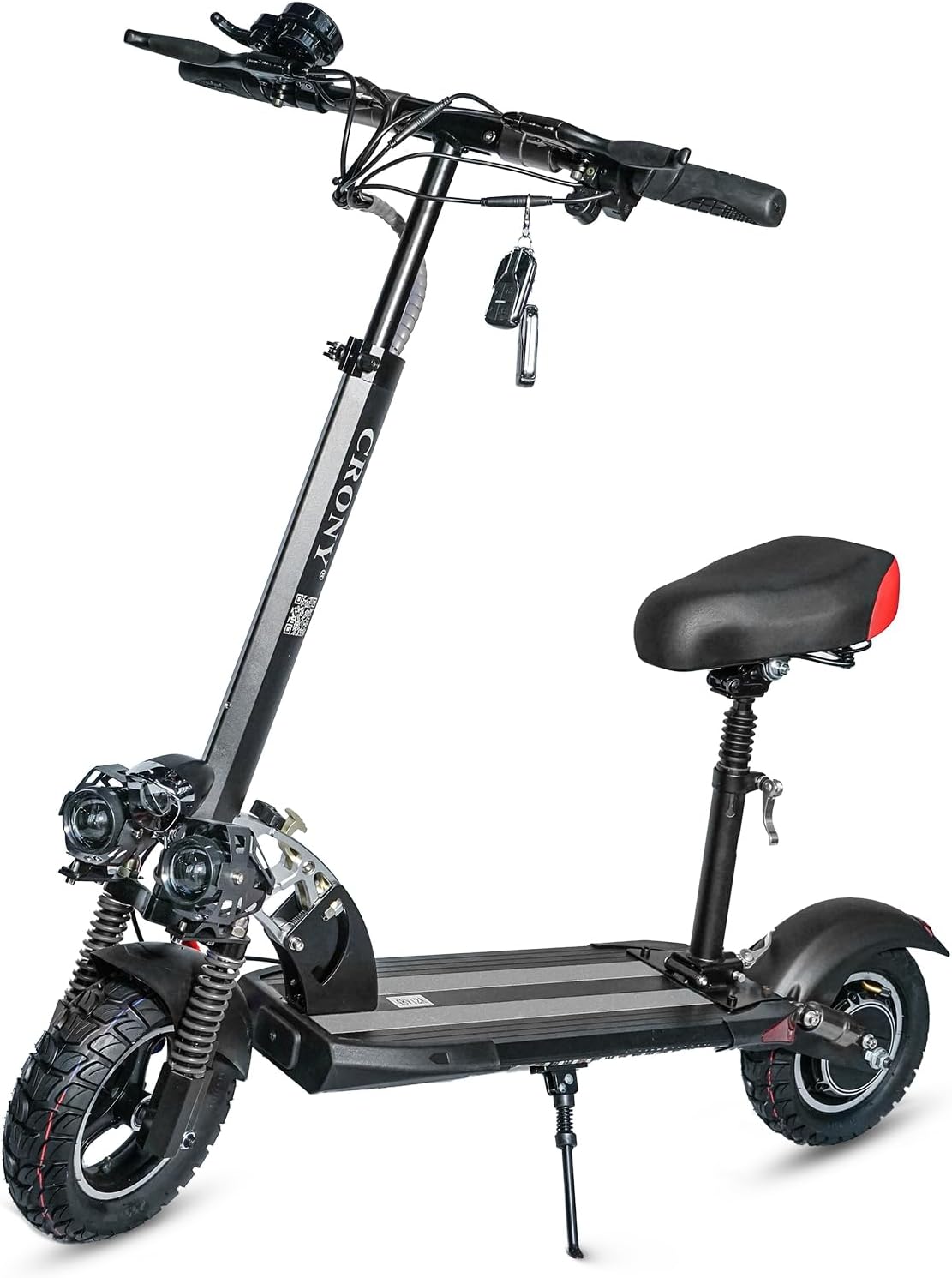

Image: The CRONY V10 Electric Scooter, showcasinreka bentuknya yang anggun dan binaannya yang teguh.

Maklumat Keselamatan

Keselamatan anda adalah yang paling utama. Sentiasa patuhi garis panduan berikut:

• Sentiasa memakai topi keledar dan peralatan keselamatan yang sesuai (pelapik lutut, pelapik siku) semasa menunggang.
• Jangan menunggang di bawah pengaruh alkohol atau dadah.
• Patuhi semua undang-undang dan peraturan lalu lintas tempatan.
• Avoid riding in heavy rain, snow, or icy conditions.
• Pastikan skuter dicas sepenuhnya dan semua komponen dicas dengan kukuh sebelum setiap tunggangan.
• Kekalkan jarak selamat dari kenderaan lain dan pejalan kaki.
• The maximum loading weight for this scooter is 120 KG. Do not exceed this limit.

Ciri-ciri Produk

The CRONY V10 Electric Scooter is designed for performance and durability:

• Motor 1200W berkuasa: Delivers fast speeds and strong acceleration.
• Bateri Jarak Jauh: 48V/12AH battery provides 20-40 KM range on a single charge.
• 10-inch Off-Road Tires: Ensures optimal grip and stability on various terrains.
• Brek Cakera Berkembar: Brek cakera hadapan dan belakang untuk kuasa berhenti yang boleh dipercayai.
• Triple LED Headlamps: Enhances visibility during low-light conditions.
• Dual Suspension: High-quality front suspension for a smooth and comfortable ride.
• Reka Bentuk Lipat: Easy to fold and unfold for convenient storage and transport.
• Detachable Single Seat: Provides comfort for longer rides.
• LED Base Light: Adds visibility and style for night rides.

Image: Diagram highlighting key features such as the accelerator, dual hand brake, adjustable handle height, triple LED headlight, high quality suspension, durable honeycomb tires, easy folding mechanism, detachable single seat, signal lights, and LED base light.

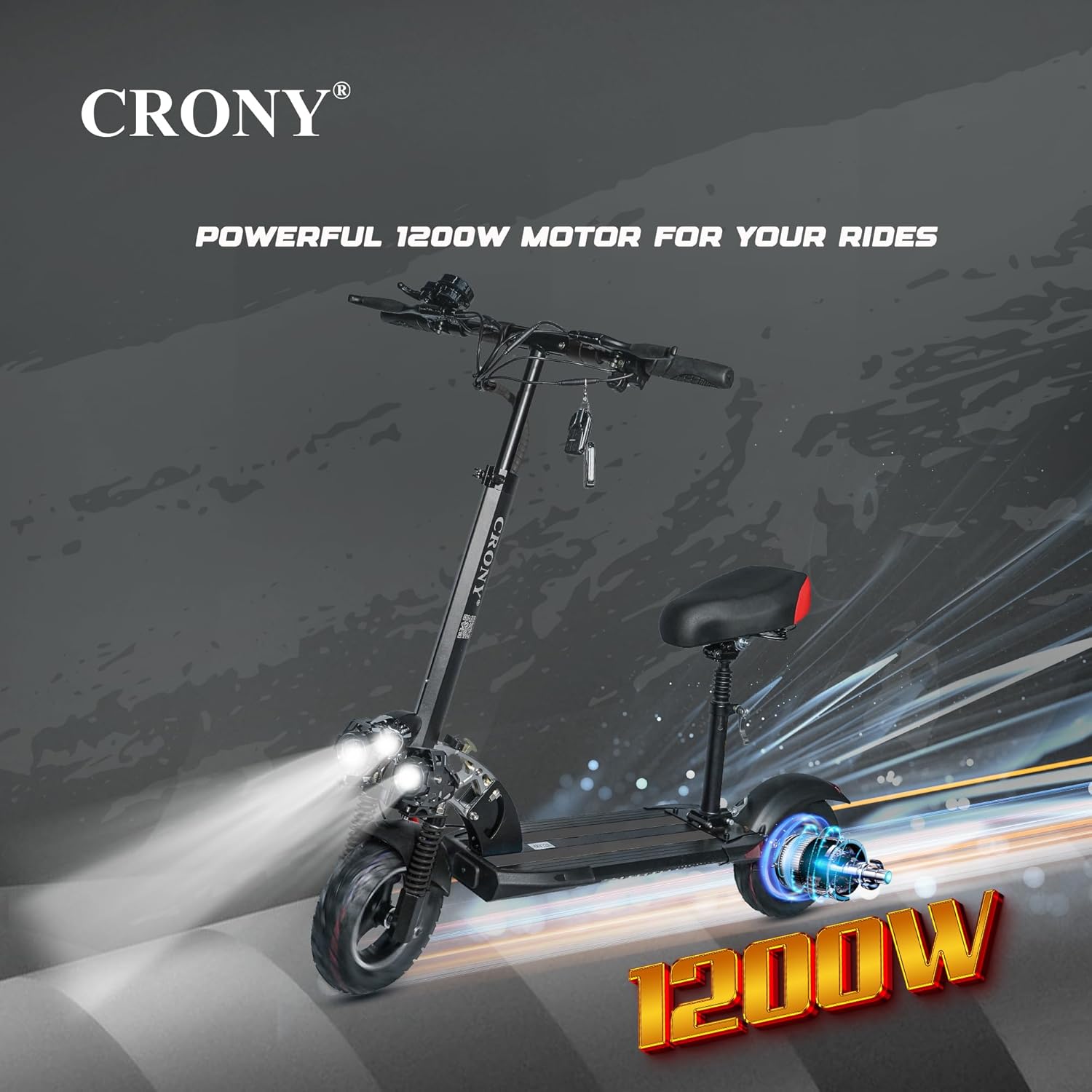

Image: The CRONY V10 Electric Scooter with an overlay emphasizing its powerful 1200W motor.

Imej: Jarak dekat view of the CRONY V10's high-quality dual suspension system, designed for smooth rides.

Persediaan

1. Unboxing dan Pemeriksaan Awal

Carefully remove all components from the packaging. Inspect the scooter for any signs of damage during transit. Ensure all parts listed in the package contents are present.

2. Perhimpunan

1. Pemasangan Hendal: Unfold the main stem and secure the handlebar into position. Ensure the locking mechanism clicks into place.
2. Lampiran Tempat Duduk (Pilihan): If using the seat, attach it to the designated post and adjust its height for comfortable riding.
3. Inflasi Tayar: Check tire pressure. The 10-inch pneumatic tires may require inflation to the recommended PSI (refer to tire sidewall for specific pressure).

3. Pengecasan Awal

Before first use, fully charge the scooter's battery. Connect the charger to the charging port and then to a power outlet. The charging indicator light will change when fully charged. A full charge takes approximately 5-6 hours.

Arahan Operasi

1. Hidupkan/Mati Kuasa

Insert the key into the key socket and turn it to the ON position. Press and hold the power button on the handlebar display to turn the scooter on. Repeat to turn off.

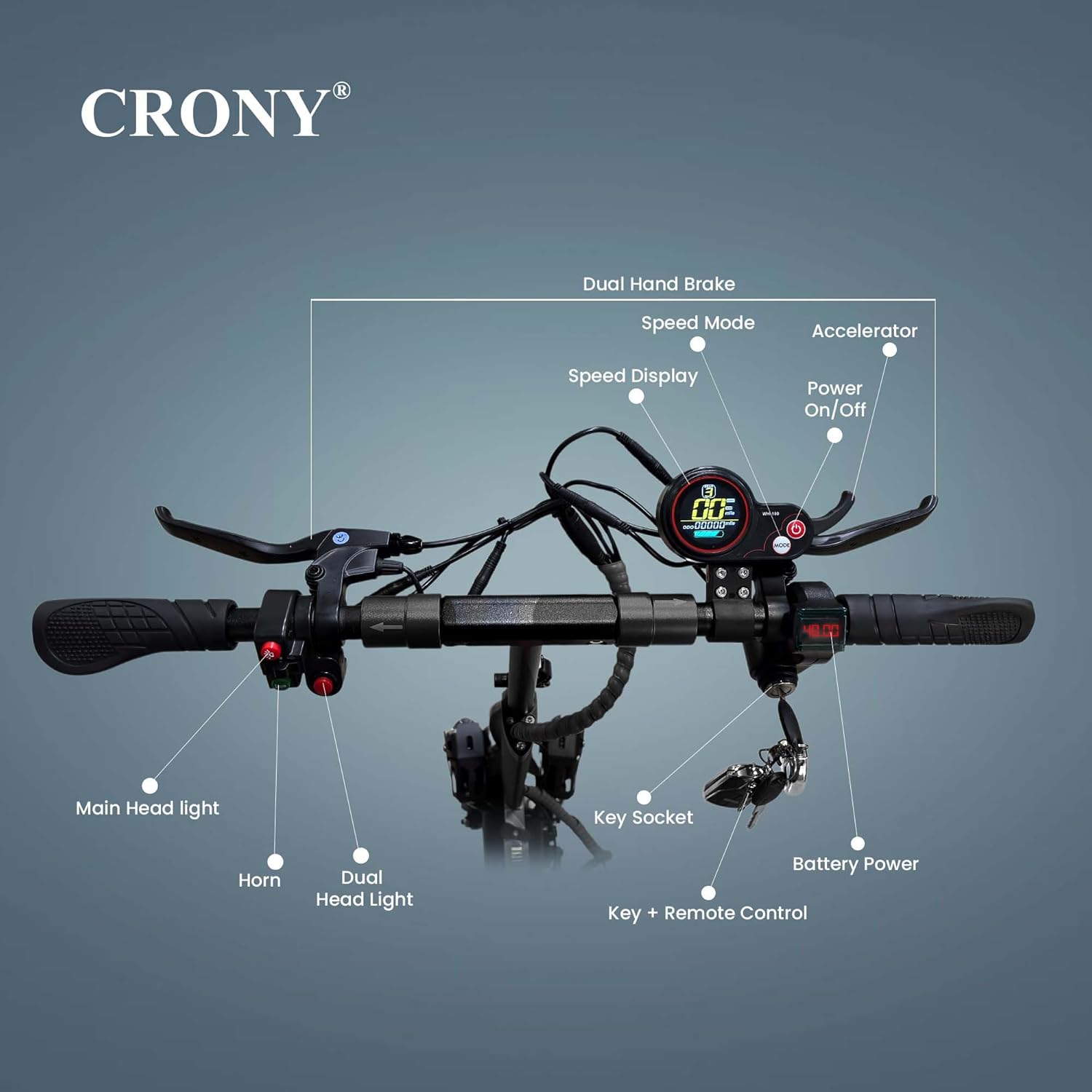

Imej: Terperinci view of the CRONY V10's handlebar controls, including the speed mode button, speed display, power on/off button, horn, main headlight switch, key socket, battery power indicator, and key with remote control.

2. Menunggang

• Bermula: Place one foot on the deck and push off with the other foot to gain initial momentum. Once moving, gently press the accelerator lever.
• Mod Kelajuan: Use the speed mode button on the handlebar to cycle through available speed settings (e.g., Eco, Standard, Sport).
• Brek: Use the dual hand brake levers to slow down or stop. Apply both brakes simultaneously for optimal stopping power.
• Lampu: Activate the triple LED headlamps and LED base light for improved visibility, especially at night.

3. Melipat dan Melipat

To fold the scooter, locate the folding mechanism on the stem. Follow the instructions to release the lock and fold the stem down until it latches. Reverse the process to unfold.

Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your CRONY V10 scooter.

• Tayar: Regularly check tire pressure and inflate to the recommended PSI. Inspect tires for wear and tear.
• Brek: Periodically check brake levers and cables for proper tension and function. Ensure disc brakes are clean and free of debris.
• Penjagaan Bateri:
  • Cas bateri sepenuhnya selepas setiap penggunaan.
  • Elakkan bateri habis sepenuhnya.
  • Jika menyimpan untuk tempoh yang lama, cas bateri kepada 50-70% setiap 2-3 bulan.
• Pembersihan: Lap skuter dengan iklanamp kain. Jangan gunakan pancutan air tekanan tinggi atau rendam skuter di dalam air.
• Pengikat: Check all screws and bolts regularly and tighten if necessary.

Menyelesaikan masalah

Spesifikasi

Image: Diagram illustrating the key dimensions of the CRONY V10 Electric Scooter, including height, length, and deck clearance.

Waranti dan Sokongan

For warranty information and technical support, please refer to the warranty card included with your product or contact CRONY customer service. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official CRONY webtapak atau hubungi pusat perkhidmatan mereka yang dibenarkan.
