Panasonic EU 7-in-1 Convertible 1 Ton 3 Star Inverter Split AC User Manual

1. Pengenalan dan Lebihview

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Panasonic EU 7-in-1 Convertible 1 Ton 3 Star Inverter Split Air Conditioner. Please read this manual thoroughly before using your air conditioner and retain it for future reference.

The Panasonic EU 7-in-1 Convertible 1 Ton 3 Star Inverter Split AC is designed to offer flexible cooling capacity, adapting to your specific needs. This convertible technology ensures optimal cooling performance while managing power consumption efficiently, making it suitable for various weather conditions.

2. Maklumat Keselamatan

To prevent personal injury, injury to others, or property damage, please observe the following safety precautions. Incorrect operation due to ignoring instructions may cause harm or damage.

• Always ensure the air conditioner is installed by a qualified technician.
• Jangan masukkan jari atau objek lain ke dalam saluran masuk atau keluar udara.
• Do not attempt to repair, relocate, or modify the air conditioner yourself. Contact authorized service personnel.
• Ensure the power supply is disconnected before any cleaning or maintenance.
• Do not use flammable sprays near the unit.
• This appliance uses R32 refrigerant. Handle with care and ensure proper ventilation during installation and servicing.

3. Ciri-ciri Produk

Your Panasonic EU Inverter Split AC comes equipped with advanced features for enhanced comfort and efficiency:

• 7-in-1 Convertible Technology: Adjusts cooling capacity from 40% to 100% and beyond, optimizing energy use based on ambient temperature and number of occupants.
• 100% Copper Condenser: Ensures efficient heat transfer and durability.
• Ag Clean Filter: Helps inhibit bacteria and viruses, providing cleaner air.
• PM0.1 Filter: Filters out fine particulate matter for improved indoor air quality.
• Crystal Clean Technology: Facilitates self-cleaning of the indoor unit.
• Eco Tough Outdoor Unit: Designed for enhanced durability and corrosion resistance.
• Shield Blu+ Coating: Protects the evaporator and condenser coils from corrosion.
• CFM tinggi: Delivers powerful airflow for faster cooling.
• Cools at 55°C: Designed to maintain effective cooling even in extreme ambient temperatures up to 55°C.
• Paparan Tersembunyi: Integrated display for a sleek aesthetic.

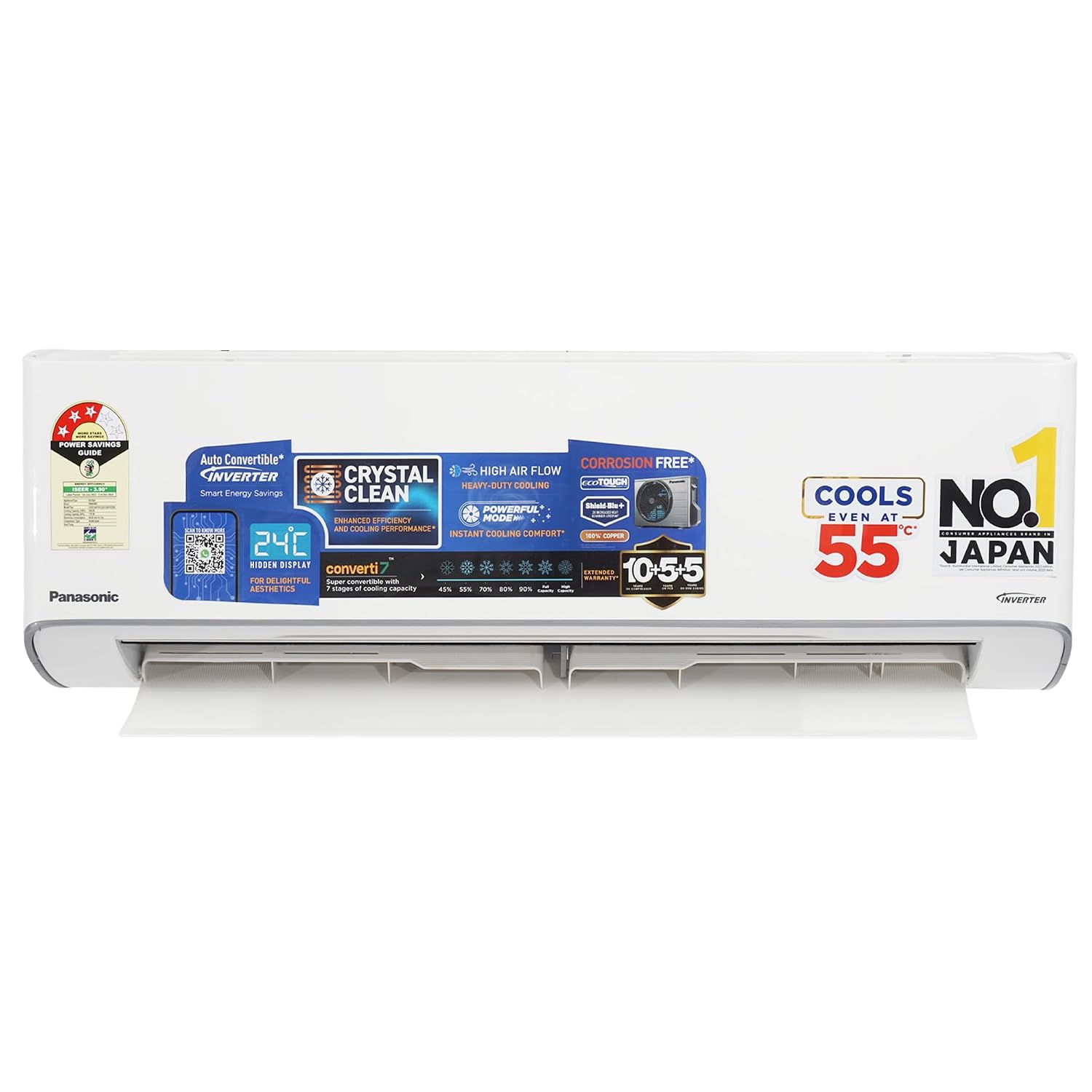

Rajah 3.1: Indoor unit showcasing key features like 7-in-1 Convertible, Crystal Clean, High Air Flow, and Corrosion Free technologies.

Rajah 3.2: Indoor unit displaying the energy savings guide and detailed feature descriptions, including the 7 stages of cooling capacity.

4. Persediaan dan Pemasangan

The installation of this split air conditioner requires specialized tools and knowledge. It is strongly recommended that installation be performed by a Panasonic authorized service technician to ensure proper functioning and safety.

• Komponen yang Disertakan: The product package includes one air conditioner unit, which comprises both the indoor and outdoor units, along with a remote control and user manual.
• penempatan: Ensure both indoor and outdoor units are placed in locations that allow for optimal airflow and easy maintenance. The indoor unit dimensions are 22.9D x 87W x 29.5H Centimeters.
• Sambungan Elektrik: The unit operates on 230 Volts and requires a dedicated power circuit.

Rajah 4.1: The outdoor unit of the Panasonic EU Inverter Split AC, which houses the compressor and condenser coil.

Rajah 4.2: Indoor unit with indicated dimensions (87 cm width, 29.5 cm height, 22.9 cm depth) for installation planning.

5. Arahan Operasi

Your air conditioner is controlled via a wireless remote control. Ensure the remote control has fresh batteries and is pointed towards the indoor unit when operating.

Rajah 5.1: The remote control for your Panasonic Air Conditioner, showing various function buttons.

Fungsi Kawalan Jauh:

• Butang MATI/HIDUP: Tekan untuk menghidupkan atau mematikan unit.
• Butang MOD: Cycles through operating modes: AUTO, COOL, DRY, FAN.
• Butang TEMP (Anak Panah Atas/Bawah): Melaraskan suhu yang dikehendaki.
• Butang KELAJUAN KIPAS: Memilih kelajuan kipas (Auto, Rendah, Sederhana, Tinggi).
• AIR SWING Button: Controls the vertical louver movement for air direction.
• POWERFUL Button: Activates powerful cooling for rapid temperature reduction.
• Butang SLEEP: Engages sleep mode for comfortable night-time operation.
• Butang HIDUP/MATI PEMASA: Sets the timer for automatic power on or off. Use SET and CANCEL buttons to configure.
• Butang JAM: Menetapkan masa semasa pada alat kawalan jauh.
• Butang TETAP SEMULA: Resets remote control settings.

6. Penyelenggaraan

Regular maintenance ensures optimal performance and longevity of your air conditioner. Always disconnect power before performing any maintenance.

Unit Dalaman:

• Pembersihan Penapis Udara: The Ag Clean and PM0.1 filters should be cleaned regularly (e.g., every two weeks or as needed). Open the front panel, remove the filters, and clean them with a vacuum cleaner or by washing with water. Allow them to dry completely before reinserting.
• Crystal Clean Function: Utilize the Crystal Clean feature to automatically clean the indoor unit's coil, preventing mold and bacteria growth. Refer to your remote control or main unit for activation instructions.
• Pembersihan Permukaan Unit: Lap permukaan unit dalaman dengan kain lembut dan kering. Untuk kotoran degil, gunakanamp kain dengan detergen lembut, kemudian lap kering.

Unit Luar:

• Pembersihan gegelung: Periodically check the outdoor unit's coil for dust and debris. Gently clean with a soft brush or vacuum cleaner. Avoid bending the fins.
• Halangan yang jelas: Ensure no leaves, dirt, or other obstructions block the airflow around the outdoor unit.
• Pemeriksaan Profesional: It is recommended to have a professional service check the outdoor unit annually.

7. Penyelesaian masalah

Sebelum menghubungi perkhidmatan, sila semak isu biasa berikut:

• Tiada Kuasa: Check if the circuit breaker has tripped or if the unit is properly plugged in.
• Not Cooling Effectively: Ensure doors and windows are closed. Clean air filters. Check if the temperature setting is too high.
• Bunyi Luar Biasa: Small cracking sounds are normal due to expansion/contraction of plastic parts. If noises are loud or unusual, contact service.
• Kebocoran air: Check if the drain hose is blocked or kinked. Ensure the indoor unit is installed level.
• Alat Kawalan Jauh Tidak Berfungsi: Check battery orientation and charge. Ensure no obstructions between remote and indoor unit.

If the problem persists after checking these points, please contact Panasonic customer support.

8. Spesifikasi

Rajah 8.1: Energy Savings Guide label for the Panasonic EU Inverter Split AC, showing a 3-star rating and ISEER of 3.90.

For more details on energy efficiency, visit: https://pnsnic.com/3GvKqH1?r=qr

9. Waranti dan Sokongan

Your Panasonic EU 7-in-1 Convertible 1 Ton 3 Star Inverter Split AC comes with the following warranty:

• Waranti Komprehensif 1 Tahun on the entire unit.
• 10 Years Compressor Warranty.
• 5 Years PCB Warranty.
• 5 Years ODU Casing Warranty.

For service, support, or warranty claims, please contact:
