RoyPow 12V 20A LiFePO4 Battery Charger

1. Pengenalan

The RoyPow 12V 20A LiFePO4 Battery Charger, Model C1420, is designed for efficient and safe charging of 12V LiFePO4 batteries. It also supports various other 12V battery types, including lead-acid, flooded, AGM, gel cell, and deep cycle batteries. This charger features multiple protection mechanisms, a fully sealed IP65 waterproof design, and a 0V charging function to reactivate deeply discharged batteries. Its automatic charging process simplifies operation, making it suitable for a wide range of applications from marine to RVs.

2. Maklumat Keselamatan

Please read and understand all safety instructions before operating the charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Keselamatan Elektrik: Ensure the charger is connected to a grounded outlet. Do not expose the charger to rain or wet conditions. Do not operate the charger if it has received a sharp blow, been dropped, or otherwise damaged.
• Pengudaraan: The sealed shell design will generate heat during use. Always use the charger with the provided stand in an open and well-ventilated area to prevent overheating.
• Keserasian Bateri: This charger is primarily designed for 12V LiFePO4 batteries but is compatible with other 12V battery types as listed in the specifications. Do not attempt to charge batteries with incompatible voltages or chemistries.
• Sambungan: Ensure correct polarity when connecting to the battery. Reverse connection protection is built-in, but incorrect connection should be avoided.
• Kanak-kanak dan Haiwan Kesayangan: Jauhkan pengecas dan bateri daripada capaian kanak-kanak dan haiwan peliharaan.
• Ciri-ciri perlindungan: The charger includes built-in short circuit protection, overload protection, over-current protection, over-voltage protection, over-temperature protection, and reverse connection protection to ensure safe operation.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• 1 x RoyPow 14.4V 20A LiFePO4 Battery Charger (Model C1420)
• 1 x 100cm AC Power Cable
• 1 x 100cm M8 Ring Terminals Cable
• 1 x Battery Charger Stand
• 1 x Manual Pengguna

4. Produk Lebihview

The RoyPow C1420 charger is engineered for durability and performance. It features a fully sealed housing, providing IP65 waterproof protection, making it suitable for marine environments and outdoor use. The fan-less design ensures silent operation and contributes to a longer lifespan.

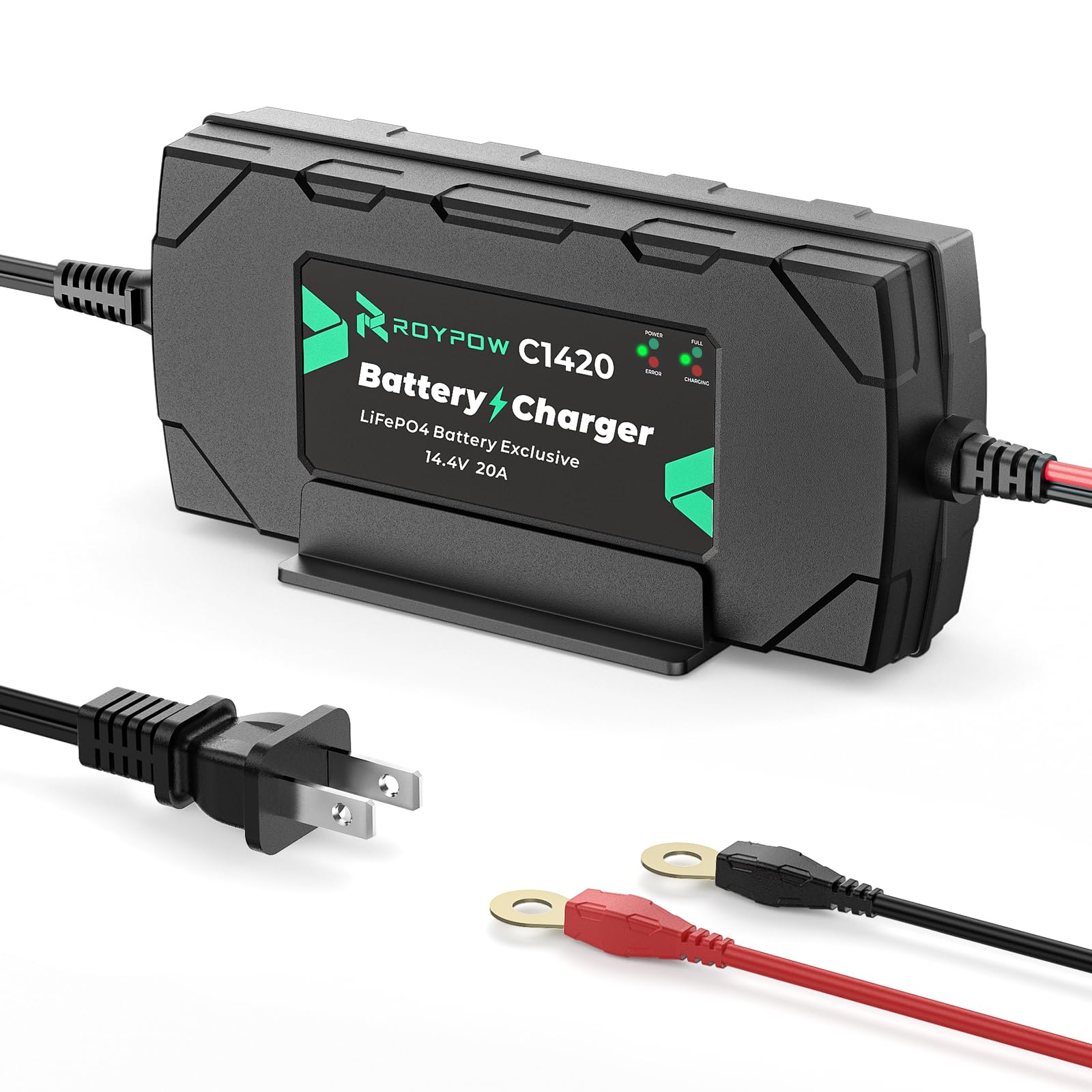

Rajah 4.1: Depan view of the RoyPow C1420 battery charger, showcasing its compact design and LED indicators.

Figure 4.2: Diagram illustrating the charger's strong and compact internal structure, highlighting the AC power cord, battery connection cable (M8), and charging LED indicators.

Ciri-ciri Utama:

• Dedicated LiFePO4 Charging: Optimized for 12V LiFePO4 batteries, maximizing performance and extending battery life.
• Keserasian Berbilang Bateri: Also charges 12V lead-acid, flooded, AGM, gel cell, and deep cycle batteries.
• Pengecasan Cepat: Delivers 20A current, charging a 12V 100Ah lithium battery to 100% in approximately 5 hours.
• Perlindungan Lanjutan: Comprehensive safety features including short circuit, overload, over-current, over-voltage, over-temperature, and reverse connection protection.
• IP65 Kalis Air: Fully sealed design for use in challenging environments, including marine applications.
• 0V Charging Function: Capable of reactivating dead or sleeping LiFePO4 batteries.
• Operasi automatik: Simple plug-and-charge functionality with automatic transition through charging stages.

5. Persediaan

Follow these steps to set up your RoyPow C1420 battery charger:

1. penempatan: Place the charger on a stable surface using the provided stand. Ensure the area is open and well-ventilated to allow for heat dissipation.
2. Sambungan Bateri: Connect the M8 ring terminals cable to your 12V battery. Ensure the red terminal is connected to the positive (+) battery post and the black terminal to the negative (-) battery post.
3. Sambungan Pengecas: Connect the M8 ring terminals cable to the charger's output port.
4. Sambungan Kuasa: Plug the AC power cable into the charger's input port, then plug the other end into a standard 100V-240V AC wall outlet.

Figure 5.1: The RoyPow C1420 charger connected to a battery using M8 ring terminals, with the AC power cable plugged in.

Figure 5.2: The charger placed on its stand next to a battery, with a note advising use in an open and ventilated area due to heat generation.

6. Arahan Operasi

The RoyPow C1420 charger operates automatically once connected correctly.

Proses Pengecasan:

• Once connected to the battery and power outlet, the charger will automatically begin the charging process.
• The charger employs a smart 3-stage charging process (Pre-Charge, Constant Current, Constant Voltage) to optimize battery health and extend its lifespan.
• When the battery is nearly fully charged, the charger will automatically switch to a trickle charge mode to prevent overcharging.

Penunjuk LED:

The charger features LED indicators to display its status:

Figure 6.1: Detailed diagram explaining the different states of the LED indicators on the charger.

• Kuasa (Hijau): Illuminates when the charger is connected to an AC power source.
• Full (Green): Illuminates when the battery is fully charged.
• Charging (Red): Illuminates when the battery is actively charging.
• Error (Red): Illuminates to indicate a fault condition. Refer to the Troubleshooting section.

0V Charging Function:

The charger can reactivate 0V dead or sleeping LiFePO4 batteries. When a LiFePO4 battery is protected by its Battery Management System (BMS) due to low voltage, this charger can reactivate the BMS and restore the battery to its normal operating voltage. This function is compatible with most LiFePO4 batteries on the market.

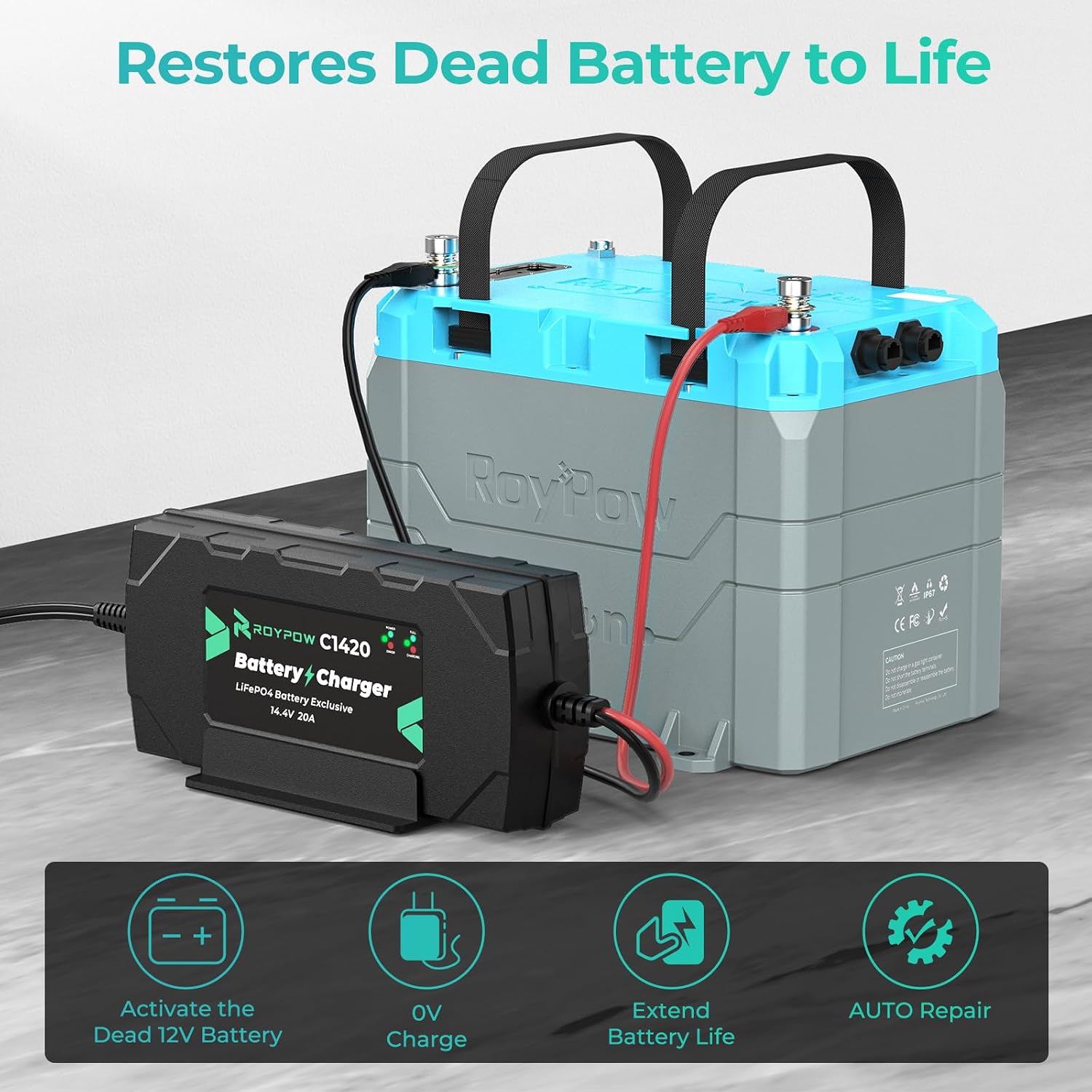

Figure 6.2: The charger's 0V charging function capable of reactivating dead or sleeping LiFePO4 batteries.

7. Penyelenggaraan

Proper maintenance ensures the longevity and optimal performance of your charger and batteries.

• Pembersihan: Disconnect the charger from power and the battery before cleaning. Wipe the exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Storan: Simpan pengecas di tempat yang sejuk dan kering apabila tidak digunakan. Pastikan kabel dililit dengan kemas dan tidak bengkok.
• Kesihatan Bateri: The charger's trickle charge function helps maintain battery health during long-term storage by preventing overcharging and keeping the battery at an optimal level.
• Pengudaraan: Always ensure adequate ventilation during operation to prevent heat buildup.

8. Penyelesaian masalah

If you encounter issues with your RoyPow C1420 charger, refer to the following table:

9. Spesifikasi

Technical specifications for the RoyPow 12V 20A LiFePO4 Battery Charger C1420:

10. Waranti dan Sokongan

Waranti: The RoyPow 12V 20A LiFePO4 Battery Charger (Model C1420) comes with a 2-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

Sokongan: For technical assistance, troubleshooting, or warranty claims, please contact RoyPow customer support through the official RoyPow website or your retailer. Please have your model number (C1420) and proof of purchase ready when contacting support.
