1. Pengenalan
Terima kasih kerana membeliasing the Beldray Compact Spotbuster Spot Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before first use and retain them for future reference.
The Beldray Compact Spotbuster is designed for effective spot cleaning of carpets, rugs, and upholstery, removing spills, stains, pet hair, and general dirt. Its integrated spray, scrubbing, and suction system offers a deep cleaning solution in a portable format.
2. Maklumat Keselamatan Penting
Sentiasa patuhi langkah berjaga-jaga keselamatan asas apabila menggunakan peralatan elektrik untuk mengurangkan risiko kebakaran, renjatan elektrik dan kecederaan diri.
- Baca semua arahan sebelum digunakan.
- Jangan rendamkan perkakas dalam air atau sebarang cecair lain.
- Jauhkan perkakas daripada kanak-kanak dan haiwan peliharaan.
- Jangan gunakan perkakas jika kord kuasa atau palam rosak.
- Use only cleaning solutions recommended for spot cleaners.
- Cabut plag perkakas daripada bekalan kuasa sebelum pembersihan atau penyelenggaraan.
- Jangan menyekat bukaan pengudaraan.
- Jangan gunakan pada permukaan basah atau di luar rumah.
- Always ensure tanks are correctly installed before operation.
3. Produk Lebihview
Familiarize yourself with the components of your Beldray Compact Spotbuster.

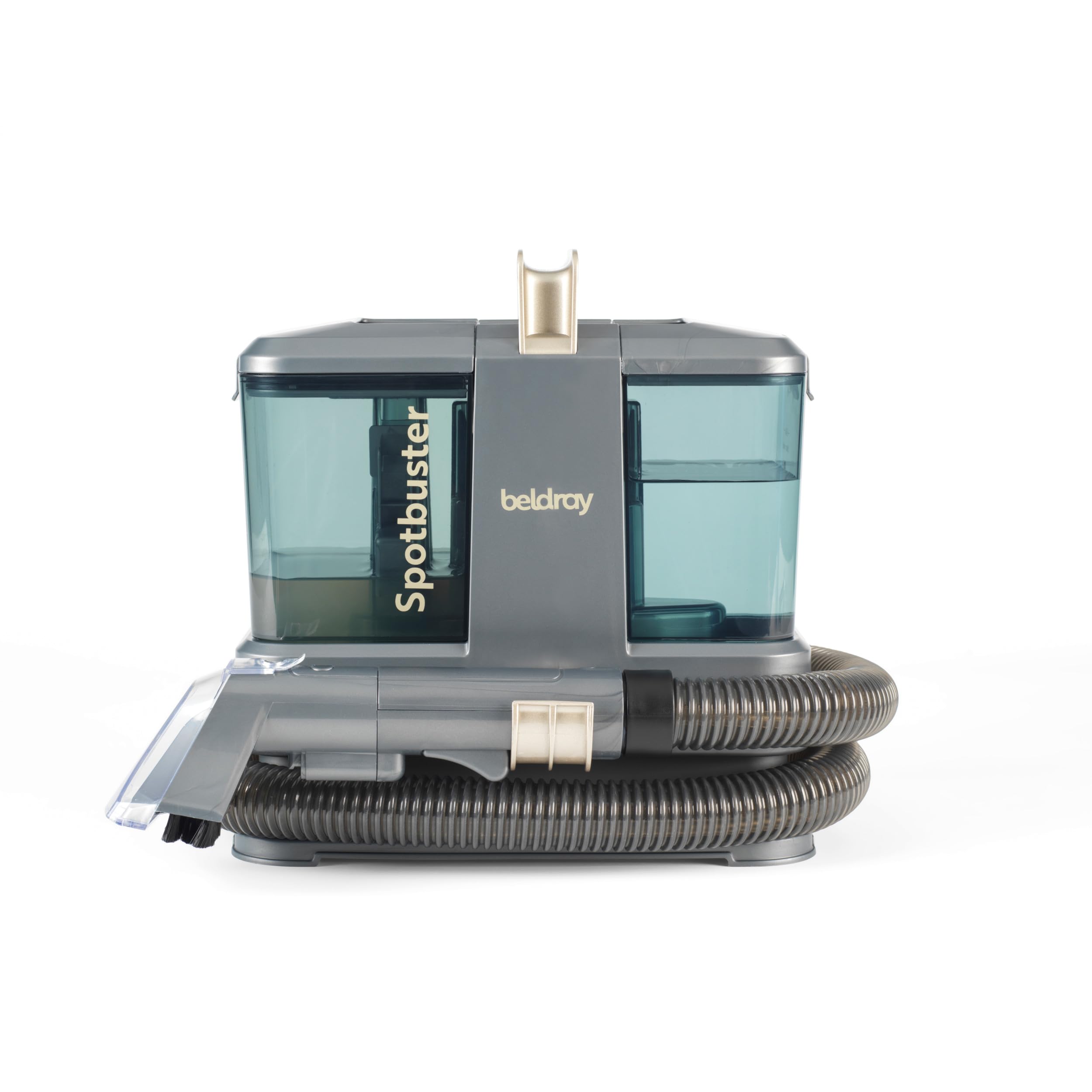

Image: The Beldray Compact Spotbuster unit shown with its packaging, highlighting its compact design and key features.
Imej: Dari dekat view of the cleaning head with its transparent nozzle, positioned on a light-colored carpet, demonstrating the spray and suction mechanism.
- Unit Utama: Contains the motor, clean water tank, and dirty water tank.
- Tangki Air Bersih: For fresh water and cleaning solution (800ml capacity).
- Tangki Air Kotor: Collects extracted dirty water (500ml capacity).
- Hos Fleksibel: Connects the main unit to the cleaning tool.
- Alat Pembersih: Features a spray nozzle, scrubbing brush, and suction inlet.
- Kord Kuasa: Untuk menyambung ke salur keluar elektrik.
4. Persediaan
Before first use, follow these steps to prepare your spot cleaner.
- Bongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
- Isi Tangki Air Bersih:
- Keluarkan tangki air bersih dari unit utama.
- Open the fill cap and fill with warm tap water (max 40°C) up to the 'MAX' line.
- Add a suitable spot cleaning solution according to the solution manufacturer's instructions. Do not overfill.
- Securely close the fill cap and reinsert the tank into the main unit.
- Sambungkan Hos: Ensure the flexible hose is securely connected to the main unit.
- Pasang Alat Pembersihan: Firmly attach the desired cleaning tool to the end of the flexible hose.
- jawatan: Place the spot cleaner on a flat, stable surface near the area to be cleaned.
5. Arahan Operasi
Always test the cleaning solution on an inconspicuous area of the material to be cleaned for colorfastness before full application.
General Cleaning Steps:
- Pasangkan: Sambungkan kord kuasa ke salur keluar elektrik yang sesuai.
- Hidupkan kuasa: Press the power button on the main unit to turn on the cleaner.
- Pra-rawatan (Pilihan): For stubborn stains, spray a small amount of cleaning solution directly onto the stain using the spray trigger on the cleaning tool. Allow it to soak for a few minutes.
- Spray and Scrub: Hold the cleaning tool over the stain. Press the spray trigger to dispense solution while simultaneously moving the tool back and forth over the area to scrub the stain.
- sedutan: Release the spray trigger and continue moving the cleaning tool over the wet area to suction up the dirty solution. Repeat until the stain is removed and the area is as dry as possible.
- Pantau Tangki Air Kotor: Keep an eye on the dirty water tank. Empty it when it reaches the 'MAX' fill line or when cleaning is complete.
- Matikan: Once cleaning is finished, press the power button to turn off the appliance and unplug it from the outlet.
Membersihkan Upholsteri:
Image: A person using the Beldray Compact Spotbuster to clean a light-colored fabric sofa, demonstrating the effective removal of a spill.
When cleaning upholstery, ensure the fabric is suitable for wet cleaning. Avoid over-wetting the fabric. Use gentle strokes and extract as much moisture as possible.
Cleaning Carpets and Rugs:

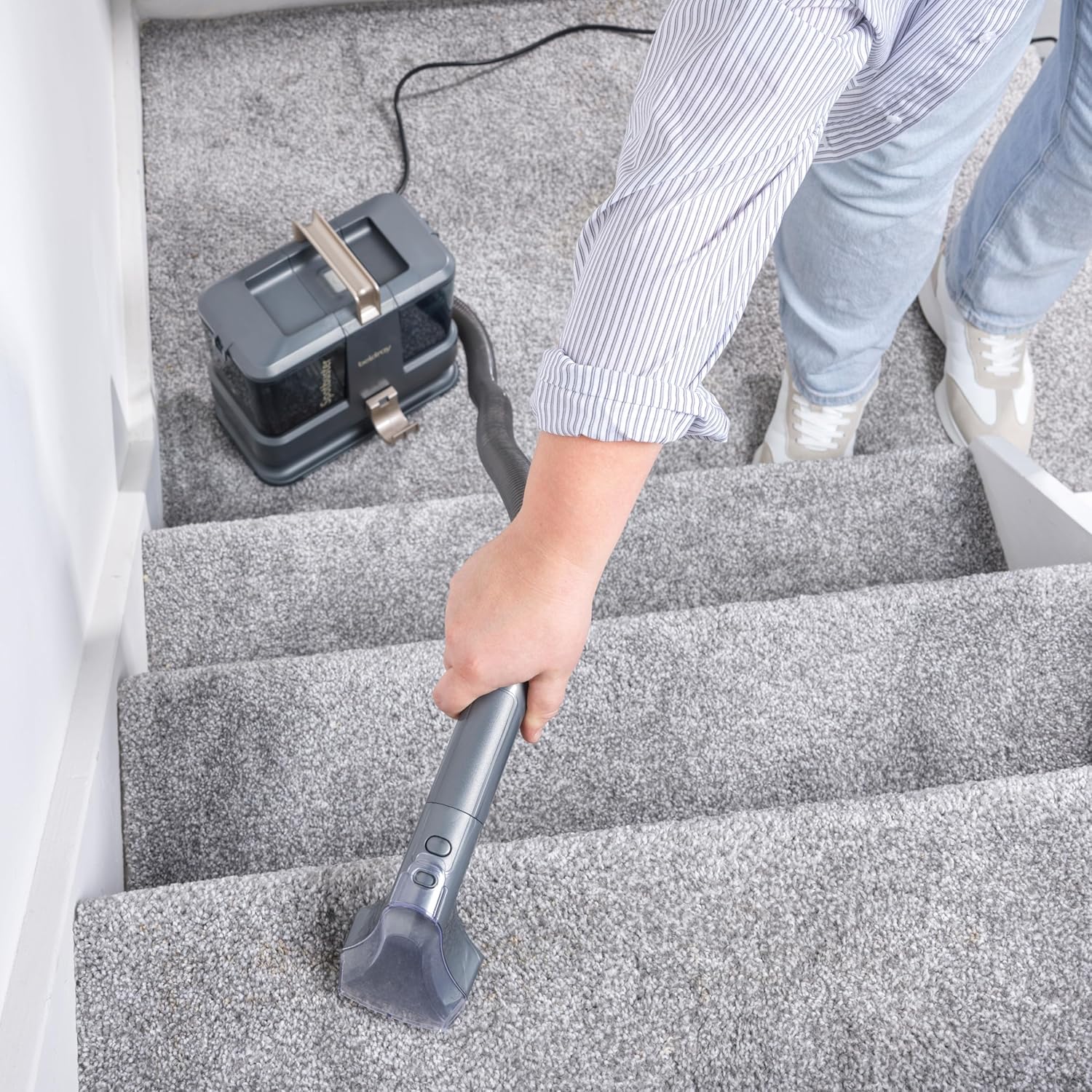

Image: A person utilizing the Beldray Compact Spotbuster to clean carpeted stairs, showcasing the extended hose and cleaning tool for hard-to-reach areas.
For carpets and rugs, follow the general cleaning steps. For larger areas, work in small sections, overlapping slightly to ensure thorough cleaning. The expandable hose and deep cleaning brush are ideal for carpeted stairs.
6. Penyelenggaraan
Penyelenggaraan yang kerap memastikan prestasi optimum dan memanjangkan jangka hayat perkakas anda.
Selepas Setiap Penggunaan:
- Tangki Air Kotor Kosong: Remove the dirty water tank, open the drain cap, and pour out the dirty water. Rinse the tank thoroughly with clean water.
- Tangki Air Bilas Bersih: Jika terdapat sebarang larutan yang tertinggal, kosongkan dan bilas tangki air bersih.
- Clean Cleaning Tool: Detach the cleaning tool and rinse it under running water to remove any debris or residue.
- Lap ke bawah: Wipe the exterior of the main unit and hose with a damp kain.
- kering: Allow all components to air dry completely before reassembling and storing.
Storan: Store the appliance in a cool, dry place, away from direct sunlight and out of reach of children.
7. Penyelesaian masalah
If you encounter issues with your Beldray Compact Spotbuster, refer to the following table for common problems and solutions.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Perkakas tidak dihidupkan. | Tidak dipasang; soket kuasa rosak; butang kuasa tidak ditekan. | Ensure plug is fully inserted. Test outlet with another device. Press power button firmly. |
| No spray from cleaning tool. | Tangki air bersih kosong; tangki tidak dipasang dengan betul; muncung semburan tersumbat. | Refill clean water tank. Reinstall tank securely. Clean spray nozzle. |
| Penyedutan yang teruk. | Dirty water tank full; hose/tool clogged; dirty water tank not seated correctly. | Empty dirty water tank. Clear any blockages in hose/tool. Reinstall dirty water tank securely. |
| Air bocor. | Tanks not sealed properly; caps loose; hose connection loose. | Ensure all caps are tight and tanks are correctly seated. Check hose connections. |
8. Spesifikasi
- Nombor Model: BEL02089VDE
- Jenama: Beldray
- Kuasa: 330W
- Kapasiti Tangki Air Bersih: 0.8 Liter (800ml)
- Kapasiti Tangki Air Kotor: 0.5 Liter (500ml)
- Jumlah Kapasiti: 1.3 Liter
- Berat Barang: 2.5 Kilogram
- warna: Kelabu
9. Waranti dan Sokongan
The Beldray Compact Spotbuster comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact Beldray customer service through their official webtapak atau maklumat hubungan yang diberikan bersama pembelian anda.
Webtapak: www.beldray.com (Cthample link, replace if actual link is known)
