CUSHYBITE FVN51K Lithium Cordless 4-in-1 Stapler/Nailer Kit User Manual

1. Pengenalan

This manual provides essential instructions for the safe operation, setup, maintenance, and troubleshooting of your CUSHYBITE FVN51K Lithium Cordless 4-in-1 Stapler/Nailer Kit. This versatile tool is designed to drive four types of fasteners: light-duty staples, heavy-duty staples, round crown staples, and brad nails, making it suitable for a variety of crafting and home improvement tasks.

Please read this manual thoroughly before using the tool to ensure proper function and to prevent injury.

2. Arahan Keselamatan Penting

AMARAN: Baca semua amaran dan arahan keselamatan. Kegagalan mematuhi amaran dan arahan boleh mengakibatkan renjatan elektrik, kebakaran dan/atau kecederaan serius.

• Perlindungan Mata: Always wear appropriate eye protection, such as safety goggles with side shields, when operating this tool.
• Perlindungan Pendengaran: Pakai pelindung pendengaran semasa penggunaan lanjutan.
• Kawasan Kerja: Pastikan kawasan kerja anda bersih dan terang. Kawasan bersepah atau gelap mengundang kemalangan.
• Pengendalian Alat: Do not carry the tool with your finger on the trigger. Ensure the tool is off before connecting the battery pack.
• Keselamatan Bateri: Use only the specified battery and charging cable. Do not expose batteries to water or extreme temperatures.
• Fastener Awareness: Always assume the tool contains fasteners. Point the tool away from yourself and others when loading or clearing jams.
• Penyelenggaraan: Disconnect the battery before performing any adjustments, changing accessories, or storing the tool.
• Kanak-kanak dan Penonton: Jauhkan kanak-kanak dan orang ramai semasa mengendalikan alat kuasa.

3. Kandungan Pakej

Verify that all items listed below are present and undamaged upon opening the package:

• CUSHYBITE FVN51K 4-in-1 Stapler/Nailer
• USB Lithium 3.0 Ah Battery
• Kabel Pengecasan (USB-A ke USB-C)
• Manual Operator (dokumen ini)

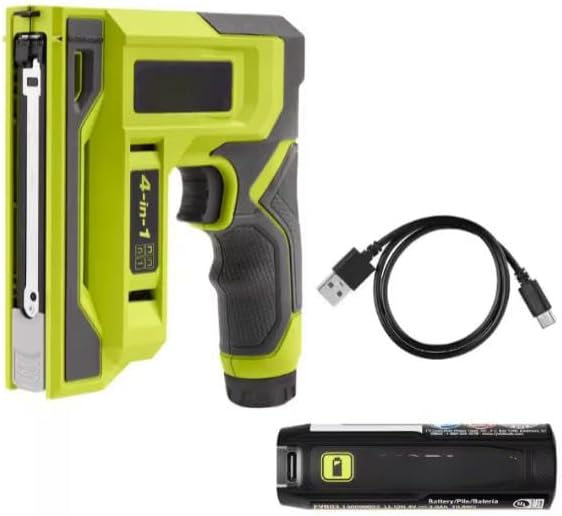

Image 3.1: Components of the FVN51K Kit, showing the stapler/nailer, USB Lithium 3.0 Ah battery, and charging cable.

4. Ciri-ciri Produk

The CUSHYBITE FVN51K is engineered for versatility and ease of use. Key features include:

• 4-in-1 Fastener Capability: Drives light-duty staples (1/4" - 9/16"), heavy-duty staples (1/4" - 9/16"), round crown staples (3/8" - 9/16"), and brad nails (5/8").
• USB Lithium Power: Utilizes a 3.0 Ah USB Lithium battery for over 600 staples/nails per charge.
• Reka bentuk padat dan ringan: Facilitates use in confined spaces and reduces user fatigue during prolonged operation.
• Integrated Guide Line: Ensures precise fastener placement.
• Low Staple/Nail Indicator: Provides a visual alert when fasteners are running low, prompting a reload.
• Battery LED Fuel Gauge: Monitors battery charge level.
• Port Pengecasan USB-C: Allows for convenient charging of the battery and can also charge mobile devices.

Image 4.1: Labeled features of the FVN51K tool, highlighting the integrated guideline, low staple/nail indicator, LED low battery indicator, and fastener compatibility.

5. Persediaan

5.1 Mengecas Bateri

1. Connect the provided charging cable to the USB-C port on the USB Lithium 3.0 Ah battery.
2. Plug the other end of the charging cable (USB-A) into a compatible USB power source (e.g., wall adapter, computer USB port).
3. The LED fuel gauge on the battery will indicate the charging status. A full charge is indicated when all LEDs are solid.
4. Setelah dicas sepenuhnya, cabut kabel pengecasan.

Note: The battery can also be used to charge mobile devices via its USB-C port when not in use with the tool.

5.2 Memuatkan Pengikat

Ensure the tool is disconnected from the battery before loading fasteners.

1. Locate the magazine release latch, typically at the bottom or rear of the tool.
2. Press the latch to open the fastener magazine.
3. Insert the desired type of fasteners (light-duty staples, heavy-duty staples, round crown staples, or brad nails) into the magazine. Ensure the fasteners are oriented correctly according to the tool's markings.
4. Push the magazine closed until it securely latches.
5. Check the low staple/nail indicator to confirm fasteners are loaded.

Refer to the tool's markings for compatible fastener sizes and types.

6. Arahan Operasi

6.1 Memasang Bateri

Align the charged USB Lithium battery with the battery port on the tool and slide it in until it clicks securely into place.

6.2 Pengikat Pemanduan

1. Ensure the tool is loaded with the correct fasteners for your application.
2. Position the nose of the tool firmly against the workpiece where the fastener is to be driven. The integrated guide line can assist with precise placement.
3. Press the trigger to drive the fastener. Release the trigger to stop.
4. Observe the low staple/nail indicator. Reload fasteners when the indicator shows they are low.
5. Monitor the battery LED fuel gauge. Recharge the battery when the indicator shows a low charge.

Always maintain a firm grip on the tool and keep hands clear of the fastener exit area.

7. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan hayat alat anda.

• Pembersihan: Keep the tool's air vents clean and free of debris to prevent overheating. Use a dry cloth to wipe down the exterior. Do not use solvents or harsh chemicals.
• Fastener Jams: If a fastener jam occurs, disconnect the battery immediately. Carefully open the magazine and remove the jammed fastener using pliers if necessary. Never attempt to clear a jam with the battery connected.
• Penjagaan Bateri: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged for extended periods.
• Storan: When not in use, store the tool and battery in a secure, dry location out of reach of children.

8. Penyelesaian masalah

9. Spesifikasi

10. Waranti dan Sokongan

The CUSHYBITE FVN51K Lithium Cordless 4-in-1 Stapler/Nailer Kit is backed by a Waranti pengilang selama 2 tahun dari tarikh pembelian. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa.

For warranty claims, technical support, or inquiries regarding replacement parts, please contact CUSHYBITE customer service. Refer to the product packaging or the manufacturer's official webtapak untuk maklumat hubungan semasa.

Sila simpan bukti pembelian anda untuk pengesahan waranti.
