1. Pengenalan
Thank you for choosing the POWBEN 14" Smart Urban Folding Electric Bicycle. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new e-bike. Please read this manual thoroughly before your first ride and keep it for future reference.
The POWBEN K300-10AH is designed for urban commuting and leisure, offering a blend of portability, power, and comfort. Its folding design makes it easy to store and transport, while the electric assist provides a smooth and enjoyable riding experience.
2. Garis Panduan Keselamatan
Keselamatan anda adalah yang paling utama. Sentiasa patuhi garis panduan berikut:
- Sentiasa pakai topi keledar yang memenuhi piawaian keselamatan.
- Patuhi semua undang-undang dan peraturan lalu lintas tempatan.
- Perform a pre-ride check before each use, ensuring brakes, tires, and battery are in good condition.
- Jangan menunggang di bawah pengaruh alkohol atau dadah.
- Berhati-hati dengan persekitaran anda dan pengguna jalan raya yang lain.
- Elakkan menunggang dalam keadaan cuaca buruk atau di permukaan yang licin.
- Jangan melebihi kapasiti beban maksimum 264 lbs (120 kg).
- Pastikan mekanisme lipatan dikunci dengan selamat sebelum menunggang.
3. Komponen Produk
Familiarize yourself with the main parts of your POWBEN e-bike:
- Bingkai: Aluminum alloy, foldable design.
- Motor: 250W brushless motor.
- Bateri: 48V 10Ah (480Wh) removable lithium battery.
- Roda: 14-inch puncture-proof vacuum tires.
- Brek: Front and rear disc brakes with E-ABS braking system.
- Penggantungan: Berganda damping system (double suspension, center spring, four-suspension).
- Bar hendal: Ketinggian boleh laras.
- tempat duduk: Ketinggian boleh laras.
- Lampu: Height-adjustable headlight and taillight with integrated brake and turn signal.
- paparan: paparan LED.
Gambar 3.1: Lebihview of the POWBEN Folding Electric Bicycle.
4. Persediaan dan Pemasangan
Your e-bike comes mostly pre-assembled. Follow these steps for final setup:
- Membongkar: Carefully remove the e-bike and all accessories from the packaging. Check for any damage during transit.
- Membuka Bingkai: Release the frame latch and unfold the bicycle until it clicks into place. Secure the latch firmly.
- Pemasangan/Pelarasan Hendal: Raise the handlebar stem and lock it. Adjust the handlebar height to a comfortable position and secure the quick-release lever.
- Pemasangan/Pelarasan Tiang Tempat Duduk: Insert the seat post into the frame. Adjust the seat height so your feet can comfortably touch the ground when stopped. Secure the quick-release lever.
- Pemasangan Pedal: Identify the left (L) and right (R) pedals. Screw them into the crank arms (left pedal counter-clockwise, right pedal clockwise) and tighten with a wrench from the included tool kit.
- Pemasangan & Pengecasan Bateri: Insert the removable battery into its compartment. Ensure it is securely locked. Fully charge the battery before first use (3-4 hours).
- Pemeriksaan Tekanan Tayar: Pastikan tayar ditiup angin mengikut tekanan yang disyorkan (rujuk dinding sisi tayar untuk butiran lanjut).
Figure 4.1: The portable folding design allows for easy storage and transport.
5. Arahan Operasi
Operating your POWBEN e-bike is straightforward:
5.1 Menghidupkan/Mematikan
- To turn on: Press and hold the power button on the LED display.
- To turn off: Press and hold the power button again.
5.2 Mod Menunggang
The e-bike offers 3 riding modes:
- Mod Elektrik Tulen: Use the throttle for propulsion without pedaling.
- Pedal Assist Mode (Assistance): The motor provides assistance as you pedal, making riding easier, especially uphill.
- Sport Mode (Manual): Kayuh basikal seperti basikal tradisional tanpa bantuan motor.
Bertukar antara mod menggunakan kawalan pada hendal.
5.3 Sistem Brek
The e-bike is equipped with reliable disc brakes and an E-ABS braking system for enhanced safety.
- Apply both brake levers smoothly and evenly for effective stopping.
- The E-ABS system helps prevent wheel lock-up during sudden braking.
Figure 5.1: E-ABS Braking System for enhanced safety.
5.4 Lampu
Ensure your lights are functional for visibility, especially during low-light conditions.
- The headlight is height-adjustable for optimal illumination.
- The taillight includes integrated brake and turn signal functions.
Figure 5.2: Headlight and Taillight for improved visibility and safety.
6. Penyelenggaraan
Penyelenggaraan berkala memastikan ketahanan dan operasi e-basikal anda yang selamat.
6.1 Penjagaan Bateri
- Cas bateri secara berkala, walaupun tidak digunakan, untuk mengekalkan kesihatannya.
- Elakkan menyahcas sepenuhnya bateri dengan kerap.
- Simpan bateri di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
Figure 6.1: The 48V 10Ah battery provides reliable power and range.
6.2 Penjagaan Tayar
- Periksa tekanan tayar secara kerap dan tiup ke PSI yang disyorkan.
- Periksa tayar untuk haus, luka atau objek yang terbenam.
Figure 6.2: The 14-inch explosion-proof vacuum tires are designed for durability across various terrains.
6.3 brek
- Periksa pad brek untuk haus dan gantikan jika perlu.
- Pastikan tuil brek kukuh dan responsif. Laraskan ketegangan kabel jika perlu.
6.4 General Cleaning & Storage
- Bersihkan basikal elektrik dengan iklanamp kain. Elakkan mencuci tekanan tinggi terus pada komponen elektrik.
- Pelincir rantai dengan kerap.
- Store the e-bike in a dry, secure location, preferably indoors, to protect it from elements.
7. Penyelesaian masalah
Bahagian ini menangani isu biasa yang mungkin anda hadapi:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Basikal elektrik tidak boleh dihidupkan | Battery not charged or not properly installed; Power button not pressed correctly. | Charge battery fully; Ensure battery is securely seated; Press and hold power button firmly. |
| Motor tidak membantu | Battery low; Incorrect riding mode selected; Loose motor connection. | Charge battery; Switch to Pedal Assist or Pure Electric mode; Check motor cable connections. |
| Brek terasa lemah | Worn brake pads; Loose brake cable; Disc rotor dirty. | Inspect and replace brake pads; Adjust brake cable tension; Clean disc rotor with appropriate cleaner. |
| Bunyi-bunyi luar biasa semasa perjalanan | Loose components; Dry chain; Bearing issue. | Check all bolts and quick releases; Lubricate chain; Consult customer support if noise persists. |
Jika anda menghadapi masalah yang tidak disenaraikan di sini atau jika penyelesaian tidak menyelesaikan masalah, sila hubungi sokongan pelanggan.
8. Spesifikasi Teknikal
| Ciri | Spesifikasi |
|---|---|
| Nombor Model | K300-10AH |
| Dimensi Produk | 133 x 32 x 110 cm |
| Berat Barang | 32 kg (70.5 lbs) |
| Bahan Bingkai | Aloi Aluminium |
| Motor Wattage | 250 Watt |
| Bateri | 48V 10Ah (480Wh) Removable |
| Kelajuan Maks | 25 km/j (15.5 mph) |
| Range (Assist Mode) | Sehingga 30 km (18.6 batu) |
| Masa Mengecas | 3-4 jam |
| Saiz Roda | 14 inci (35.6 cm) |
| Jenis Brek | Disc Brake (E-ABS) |
| Jenis Penggantungan | Dual Suspension (Multiple Damping) |
| Kapasiti Muatan | 264 paun (120 kg) |
| Umur Disyorkan | Dewasa |
| Komponen yang Disertakan | Kit Alat |
Figure 8.1: The 250W motor provides ample power for urban commutes.

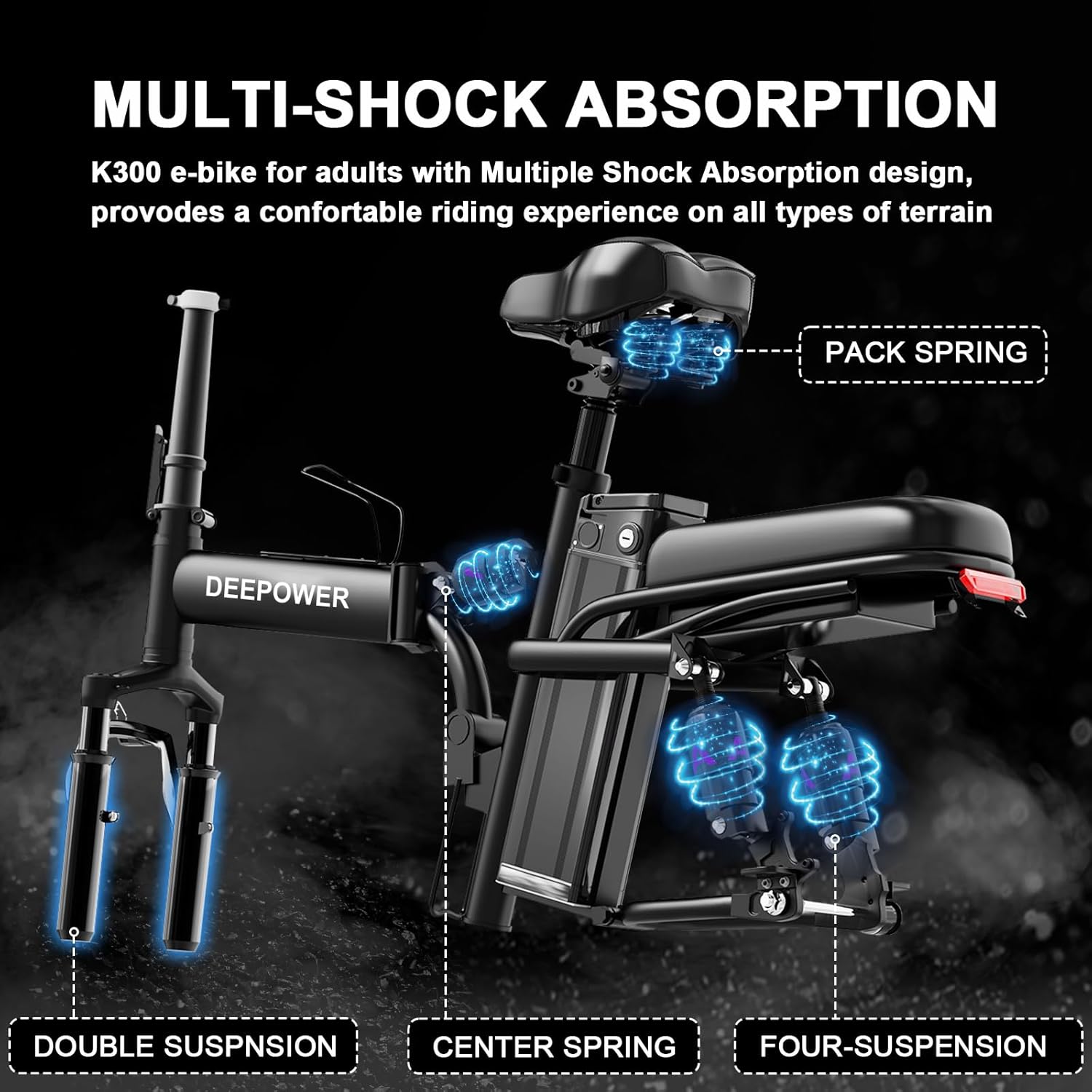

Figure 8.2: The multi-shock absorption system ensures a comfortable ride on various terrains.
9. Waranti dan Sokongan Pelanggan
POWBEN is committed to providing high-quality products and excellent customer service.
9.1 Maklumat Waranti
- Pemulangan Tanpa Kerumitan 30 Hari: Jika anda tidak berpuas hati dengan pembelian anda, anda boleh memulangkannya dalam tempoh 30 hari.
- 90-Day Free Spare Parts: Free replacement parts are available for 90 days from the date of purchase.
- 1-Year Warranty on Main Components: The motor, battery, and controller are covered by a one-year warranty.
- 3-Year Warranty on Spare Parts: Other spare parts are covered by a three-year warranty.
9.2 Sokongan Teknikal
Lifetime technical support is available for your POWBEN e-bike. For any questions, assistance, or warranty claims, please contact our customer service team through the retailer or the official POWBEN webtapak.
