Mcdodo CH-2462 3-in-1 15W MagQ Qi2 Magsafe Wireless Charging Stand User Manual

1. Produk Lebihview

The Mcdodo CH-2462 MagQ Qi2 is a versatile 3-in-1 magnetic wireless charging stand designed to efficiently charge your iPhone, AirPods, and Apple Watch simultaneously. It integrates Qi2 technology for optimized performance and features a compact, foldable design for portability and adjustable viewsudut-sudut.

Image 1.1: The Mcdodo CH-2462 charging stand with an iPhone, Apple Watch, and AirPods in charging positions.

2. Kandungan Pakej

Sila sahkan bahawa semua item terdapat dalam pakej:

• Mcdodo MagQ 3-in-1 Wireless Charging Stand (x1)
• Kabel Pengecas USB-C (x1)
• Manual Pengguna (x1)
• Kad Waranti (x1)

Image 2.1: The retail packaging for the Mcdodo CH-2462, illustrating the product and its key features.

3. Arahan Persediaan

1. Buka Pendirian: Carefully remove the charging stand and all accessories from the packaging.
2. Sambungkan Kuasa: Insert the provided USB-C charging cable into the USB-C port on the back of the charging stand. Connect the other end of the USB-C cable to a compatible power adapter (PD/QC supported, 30W recommended for optimal performance, not included).
3. penempatan: Place the charging stand on a stable, flat surface away from direct sunlight or heat sources.
4. Hidupkan kuasa: Once connected to a power source, the stand is ready for use. There is no separate power button.

Image 3.1: The Mcdodo CH-2462 stand set up on a desk, charging an iPhone, Apple Watch, and AirPods.

4. Arahan Operasi

4.1 Mengecas iPhone Anda

• Ensure your iPhone is compatible with MagSafe/Qi2 wireless charging (iPhone 12 and later models).
• Place your iPhone onto the magnetic charging pad. The magnets will automatically align your device for optimal charging.
• A charging indicator will appear on your iPhone screen, confirming that charging has begun.

4.2 Mengecas AirPods Anda

• Place your AirPods charging case (compatible with wireless charging) onto the designated flat charging area at the base of the stand.
• The charging indicator on your AirPods case will illuminate, indicating that charging is active.

4.3 Mengecas Apple Watch Anda

• Place your Apple Watch onto the dedicated charging puck located on the stand.
• Ensure the watch is properly seated on the puck. The watch display will show a charging icon.

4.4 Boleh laras Viewsudut

The stand features an adjustable design for comfortable viewing:

• Pelarasan Kecondongan: The iPhone charging pad can be tilted up to 30 degrees for an optimal viewsudut ing.
• Putaran: The iPhone can be rotated 360 degrees while on the magnetic pad, allowing for both portrait and landscape orientations.
• Reka Bentuk Lipat: The entire stand can be folded for compact storage and easy transport.

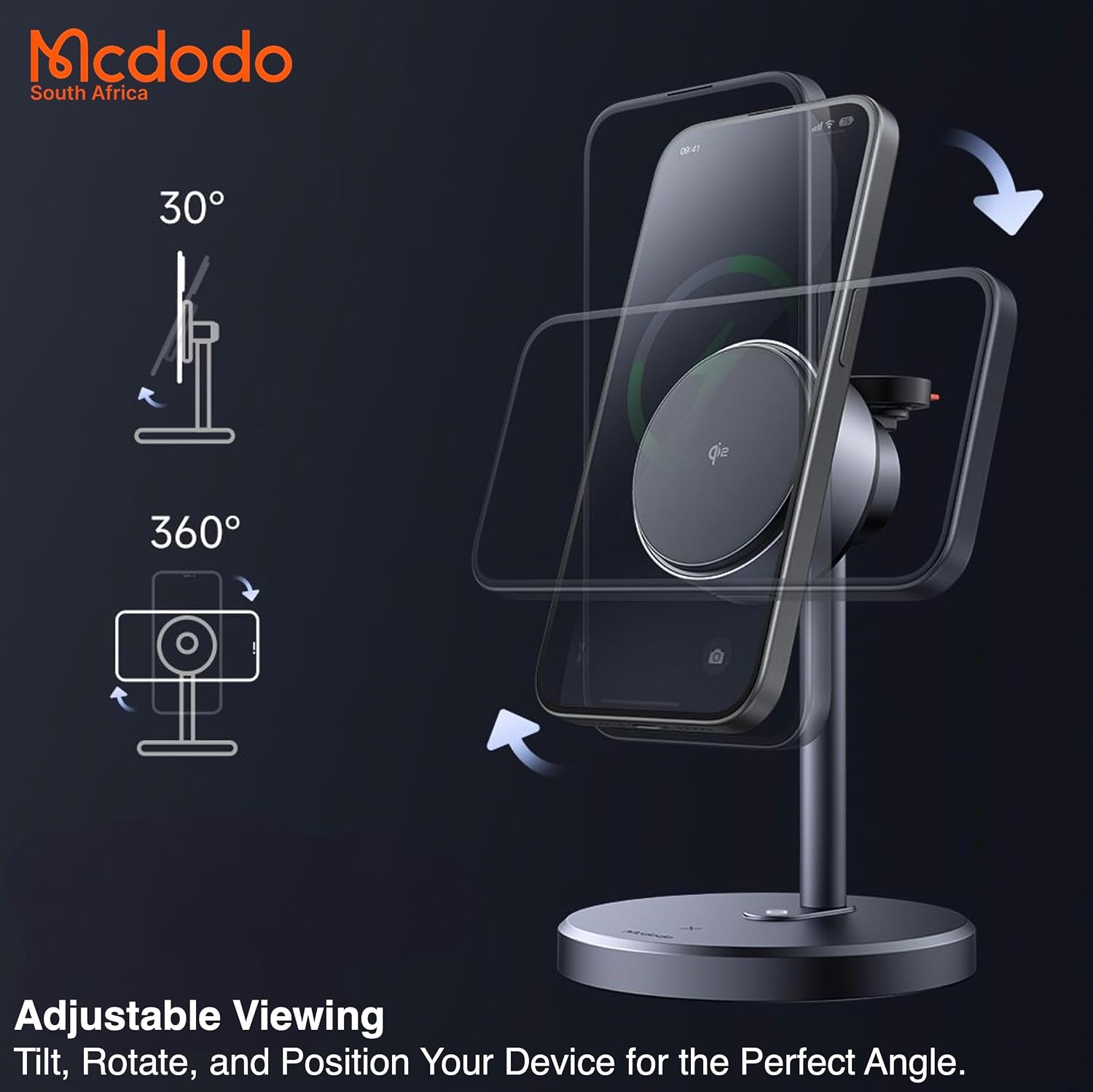

Image 4.1: Diagram illustrating the 30-degree tilt and 360-degree rotation features of the charging stand.

5. Penyelenggaraan

• Pembersihan: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the surface of the charging stand. Do not use abrasive cleaners, solvents, or immerse the device in water.
• Storan: When not in use, especially during travel, fold the stand to its compact form. Store it in a cool, dry place.
• Elakkan halangan: Ensure no foreign objects are placed between your devices and the charging surfaces, as this can hinder charging efficiency and potentially cause overheating.

6. Penyelesaian masalah

• Peranti Tidak Mengecas:
  • Ensure the charging stand is properly connected to a working power outlet and a compatible power adapter.
  • Verify that your device is correctly aligned on the charging pad. For iPhones, ensure MagSafe alignment.
  • Check if your device is wireless charging compatible.
  • Remove any thick phone cases or metallic objects that might interfere with wireless charging.
• Pengecasan perlahan:
  • Ensure you are using a Power Delivery (PD) or Quick Charge (QC) compatible power adapter with sufficient wattage (30W recommended). Lower wattagPenyesuai e boleh menyebabkan kelajuan pengecasan yang lebih perlahan.
  • Sahkan peranti anda menyokong pengecasan wayarles pantas.
• Terlalu panas:
  • Some heat generation during wireless charging is normal. If the device or charger becomes excessively hot, remove the device immediately.
  • Ensure there is adequate ventilation around the stand and no foreign objects are present.
  • Jika terlalu panas berterusan, hentikan penggunaan dan hubungi sokongan.

7. Spesifikasi

Image 7.1: A document confirming Qi2 certification for the Mcdodo CH-2462 charging stand.

8. Waranti dan Sokongan

8.1 Maklumat Waranti

This Mcdodo CH-2462 charging stand is covered by a Distributor Warranty. Please refer to the included Warranty Card for specific terms, conditions, and duration of the warranty period. Keep your proof of purchase for warranty claims.

8.2 Sokongan Pelanggan

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact your local distributor or the retailer from whom you purchased the product. Contact information can typically be found on the product packaging or the retailer's webtapak.
