The Rockville RD600.1 is a high-efficiency Class-D mono amplifier designed to provide powerful and clean bass for your car audio system. This amplifier delivers 600W RMS at 1 Ohm and features advanced tuning controls, including adjustable low pass and subsonic filters, and a bass boost function. Its compact design and robust protection circuitry ensure reliable performance. This manual provides essential information for the proper installation, operation, and maintenance of your RD600.1 amplebih hidup.

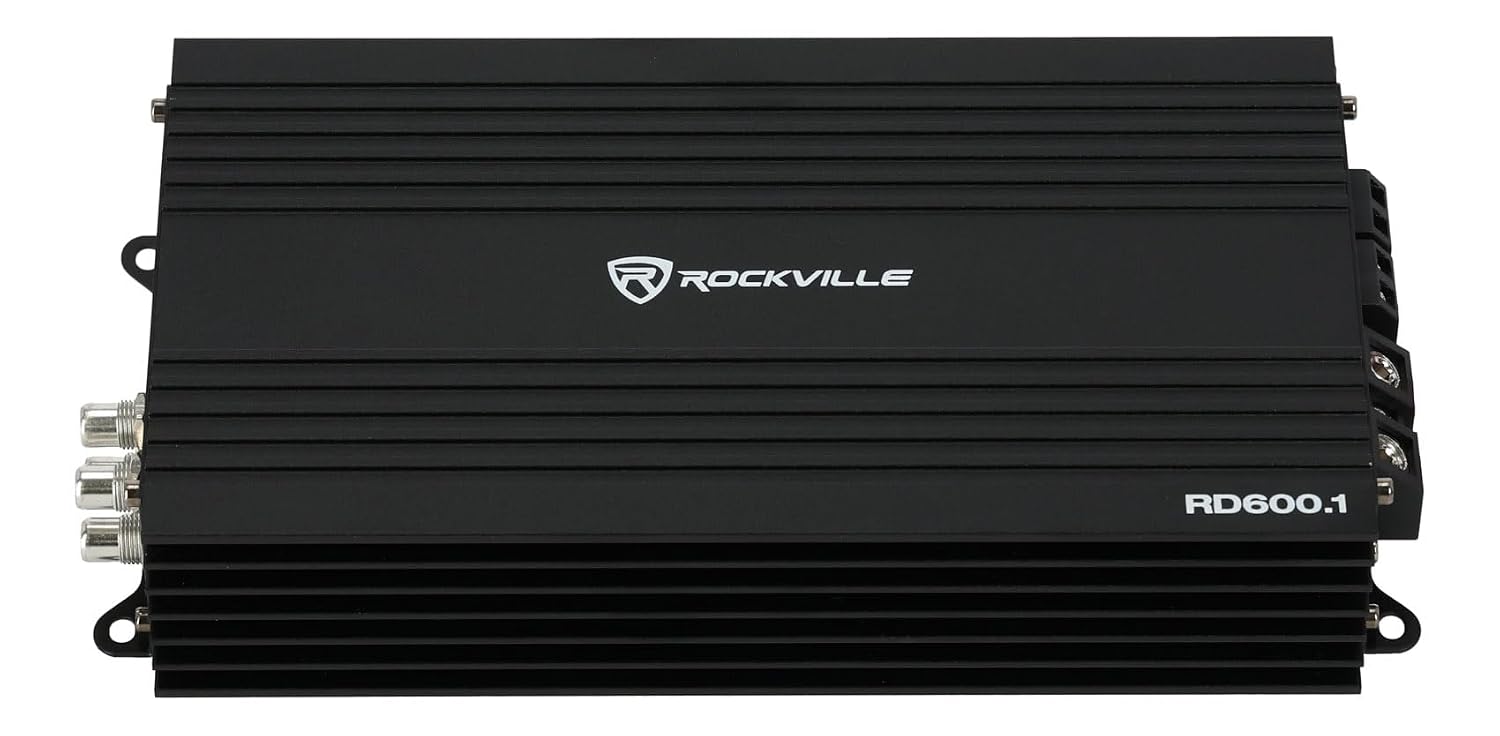

Imej: Atas view of the Rockville RD600.1 Class-D Mono Car Amplebih hidup.
Arahan Keselamatan
- Sentiasa putuskan sambungan terminal bateri negatif kenderaan sebelum memulakan sebarang pemasangan.
- Pemasangan profesional disyorkan untuk prestasi dan keselamatan yang optimum.
- Pastikan pengudaraan yang betul di sekeliling amppelapis untuk mengelakkan terlalu panas.
- Use appropriate gauge wiring for power, ground, and speaker connections as specified in the setup section.
- Elakkan memasang amppenghawa dingin di kawasan yang terdedah kepada kelembapan atau getaran berlebihan.
- Jangan cuba membaiki unit sendiri. Rujuk semua servis kepada kakitangan yang berkelayakan.
Komponen yang Disertakan
The following items are included with your Rockville RD600.1 amplebih hidup:
- RD600.1 Amplebih hidup
- Metal Bass Remote with Clip Indicator
- Manual Pemilik
- Skru Pemasangan
- Kad Waranti
Persediaan
Pemasangan yang betul adalah penting untuk prestasi dan jangka hayat peranti anda amplifier. Follow these steps carefully.
Memasang Amplebih hidup
Choose a secure location with adequate ventilation. Ensure the mounting surface is solid and can support the amplifier's weight. Use the provided mounting screws to secure the unit.
Sambungan Kuasa
Connect the power, ground, and remote turn-on wires as follows:
- Power (BATT+): Connect a heavy-gauge wire (e.g., 4-gauge) directly from the positive terminal of your vehicle's battery to the amplifier's BATT+ terminal. Install an in-line fuse holder within 18 inches of the battery.
- Tanah (GND): Connect a heavy-gauge wire from the ampterminal GND liifier ke permukaan logam yang bersih dan tidak dicat pada casis kenderaan. Pastikan sambungan yang kukuh dan berrintangan rendah.
- Jauh (REM): Connect a smaller gauge wire (e.g., 18-gauge) from the amplifier's REM terminal to the remote turn-on output of your head unit. This wire turns the amphidupkan dan matikan lampu isyarat dengan stereo anda.
Imej: Sisi view of the RD600.1 ampPengaktif yang menunjukkan kuasa, pembumian, alat kawalan jauh dan terminal pembesar suara.
RCA Input Connection
Sambungkan kabel RCA daripada pra-amp outputs of your head unit to the RCA INPUT terminals on the amplifier. Ensure left and right channels are correctly matched.
Sambungan Pembesar Suara
Sambungkan subwoofer anda ke amplifier's speaker output terminals. The RD600.1 is a mono amplifier, designed for single-channel output. Ensure the total impedance of your subwoofer(s) matches the amplifier's stable operating impedance (1 Ohm, 2 Ohm, or 4 Ohm).
Imej: Sisi view of the RD600.1 amplifier showing RCA input terminals and control knobs.
Bass Remote Connection
Connect the included metal bass remote to the dedicated remote port on the amplifier. This allows for convenient adjustment of bass levels from the driver's seat.
Image: The Rockville RD600.1 amplifier shown with its included metal bass remote control.
Panduan Video Persediaan
For a visual guide on setting up a Rockville amplifier, please refer to the video below. While the video title references the RD1000.1, the general setup principles are applicable to the RD600.1 model.
Video: A detailed explanation of how to set up a Rockville mono amplifier, demonstrating wiring and initial configuration.
Beroperasi
Setelah dipasang, amplifier's performance can be optimized using its control panel features.
Panel Kawalan Terlaluview
- GAIN/LEVEL Control: Melaraskan kepekaan input bagi amppenguat untuk memadankan vol keluarantage of your head unit. Start with the gain at minimum and slowly increase until desired volume is achieved without distortion.
- PENAPIS LULUS RENDAH (LPF): This control allows you to set the upper frequency limit for the amplifier's output, typically between 50Hz and 200Hz. Frequencies above this setting will be filtered out, ensuring only bass frequencies reach your subwoofer.
- PENAPIS SUBSONIK: This filter removes extremely low frequencies (10Hz to 50Hz) that are inaudible and can cause damage to subwoofers. Setting this correctly protects your subwoofer and improves sound quality.
- BASS BOOST: Provides an adjustable boost (0dB to 12dB) at 45Hz to enhance low-frequency output. Use sparingly to avoid distortion.
Bass Remote with Clip Indicator
The included bass remote allows for real-time adjustment of the subwoofer's output level. The integrated clip indicator light illuminates when the audio signal is distorting, helping you prevent damage to your speakers and amplifier by reducing the gain or bass level.
Controls Explanation Video Guide
For a detailed explanation of the inputs, outputs, and controls on a Rockville amplifier, please refer to the video below. While the video title references the RD1000.1, the control functions are generally similar for the RD600.1 model.
Video: Tamatview of the input, output, and control features found on Rockville mono amppenyelamat.
Penyelenggaraan
Regular maintenance helps ensure the longevity and optimal performance of your amplebih hidup.
- Pembersihan: Periodically wipe the ampLap bahagian luar penapis dengan kain lembut dan kering untuk menghilangkan habuk dan serpihan. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
- Pemeriksaan Sambungan: Annually inspect all power, ground, remote, and speaker connections to ensure they are secure and free from corrosion. Loose connections can lead to poor performance or damage.
- Pengudaraan: Memastikan bahawa amplifier's cooling fins are not obstructed. Proper airflow is essential to prevent overheating.
- Faktor Persekitaran: Protect the amplifier from extreme temperatures and moisture.
Menyelesaikan masalah
If you experience issues with your RD600.1 amplifier, rujuk kepada masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada Kuasa / Tiada Lampu Penunjuk | Fius putus, sambungan kuasa/pembumian longgar, tiada isyarat jauh. | Periksa fius dalam talian dan amplifier fuses. Verify power, ground, and remote wire connections. Ensure head unit is on and sending a remote signal. |
| Tiada Keluaran Bunyi | RCA cables disconnected, speaker wires disconnected, gain too low, head unit volume down. | Check RCA and speaker connections. Adjust gain. Increase head unit volume. |
| Bunyi Herot | Gain set too high, improper filter settings, poor speaker connection, damaged speaker. | Reduce gain. Adjust LPF/Subsonic filters. Check speaker wiring. Inspect speakers for damage. |
| AmpMod Pemanasan Terlalu Lama / Perlindungan Pemanasan | Insufficient ventilation, impedance too low, prolonged high output. | Pastikan aliran udara yang betul di sekitar amplifier. Verify speaker impedance. Reduce listening volume or duration. |
| Bass Remote Clip Indicator On | Input signal clipping, amplifier overdriven. | Reduce head unit volume, amplifier gain, or bass boost until the indicator turns off. |
Spesifikasi
- Penilaian Kuasa RMS:
- 1 Ohm: 600W x 1 Channel (<1% THD+N, 75% efficient)
- 2 Ohm: 400W x 1 Channel (<1% THD+N, 85% efficient)
- 4 Ohm: 250W x 1 Channel (<1% THD+N, 90% efficient)
- Kuasa Puncak:
- 1 Ohm: 2400W x 1 Channel
- 2 Ohm: 1600W x 1 Channel
- 4 Ohm: 1000W x 1 Channel
- Peningkatan Bass:
- 0dB - 12dB @ 45Hz
- Penapis Lulus Rendah (LPF):
- Boleh laras dari 50Hz hingga 200Hz
- Penapis Subsonik:
- Boleh laras dari 10Hz hingga 50Hz
- Respons Kekerapan:
- 10Hz - 200Hz
- Nisbah Isyarat kepada Kebisingan (SNR):
- -91.9dBA (per CEA 2006 Standard)
- DampFaktor:
- >150 @ 100Hz
- Perlindungan fius:
- 2 x 30 Amp Maxi Fuses (built-in)
- Input Voltage Julat:
- 264mV - 8.0V
- Bateri Voltage Julat:
- 8V hingga 16.1V
- Dimensi (W x H x L):
- 9.6” x 4.9” x 1.8”
- Bilangan Saluran:
- 1
- Berat Barang:
- 5.85 paun
Waranti & Sokongan
Your Rockville RD600.1 amplifier is covered by a Waranti Pengeluar 1 Tahun. For warranty claims or technical support, please contact Rockville customer service. Keep your purchase receipt as proof of purchase for warranty service.
For additional assistance, visit the official Rockville website or consult authorized service centers.
