WISSENERGY 7.4KW Wallbox EV Charger User Manual

1. Pengenalan

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your WISSENERGY 7.4KW Wallbox EV Charger. Please read this manual thoroughly before using the product and keep it for future reference. Proper installation and usage are crucial for optimal performance and safety.

2. Maklumat Keselamatan

Your WISSENERGY wallbox is designed with multiple safety features and is CE, FCC, and RoHS certified. Adhere to the following safety guidelines:

• Pemasangan Profesional: Pemasangan mesti dilakukan oleh juruelektrik yang berkelayakan mengikut kod dan peraturan elektrik tempatan.
• Pembumian: Ensure proper grounding protection is in place.
• Ciri-ciri perlindungan: The device includes Type A + DC 6mA leakage protection, over/under voltage protection, short-circuit protection, lightning protection, and overheating protection. Do not bypass or tamper with these features.
• Keadaan Persekitaran: The wallbox is IP66 rated for outdoor use, resistant to rain and snow. However, avoid submerging the unit in water. Operate within the specified temperature range of -25°C to 55°C.
• Pemeriksaan Kerosakan: Before each use, inspect the charging cable and the wallbox for any signs of damage. Do not use if damaged.
• Kanak-kanak dan Haiwan Kesayangan: Jauhkan kanak-kanak dan haiwan peliharaan daripada kawasan pengecasan semasa operasi.

3. Produk Lebihview

The WISSENERGY 7.4KW Wallbox is a compact and robust electric vehicle charging station designed for home or private use. It features a high-quality, fully sealed enclosure with an IP66 rating, ensuring durability and reliable operation in various weather conditions.

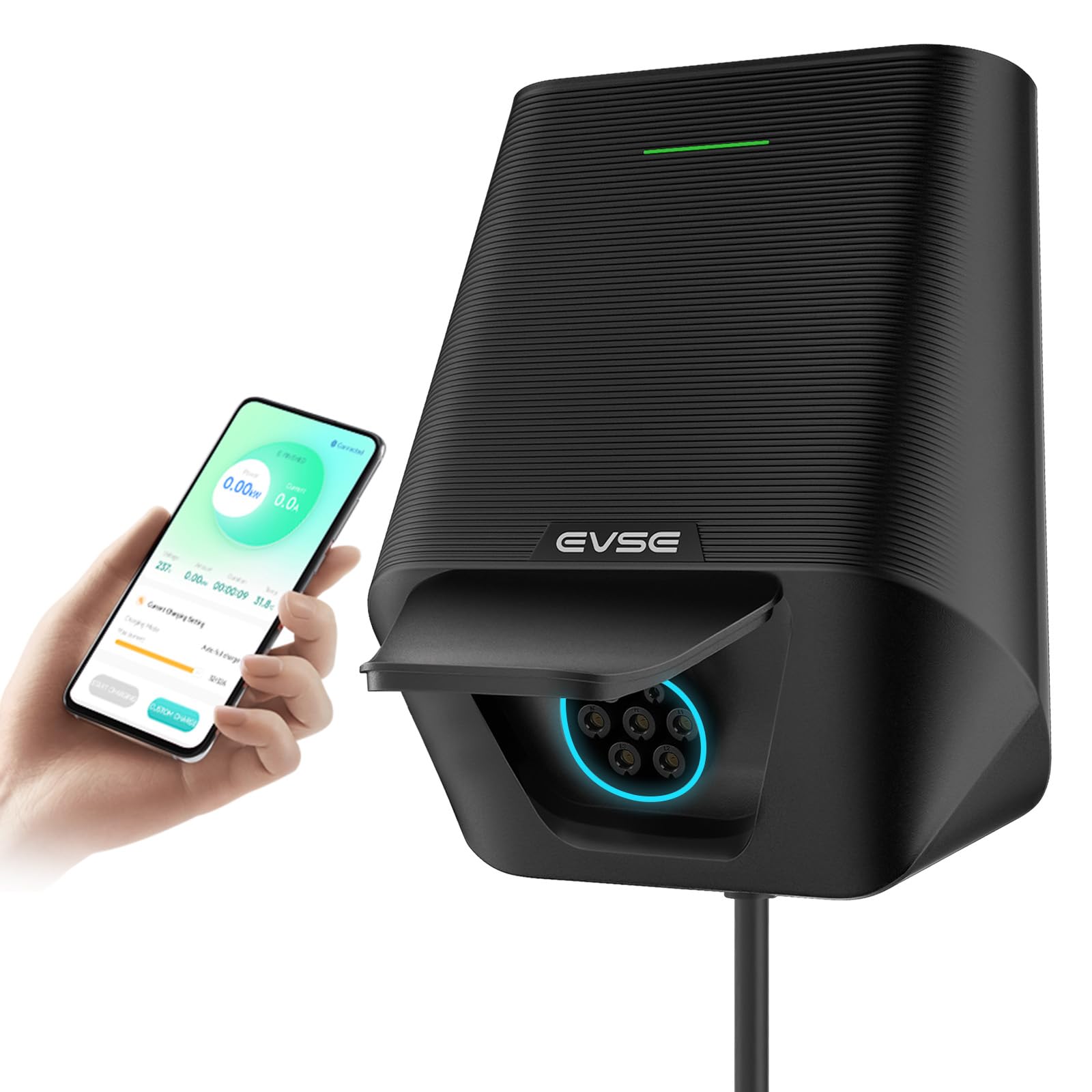

Image: The WISSENERGY 7.4KW Wallbox EV Charger, a compact and sleek charging unit.

Ciri-ciri Utama:

• 7.4KW Charging Power: Provides efficient single-phase charging up to 32A.
• Kawalan APP: Full control and monitoring via a mobile application (Bluetooth connection).
• Type 2 Outlet: Compatible with all European Type 2 electric vehicles.
• Reka Bentuk Teguh: IP66 waterproof and dustproof enclosure for outdoor installation.
• Keselamatan Komprehensif: Multiple protection mechanisms for secure charging.
• Padat dan Ringan: Weighs less than 4 kg for easy wall mounting.

4. Persediaan dan Pemasangan

The WISSENERGY 7.4KW Wallbox is designed for wall mounting. Installation steps and a drilling template are included in the product package. Due to the electrical nature of this product, installation must be carried out by a qualified and certified electrician to ensure safety and compliance with all local electrical regulations.

Pertimbangan Pemasangan:

• lokasi: The wallbox can be installed indoors or outdoors thanks to its IP66 rating. Choose a location that is easily accessible for your vehicle.
• Bekalan Kuasa: The unit requires a single-phase power supply. Ensure the electrical circuit can support a 32A load.
• Pendawaian: A 1-meter bare wire is provided for connection to the main power supply. This connection must be made by a qualified person.
• Pemasangan: Use the provided drilling template and hardware for secure wall mounting.

Image: Detail showing the bare wire connection point for the WISSENERGY Wallbox, emphasizing the need for professional installation.

Imej: Cthamples of the WISSENERGY Wallbox installed both indoors and outdoors, demonstrating its versatile placement options.

5. Arahan Operasi

5.1 Basic Charging Process

1. Connect the Wallbox: Ensure the wallbox is properly installed and powered on.
2. Sambung ke Kenderaan: Plug the Type 2 charging cable from the wallbox into your electric vehicle's charging port.
3. Mula Mengecas: Charging will typically begin automatically or can be initiated via the mobile application.
4. Pengecasan Monitor: Use the mobile application to monitor the charging status in real-time.
5. Berhenti Mengecas: Stop charging via the mobile application or by disconnecting the cable from your vehicle (follow your vehicle's specific instructions for safe disconnection).

5.2 APP Control (Bluetooth Connection Only)

The WISSENERGY wallbox offers advanced control and monitoring capabilities through its dedicated mobile application. The app connects via Bluetooth only.

• Pelarasan Semasa: Freely adjust the charging current between 6A and 32A to suit your needs and grid capacity.
• Fungsi Pemasa: Set specific charging timers for scheduled charging sessions.
• Delayed Charging: Program delayed charging within a 24-hour window to take advantage kadar elektrik luar puncak.
• Pemantauan masa nyata: View the current charging status, power consumption, and other relevant data in real-time.
• Charging Records: Each charging session is automatically recorded, allowing you to track and analyze your charging history.

Image: Screenshot illustrating the remote control features of the WISSENERGY Wallbox via its mobile application, including timer and time-delay settings.

Image: The mobile application displaying a record of charging sessions and statistics for the WISSENERGY Wallbox.

5.3 Keserasian

The WISSENERGY wallbox is compatible with all European Type 2 electric vehicles (BEV) and plug-in hybrid electric vehicles (PHEV). This includes a wide range of models such as:

• Peugeot 3008/508/308 PHEV
• Citroën C5X
• DS7
• Mercedes-Benz GLA
• Audi Q3, X3, e-tron
• Volkswagen ID.3, ID.4, ID.5, e-Golf, e-Up
• Tesla Model Y, Model 3
• Dacia Spring
• Hyundai Kona, Ioniq 5
• Renault ZOE
• BMW i3, i4
• And many other Type 2 compatible vehicles.

6. Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your WISSENERGY Wallbox.

• Pembersihan: Clean the exterior of the wallbox with a soft, damp kain. Jangan gunakan pembersih atau pelarut yang kasar. Pastikan unit dimatikan sebelum membersihkan.
• Pemeriksaan Kabel: Periksa kabel dan penyambung pengecas secara berkala untuk sebarang tanda haus, potongan atau kerosakan. Gantikan jika perlu.
• Titik Sambungan: Ensure all connections remain secure. If you suspect any loose connections, contact a qualified electrician.
• Pemeriksaan Alam Sekitar: Ensure the area around the wallbox remains clear of debris and obstructions.

7. Penyelesaian masalah

If you encounter issues with your WISSENERGY Wallbox, refer to the following basic troubleshooting steps. For complex problems, contact customer support or a qualified electrician.

• Tiada Kuasa: Check the circuit breaker in your electrical panel. Ensure the wallbox is properly connected to the power supply.
• Pengecasan Tidak Bermula: Verify that the charging cable is securely connected to both the wallbox and the vehicle. Check the vehicle's charging settings. Ensure the wallbox is not set to a delayed charging schedule via the app.
• Isu Ketersambungan Apl: Ensure Bluetooth is enabled on your mobile device and that you are within range of the wallbox. Restart the app or your device if necessary.
• Penunjuk Ralat: If the wallbox displays an error light or message, consult the app for more details or refer to the full product manual for specific error codes.
• Pengecasan perlahan: Check the current setting in the mobile application. Ensure it is set to the desired amperage (up to 32A).

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information, please refer to the documentation included with your product or contact WISSENERGY customer support directly. If you require technical assistance or have questions not covered in this manual, please reach out to the seller or manufacturer.

You can visit the official WISSENERGY store for more information: WISSENERGY Store

10. Video Produk

Watch these videos for a visual guide to the WISSENERGY Wallbox features and operation.
