Generic Cordless Stick Vacuum Cleaner and Mop Combo (Model AN-20250211-01) - User Manual

pengenalan

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Generic Cordless Stick Vacuum Cleaner and Mop Combo, Model AN-20250211-01. This versatile appliance combines vacuuming and mopping functions, featuring 12000Pa suction power and a removable water tank for comprehensive floor cleaning.

Sila baca manual ini dengan teliti sebelum penggunaan pertama dan simpannya untuk rujukan pada masa hadapan.

1. Persediaan dan Pemasangan

1.1 Kandungan Pakej

Sebelum pemasangan, pastikan semua komponen ada:

• Host body (1)
• Extension Hose (1)
• Small Brush suction nozzle (1)
• Long Flat suction nozzle (1)
• Berus lantai (1)
• Berus Pembersihan (1)
• tangki air (1)
• Rag (1)
• Kabel pengecas USB (1)
• Manual Pengguna (1)

1.2 Perhimpunan

1. Attach the extension hose to the main host body.
2. Connect the desired cleaning attachment (e.g., floor brush, small brush suction nozzle, or long flat suction nozzle) to the end of the extension hose.
3. For mopping functionality, attach the water tank and rag to the floor brush assembly.

Rajah 1: The large capacity water tank attaches to the main unit for combined vacuuming and mopping. It is removable for easy filling and cleaning.

1.3 Mengecas Bateri

The vacuum cleaner is powered by a 2500mAh ternary lithium battery. Before first use, fully charge the battery.

1. Connect the USB charging cable to the charging port on the host body.
2. Plug the other end of the USB cable into a compatible USB power adapter (not included) or a USB port.
3. Lampu penunjuk pengecasan akan menyala. Cas penuh biasanya mengambil masa 4-5 jam.
4. Once fully charged, disconnect the charger. The vacuum cleaner is now ready for use.

2. Arahan Operasi

2.1 Hidupkan/Mati Kuasa

Tekan butang kuasa yang terletak pada pemegang untuk menghidupkan pembersih vakum. Tekan sekali lagi untuk mematikannya.

2.2 Memvakum

Pilih alat tambahan yang sesuai untuk tugas pembersihan anda:

• Berus Lantai: Ideal for hard floors, tile, wood, and low-pile carpets.
• Long Flat Suction Nozzle: Suitable for narrow gaps, corners, and hard-to-reach areas.
• Small Brush Suction Nozzle: Effective for upholstery, keyboards, and delicate surfaces.
• Mite Removal Tip: Designed for deep cleaning of mattresses, sofas, and other fabric surfaces to remove dust and mites.

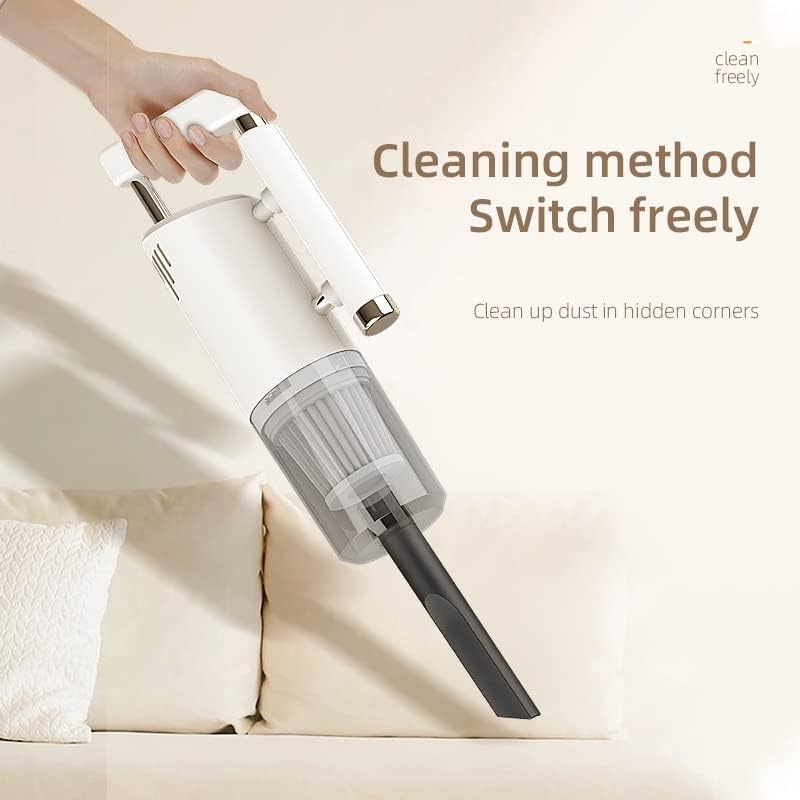

Rajah 2: The vacuum can be used in a handheld configuration for cleaning dust in hidden corners and smaller areas.

Rajah 3: A selection of attachments for different cleaning needs, including a slim brush for floors, a flat mouth suction for gaps, a round mouth brush for deep cleaning, and a mite removal tip.

2.3 Fungsi Mop

Untuk menggunakan fungsi mengemop:

1. Remove the water tank from the floor brush.
2. Fill the water tank with clean water. A small amount of disinfectant can be added if desired.
3. Securely reattach the water tank and ensure the rag is properly fastened.
4. The vacuuming and mopping functions operate simultaneously, providing a one-step cleaning solution for hard floors.

2.4 Kebolehgerakan

The brush head is designed for flexible movement, allowing for thorough cleaning in various spaces:

• It rotates 90° up and down, enabling easy cleaning under furniture.
• It rotates 180° left and right, facilitating navigation around obstacles and into tight corners.

Rajah 4: The brush head offers flexible rotation, allowing it to move 90 degrees vertically and 180 degrees horizontally for comprehensive cleaning.

3. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat pembersih vakum anda.

3.1 Mengosongkan Tong Sampah

Empty the dustbin after each use or when it reaches its maximum capacity. To empty:

1. Tanggalkan tong sampah dari unit utama.
2. Open the dustbin lid and dispose of collected debris into a waste bin.
3. Close the lid and reattach the dustbin to the unit.

3.2 Membersihkan Penapis HEPA

The HEPA filter is washable and reusable. Clean it regularly to maintain suction power and air filtration efficiency.

1. Keluarkan penapis HEPA dari tong sampah.
2. Bilas penapis di bawah air yang mengalir sehingga bersih. Jangan gunakan detergen.
3. Allow the filter to air dry completely for at least 24 hours before reinserting it into the vacuum cleaner. Ensure it is completely dry to prevent damage to the motor.

Rajah 5: The HEPA filter is removable, washable, and reusable, ensuring efficient filtration and preventing secondary pollution.

3.3 Cleaning the Water Tank and Rag

Selepas setiap sesi mengemop:

1. Kosongkan baki air dari tangki air.
2. Bilas tangki air dengan teliti dengan air bersih.
3. Remove the rag and wash it. Allow both the tank and rag to air dry completely before reassembly.

3.4 Pembersihan Am

Lap bahagian luar pembersih vakum dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.

4. Penyelesaian masalah

Jika anda menghadapi masalah dengan pembersih vakum anda, rujuk kepada masalah dan penyelesaian biasa berikut:

Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.

5. Spesifikasi Produk

6. Maklumat Waranti

Specific warranty details for this product are not provided in the available information. For warranty claims or inquiries, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for any warranty-related services.

7. Sokongan Pelanggan

If you have any questions, require technical assistance, or need further support regarding your Generic Cordless Stick Vacuum Cleaner and Mop Combo, please contact the customer service department of your retailer or the manufacturer. Please have your model number (AN-20250211-01) and purchase details ready when contacting support.

For general inquiries, you may also visit the manufacturer's website (if available) for FAQs and additional resources.
