Whubefy Dual Auto Heat Press Machine 15x15 (Model HP-5601_2B_US)

Manual Arahan

1. Pengenalan

This manual provides essential information for the safe and efficient operation of your Whubefy Dual Auto Heat Press Machine. Please read all instructions carefully before use to ensure proper functionality and to prevent injury.

The Whubefy Dual Auto Heat Press Machine is designed for heat transfer applications on various materials, including textiles for HTV, sublimation, and other heat transfer projects. Its dual workbench and automatic features enhance efficiency and user convenience.

2. Arahan Keselamatan

  • Always operate the machine on a stable, heat-resistant surface.
  • Keep hands and fingers clear of the heating plate during operation to prevent burns.
  • Do not touch the hot surface. Use heat-resistant gloves when handling heated materials.
  • Pastikan pengudaraan yang betul di kawasan kerja.
  • Cabut plag mesin apabila tidak digunakan atau sebelum dibersihkan.
  • Jauhkan daripada kanak-kanak.
  • Jangan rendam mesin di dalam air atau sebarang cecair lain.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

  • Whubefy Dual Auto Heat Press Machine (Main Unit)
  • Removable Workbench (for Dual Workstation models)
  • Kord Kuasa
  • Heat-Resistant Pad(s)
  • Teflon High-Temperature Cloth
  • F-shaped Clamp (for securing the machine)
  • Operation Instruction Sticker (with parameter settings)
  • Practice DTF Sheets (3 patterned sheets)
  • Manual Pengguna

4. Persediaan

Follow these steps to set up your heat press machine:

  1. Membongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
  2. penempatan: Place the main unit on a sturdy, flat, and heat-resistant surface. Ensure adequate space around the machine for safe operation and heat dissipation.
  3. Attaching Removable Workbench (Dual Workstation models only):
    If you have the Dual Workstation model, align the removable workbench with the connection points on the main unit and slide it into place until it securely locks.
  4. Secure the Machine: Use the provided F-shaped clamp to secure the machine to your workbench. This prevents tipping during operation, especially when using the swing-away feature.
  5. Prepare Heat-Resistant Pad: The heat-resistant pad features adhesive corners. Remove the protective film from the adhesive and firmly attach the pad to the lower platen(s) to ensure stability during transfers.
  6. Apply Instruction Sticker: Peel and stick the operation instruction guide onto the designated area on the machine's control panel for quick reference of temperature and time settings.
  7. Sambungan Kuasa: Sambungkan kord kuasa ke mesin dan kemudian ke soket elektrik yang dibumikan.

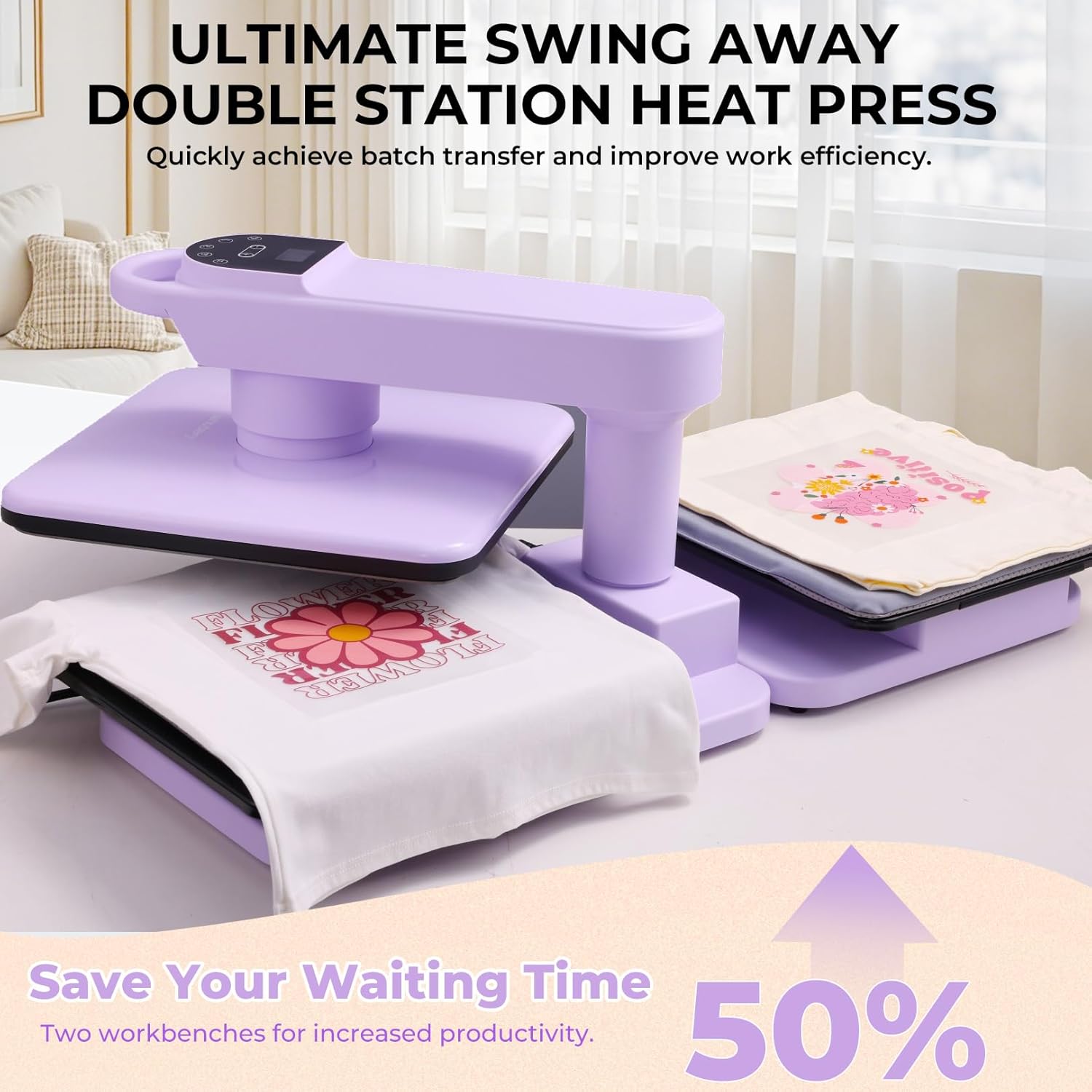

Whubefy Dual Auto Heat Press with two platens, demonstrating the swing-away feature.
Image: The Whubefy Dual Auto Heat Press Machine with its two platens, highlighting the swing-away functionality for efficient batch transfers.
Whubefy Heat Press showing 360-degree rotation and F-shaped clamp pemasangan.
Image: Close-up of the heat press demonstrating the 360-degree rotation of the upper heating plate and the secure attachment of the F-shaped clamp ke meja.

Video: This video provides a first-time user guide on setting up the second station of the dual auto heat press, demonstrating how to attach and secure the additional platen.

5. Arahan Operasi

Operating your Whubefy heat press involves setting temperature, time, and pressure, then initiating the transfer process.

  1. Hidupkan kuasa: Press the power button on the control panel to turn on the machine. The display will illuminate.
  2. Tetapkan Suhu: Press the temperature button (thermometer icon) and use the '+' and '-' buttons to adjust the desired temperature (range: 105°F-410°F).
  3. Tetapkan Masa: Press the time button (clock icon) and use the '+' and '-' buttons to adjust the desired transfer time (range: 0-600 seconds).
  4. Laraskan Tekanan: Press the pressure selection button (stacked lines icon) and use the '+' and '-' buttons to select one of the 7 adjustable pressure levels. The display will show the current pressure level.
  5. Pre-press Material: Place your material (e.g., T-shirt) on the lower platen. Swing the upper heating plate over the material and press the auto start button (circular arrow icon) for 5-10 seconds to remove moisture and wrinkles.
  6. Reka Bentuk Jawatan: Place your heat transfer design (HTV, sublimation paper, etc.) onto the material. Cover with a Teflon sheet.
  7. Mulakan Pemindahan: Swing the upper heating plate over the design and press the auto start button. The machine will automatically press down and begin the countdown.
  8. Pelepasan Automatik: Once the countdown is complete, the machine will beep and automatically lift the heating plate.
  9. Peel Design: Carefully remove the transfer film according to your design's specific peeling instructions (hot peel, warm peel, or cold peel).
  10. Batch Transfer (Dual Workstation models): While one transfer is in progress, you can prepare the next item on the other platen. Once the first transfer is complete and the heating plate lifts, swing it over to the second platen and press the auto start button to continue your workflow.
  11. Matikan Auto: The machine features an automatic shut-off after 20 minutes of inactivity for safety and energy efficiency.
Whubefy Heat Press LCD control panel with buttons for power, temperature, time, and pressure adjustment.
Image: The intuitive LCD display and control panel of the heat press, showing buttons for power, temperature, time, pressure selection, and auto start.
Whubefy Heat Press demonstrating 7 levels of adjustable pressure.
Image: Illustration of the 7 adjustable pressure settings available on the Whubefy heat press, with the pressure level displayed on the screen.

Video: This video demonstrates how to operate the Whubefy dual 15x15 auto heat press machine, covering basic functions and transfer steps.

6. Penyelenggaraan

Proper maintenance ensures the longevity and optimal performance of your heat press:

  • Pembersihan: After each use, allow the machine to cool completely. Wipe the heating plate and platen with a soft, dry cloth. For stubborn residue, use a damp kain dengan sabun lembut, kemudian lap sehingga kering.
  • Storan: Store the machine in a dry, dust-free environment.
  • Pemeriksaan Berkala: Periodically check the power cord for any signs of damage. Ensure all screws and connections are secure.

7. Penyelesaian masalah

Jika anda menghadapi masalah, rujuk kepada masalah dan penyelesaian biasa berikut:

MasalahKemungkinan PuncaPenyelesaian
Mesin tidak dihidupkanPower cord not properly connected; Power outlet malfunctionCheck power cord connection; Try a different outlet; Contact support if issue persists
Pemanasan yang tidak konsistenIncorrect temperature setting; Faulty heating elementVerify temperature setting; Contact support
Reka bentuk tidak mematuhi dengan betulIncorrect temperature/time/pressure; Material not pre-pressedAdjust settings according to design/material; Pre-press material to remove moisture
Machine not pressing down automaticallyAuto start button not pressed; Sensor obstructionEnsure auto start button is pressed; Check for obstructions around the pressing mechanism

8. Spesifikasi

  • Nombor Model: HP-5601_2B_US
  • Dimensi Produk: 37.8"L x 22"W x 15.6"H
  • Berat Barang: 48.5 paun
  • Saiz Plat Pemanas: 15x15 inci
  • Penilaian Suhu Atas: 410°F (210°C)
  • Voltage: 120 Volt
  • Wattage: 1250 watt
  • Heating Height: Sehingga 1.85 inci
  • Tetapan Tekanan: 7 tahap laras
  • Bahan: Iron Tube Electrophoresis, PP, PA66+30% Fiber
  • warna: Ungu
  • Penggunaan yang Disyorkan: For Home and Light Commercial Use
Whubefy Heat Press dimensions and simple steps for printing.
Image: Visual representation of the heat press dimensions and a four-step guide for basic printing operations.
Whubefy Heat Press showing increased heating height for bulkier items.
Image: The heat press highlighting its increased heating height of 1.85 inches, allowing for transfers on thicker items beyond standard t-shirts.
Whubefy Heat Press with dual-tube heating and auto shut-off features.
Imej: Terperinci view of the dual-tube heating system for uniform temperature, the 15x15 inch heating plate, anti-slip insulation pad, and the auto shut-off function.

9. Waranti & Sokongan

Whubefy provides an extended manufacturer's warranty and lifetime customer service for this product. For any questions or assistance, please contact Whubefy customer support. They are committed to providing tailored solutions for your needs.

For support, please refer to the contact information provided with your product packaging or visit the official Whubefy webtapak.
