TECXERLLON WBCAT71 RV Backup Camera System User Manual

pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your TECXERLLON WBCAT71 RV Backup Camera System. This system is designed to enhance safety and visibility for various large vehicles, including RVs, trucks, vans, SUVs, and trailers.

Image: TECXERLLON RV Backup Camera System components including the 7-inch monitor, camera, and mounting hardware.

Ciri-ciri Utama:

• 7-Inch Touchscreen Monitor: Intuitive control for settings and features.
• Wireless HD 1080P: High-definition video transmission for clear visuals.
• Sistem 4 Saluran: Expandable to connect up to four cameras for comprehensive coverage.
• Penglihatan Malam IR: Enhanced visibility in low-light conditions with 18 infrared lights.
• AI Detection with Real-Time Alerts: Advanced technology to detect pedestrians, vehicles, and obstacles.
• 2.4GHz Ultra-Strong Wireless Transmission: Stable signal up to 320 feet (97.5 meters) with zero frame loss.
• Rakaman DVR: Built-in capability to record footage (SD card not included).
• IP69K Waterproof Rating: Durable design for all weather conditions.

Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:

Imej: Terperinci view of all items included in the TECXERLLON RV Backup Camera System package.

• Camera Body (x1)
• Display Screen (7-inch Monitor) (x1)
• Sun Shade & U-bracket (x1)
• Skru (pelbagai saiz)
• U-bracket Sticker (x1)
• RV Fittings (x1 set)
• Pengecas Kereta (x1)
• Antena (x2)
• Suction Holder (x1)
• 3m Cable (x1)
• Adapter Splitter (x1)
• Installation Kit (x1)
• Manual Pengguna (x1)

Persediaan dan Pemasangan

1. Pemasangan Kamera

The camera is designed for quick and easy installation, compatible with Furrion pre-wired systems and general vehicle setups.

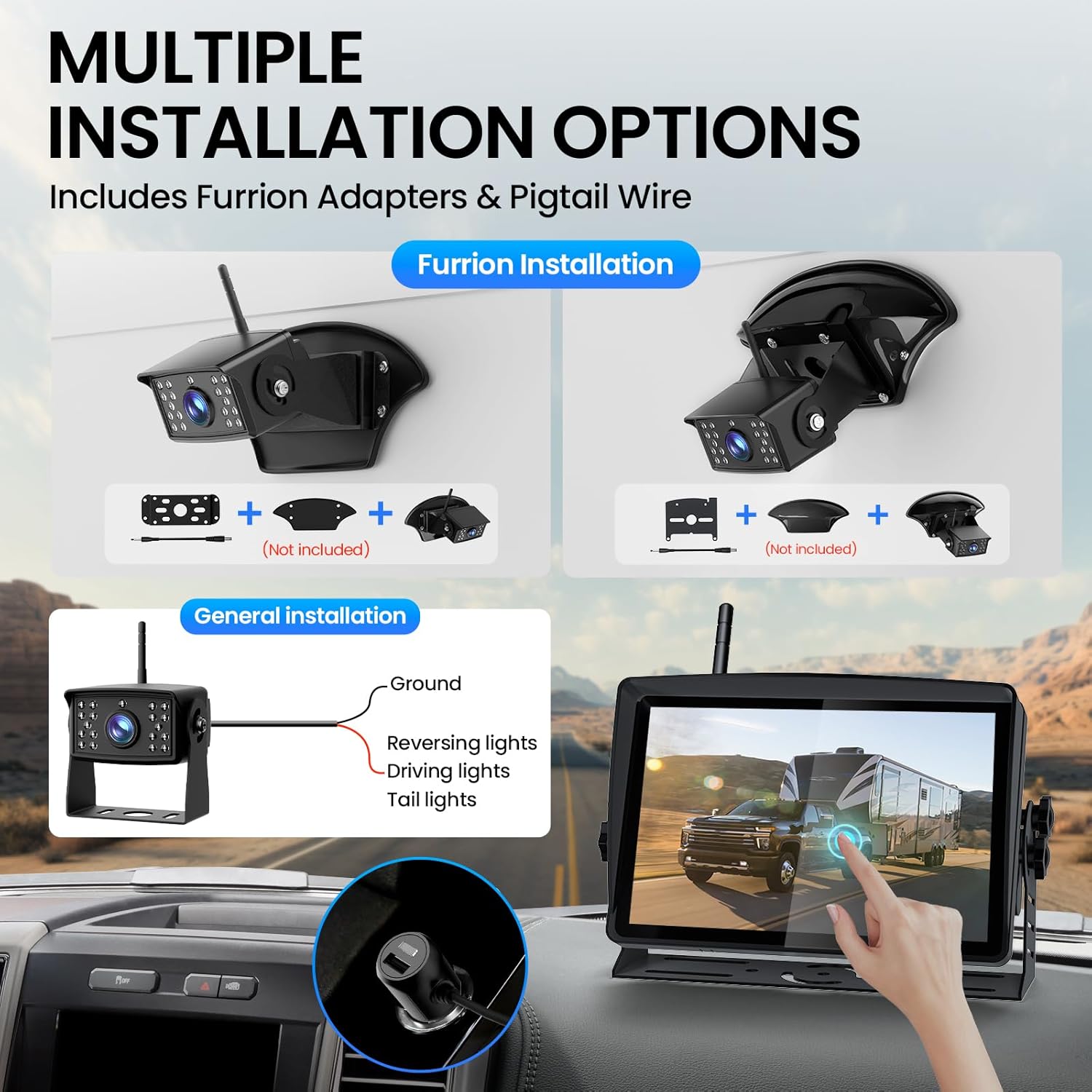

Image: Illustration of various camera installation methods, showing Furrion adapters and general wiring to vehicle lights.

1. Pilih Lokasi Pemasangan: Select a position at the rear of your RV or vehicle that provides an optimal view. Ensure the antenna can be pointed upwards for best signal reception.
2. Furrion Pre-wired System: If your RV is pre-wired for a Furrion system, remove the existing cover. Connect the camera using the provided Furrion adapters and pigtail wire.
3. Pemasangan Umum: For vehicles without a Furrion pre-wire, connect the camera's power cable to a 12V/24V power source (e.g., reversing lights, driving lights, or tail lights). Ensure proper grounding.
4. Kamera Selamat: Use the appropriate bracket and screws from the installation kit to firmly attach the camera. Adjust the camera angle to point straight down towards the rear of the vehicle.

2. Monitor Pemasangan

The 7-inch touchscreen monitor can be mounted on your dashboard or windshield.

Image: The 7-inch monitor displayed on a dashboard and attached to a windshield using different mounting options.

1. Attach Suction Holder: Secure the suction holder to the back of the monitor.
2. Bersihkan Permukaan Pemasangan: Clean the desired area on your dashboard or windshield with rubbing alcohol and a clean rag. Allow it to dry completely.
3. Gunung Monitor: Press the suction cup firmly onto the cleaned surface and engage the locking mechanism to secure it.
4. Sambungkan Kuasa: Plug the monitor's power cord into your vehicle's cigarette lighter outlet.
5. Pasang Antena: Screw both antennas onto the designated ports on the monitor and camera.

Arahan Operasi

1. Hidupkan/Mati Kuasa

Once the monitor is connected to power and the camera is installed, turn on your vehicle. The monitor should automatically power on and display the camera feed.

2. Touchscreen Control

The 7-inch touchscreen allows for easy navigation of settings and features. Swipe to access various options.

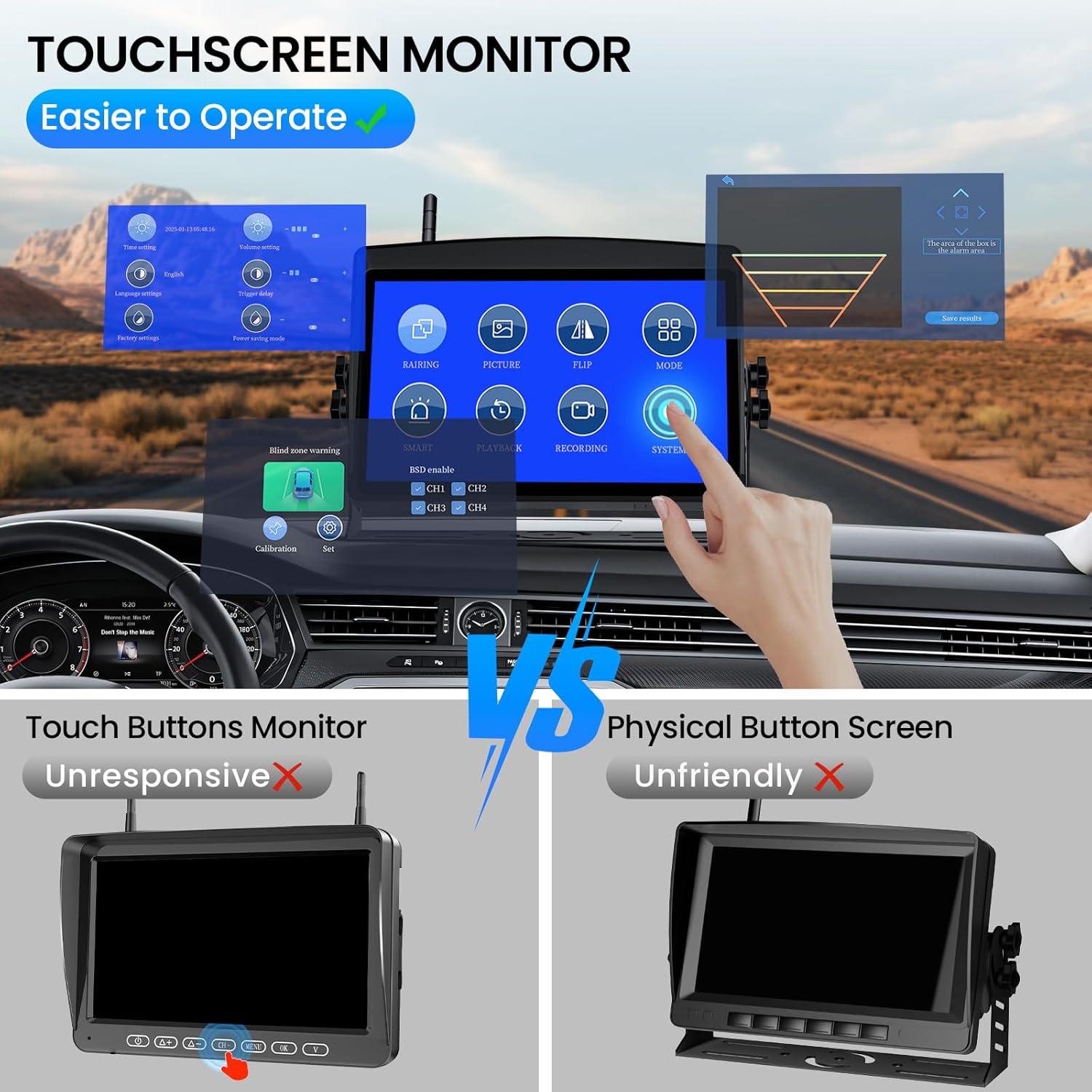

Image: The touchscreen monitor interface, highlighting its ease of use compared to traditional physical button screens.

3. Pengesanan dan Amaran AI

The system features advanced AI technology to detect pedestrians, vehicles, and obstacles. Real-time alerts will notify you of potential hazards.

Image: Visual representation of the AI detection system identifying a vehicle and a person with an alarm alert on the monitor.

4. Penglihatan Malam

The camera is equipped with 18 infrared lights for clear night vision, even in total darkness.

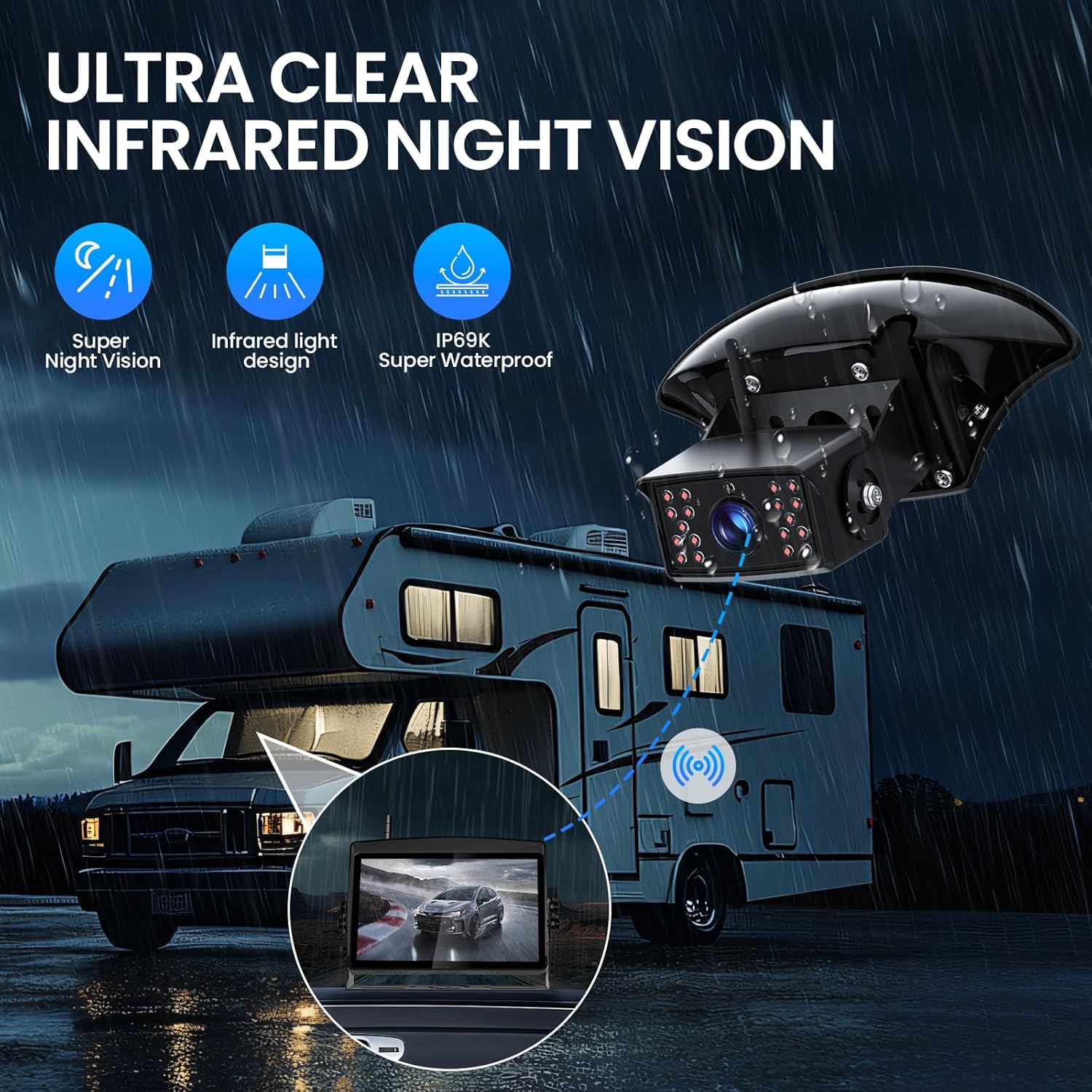

Image: An RV at night with the backup camera's infrared night vision active, showing clear visibility on the monitor.

5. Multi-Channel View

Connect up to four cameras to the HD 1080P monitor. Easily switch between cameras or view multiple feeds simultaneously using the versatile display mode options (single, split, triple, or quad screen).

Imej: Paparan monitorasing different multi-channel display modes: single, split, triple, and quad screen views from connected cameras.

Ciri Lanjutan

Penghantaran Tanpa Wayar

The system utilizes 2.4GHz technology with a high-performance chip, ensuring a stable, crystal-clear signal up to 320 feet (97.5 meters) with zero frame loss. This provides seamless video streaming and a clear view persekitaran anda.

Image: Visual representation of the 2.4GHz wireless signal transmission between the camera and monitor, highlighting stable signal and no frame loss.

Rakaman DVR

Record every drive with the built-in DVR function. The system supports loop recording and local playback. An SD card is required for recording and is not included in the package.

Image: The monitor displaying recorded footage, with an SD card slot indicated for DVR functionality.

Reka Bentuk Kalis Air

The camera boasts an IP69K waterproof rating, ensuring durability and reliable performance in all weather conditions, including heavy rain and extreme temperatures.

Spesifikasi

Menyelesaikan masalah

If you encounter any issues with your TECXERLLON WBCAT71 system, please refer to the following common solutions:

• Tiada isyarat:
  • Ensure both the camera and monitor are powered on.
  • Check that antennas are securely attached to both units.
  • Verify that there are no major obstructions blocking the wireless signal path.
  • Try re-pairing the camera and monitor through the monitor's settings menu.
• Kualiti Imej Lemah:
  • Bersihkan lensa kamera.
  • Adjust brightness and contrast settings on the monitor.
  • Pastikan kamera dipasang dengan selamat dan tidak bergetar.
• Monitor Tidak Menghidupkan:
  • Check the cigarette lighter connection and ensure it's receiving power.
  • Verify the power cable is correctly plugged into the monitor.
• AI Alerts Not Functioning:
  • Ensure AI detection is enabled in the monitor's settings.
  • Check the sensitivity settings for AI detection.

Penyelenggaraan

Regular maintenance will ensure the longevity and optimal performance of your backup camera system:

• Kanta Kamera: Bersihkan lensa kamera dengan kerap dengan lembut, damp kain untuk menanggalkan kotoran, habuk atau tompokan air yang boleh menghalang view. Elakkan pembersih yang kasar.
• Skrin Monitor: Wipe the monitor screen with a microfiber cloth. For stubborn smudges, use a screen-safe cleaning solution.
• Sambungan: Periodically check all cable connections (power, antenna) to ensure they are secure and free from corrosion.
• Pemasangan: Verify that the camera and monitor mounts are tight and stable, especially after long trips or exposure to rough terrain.
• Pengedap kalis air: Although the camera is IP69K rated, inspect the seals around the camera housing for any signs of damage or wear, particularly if exposed to extreme weather.

Waranti dan Sokongan

Your TECXERLLON WBCAT71 RV Backup Camera System comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact TECXERLLON customer service:

• e-mel: support@tecxerllon.com
• Sokongan dalam talian: Visit the official TECXERLLON webtapak untuk Soalan Lazim dan sumber tambahan.

Pelan perlindungan tambahan tersedia untuk pembelian:

• Pelan Perlindungan 2 Tahun
• Pelan Perlindungan 3 Tahun
• Complete Protect: One plan covers all eligible past and future purchases (monthly billing option available).
