Xspeedonline Aftermarket Audio Speaker Wire Harness Installation Manual

1. Produk Lebihview

The Xspeedonline Aftermarket Audio Speaker Wire Harness is designed to facilitate the connection of aftermarket speakers to your vehicle's factory wiring system without the need for cutting or modifying original equipment (OE) wiring. This harness provides a direct plug-and-play solution, simplifying speaker upgrades or replacements. It can also be used to repair existing cut or damaged factory speaker wiring harnesses.

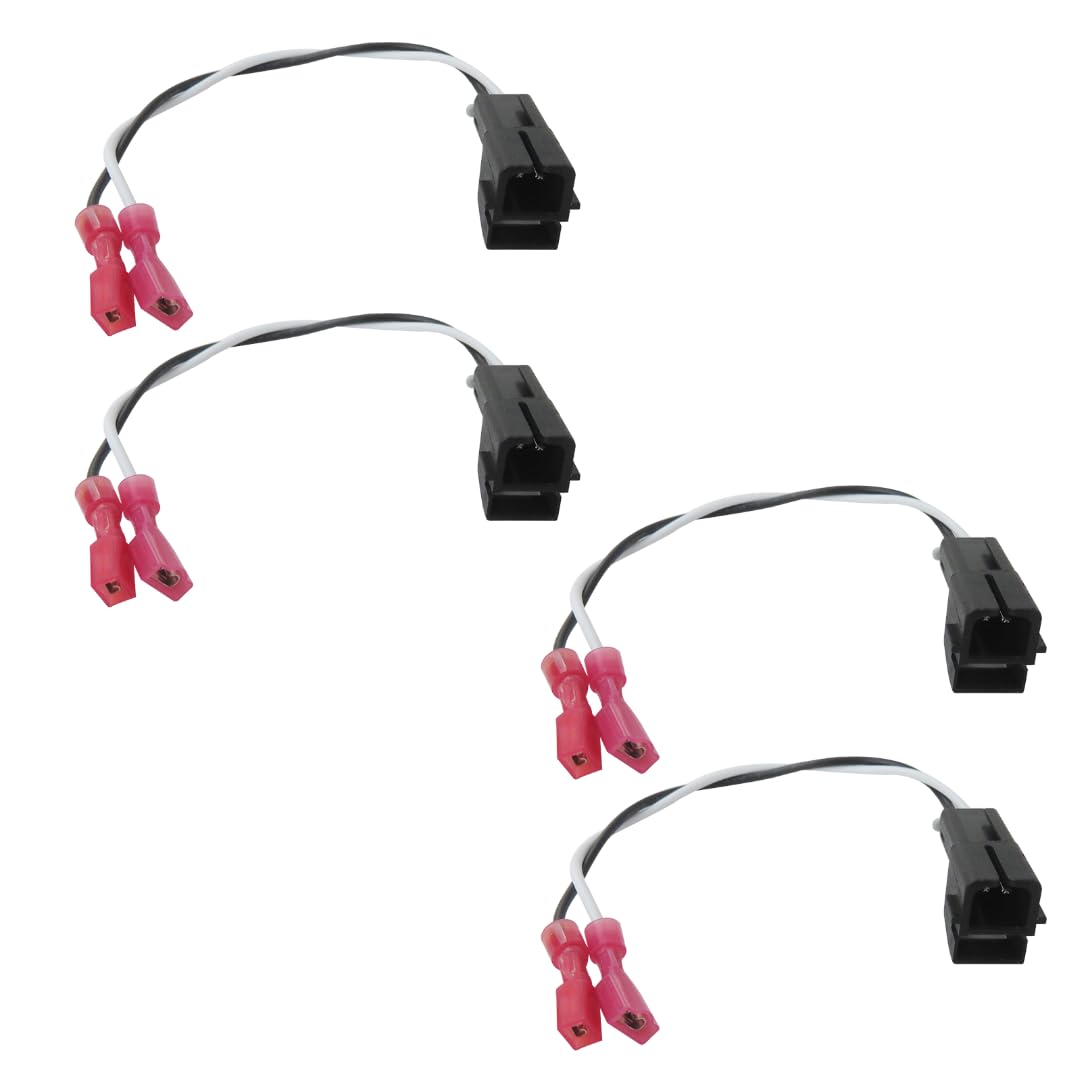

Imej 1.1: Selesaiview of the Xspeedonline Aftermarket Audio Speaker Wire Harness. This image displays the four individual speaker wire harnesses included in the package, each featuring connectors designed for direct integration with vehicle factory wiring.

2. Ciri-ciri Produk

• Pemasangan Palam dan Main: Designed for direct connection to aftermarket speakers and factory harnesses, eliminating the need for wire cutting.
• Repair Solution: Ideal for repairing damaged or cut factory speaker wiring harnesses.
• Keserasian Kenderaan: Compatible with a wide range of Chevy, GMC, Buick, and Cadillac vehicles.
• Kandungan Pakej: Includes 4 individual door speaker wiring harnesses.

3. Model Kenderaan yang Serasi

This speaker wire harness is compatible with various models from Chevy, GMC, Buick, and Cadillac. Please verify your vehicle's specific model and year against the list below to ensure compatibility.

GMC:

• Yukon XL (2003-2006)
• Yukon Denali (1995-2006)
• Yukon XL (2001-2002)
• Canyon (2004-2010)
• Denali (2003)
• Envoy (2002-2008)
• Jimmy/Envoy (1998-2001)
• Jimmy (1995-1997)
• Sierra Classic (2007)
• Sierra (1995-2006)
• Savana (2003-2007)
• Sonoma (1998-2004)
• S-15/Sonoma (1994-1997)
• Safari Mini Van (1996-2005)
• Suburban (2003-2006)

Chevy:

• Silverado 1500 (1999-2014)
• Silverado 2500 (1999-2007)
• Silverado 3500 (2001-2007)
• Astro (1996-2005)
• Avalanche (2002-2006)
• Beretta (1991-1996)
• Blazer (1995-1997)
• Camaro (1993-2002)
• Caprice (1994-1996)
• Corsica (1991-1996)
• Express (1996-2007)
• Tahoe (2013)
• Traverse (2015)
• HHR (2006-2011)

Buick:

• Century (2000-2004)
• Lacrosse (2006-2007)
• LeSabre (1995-1999)
• Park Avenue (1995-2004)
• Rainer (2006)
• Regal (1984-2004)
• Rendezvous (2002-2006)
• Riviera (1996-1999)
• Roadmaster (1995-1996)
• Skylark (1987-1998)
• Terraza (2006)

Cadillac:

• Coupe DeVille (1988-1995)
• DeVille Concours (1994-1995)
• DeVille (1990-1993)
• DeVille (1988-1989)
• Eldorado (1996-1999)
• Escalade (ESV and EXT included) (1999-2006)
• Fleetwood (including Brougham) (1993-1996)

Lain-lain:

• Peterbilt 389 (2023)

4. Persediaan dan Pemasangan

The Xspeedonline speaker wire harness is designed for straightforward, plug-and-play installation. No cutting or splicing of your vehicle's original wiring is required.

1. Identify Speaker Location: Locate the speaker(s) you intend to replace or connect. This typically involves removing door panels or accessing dashboard/rear deck speaker mounts.
2. Disconnect Old Speaker (if applicable): If replacing an existing speaker, carefully disconnect its wiring from the factory harness or the speaker itself.
3. Connect to Aftermarket Speaker: Connect the bare wire ends of the Xspeedonline harness to your new aftermarket speaker. Ensure correct polarity (positive to positive, negative to negative) as indicated on the speaker and harness.
4. Sambungkan ke Abah-abah Kilang: Plug the connector end of the Xspeedonline harness directly into the corresponding factory speaker wiring harness in your vehicle. The connectors are designed to fit securely.
5. Sambungan Ujian: Before reassembling panels, test the speaker functionality with your vehicle's audio system to ensure proper sound output.
6. Pendawaian Selamat: Route and secure the wiring to prevent pinching or damage during reassembly.
7. Pasang semula: Pasang semula panel atau komponen yang telah ditanggalkan dengan berhati-hati.

5. Arahan Operasi

Once installed, the speaker wire harness operates passively as an electrical connector. Ensure all connections are secure and properly seated. The functionality of your speakers will depend on the audio source and amplifier connected to them. No specific operational steps are required for the harness itself beyond proper installation.

6. Penyelenggaraan

The Xspeedonline speaker wire harness requires minimal maintenance. Periodically, you may wish to:

• Periksa Sambungan: If you experience audio issues, check the connections of the harness to both the speaker and the factory wiring to ensure they are still secure and free from corrosion.
• Keringkan: Avoid exposing the harness to excessive moisture or liquids, which can lead to corrosion or electrical shorts.
• Elakkan Tekanan Fizikal: Ensure the wiring is not pinched, stretched, or subjected to excessive tension, which could damage the conductors or connectors.

7. Penyelesaian masalah

If you encounter issues after installing the speaker wire harness, consider the following troubleshooting steps:

• Tiada Bunyi daripada Pembesar Suara:
  • Verify that the harness is securely plugged into both the aftermarket speaker and the vehicle's factory wiring.
  • Check the polarity of the speaker connections (positive to positive, negative to negative). Incorrect polarity can cause sound issues or cancellation.
  • Ensure the aftermarket speaker itself is functional by testing it with a known good audio source or direct connection.
  • Confirm that the vehicle's audio system (head unit, amplifier) ​​dihidupkan dan berfungsi dengan betul.
• Bunyi Selang-seli:
  • Check for loose connections at both ends of the harness.
  • Inspect the harness for any visible damage, such as frayed wires or bent pins.
• Bunyi Herot:
  • Ensure the speaker is correctly rated for your audio system's output.
  • Verify that the connections are clean and free from corrosion.

8. Spesifikasi

9. Waranti dan Sokongan

This product is typically covered by a 30-day return policy from the date of purchase. For specific warranty details or technical support, please refer to your purchase documentation or contact the seller directly. Ensure you retain your proof of purchase for any warranty claims.
