1. Pengenalan
This manual provides essential instructions for the proper handling, testing, and installation of your INCELL JayTong LCD Replacement Display Touch Screen Assembly for the Infinix GT 20 Pro X6871. Please read this guide thoroughly before attempting any installation to ensure optimal performance and prevent damage.
2. Maklumat Keselamatan
- Electronic components are delicate. Handle the LCD assembly with care to avoid damage.
- Static electricity can harm electronic parts. Ensure you are properly grounded before handling the screen.
- Always disconnect the device's battery before beginning any repair work.
- Do not apply excessive force during installation, as this can crack the screen or damage connectors.
- If you lack experience in phone repair, it is highly recommended to seek professional assistance for installation.
3. Kandungan Pakej
Sila sahkan bahawa semua item yang disenaraikan di bawah terdapat dalam pakej anda:
- INCELL JayTong LCD Replacement Display Touch Screen Assembly for Infinix GT 20 Pro X6871
- Essential Device Opening Tools (as pictured below)

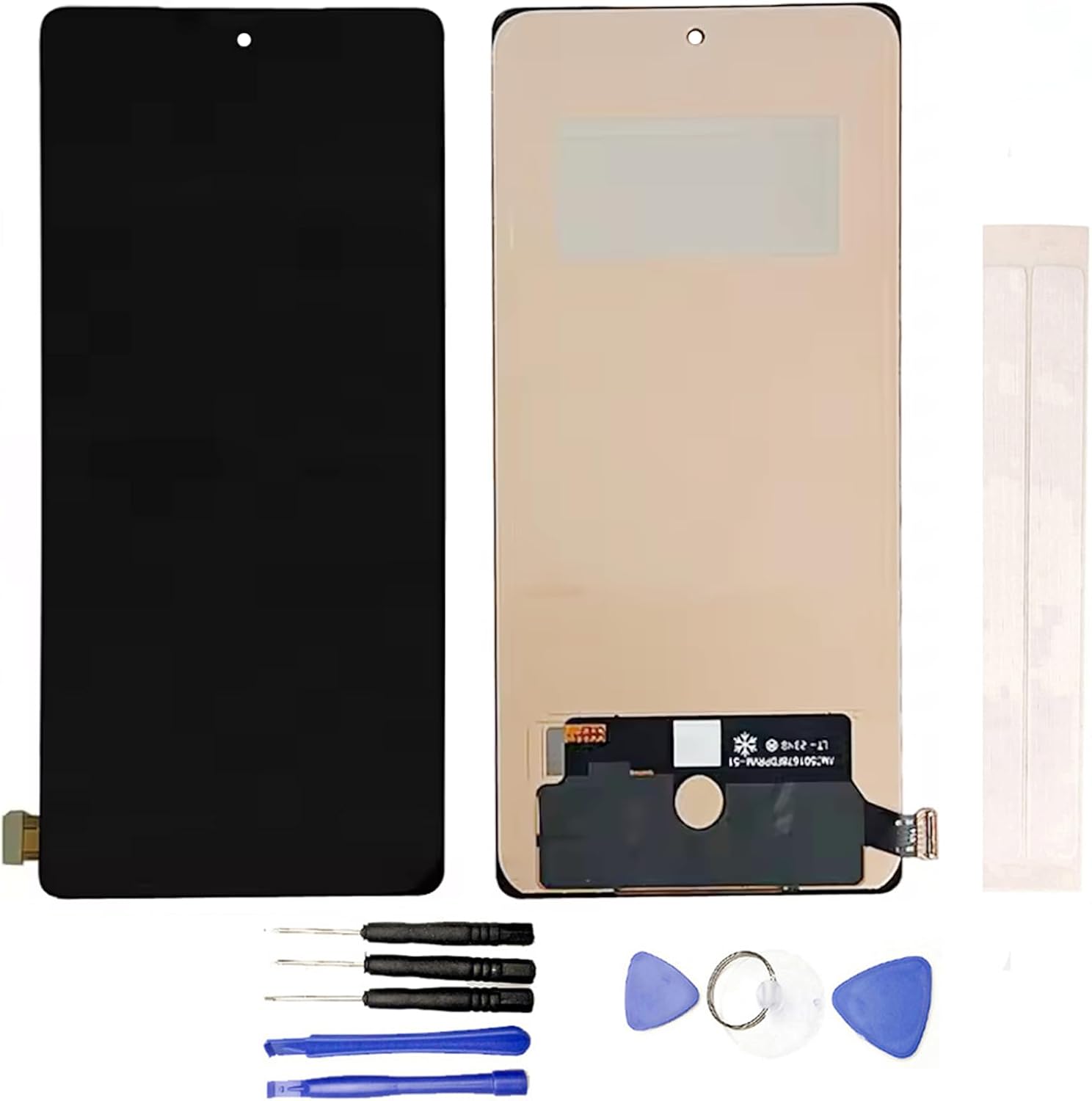

Figure 1: INCELL JayTong LCD Replacement Screen for Infinix GT 20 Pro X6871. This image shows the front and back of the LCD replacement screen assembly, including the flex cable.
Figure 2: Essential tools for phone screen replacement. This image displays a set of basic tools for screen replacement, including various screwdrivers, plastic prying tools, a suction cup, and guitar picks.
4. Panduan Pemasangan
4.1 Senarai Semak Pra-Pemasangan
- Identify your phone model correctly: Ensure your device is an Infinix GT 20 Pro X6871. Using the wrong model screen may cause damage.
- Acquire additional tools: The provided tools are essential, but customers may need to purchase additional specialized tools for a complete repair.
- Test the screen before installation: This is a critical step. Do not remove any protective films or tags until the screen has been fully tested and confirmed functional.
4.2 Prosedur Pengujian
Before proceeding with full installation, perform the following test:
- Clean the flex cable of the new screen and the corresponding slot on your phone's motherboard.
- Carefully connect the new screen's flex cable to the motherboard, ensuring a tight and secure connection.
- Verify that your phone's battery is fully charged and that the motherboard is not damaged.
- Power on the device and test all functions of the screen, including display quality, touch response, and any other relevant features.
If the screen functions correctly during testing, you may proceed with installation. If any issues arise, contact customer support before proceeding.
4.3 Langkah Pemasangan Umum
The installation process involves disassembling your phone, removing the old screen, and carefully installing the new one. Due to the complexity and fragility of phone components, detailed step-by-step instructions are beyond the scope of this general manual. It is strongly advised to:
- Consult online video tutorials specific to the Infinix GT 20 Pro X6871 screen replacement.
- Exercise extreme caution and avoid forcing any components.
- Pastikan semua sambungan selamat dan sejajar dengan betul.
- Do not remove protective films or tags until the screen is fully installed and confirmed functional.
5. Penggunaan
Once successfully installed, the INCELL JayTong LCD Replacement Screen will function identically to the original display of your Infinix GT 20 Pro X6871, providing full touch and display capabilities.
6. Penyelenggaraan
- To clean the screen, use a soft, lint-free cloth. Avoid abrasive materials or harsh chemicals.
- Protect your device from drops and impacts, as replacement screens are still susceptible to damage.
- Avoid exposing the screen to extreme temperatures or direct sunlight for prolonged periods.
7. Penyelesaian masalah
- Screen not powering on: Recheck all flex cable connections. Ensure the battery is charged and the motherboard is functional.
- Touch not working or unresponsive: Ensure the touch digitizer flex cable is securely connected. Re-perform the testing procedure (Section 4.2).
- Display issues (lines, discoloration): This could indicate a damaged flex cable or an issue with the connection. Carefully inspect the connections and the cable itself.
- Screen only worked for a short period: This may indicate an underlying issue with the phone's motherboard or a faulty installation. Re-evaluate the installation steps and connections.
Jika langkah penyelesaian masalah tidak menyelesaikan isu tersebut, sila hubungi sokongan pelanggan untuk mendapatkan bantuan lanjut.
8. Spesifikasi
- Model Serasi: Infinix GT 20 Pro X6871
- Dimensi Pakej: 6 x 3 x 0.4 inci
- Berat Barang: 3.52 auns
- warna: Hitam
- Pengeluar: Generik
9. Waranti dan Sokongan
All items are tested before shipping to ensure 100% functionality. Please note the following:
- Returns cannot be accepted for screens where an installation attempt has been made, especially if protective films or tags have been removed without prior testing.
- For any questions or concerns regarding the product, please feel free to contact the seller directly.
