Xega XG-18

Xega 4G Cellular 2K PTZ Outdoor Security Camera (Model XG-18) Instruction Manual

Model: XG-18

pengenalan

Thank you for choosing the Xega 4G Cellular 2K PTZ Outdoor Security Camera, Model XG-18. This manual provides detailed instructions for the setup, operation, and maintenance of your camera. Please read this manual carefully before use and retain it for future reference.

Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:

  • Xega 4G Cellular 2K PTZ Outdoor Security Camera
  • Penyesuai Kuasa
  • Berdiri Pemasangan
  • Skru Pemasangan
  • Manual Arahan
  • SIM Card (with 300MB test data for 30 days)
Image showing the Xega 4G camera and its accessories, including the power adapter, mounting bracket, screws, and manual.

Figure 1: Contents of the Xega 4G Camera package.

Persediaan

1. SIM Card Insertion and 4G Connectivity

This camera operates on 4G LTE networks, making it suitable for areas without Wi-Fi access. A SIM card is included with 300MB of test data valid for 30 days. For continuous use, an unlimited data plan is recommended (e.g., 12.9€/30 days, or plans from EE, SKY, Vodafone).

  1. Cari slot kad SIM pada kamera.
  2. Insert the provided SIM card or your preferred 4G SIM card into the slot. Ensure it is inserted correctly according to the diagram on the camera or in the quick start guide.
  3. The camera will automatically attempt to connect to the 4G network upon power-up.

2. Bekalan Kuasa

The XG-18 camera is wired and requires continuous power. It does not contain a battery and does not support Wi-Fi connectivity.

  1. Connect the 3-meter power cable to the camera.
  2. Palamkan penyesuai kuasa ke soket elektrik standard.
  3. Ensure the power connection is secure for uninterrupted operation.

3. App Installation and Initial Configuration

The camera is controlled via the Ubox application, available for iOS and Android devices.

  1. Muat turun Ubox app from your device's app store (Apple App Store for iOS, Google Play Store for Android).
  2. Daftar akaun atau log masuk jika anda sudah mempunyai akaun.
  3. Ikut arahan dalam apl untuk menambah kamera baharu anda. Ini biasanya melibatkan pengimbasan kod QR pada kamera atau memasukkan IDnya secara manual.
  4. Setelah disambungkan, anda boleh view the live feed and configure camera settings.

4. Pemasangan Fizikal

The camera is designed for outdoor use and can be mounted on a wall.

  1. Choose a suitable location for mounting, ensuring good 4G signal reception and proximity to a power source.
  2. Use the provided mounting stand and screws to securely attach the camera to a wall or other stable surface.
  3. Laraskan sudut kamera untuk meliputi kawasan pengawasan yang diingini.
Image showing the Xega 4G camera mounted on a wall outdoors, with a clear sky and trees in the background. Text indicates '4G LTE Signal' and icons for SIM card and data.

Figure 2: Xega 4G Camera installed outdoors, highlighting 4G LTE connectivity.

Mengendalikan Kamera

1. 24/7 Continuous Recording

The XG-18 supports continuous 24/7 video recording, ensuring constant surveillance of your property.

  • The camera records continuously as long as it is powered.
  • Dirakam footage can be accessed and played back remotely via the Ubox app.
Image depicting the Xega 4G camera recording continuously, with a smartphone displaying the live feed and a timeline of recordings. Icons for DC 5V/2A power and 24/7 operation are shown.

Figure 3: Continuous 24/7 recording capability.

2. AI Human Detection and Automatic Tracking

The camera features advanced AI human detection to minimize false alarms and automatic tracking to keep subjects in view.

  • When human motion is detected, you will receive an instant alert notification on your iOS/Android device via the Ubox app.
  • The camera will automatically track the detected person's movement.
  • This feature helps conserve 4G data and storage space by focusing on relevant events.
Image showing a child and a dog running in a grassy yard, with a digital overlay indicating motion detection and an instant alert notification from the Ubox app.

Figure 4: AI Human Detection and Instant Alert in action.

3. 2K Super HD Resolution and PTZ Functionality

Rakam gambar yang jelas dan terperincitage with 2K HD resolution and monitor a wide area with Pan-Tilt-Zoom (PTZ) capabilities.

  • The camera provides 2K (3MP) Super HD video, offering enhanced visual detail.
  • It can rotate 350° horizontally (Pan) and 100° vertically (Tilt), providing comprehensive coverage.
  • Control the pan, tilt, and 4X digital zoom (no optical zoom) remotely through the Ubox app from anywhere in the world.

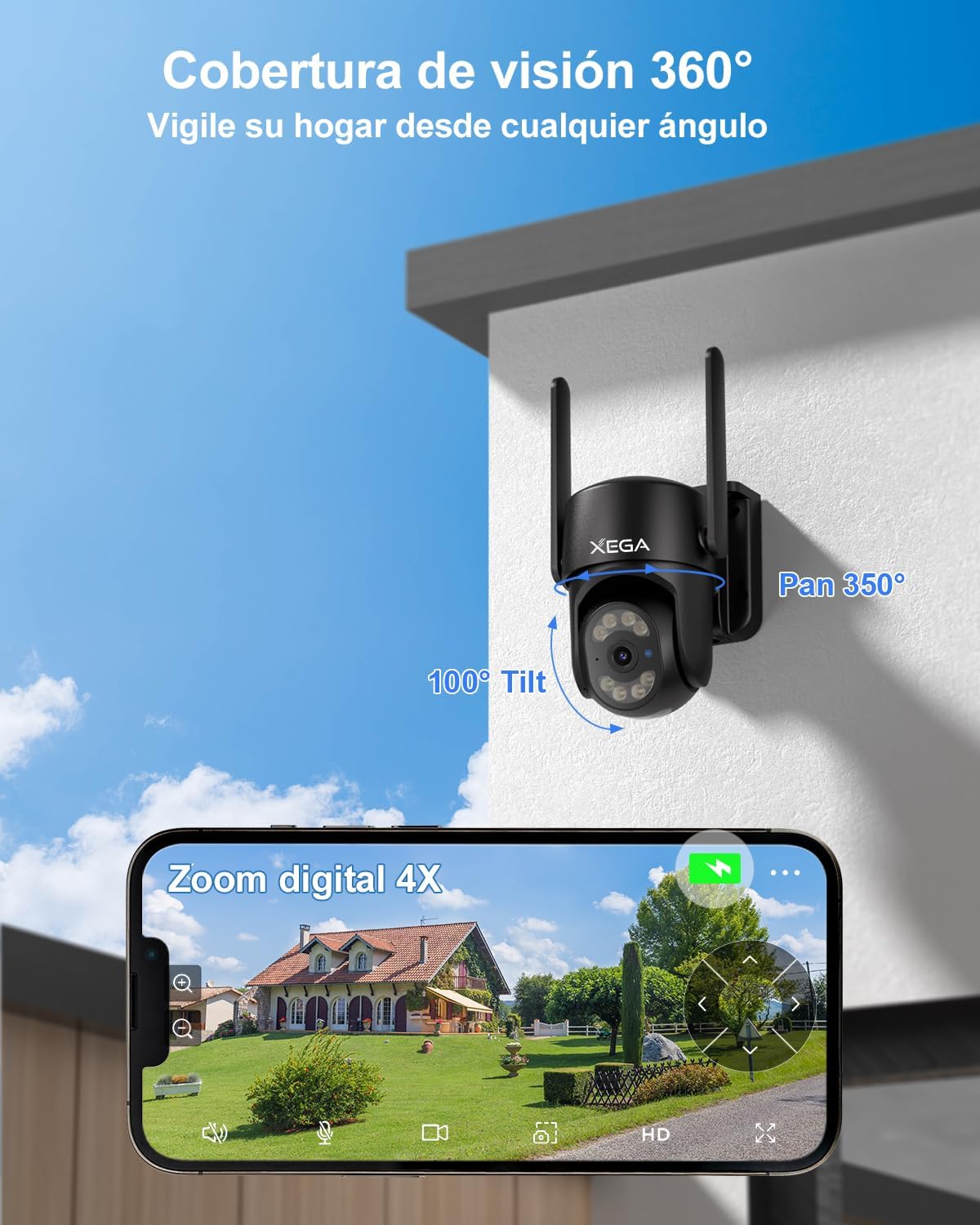

Image illustrating the camera's 360-degree vision, with text indicating 'Pan 350°' and 'Tilt 100°'. A smartphone screen shows a zoomed-in view of a house, demonstrating 4X digital zoom.

Figure 5: 360° coverage and 4X digital zoom via the Ubox app.

4. Mod Penglihatan Malam

The camera offers versatile night vision options for clear monitoring in low-light conditions.

  • Penglihatan Malam Warna: With the spotlight on, the camera can capture full-color video at night, providing more detail.
  • Penglihatan Malam Inframerah: With the spotlight off, the camera uses infrared LEDs for clear black-and-white footage dalam kegelapan sepenuhnya.
  • Night vision range extends up to 20 meters (approximately 80 feet).
Two images comparing night vision modes. The top image shows a scene at night with spotlights on, displaying color night vision. The bottom image shows the same scene with spotlights off, displaying infrared black-and-white night vision.

Figure 6: Comparison of 2K Super HD Color Night Vision and Infrared Night Vision.

5. Audio Dua Hala

The integrated microphone and speaker allow for two-way communication.

  • Use the Ubox app to listen to audio from the camera's location.
  • Bercakap melalui apl untuk berkomunikasi dengan individu berhampiran kamera.

Penyelenggaraan

1. Weather Resistance (IP66)

The XG-18 camera has an IP66 rating, ensuring its durability against various weather conditions.

  • The camera is resistant to dust and powerful water jets, making it suitable for use in sunny, rainy, or snowy conditions.
  • Julat suhu operasi: -30°C hingga 60°C.
Image showing the Xega 4G camera mounted outdoors in heavy rain, with a temperature scale from -30°C to 60°C, illustrating its IP66 weather resistance.

Figure 7: IP66 weather resistance in adverse conditions.

2. Pilihan Storan

The camera offers flexible storage solutions for your recordings.

  • Penyimpanan Kad TF: Supports TF cards up to 128GB (not included). The camera will automatically record and overwrite old videos when the card is full.
  • Storan Awan: Optional military-grade cloud storage is available. A 30-day free trial is offered, with subscription options thereafter (e.g., approximately 1.99€/month). Cloud storage ensures data security even if the camera is stolen or damaged.
Image showing the Xega camera with icons for cloud storage and a TF card, indicating storage options.

Figure 8: TF card and cloud storage options.

3. Pembersihan

To ensure optimal performance, periodically clean the camera lens and housing.

  • Gunakan yang lembut, damp cloth to wipe the camera's exterior.
  • Untuk kanta, gunakan kain dan larutan pembersih kanta khusus untuk mengelakkan calar.
  • Jangan gunakan bahan kimia atau pembersih kasar.

Menyelesaikan masalah

If you encounter issues with your Xega 4G Camera, refer to the following common problems and solutions:

MasalahKemungkinan PuncaPenyelesaian
Camera is disconnected / OfflineNo 4G signal, SIM card issue, power loss.Check 4G signal strength at the camera's location. Verify SIM card is correctly inserted and has an active data plan. Ensure the camera is receiving continuous power.
No notifications received on mobileApp notification settings, phone settings, network issues.Ensure notifications are enabled in the Ubox app settings. Check your phone's system settings to allow notifications from the Ubox app. Verify stable 4G connection for both camera and phone.
Kualiti imej yang lemahDirty lens, low network bandwidth, app settings.Clean the camera lens. Ensure sufficient 4G bandwidth. In the Ubox app, switch from SD to HD quality if available (note: setting may revert to SD).
Pengesanan gerakan tidak berfungsiDetection settings, environmental factors.Check motion detection sensitivity and area settings in the Ubox app. Ensure no obstructions are blocking the camera's view.
Kamera tidak dihidupkanNo power, faulty adapter.Verify the power adapter is securely connected to both the camera and the power outlet. Test the outlet with another device.

If these solutions do not resolve the issue, please contact Xega customer support for further assistance.

Spesifikasi

CiriPerincian
Nombor ModelXG-18
Dimensi18 x 16 x 12 cm
Berat badan660 g
Teknologi KetersambunganWired (Power), Cellular (4G LTE)
Resolusi Video2K (1920p)
Sudut Pan350 Darjah
Sudut Kecondongan100 Darjah
Zum Digital4X
Julat Penglihatan Malam20 Meter (lebih kurang 80 kaki)
Jenis Penglihatan MalamColor Night Vision, Infrared Night Vision
Ciri KhasTwo-Way Audio, HD Resolution, Motion Sensor, PTZ Technology, Night Vision, AI Human Detection, Auto Tracking
Rintangan CuacaIP66 (kalis air)
Pilihan StoranKad TF (sehingga 128GB), Storan Awan
Peranti SerasiTelefon pintar (Android, iOS)
Sumber KuasaKabel Elektrik
bahanAkrilonitril Butadiena Stirena (ABS)

Waranti dan Sokongan

For any questions, technical assistance, or warranty inquiries, please contact Xega customer support.

  • Xega offers 24/7 online customer support.
  • Refer to the contact information provided with your product packaging or on the official Xega weblaman web untuk saluran sokongan.
Image of a customer support representative wearing a headset, smiling, with text '24/7 Online Customer Support'.

Figure 9: Xega 24/7 Online Customer Support.
