GOLDCHAMP GC-9000A Gas Detector Instruction Manual

1. Produk Lebihview

GOLDCHAMP GC-9000A is a professional 4-in-1 gas detector designed for monitoring Hydrogen Sulfide (H2S), Oxygen (O2), Carbon Monoxide (CO), and Combustible Gas (LEL). It features a 2.8-inch LCD display for clear readings and multiple alarm modes to ensure safety in various environments.

Rajah 1: Depan view daripada GOLDCHAMP GC-9000A Gas Detector, showing the display and control buttons.

Ciri-ciri Utama:

• 4-in-1 Gas Detection: Monitors H2S, O2, CO, and LEL simultaneously.
• Berbilang Mod Penggera: Provides vibration, audible, and visual alarms.
• Paparan LCD 2.8-inci: Offers clear, real-time data readings including gas concentrations, time, and battery status.
• Bateri boleh dicas semula: Equipped with a 2500mAh lithium battery for over 10 hours of continuous operation.
• Reka bentuk tahan lasak: Features a convenient back clip for portability and use in demanding environments.

2. Maklumat Keselamatan

Read all safety warnings and instructions carefully before using this device. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

Langkah Keselamatan Am:

• Do not attempt to open or modify the device. Internal components are not user-serviceable.
• Ensure the device is fully charged before use to prevent unexpected power loss during critical monitoring.
• Avoid exposing the device to extreme temperatures, direct sunlight, or corrosive substances.
• Regularly check the device for any signs of damage. Do not use if damaged.
• This device is a monitoring tool and should not replace proper safety protocols and personal protective equipment.
• Calibration should be performed regularly by qualified personnel to ensure accuracy.

3. Persediaan

3.1 Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• GOLDCHAMP GC-9000A Gas Detector x 1
• Kabel Pengecasan USB x 1
• Manual Arahan x 1
• Beg simpanan x 1

Figure 2: Contents of the GC-9000A package, including the detector, USB cable, manual, and storage bag.

3.2 Susun atur Peranti

Familiarize yourself with the main components of the GC-9000A Gas Detector:

1. Paparan LCD: Shows gas readings, battery level, time, and alarm status.
2. Butang Kawalan: ESC/▲ (Escape/Up), ▲/OK (Power/OK), ENT/▼ (Enter/Down).
3. Penderia Gas: Located at the bottom of the device, responsible for detecting gases.
4. Penunjuk Penggera: LED lights for visual alarms, internal buzzer for audible alarms, and vibration motor.
5. Port Pengecasan: USB port for recharging the device.
6. Klip Belakang: For attaching the device to clothing or equipment.

Rajah 3: Terperinci view of the GC-9000A, highlighting its dimensions, multifunctional back clip, and sensor areas.

3.3 Mengecas Peranti

Before first use, fully charge the GC-9000A. Connect the provided USB charging cable to the device's charging port and a compatible USB power adapter (not included). The battery indicator on the LCD display will show charging status. A full charge typically provides over 10 hours of standby time.

Figure 4: The USB charging port on the side of the GC-9000A detector.

4. Arahan Operasi

4.1 Hidupkan/Mati Kuasa

• Hidupkan kuasa: Press and hold the ▲/OK button for approximately 3 seconds until the device powers on and the display illuminates.
• Matikan: Press and hold the ▲/OK button for approximately 3 seconds. A confirmation prompt will appear; select 'Yes' to power off.

4.2 Paparan Maklumat

The 2.8-inch LCD display provides real-time information:

• Gas Readings: Displays current concentrations for H2S, O2, CO, and LEL.
• Masa: Tarikh dan masa semasa.
• Status Bateri: Menunjukkan baki hayat bateri.
• Status Penggera: Icons or indicators for active alarms.

4.3 Mod Penggera

The GC-9000A utilizes three distinct alarm modes to alert users to potential hazards:

• Penggera yang boleh didengar: Bunyi bip yang kuat.
• Penggera Getaran: Peranti bergetar.
• Penggera Visual: LED warning lights flash.

These alarms activate when gas concentrations exceed preset high or low alarm values. The device will continue to alarm until the gas levels return to a safe range or the alarm is acknowledged/silenced (refer to advanced settings in the full manual for silencing options).

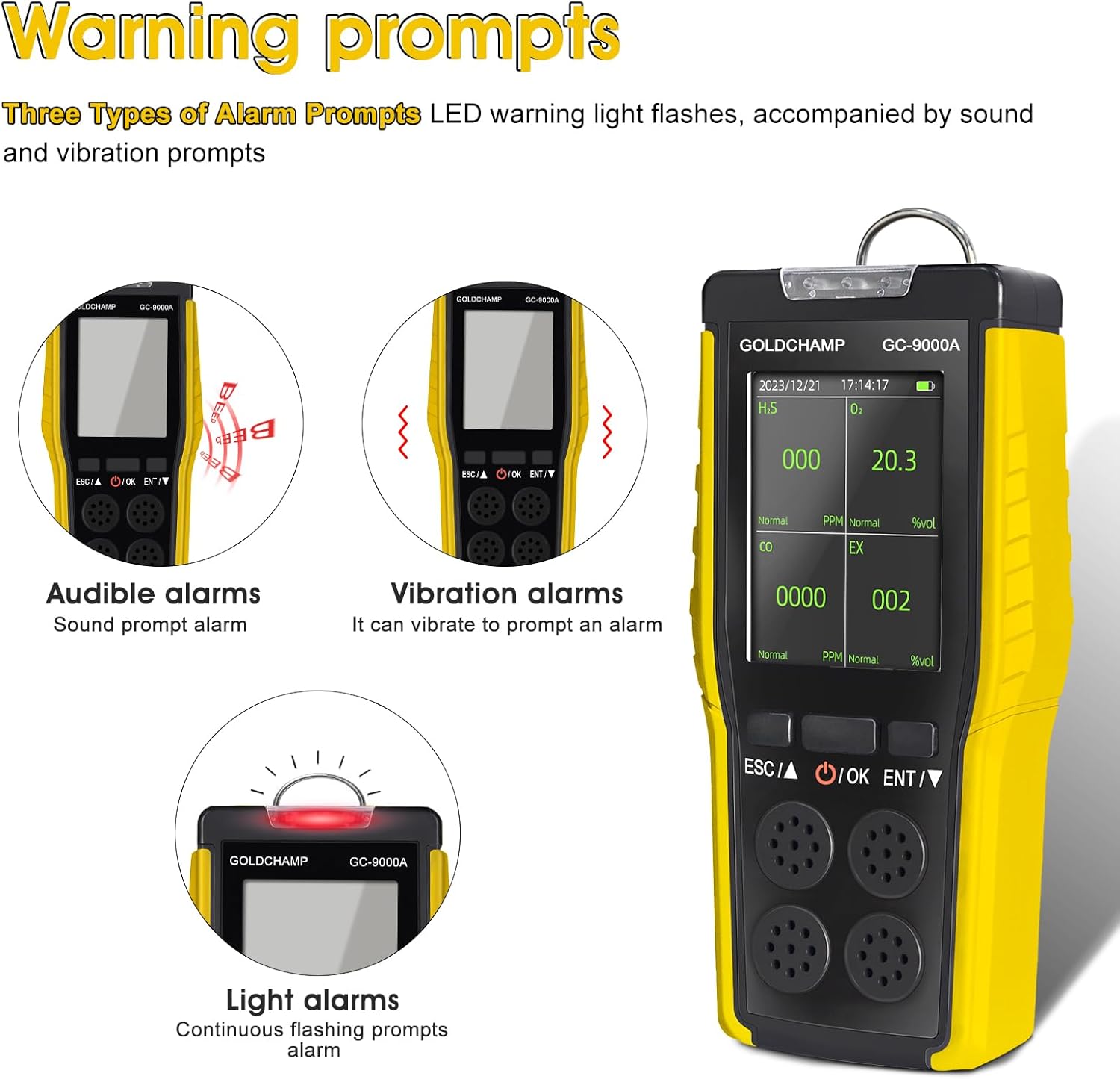

Figure 5: The three alarm modes (audible, vibration, and light) demonstrated on the GC-9000A.

4.4 Setting Alarm Values

The device allows for customization of high and low alarm thresholds for each gas. Refer to the detailed menu navigation section in the complete manual for step-by-step instructions on accessing and adjusting these settings.

5. Penyelenggaraan

5.1 Pembersihan

• Lap bahagian luar peranti dengan lembut, damp kain.
• Jangan gunakan pembersih yang melelas, pelarut, atau rendam peranti di dalam air.
• Ensure the sensor openings are clear of dust and debris.

5.2 Penentukuran

Gas detectors require periodic calibration to maintain accuracy. Calibration should be performed by trained professionals using certified calibration gases. The frequency of calibration depends on usage, environmental conditions, and local regulations. Consult the full manual or contact GOLDCHAMP support for calibration service recommendations.

5.3 Penyimpanan

• Simpan peranti di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• If storing for an extended period, ensure the battery is partially charged (around 50%) and recharge it every few months to prevent deep discharge.
• Keep the device in its protective storage bag when not in use.

6. Penyelesaian masalah

This section addresses common issues you might encounter with your GC-9000A Gas Detector.

7. Spesifikasi

Detailed technical specifications for the GOLDCHAMP GC-9000A Gas Detector:

8. Waranti dan Sokongan

Maklumat Waranti:

Please refer to the warranty card included with your product or visit the official GOLDCHAMP weblaman web untuk terma dan syarat jaminan terperinci. Jaminan biasanya meliputi kecacatan pembuatan untuk tempoh tertentu dari tarikh pembelian.

Sokongan Pelanggan:

For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact GOLDCHAMP customer support. Contact information can usually be found on the product packaging, the official GOLDCHAMP webtapak, atau melalui peruncit anda.

Webtapak: Visit the GOLDCHAMP Kedai di Amazon
