1. Pengenalan
Thank you for choosing the WELLFOR Smart Bidet Toilet. This manual provides essential information for the safe installation, operation, and maintenance of your new smart toilet. Please read this manual thoroughly before installation and use, and retain it for future reference.
2. Maklumat Keselamatan
Sila patuhi langkah berjaga-jaga keselamatan berikut untuk mengelakkan kecederaan atau kerosakan pada produk.
- Pastikan semua sambungan elektrik mematuhi kod dan peraturan tempatan.
- Jangan rendam produk di dalam air atau semburkan air terus ke atas komponen elektrik.
- Cabut plag unit sebelum melakukan sebarang penyelenggaraan atau pembersihan.
- Pastikan alat kawalan jauh kering dan jauh daripada air.
- Perkakas ini tidak dimaksudkan untuk digunakan oleh orang yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab ke atas keselamatan mereka.
3. Produk Lebihview
3.1 Ciri-ciri Utama
- Smart Auto Open/Close Lid: Lid automatically opens upon approach and closes upon departure.
- Smart Auto Flush: Flushes automatically after use.
- Heated Seat & Warm Wind Drying: Adjustable seat temperature and 6 levels of warm air drying.
- Front & Rear Wash: Oscillating wash functions with adjustable water pressure (3 levels) and temperature (6 levels), filtered water, and customizable nozzle positions (5 levels).
- MAP Flush 1000G: Dual flush system (1.6 GPF/6L full, 1.1 GPF/4.1L half) with an impressive 1000-gram MAP flush score.
- ADA Chair Height Design: 17 3/8" seat height for enhanced comfort and accessibility.
- Cahaya Malam: Automatic LED night light for low-light conditions.
- Foot Sensor & Remote Control: Hands-free lid operation and flushing via foot sensor, and full control via wireless remote.
- Built-in Tank: Ensures consistent performance even with low water pressure.
- UV-C Water Treatment: Provides hygienic water for washing functions.
- Antibacterial Nozzle: Self-cleaning and antibacterial spray nozzle.
- Kuasa Outage Flushing: Battery backup for emergency flushing during power outages (battery sold separately).
Rajah 3.1.1: Diagram illustrating the MAP flush scoring guide and the toilet's 1000-gram performance score.
Rajah 3.1.2: Comparison illustrating the ADA compliant 17 3/8 inch chair height design for improved accessibility.
3.2 Komponen Produk
Rajah 3.2.1: Depan view of the WELLFOR Smart Bidet Toilet with the lid open, showing the remote control mounted on the wall.
Rajah 3.2.2: sebelah view of the WELLFOR Smart Bidet Toilet, highlighting its compact design.
Rajah 3.2.3: belakang view of the WELLFOR Smart Bidet Toilet, showing the connection points.
Rajah 3.2.4: Diagram illustrating the dimensions and key specifications of the WELLFOR Smart Bidet Toilet, including ADA height and rough-in measurement.
3.3 Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Nombor Model | CF59-T |
| Jenama | SELAMAT |
| warna | putih |
| Berat Barang | 101.2 paun |
| Kuasa Dinilai | 110V, 60Hz, 865W |
| Isipadu Siram | 1.6 GPF / 1.1 GPF (Dwi Siram) |
| Skor MAP | 1000g |
| Water Pressure (Static) | 0.08Mpa-0.8Mpa (Bidet), 0.02Mpa-0.8Mpa (Flush) |
| Kaedah Pemanasan | Pemanasan Segera |
| Jenis Kawalan | Remote Control and Side Knob |
| Penilaian Kalis Air | IP X 4 |
| Pensijilan | CUPC, EGS |
| Mematuhi ADA | Yes (17 3/8" seat height) |
4. Persediaan dan Pemasangan
Professional installation is recommended. Ensure all local plumbing and electrical codes are followed. Before beginning, ensure you have all necessary tools and components.
4.1 Senarai Semak Pra-Pemasangan
- Verify rough-in measurement is 12 inches.
- Confirm availability of a 110V, 60Hz electrical outlet.
- Ensure water supply line is accessible.
4.2 Langkah Pemasangan (Ringkasan)
For detailed instructions, refer to the full installation guide provided with your product.
- Matikan bekalan air utama.
- Remove the old toilet (if applicable).
- Install the mounting brackets and wax ring.
- Carefully place the WELLFOR Smart Bidet Toilet onto the mounting bolts.
- Sambungkan saluran bekalan air.
- Sambungkan kord kuasa ke salur keluar elektrik yang dibumikan.
- Hidupkan bekalan air utama dan semak kebocoran.
- Perform initial flush and function tests.

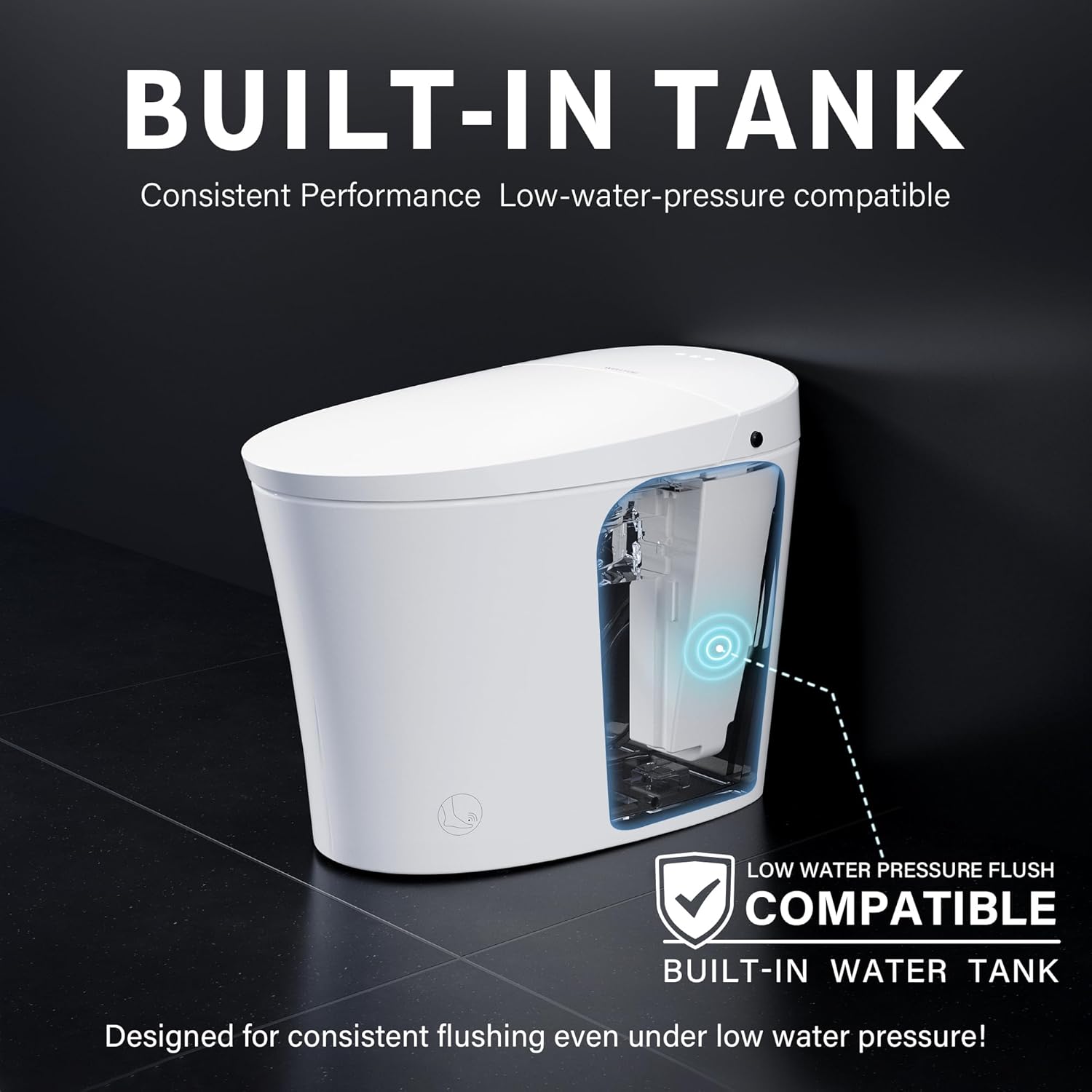

Rajah 4.2.1: Illustration of the built-in tank design, ensuring consistent flushing even under low water pressure conditions.
5. Arahan Operasi
The WELLFOR Smart Bidet Toilet offers various automated and manual control options for a personalized experience.
5.1 Fungsi Automatik
- Auto Buka/Tutup Tudung: The lid automatically opens when a user approaches and closes after they leave.
- Auto Flush: The toilet flushes automatically after the user departs from the seat.
- Cahaya Malam: An automatic LED light illuminates the bowl in low-light conditions.
Rajah 5.1.1: Visual guide to the automatic functions, including lid opening, foot sensor activation, and auto-flush upon departure.
5.2 Remote Control and Side Knob Functions
Use the wireless remote control or the side knob for manual operation and adjustments.
Rajah 5.2.1: Illustration of the UV-C water treatment system, ensuring hygienic water for all wash functions.
- Membilas:
- Foot Sensor Flush: Gently tap the foot sensor located at the base of the toilet to activate flushing.
- Press Knob Flush: Press the knob on the side of the toilet for manual flushing.
- Siram Alat Kawalan Jauh: Gunakan butang siram khusus pada alat kawalan jauh.
- Fungsi Bidet:
- Basuh Belakang: Activates the posterior cleansing function.
- Front Wash (Lady Wash): Activates the feminine cleansing function.
- Cucian Berayun: Menggerakkan muncung ke depan dan ke belakang untuk kawasan pembersihan yang lebih luas.
- Pelarasan Tekanan Air: Select from 3 levels of water pressure.
- Pelarasan Suhu Air: Choose from 6 levels of water temperature (Room Temp to 99°F).
- Pelarasan Kedudukan muncung: Adjust the nozzle position across 5 levels.
- Tempat duduk yang dipanaskan: Adjust the seat temperature through 6 levels (Room Temp to 99°F). The seat temperature automatically lowers after 10 minutes of continuous use.
- Warm Wind Drying: Select from 6 levels of warm air temperature for drying.
Rajah 5.2.2: Display showing the antibacterial nozzle and multiple cleaning modes (Rear Wash, Lady Wash, Movement Wash) with water temperature adjustment levels.
Rajah 5.2.3: Illustration of the heated seat and warm air drying functions with their respective temperature adjustment levels.
5.3 Kuasa Outage Membilas
Sekiranya berlaku kuasa outage, the toilet can still be flushed using a battery backup system. This battery backup is sold separately and can be purchased from www.wellfor.com.

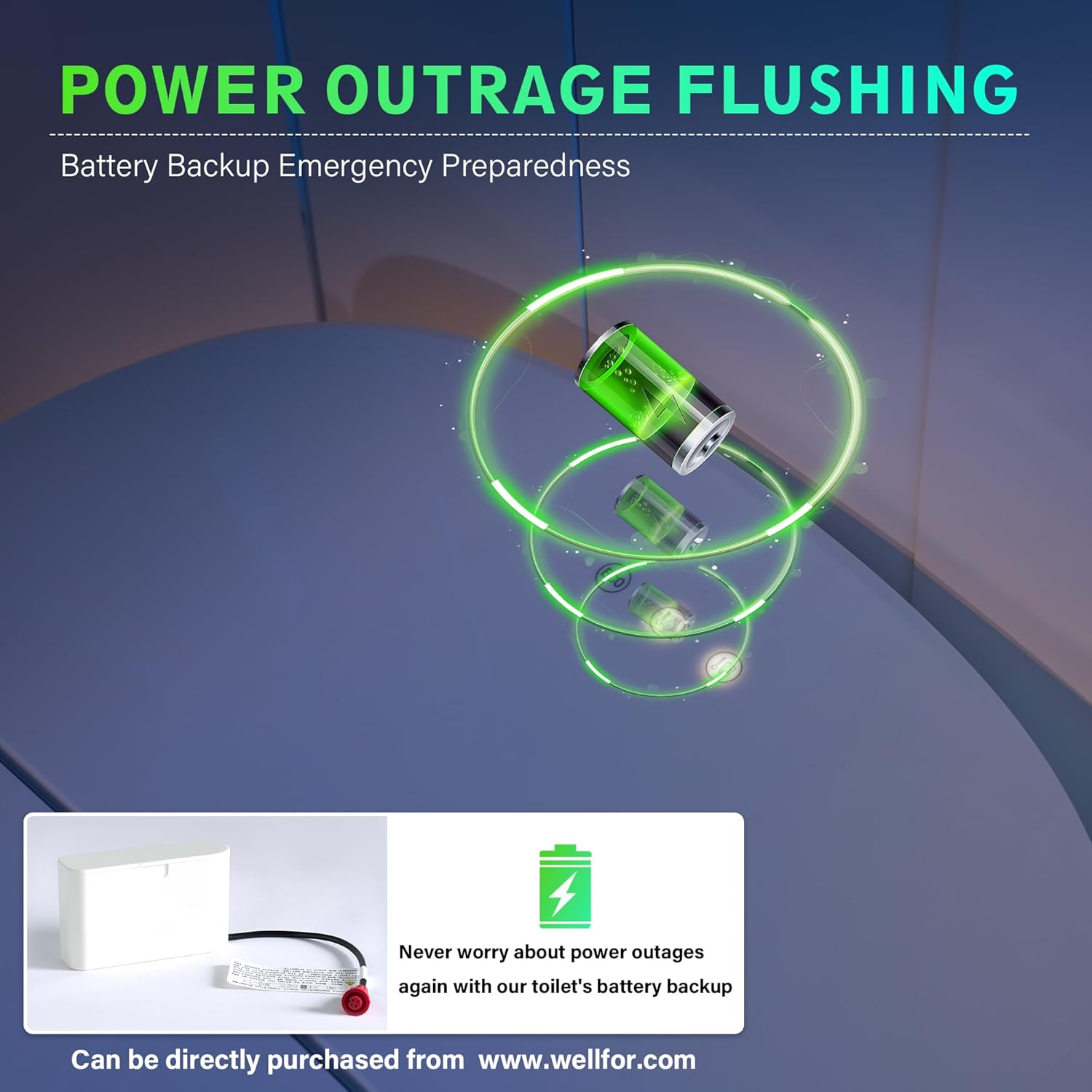

Rajah 5.3.1: Visual representation of the battery backup system for power outage membilas.
6. Penyelenggaraan
Pembersihan dan penyelenggaraan yang kerap akan memastikan jangka hayat dan prestasi optimum tandas pintar anda.
6.1 Membersihkan Muncung
The antibacterial nozzle features a self-cleaning function. For additional manual cleaning:
- Ensure the toilet is powered off.
- Gently pull out the nozzle for manual cleaning.
- Use a soft cloth and mild, non-abrasive cleaner.
- Rinse thoroughly and push the nozzle back into its housing.
Rajah 6.1.1: Illustration of the antibacterial, self-cleaning nozzle extended for manual cleaning.
6.2 Pembersihan Am
- Putuskan sambungan kuasa sebelum membersihkan.
- Gunakan yang lembut, damp cloth and a mild, non-abrasive bathroom cleaner for exterior surfaces.
- Do not use harsh chemicals, abrasive pads, or solvents, as these can damage the finish.
- Wipe down the seat and lid regularly.
7. Penyelesaian masalah
Rujuk bahagian ini untuk isu biasa dan penyelesaiannya. Jika masalah berterusan, hubungi sokongan pelanggan.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tandas tidak mengalir secara automatik. | Sensor obstructed or not detecting user departure. | Ensure the sensor area is clean. Verify user fully departs the seat. |
| Penutup tidak boleh dibuka/ditutup secara automatik. | Proximity sensor obstructed or disabled. | Check for obstructions around the sensor. Ensure auto open/close function is enabled via remote. |
| No water for bidet functions. | Water supply valve closed, filter clogged, or low water pressure. | Open the water supply valve. Clean or replace the water filter. Check household water pressure. |
| Tempat duduk yang dipanaskan tidak menghangatkan. | Heated seat function disabled or temperature setting too low. | Activate heated seat via remote. Increase temperature setting. |
| Alat kawalan jauh tidak bertindak balas. | Dead batteries or remote out of range. | Replace remote control batteries. Ensure remote is within operating range of the toilet. |
| Toilet not flushing during power outage. | Battery backup not installed or depleted. | Install the battery backup (if not already). Ensure battery is charged. |
8. Waranti dan Sokongan
The WELLFOR Smart Bidet Toilet is certified with CUPC and EGS, ensuring quality and safety standards.
For warranty information, technical assistance, or product support, please contact WELLFOR customer service. Our expert support team is available to help with any questions regarding sales or products.
Maklumat Hubungan: Please refer to the contact details provided on the WELLFOR official webtapak atau dokumentasi pembelian anda.
Sumber Dalam Talian: Visit the official WELLFOR webtapak di www.wellfor.com for additional resources, FAQs, and product registration.
9. Video Produk
9.1 Wellfor Smart Toilet Auto Flushing Demonstration
This video demonstrates the automatic flushing capabilities of the WELLFOR Smart Bidet Toilet, showcasing its hands-free operation.
