BITIWEND Wireless Door Chime User Manual

pengenalan

Thank you for choosing the BITIWEND Wireless Door Chime. This device is designed to provide a reliable alert system for doors, windows, and other entry points in homes, businesses, and offices. It features a long wireless range, multiple chime options, and adjustable volume levels to suit various needs. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting.

Image: The BITIWEND Wireless Door Chime receiver and the door open contact sensor.

Komponen Produk

The BITIWEND Wireless Door Chime system typically includes the following components:

• 1 x Plug-in Receiver: The main chime unit that plugs into a standard electrical outlet.
• 1 x Door Open Contact Sensor (Transmitter): Consists of two parts that detect when a door or window is opened.
• Aksesori Pemasangan: Adhesive tape for sensor installation.

Image: Diagram showing the dimensions of the chime receiver and the two parts of the door sensor. The receiver measures approximately 2.76 inches by 2.76 inches. The larger sensor part is about 3.15 inches long and 0.86 inches wide, while the smaller magnetic part is about 1.57 inches long and 0.47 inches wide.

Arahan Persediaan

The door sensor and receiver are pre-paired from the factory. Follow these steps for quick installation:

1. Install Sensor Battery: The door sensor requires one standard AAA battery (not included). Open the battery compartment on the larger part of the sensor and insert the battery, observing polarity.
2. Pasang Penderia:
   • Identify a suitable location on your door, window, or cabinet.
   • Clean the surface thoroughly to ensure good adhesion.
   • Attach the larger sensor part to the fixed frame and the smaller magnetic part to the moving door/window.
   • Ensure the two parts are aligned with the arrows facing each other and are less than 0.3 inches apart when the door/window is closed. This maximizes sensitivity.
3. Pasangkan Penerima: Plug the chime receiver into any standard electrical outlet within range of the sensor.
4. Uji Sistem: Open and close the door/window where the sensor is installed. The receiver should chime and its LED light should flash.

Image: Illustration demonstrating the correct alignment of the two sensor parts, ensuring the arrows are opposite each other and the gap is less than 0.3 inches for optimal performance.

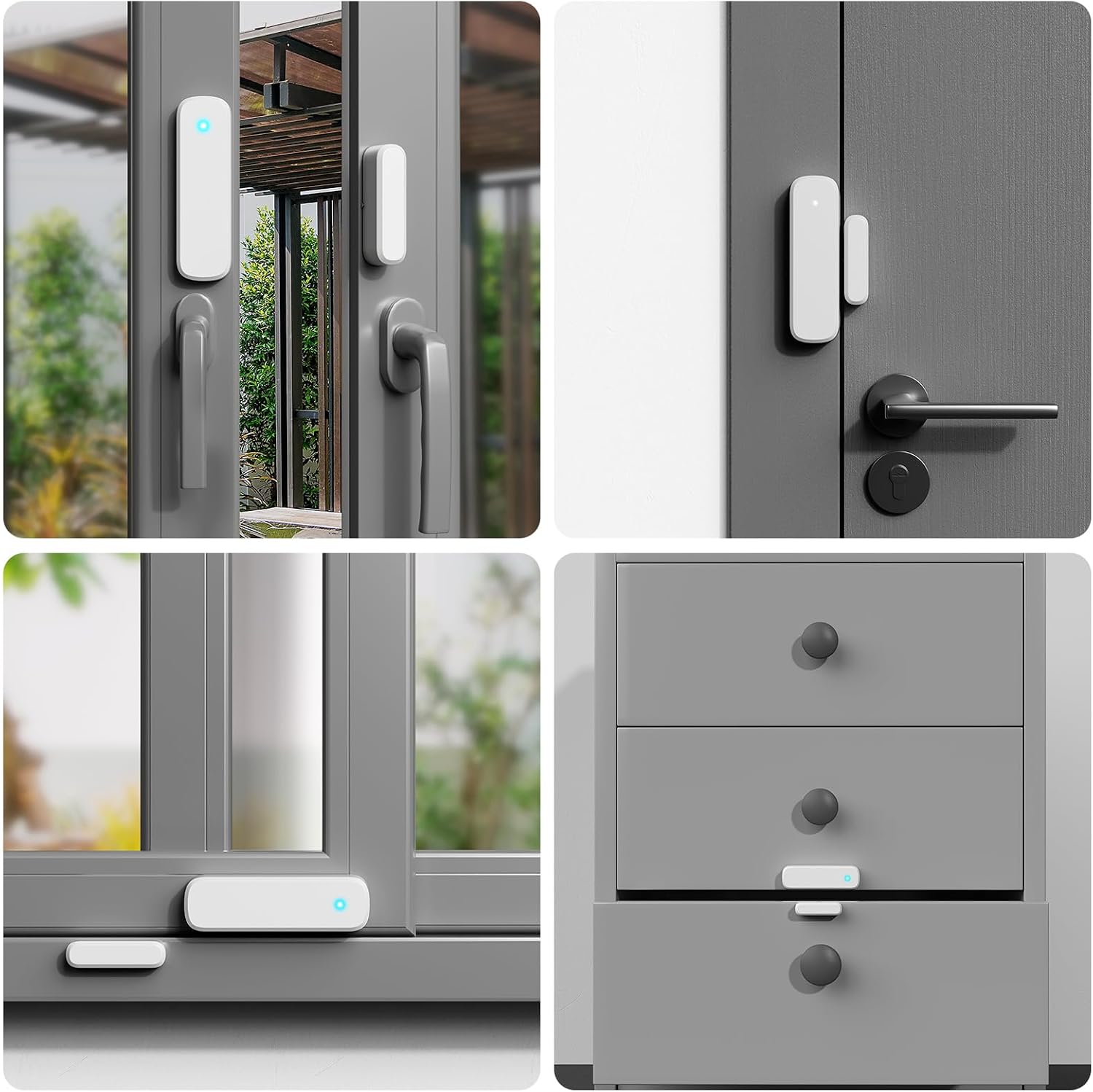

Imej: Cthamples of the door sensor installed on different types of entry points, including a main door, a sliding glass door, a window, and a cabinet drawer, highlighting its versatility.

Arahan Operasi

The receiver unit has buttons on its side for adjusting settings.

• Changing Ringtones: The receiver offers 32 different ringtones. Use the "Forward" and "Back" buttons (usually marked with up/down arrows or musical notes) on the side of the receiver to cycle through the available melodies.
• Melaraskan Kelantangan: There are 5 adjustable volume levels, ranging from mute (0dB) to 120dB. Press the "Volume" button (often marked with a speaker icon) repeatedly to cycle through the volume levels.
• Pairing Additional Sensors/Receivers: Each transmitter/receiver can pair up to 32 receivers/transmitters. Refer to the specific pairing instructions provided with your product if you purchase additional units.

Image: Visual representation of the 32 selectable ringtones available on the device, including various melodies suitable for different environments.

Image: Illustration demonstrating the 5 adjustable volume levels, from silent mode for undisturbed sleep to a loud 120dB for noisy environments.

Penyelenggaraan

• Penggantian Bateri: The door sensor uses one AAA battery. When the sensor's indicator light no longer flashes or the chime becomes unreliable, it's time to replace the battery. The ultra-low-power design allows the battery to last 1-2 years under normal use.
• Pembersihan: Wipe the receiver and sensor with a soft, dry cloth. Do not use abrasive cleaners or immerse the units in water.
• Peletakan Optimum: For best performance, ensure the receiver is plugged into an outlet that is not obstructed by large metal objects or thick walls, which can interfere with the wireless signal. The system has a reliable working range of up to 600 feet in open areas.

Image: Depiction of the door chime system's 600-foot wireless range in an open area, suitable for various environments like homes, businesses, and schools.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

BITIWEND provides a Waranti 1 Tahun for this product. Additionally, lifetime after-sale service is available to assist with any questions or issues you may encounter.

For support, please contact BITIWEND customer service. Refer to the product packaging or the seller's information on the purchase platform for contact details.
