FORZA Durable Mobile Bleachers User Manual

1. Pengenalan

Thank you for choosing FORZA Durable Mobile Bleachers. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your bleachers. These versatile seating units are designed for various indoor and outdoor sports events, gatherings, and spectator areas. Please read this manual thoroughly before initial use and retain it for future reference.

2. Maklumat Keselamatan

Always prioritize safety when assembling, using, or moving the bleachers. Failure to follow these instructions may result in injury or damage to the product.

• Pastikan semua komponen ada dan tidak rosak sebelum pemasangan. Jangan gunakan bahagian yang rosak.
• Assemble the bleachers on a flat, stable, and level surface.
• Verify all bolts, nuts, and fasteners are securely tightened before use. Periodically check and re-tighten as needed.
• Do not exceed the maximum seating capacity for each bleacher unit.
• Supervise children around the bleachers to prevent climbing or misuse.
• When moving the bleachers, ensure the path is clear and stable. Use caution to prevent tipping.
• Do not stand on the backrests or armrests (if applicable).
• Keep hands and feet clear of moving parts during folding and unfolding.

3. Persediaan dan Pemasangan

Your FORZA Mobile Bleachers come with all necessary hardware for assembly. Follow these steps carefully.

3.1 Membongkar dan Semakan Komponen

• Buka pembungkusan semua komponen dari pembungkusan dengan berhati-hati.
• Refer to the packing list (if provided) to ensure all parts, including the aluminum frame sections, seating planks, and hardware (bolts, nuts, washers), are present.
• Inspect all parts for any signs of damage. Contact customer support immediately if any parts are missing or damaged.

3.2 Pemasangan Bingkai

1. Lay out the main frame sections on a clear, level surface.
2. Connect the frame sections using the provided bolts and nuts. Ensure all connections are snug but do not fully tighten until all sections are aligned.
3. Attach the height-adjustable rubber feet to the base of the frame. Adjust them to ensure stability on uneven surfaces.

3.3 Seating Plank Installation

1. Position the extruded aluminum seating planks onto the frame supports.
2. Secure the seating planks using the designated fasteners. The planks feature an anti-slip surface for user safety.
3. If installing optional plastic seats, drill pilot holes as needed and attach them securely to the aluminum planks.

3.4 Optional Backrest Installation

For models with optional backrests, attach the extruded aluminum back support to the rear of the top tier seating. Ensure it is firmly secured to provide stable support.

3.5 Menyambung Berbilang Unit

Multiple bleacher units can be connected using the provided connection brackets. Align the units and secure them together with the brackets and appropriate hardware to create a continuous seating arrangement.

Image: Connection bracket securing two bleacher units together.

4. Arahan Operasi

4.1 Kerahan

Once assembled and positioned, ensure the bleachers are stable and all adjustable feet are properly set. The anti-slip surface on the seating planks provides secure footing for users.

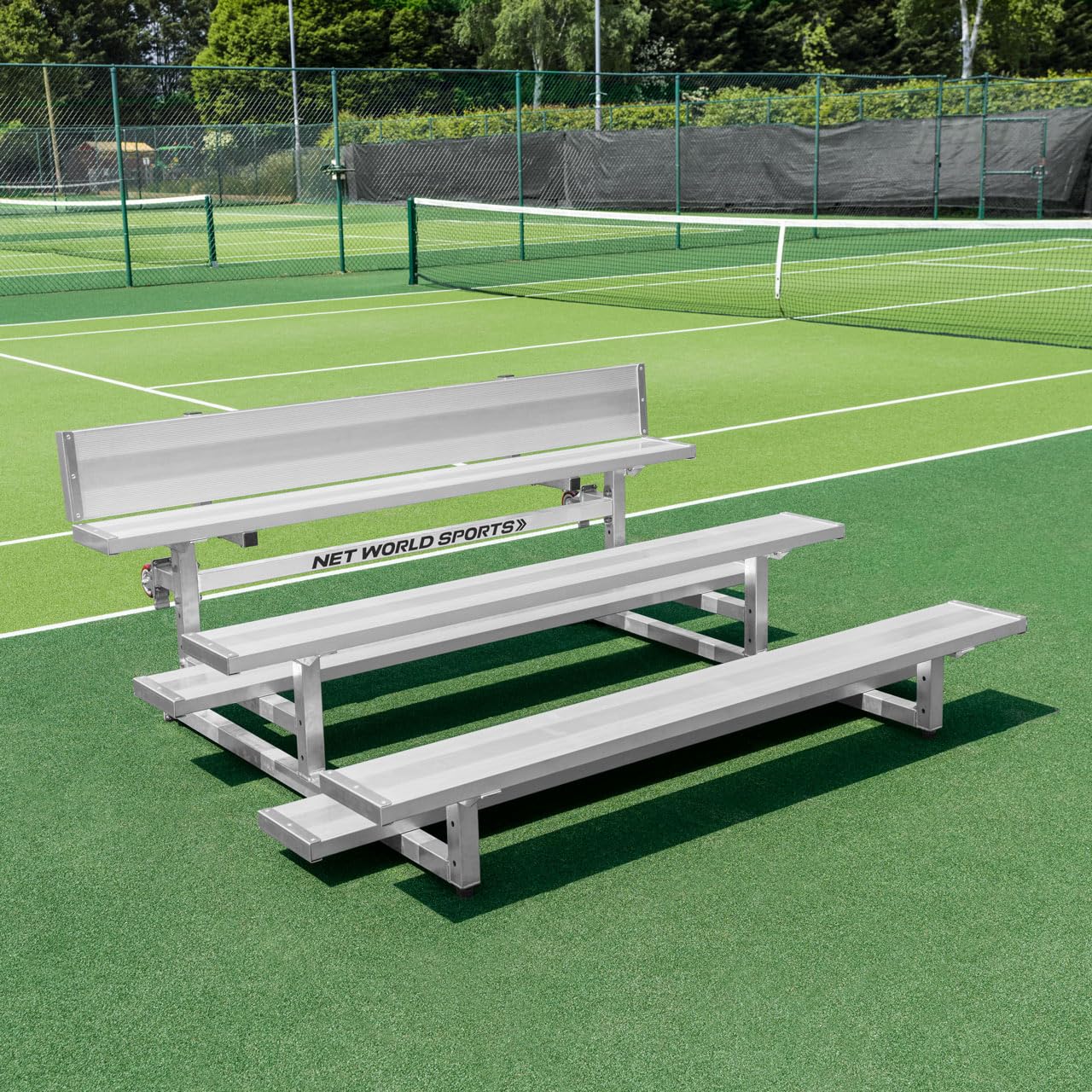

Image: Fully assembled 3-tier bleachers with dimensions indicated.

4.2 Portability and Storage

The bleachers are designed for easy portability and storage. When not in use, each unit can be tilted onto its integrated wheels and moved to a storage area. This feature helps save valuable space.

Image: A person easily transporting the folded bleachers using the integrated wheels.

4.3 Securing the Bleachers

To prevent unintended movement, engage the wheel brakes once the bleachers are in their desired position.

Image: Engaging the wheel brake to secure the bleachers in place.

5. Penyelenggaraan

Regular maintenance will ensure the longevity and safe operation of your FORZA Mobile Bleachers.

• Pembersihan: Clean the aluminum surfaces with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Rinse thoroughly and dry.
• Pemeriksaan Pengikat: Periodically inspect all bolts, nuts, and connection points for tightness. Re-tighten any loose fasteners to maintain structural integrity.
• Pemeriksaan Bingkai: Check the aluminum frame for any signs of bending, cracks, or corrosion. While the frame is durable, extreme impact can cause damage.
• Wheel and Brake Check: Ensure the wheels roll freely and the brakes engage effectively. Clean any debris from the wheel mechanisms.
• Storan: When storing the bleachers for extended periods, keep them in a dry, covered area to protect them from harsh weather conditions.

6. Penyelesaian masalah

If you encounter any issues with your FORZA Mobile Bleachers, refer to the following common troubleshooting tips:

• Ketidakstabilan: Ensure the bleachers are on a level surface. Adjust the rubber feet to compensate for minor unevenness. Check all frame connections for tightness.
• Kesukaran Bergerak: Check wheels for debris or damage. Ensure brakes are disengaged. Lubricate wheel axles if necessary.
• Loose Seating Planks: Re-tighten all fasteners securing the seating planks to the frame.
• Perkakasan hilang: If you find any hardware missing during assembly, please contact customer support for replacement parts.

For issues not covered here, or if problems persist, please contact FORZA customer support.

7. Spesifikasi

8. Waranti dan Sokongan

For specific warranty information regarding your FORZA Durable Mobile Bleachers, please refer to the documentation included with your purchase or visit the official FORZA webtapak.

If you require technical assistance, have questions about assembly, or need replacement parts, please contact FORZA customer support through their official channels.
