Techomey HSG-100D2U-FBM 3-Way Gas Refrigerator with Freezer User Manual

1. Pengenalan

This manual provides essential information for the safe and efficient operation of your Techomey HSG-100D2U-FBM 3-Way Gas Refrigerator with Freezer. Please read it thoroughly before installation and use, and retain it for future reference.

The Techomey 3-Way Gas Refrigerator is designed for versatile use, operating on 12V DC, 110V AC, or LPG gas. It features a 3.5 cubic feet total capacity, including a 3.0 cubic feet refrigerator compartment and a 0.5 cubic feet top freezer. Its advanced absorption cooling system ensures quiet operation and automatic defrosting.

Image 1: Techomey 3-Way Gas Refrigerator with interior view and external propane tank.

2. Maklumat Keselamatan

Always ensure proper ventilation when operating the appliance, especially when using LPG gas. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. This appliance is intended for household and similar applications such as:

• Ruang dapur kakitangan di kedai, pejabat dan persekitaran kerja lain.
• Rumah ladang dan oleh pelanggan di hotel, motel dan persekitaran jenis kediaman lain.
• Persekitaran jenis inap dan sarapan pagi.
• Katering dan aplikasi bukan runcit yang serupa.

AMARAN: Pastikan bukaan pengudaraan, dalam kepungan perkakas atau dalam struktur terbina dalam, bersih daripada halangan.

AMARAN: Jangan gunakan peranti mekanikal atau cara lain untuk mempercepatkan proses penyahbekuan, selain daripada yang disyorkan oleh pengilang.

AMARAN: Jangan rosakkan litar penyejuk.

AMARAN: Jangan gunakan peralatan elektrik di dalam petak penyimpanan makanan perkakas, melainkan ia daripada jenis yang disyorkan oleh pengilang.

3. Ciri-ciri Produk

• 3-Way Power: Operates on 12V DC, 110V AC, or LPG gas (2.8Kpa / 28mbar gas pressure).
• Reka Bentuk Zon Dwi: 3.0 Cu.Ft refrigerator (32-50℉ / 0-10℃) and 0.5 Cu.Ft freezer (-0.4℉ / -18℃).
• Operasi senyap: Advanced absorption cooling system ensures silent running.
• Penyahbekuan automatik: Memudahkan penyelenggaraan.
• Padat dan Mudah Alih: Sesuai untuk RV, campers, cabins, semi-trucks, and vans.
• Pintu Boleh Balik: Allows adjustment of door opening direction to suit your needs.

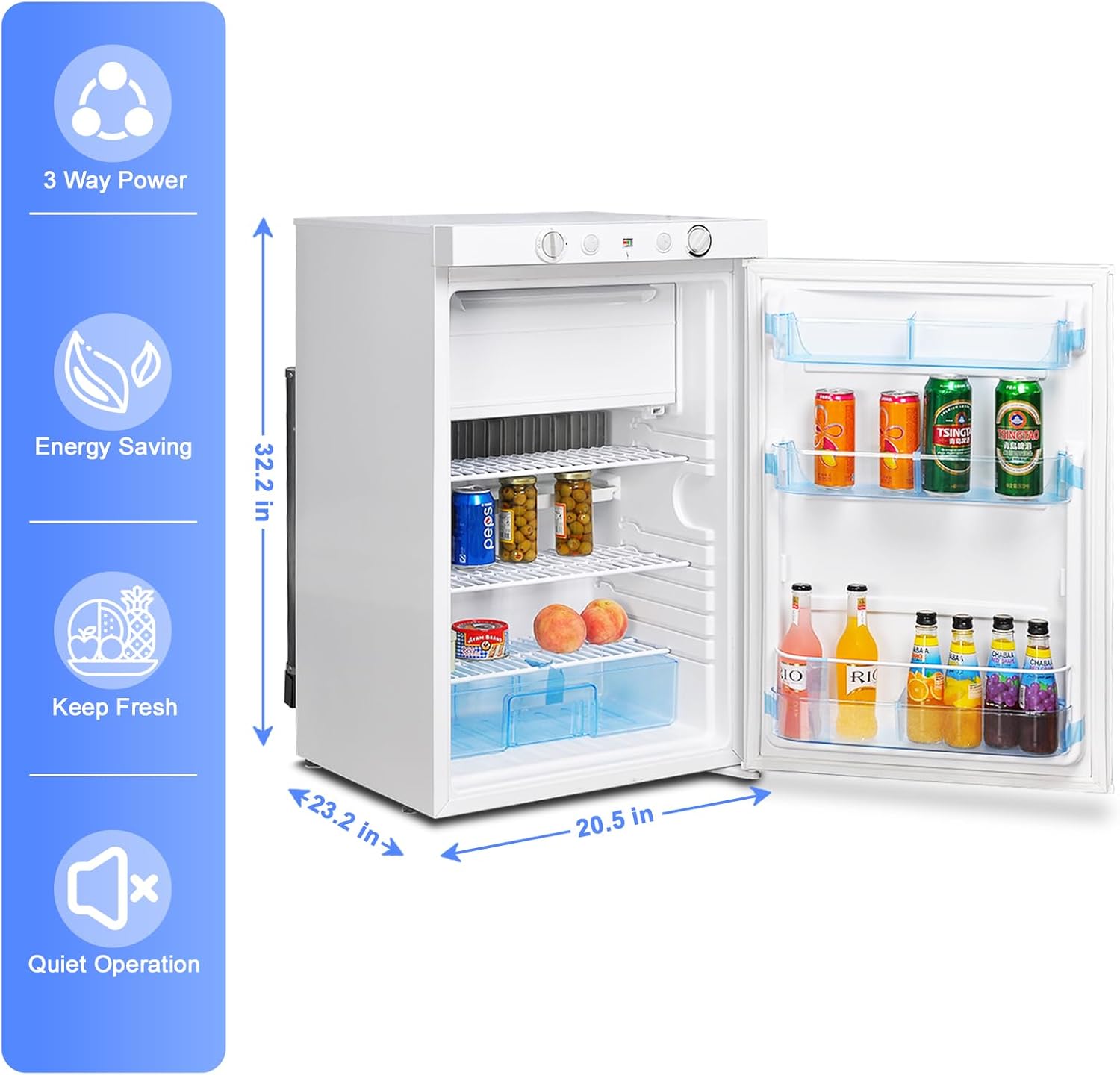

Image 2: Key features and dimensions of the refrigerator.

Image 3: Illustration of the 2-in-1 design with separate fridge and freezer sections.

4. Persediaan dan Pemasangan

4.1 Sambungan Kuasa

The refrigerator supports three power sources: AC 110V, DC 12V, and LPG gas. Ensure the correct power source is connected based on your environment.

Image 4: Rear connections for 3-way power options.

4.2 Gas Mode Connection

For LPG gas operation, connect the gas regulator to the fridge. Ensure all connections are secure and leak-free. Always operate in a well-ventilated area when using gas.

Image 5: Step-by-step guide for connecting and activating gas mode.

4.3 Kebolehterbalikan Pintu

The refrigerator door can be reversed to open from either the left or right side, providing flexibility for placement in various spaces.

Video 1: This video demonstrates the reversible door feature of a similar propane refrigerator, allowing users to adjust the door's opening direction for convenience.

5. Arahan Operasi

5.1 Panel Kawalan Selesaiview

The control panel located at the top of the unit allows you to manage power, ignition, and temperature settings.

Imej 6: Terperinci view panel kawalan dan fungsinya.

5.2 Kawalan Suhu

Use the manual electric thermostat knob to set the desired temperature. The refrigerator compartment maintains temperatures between 32-50℉ (0-10℃), and the freezer compartment maintains -0.4℉ (-18℃).

5.3 Gas Mode Operation

To operate in gas mode, ensure the gas supply is connected and turned on. Use the pulse ignition switch to ignite the flame. The flame indicator will show when the gas is operating correctly. Always ensure adequate ventilation.

Video 2: This video provides a visual guide on how to properly use the refrigerator in gas mode, covering connection and ignition steps.

6. Penyelenggaraan

6.1 Pembersihan

Regularly clean the interior and exterior of the refrigerator with a mild detergent and soft cloth. Avoid abrasive cleaners or solvents. Ensure the appliance is unplugged or the gas supply is off before cleaning.

6.2 Menyahbeku

The unit features automatic defrost. However, if excessive ice buildup occurs in the freezer compartment, manually defrost the unit by turning it off and allowing the ice to melt. Remove food items before defrosting.

6.3 Pengudaraan

Maintain good ventilation around the appliance, especially the rear cooling unit, to ensure optimal performance and safety, particularly when operating on gas.

7. Penyelesaian masalah

If you experience issues with your refrigerator, consider the following common solutions before contacting support:

• Perkakas tidak menyejukkan: Check power supply (12V, 110V, or gas). Ensure the thermostat is set correctly. For gas mode, verify the flame is lit and gas pressure is adequate.
• Bunyi yang berlebihan: While designed for quiet operation, ensure the appliance is level and stable. Check for any obstructions around the cooling unit.
• Prestasi penyejukan yang lemah: Ensure the door is properly sealed. Avoid overloading the compartments. Check for proper ventilation around the unit.

For persistent issues, refer to the warranty and support section.

8. Spesifikasi

9. Waranti dan Sokongan

Techomey aims for quality followed up with quality customer service directly provided by the manufacturer. A satisfied solution will be given for any of your problems.

For warranty claims or technical support, please contact Techomey customer service. Keep your purchase receipt and model number handy for faster service.
