Emerson CKSS7071 Sunrise Smartset Alarm Clock Radio User Manual

1. Pengenalan

Welcome to the user manual for your Emerson CKSS7071 Sunrise Smartset Alarm Clock Radio. This device is designed to enhance your daily routine with its unique features, including a sunrise simulation, soothing sound options, Bluetooth connectivity, and an 8-color dimmable LED display. Please read this manual thoroughly to understand the full functionality and ensure proper use and care of your new alarm clock radio.

Video 1: Berakhirview of the Emerson CKSS7071 Sunrise Smartset Alarm Clock Radio. This video demonstrates the key features and design of the product.

2. Maklumat Keselamatan Penting

Baca semua arahan sebelum mengendalikan perkakas.
Simpan arahan ini untuk rujukan masa hadapan.
Jangan gunakan alat ini berhampiran air.
Bersihkan hanya dengan kain kering.
Jangan sekat sebarang bukaan pengudaraan. Pasang mengikut arahan pengilang.
Jangan pasang berhampiran mana-mana sumber haba seperti radiator, daftar haba, dapur, atau radas lain (termasuk amppenghidup) yang menghasilkan haba.
Lindungi kord kuasa daripada berjalan atau tersepit, terutamanya pada palam, bekas kemudahan dan tempat keluar dari radas.
Hanya gunakan lampiran/aksesori yang ditentukan oleh pengilang.
Cabut plag radas ini semasa ribut petir atau apabila tidak digunakan untuk jangka masa yang lama.
Rujuk semua servis kepada kakitangan perkhidmatan yang berkelayakan. Servis diperlukan apabila radas telah rosak dalam apa jua cara, seperti kord bekalan kuasa atau palam rosak, cecair telah tertumpah atau objek jatuh ke dalam radas, radas telah terdedah kepada hujan atau lembapan, tidak beroperasi seperti biasa. , atau telah digugurkan.

3. Kandungan Pakej

Pastikan semua barang ada semasa membuka bungkusan:

Emerson CKSS7071 Sunrise Smartset Alarm Clock Radio
Penyesuai Kuasa AC
Manual Pengguna

4. Produk Lebihview

4.1 Depan View

Depan view of the Emerson CKSS7071 Sunrise Smartset Alarm Clock Radio, showing the large LED time display and the illuminated fabric speaker grille.

Imej 1: Depan view of the alarm clock, featuring the digital time display and the sunrise simulation light panel.

The front of the unit features the main 1.2-inch LED time display and the large circular light panel for sunrise simulation and ambient lighting. Indicators for AM/PM, Alarm 1/2, and Bluetooth status are also visible.

4.2 Bahagian View (Kawalan)

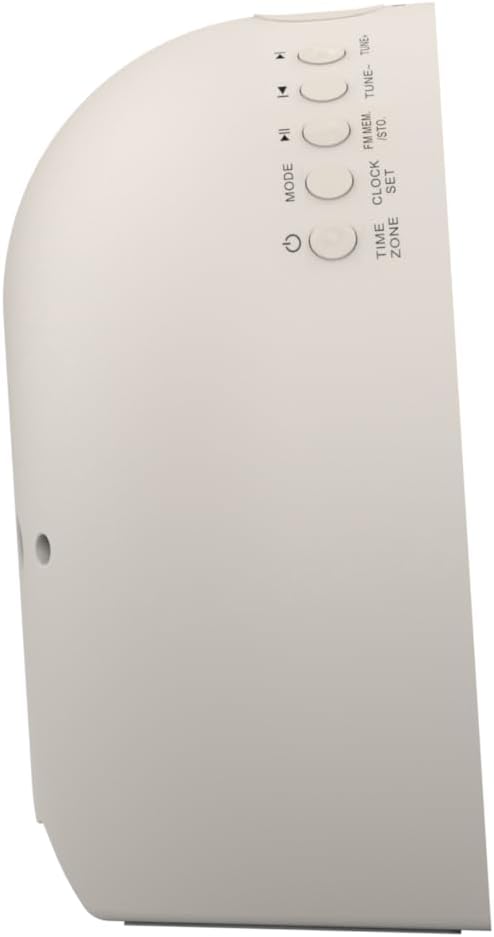

sebelah view of the Emerson CKSS7071 showing control buttons for mode, clock set, tuning, and volume.

Imej 2: sebelah view of the alarm clock, highlighting the control buttons for various functions.

The side panel houses the primary control buttons, including Power, Mode, Clock Set, Time Zone, Tune/Skip, and Volume controls. These buttons are used for setting time, alarms, and navigating audio functions.

4.3 Belakang View

belakang view of the Emerson CKSS7071 showing the speaker grille and power input.

Imej 3: belakang view of the alarm clock, showing the speaker grille and power connection port.

The rear of the unit features the main speaker grille and the power input port for connecting the AC adapter.

5. Persediaan

5.1 Sambungan Kuasa

Plug the AC power adapter into the DC IN jack located on the back of the unit.
Plug the other end of the adapter into a standard wall outlet (AC 100-240V, 50/60Hz).
Unit akan dihidupkan secara automatik.

5.2 SmartSet Automatic Time Setting

The SmartSet system automatically sets the correct time and date as soon as you plug in the unit. It also maintains time and alarm settings during power disruptions or outages, provided the button cell battery is installed.

5.3 Pemasangan Sandaran Bateri

A button cell battery (CR2032, included) is required for battery backup. This ensures that time and alarm settings are retained during a power outage.

Cari petak bateri di bahagian bawah unit.
Buka penutup petak bateri.
Insert one CR2032 button cell battery, ensuring the correct polarity (+/-).
Tutup penutup petak bateri dengan selamat.

6. Arahan Operasi

6.1 Menetapkan Jam Secara Manual

Tekan dan tahan butang SET JAM butang. Angka jam akan berkelip.
Gunakan TALA -/+ butang untuk melaraskan jam. Tekan SET JAM untuk mengesahkan.
The minute digits will flash. Use the TALA -/+ butang untuk melaraskan minit. Tekan SET JAM untuk mengesahkan.
Continue this process to set the year, month, and day.
Tekan SET JAM sekali lagi untuk keluar dari mod tetapan masa.

6.2 Menetapkan Penggera (Penggera 1 & Penggera 2)

The unit features dual alarms. Follow these steps for each alarm:

Tekan dan tahan butang PENGGERA 1 or PENGGERA 2 butang. Angka waktu penggera akan berkelip.
Gunakan TALA -/+ butang untuk melaraskan jam penggera. Tekan masing-masing PENGGERA butang untuk mengesahkan.
The alarm minute digits will flash. Use the TALA -/+ butang untuk melaraskan minit penggera. Tekan butang masing-masing PENGGERA butang untuk mengesahkan.
Select the alarm source (Buzzer, FM Radio, or Soothing Sound). Press the respective PENGGERA butang untuk mengesahkan.
Adjust the alarm volume using the VOL - / + buttons. Press the respective PENGGERA butang untuk mengesahkan.
The alarm is now set. The alarm indicator (AL1 or AL2) will appear on the display.

6.3 Simulasi Matahari Terbit

The sunrise simulation feature gradually brightens the light panel before your set alarm time, mimicking a natural sunrise to gently wake you.

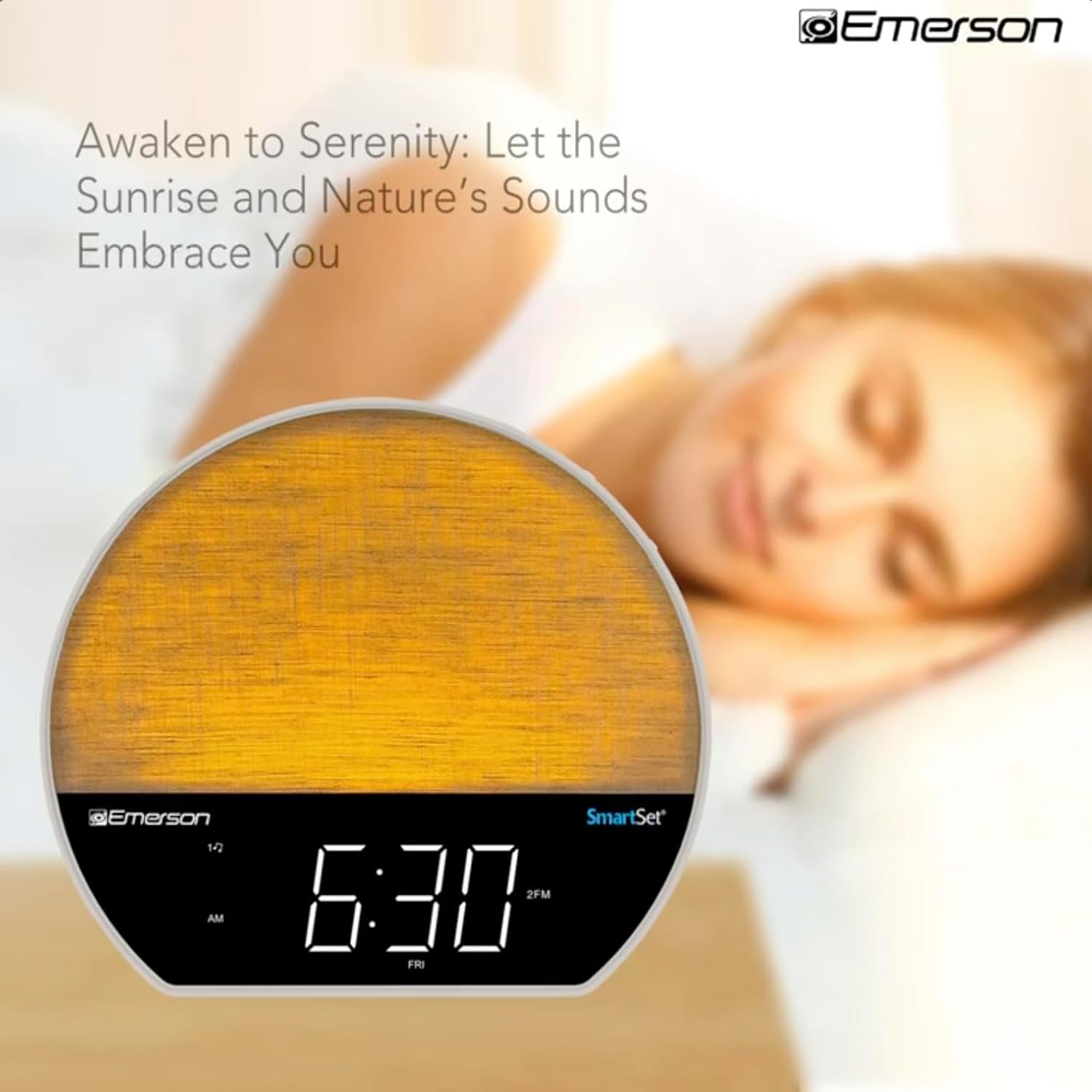

Emerson CKSS7071 displaying 6:30 AM with a warm, glowing light, simulating a sunrise.

Imej 4: The alarm clock simulating a sunrise with a warm, increasing keamatan cahaya.

To activate, ensure the sunrise option is selected during alarm setup. The light will begin to brighten 30 minutes before the alarm sounds.

6.4 Soothing Sounds and White Noise

The unit includes 6 soothing sounds and white noise to help with relaxation or waking up.

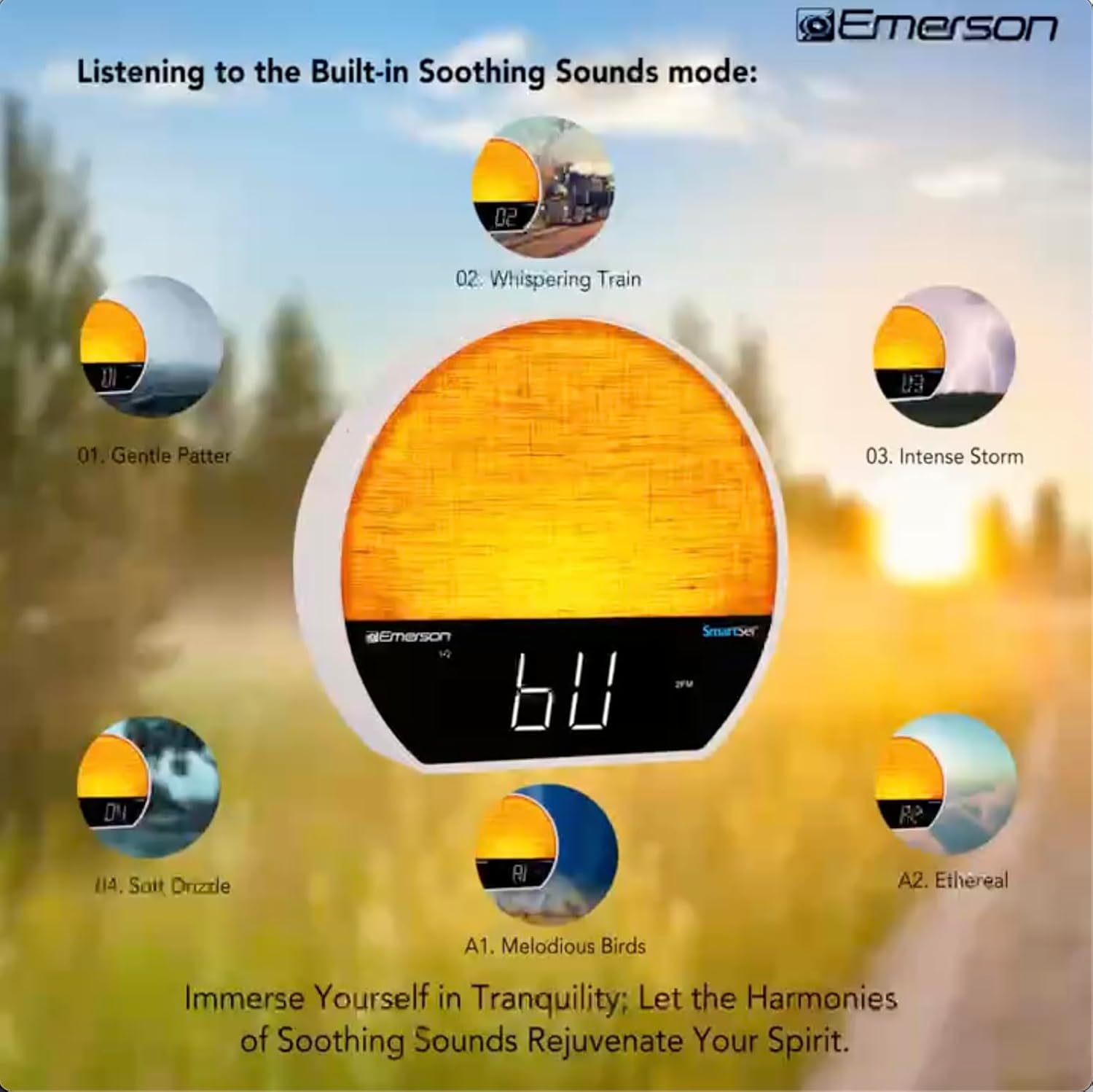

Emerson CKSS7071 showing various soothing sound options like Gentle Patter, Whispering Train, Intense Storm, Soft Drizzle, Melodious Birds, and Ethereal.

Imej 5: Visual representation of the six soothing sound modes available on the alarm clock.

Tekan ke MODE button repeatedly until the Soothing Sound mode is selected.
Gunakan TALA -/+ buttons to cycle through the available sounds (e.g., Gentle Patter, Whispering Train, Intense Storm, Soft Drizzle, Melodious Birds, Ethereal, White Noise).
Laraskan kelantangan menggunakan VOL - / + butang.

6.5 Fungsi Pembesar Suara Bluetooth

Connect your smartphone or other Bluetooth-enabled device to stream audio wirelessly.

Emerson CKSS7071 displaying 'BT' for Bluetooth, with a smartphone connected and playing music.

Imej 6: The alarm clock in Bluetooth mode, paired with a mobile device for audio streaming.

Tekan ke MODE button until 'BT' appears on the display, indicating Bluetooth mode.
On your device, enable Bluetooth and search for 'Emerson CKSS7071'.
Select the device to pair. A confirmation tone will sound upon successful pairing.
You can now play audio from your device through the alarm clock's speaker.

6.6 Operasi Radio FM

Ikuti stesen radio FM kegemaran anda.

Tekan ke MODE button until 'FM' appears on the display.
Tekan ke TALA -/+ buttons briefly to manually tune to a station.
Tekan dan tahan butang TALA -/+ butang untuk mengimbas secara automatik stesen yang tersedia seterusnya.
Untuk menyimpan stesen, tekan dan tahan butang FM MEM butang sehingga nombor pratetap berkelip. guna TALA -/+ untuk memilih nombor pratetap, kemudian tekan FM MEM sekali lagi untuk berjimat.

6.7 LED Decor and Dimmer Control

Customize the ambient light with 8 different colors and adjust the brightness.

Emerson CKSS7071 showing 8 different LED color options: orange, white, yellow, green, light blue, purple, pink, and red.

Imej 7: The alarm clock demonstrating its 8-color dimmable LED decor options.

Tekan ke CAHAYA button to cycle through the 8 available colors or turn the light off.
To adjust the brightness of the LED decor light, press and hold the CAHAYA button. The brightness will cycle through 5 levels. Release the button at your desired brightness.

6.8 Display Dimmer Control

Adjust the brightness of the 1.2-inch LED time display.

Emerson CKSS7071 showing five levels of display brightness, from bright to faint.

Imej 8: The alarm clock illustrating the five distinct levels of display luminescence.

Tekan ke DIMMER button (often combined with another function, refer to button labels) to cycle through 4 levels of display brightness (Bright, Moderate, Dim, Faint).

6.9 Pemasa Tidur

Set a timer for the audio to automatically turn off after a specified duration.

Emerson CKSS7071 displaying 9:30 PM with a warm light, indicating a sunset sleep timer function.

Imej 9: The alarm clock set for a sunset sleep timer, providing a harmonious end to the day.

While audio is playing (FM or Soothing Sound), press the TIDUR butang.
Tekan berulang kali TIDUR button to cycle through available sleep timer durations (e.g., 15, 30, 60, 90 minutes, or OFF).
The audio will automatically turn off after the selected time.

6.10 Fungsi Tunda

Apabila penggera berbunyi, tekan butang MENGEJUTKAN butang (biasanya butang besar di atas) untuk menyenyapkan penggera buat sementara waktu selama beberapa minit. Penggera akan berbunyi semula selepas tempoh tunda.

7. Penyelenggaraan

7.1 Pembersihan

Sentiasa cabut plag unit daripada salur keluar kuasa sebelum membersihkan.
Gunakan kain lembut dan kering untuk membersihkan permukaan luar.
Jangan gunakan pembersih cecair, pembersih kasar atau semburan kimia, kerana ini boleh merosakkan kemasan.

7.2 Penggantian Bateri

If the time and alarm settings are not retained during a power outage, the button cell backup battery may need to be replaced. Follow the instructions in section 5.3 to replace the CR2032 battery.

8. Penyelesaian masalah

Masalah	Kemungkinan Punca	Penyelesaian
Unit tidak dihidupkan.	Penyesuai kuasa tidak disambungkan atau rosak.	Pastikan penyesuai AC dipasang dengan selamat ke dalam unit dan salur keluar dinding yang berfungsi.
Tetapan masa/penggera hilang selepas kuasa dimatikantage.	Bateri sandaran mati atau tidak dipasang.	Install or replace the CR2032 button cell battery (see section 5.3).
Penggera tidak berbunyi.	Penggera tidak diaktifkan atau kelantangan terlalu rendah.	Ensure the alarm is set and activated (AL1/AL2 indicator on). Increase alarm volume.
Peranti Bluetooth tidak boleh berpasangan.	Unit not in Bluetooth mode or device too far.	Ensure the unit is in Bluetooth mode ('BT' displayed). Move your device closer to the unit. Try unpairing and re-pairing.
Penerimaan radio FM yang lemah.	Antena tidak dipanjangkan atau gangguan.	Extend the FM wire antenna fully and reposition it for better reception. Avoid placing near other electronic devices.
Paparan terlalu terang/malap.	Display dimmer setting needs adjustment.	Tekan ke DIMMER button to cycle through brightness levels (see section 6.8).

9. Spesifikasi

Ciri	Perincian
Nombor Model	CKSS7071
Sumber Kuasa	AC 100-240V, 50/60Hz (via AC adapter)
Sandaran Bateri	1 x CR2032 Button Cell Battery (included)
Jenis Paparan	1.2-inch LED Display
Versi Bluetooth	V5.4
Bunyi yang Menenangkan	6 Nature Sounds + White Noise
LED Decor Colors	8 Dimmable Colors
Dimensi Produk (W x D x H)	7.09" x 3.15" x 6.37"
Berat badan	Tidak dinyatakan

10. Maklumat Waranti

Emerson products are manufactured to the highest quality standards. This product is covered by a limited warranty against defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear. Proof of purchase is required for all warranty claims. Please retain your receipt.

11. Sokongan Pelanggan

If you have any questions, require assistance, or experience issues with your Emerson CKSS7071 Sunrise Smartset Alarm Clock Radio, please contact our customer support team.

Webtapak: Visit the official Emerson webtapak untuk Soalan Lazim dan sumber sokongan.
e-mel: Rujuk kepada pembungkusan produk anda atau pegawai rasmi website for customer service email contact.
telefon: Rujuk kepada pembungkusan produk anda atau pegawai rasmi weblaman web untuk nombor telefon khidmat pelanggan.

Please have your model number (CKSS7071) and proof of purchase ready when contacting support.
