FOGATTI 18x18 Inch RV Water Heater Black Door Kit

Manual Arahan

1. Produk Lebihview

This manual provides comprehensive instructions for the installation, operation, and maintenance of your FOGATTI 18x18 inch RV Water Heater Black Door Kit. This kit is designed specifically for FOGATTI RV tankless water heaters and serves as a durable, protective, and aesthetically pleasing exterior component. Please note that this product is a door kit only; the RV water heater is sold separately.

FOGATTI 18x18 inch RV Water Heater Black Door Kit

Image: The FOGATTI 18x18 inch RV Water Heater Black Door Kit, showcasing its sleek black finish and robust construction.

2. Ciri-ciri Produk

  • Dimensi: Door Size: 18" x 18" (excluding decorative frame).
  • Bahan: Crafted from galvanized steel for enhanced durability and robustness.
  • Perlindungan: Designed to be waterproof and to prevent insects from entering the water heater compartment.
  • Anti-Bump Design: Equipped with sturdy hinges to withstand vibrations and impacts during travel.
  • Keserasian: Suitable for replacing Suburban 10/12 gallon or Atwood 10 gallon water heater doors when upgrading to a FOGATTI RV water heater.
  • Flush Mount: Provides a neat appearance and reduces the risk of leaks by pulling tightly against the sidewall.
Three-layer galvanized steel construction of the FOGATTI RV water heater door

Image: Illustration of the door's three-layer galvanized steel construction, highlighting its smooth and bright surface for enhanced durability.

Waterproof and sunscreen features of the FOGATTI RV water heater door

Image: Visual representation of the door's waterproof and sunscreen properties, ensuring a long service life.

Close-up of strong hinges on the FOGATTI RV water heater door

Image: Detail of the strong hinges designed to withstand the rigors of RV travel.

Conspicuous design elements of the FOGATTI RV water heater door

Image: Diagram illustrating the door's design, including the waterproof ring, damping pad, stack nozzle, and door lock for strong performance.

3. Panduan Pemasangan

Follow these steps for proper installation of your FOGATTI RV Water Heater Door Kit. Ensure all safety precautions are observed during the installation process.

3.1 Pemeriksaan Pra-Pemasangan

  • Confirm the mounting hole size on your RV. The door kit is designed for an 18"x18" opening.
  • If replacing an existing door, remove the original door from the water heater.
RV wall with marked opening size for water heater door

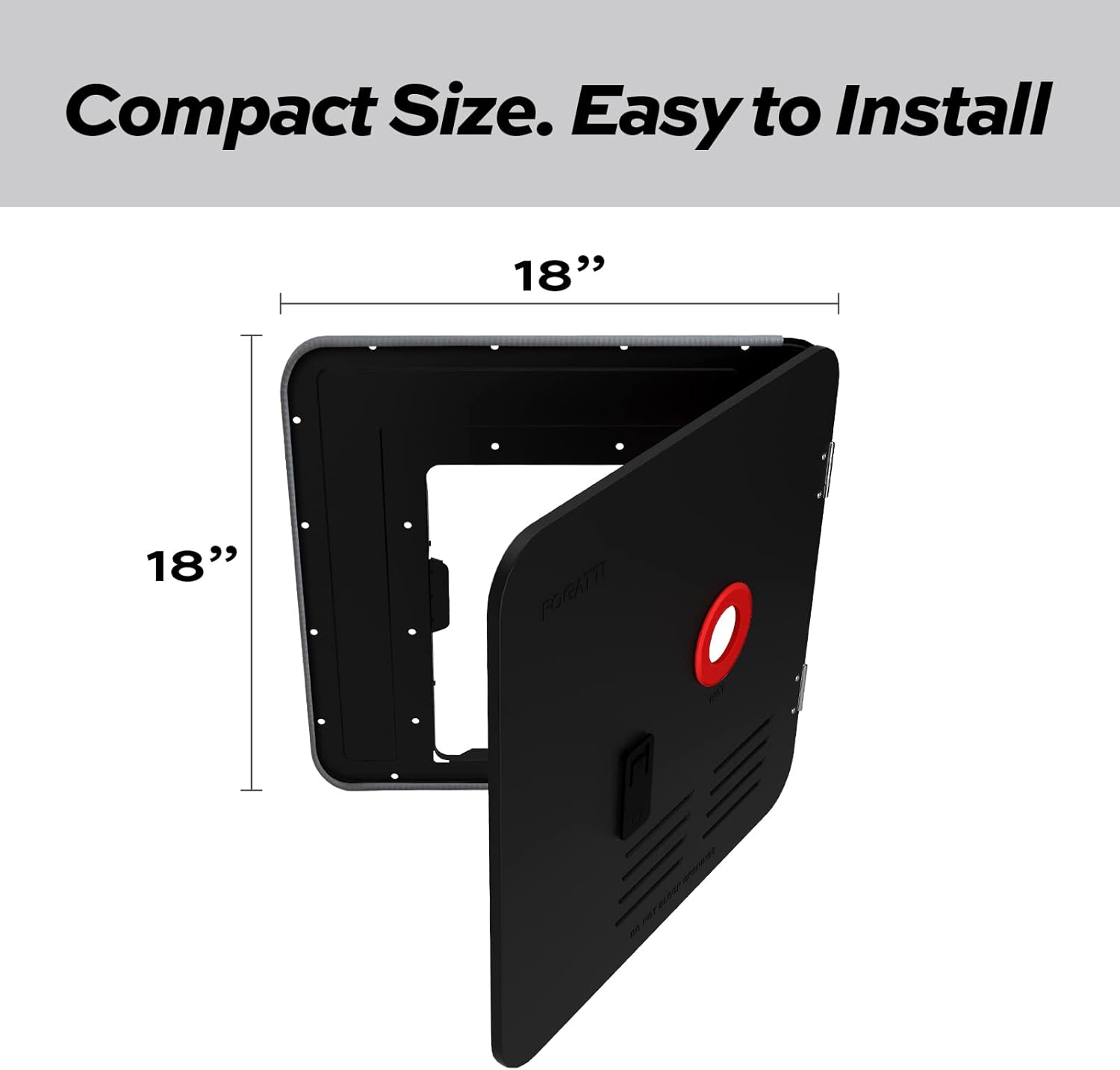

Image: An RV wall with an opening, indicating the importance of paying attention to the opening size (17"x17" min, 16"x16" standard, 17"x16" max cut-out).

3.2 Pemasangan Langkah demi Langkah

  1. Keluarkan Skru: Remove all screws from the mounting flange. You may need to remove the door hinge clip and then take down the door for better access to the screws.
    2. Step 1: Removing screws from the mounting flange of the RV water heater door

    Image: Illustration of removing screws from the mounting flange to prepare for door installation.

  2. Install Filling Blocks (if needed): If the original cutout sizes are larger than the machine, you may fill the gap by attaching wood blocks to the RV body. Make sure to tighten them up with screws. FOGATTI filling blocks offer superior shock absorption, corrosion resistance, noise reduction, and are flame retardant compared to wood.
    3. Step 2: Filling gaps around the RV water heater opening with blocks

    Image: Demonstrating how to fill gaps around the water heater opening using filling blocks for a secure fit.

  3. Pasang Cincin Trim: Slip the trim ring from the back of the enclosure to the RV water heater door. Apply a seal strip to the back of the trim ring.
  4. Sapukan Sealant: Apply sealant around the mounting holes on the RV wall to ensure a watertight seal.
    5. Step 4: Applying sealant around the RV water heater mounting holes

    Image: Applying sealant around the mounting holes to prevent water ingress.

  5. Place Water Heater: Put the RV water heater body inside the (new) RV door frame. This RV water heater must be installed at the angle shown in the video, not tilted or sideways.
  6. Secure Water Heater: Tighten up with screws provided, and then hinge the door back to the flange together. Screw the water heater to the RV.
    7. Step 3: Placing the RV water heater body into the door frame and securing it

    Image: Illustrating the process of placing the water heater body into the door frame and securing it with screws.

  7. Tutup Pintu: Close the water heater door and ensure the latch engages securely.

3.3 Video Pemasangan

Video: A detailed installation guide for the FOGATTI 18x18 Inches RV Water Heater Black Door, demonstrating the process of replacing an old door, installing filling blocks, and securing the new door.

4. Arahan Operasi

The FOGATTI RV Water Heater Door Kit is designed for simple operation.

  • Membuka Pintu: To open the door, locate the latch mechanism, lift or slide it to disengage, and then gently pull the door open.
  • Menutup Pintu: To close the door, push it firmly until the latch mechanism clicks into place, ensuring it is securely fastened. A secure latch prevents accidental opening during travel.

5. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your RV water heater door.

  • Pembersihan: Clean the exterior surface of the door regularly with a mild detergent and a soft cloth. Avoid abrasive cleaners that could damage the finish.
  • Hinge and Latch Inspection: Periodically inspect the hinges and latch for any signs of wear, corrosion, or damage. Lubricate hinges if they become stiff.
  • Pemeriksaan Pengedap: Annually inspect the sealant around the trim ring and mounting area for cracks, gaps, or deterioration. Reapply marine-grade sealant as needed to maintain a waterproof barrier.

6. Penyelesaian masalah

If you encounter any issues with your RV water heater door, refer to the following troubleshooting tips:

MasalahKemungkinan PuncaPenyelesaian
Door not closing securelyObstruction in the frame or latch mechanism; damaged latch.Check for and remove any obstructions. Clean the latch mechanism. Inspect the latch for damage and replace if necessary.
Water leakage around the doorDeteriorated or improperly applied sealant; loose mounting screws.Inspect and reapply marine-grade sealant around the trim ring and mounting area. Ensure all mounting screws are tightened.
Door is stiff or squeaky when opening/closingLack of lubrication on hinges; dirt or debris in hinges.Clean hinges and apply a suitable lubricant.

7. Spesifikasi

  • Jenama: FOGATTI
  • warna: Hitam
  • Bahan: Alloy Steel (Galvanized Steel)
  • Saiz Pintu: 18" x 18" (Excluding decorative frame)
  • Jenis Pemasangan: dinding
  • Nombor Bahagian Pengilang: FS08B1SWD
  • Komponen yang Disertakan: RV water heater door

8. Maklumat Waranti

For detailed warranty information regarding your FOGATTI RV Water Heater Black Door Kit, please refer to the official FOGATTI webtapak atau hubungi sokongan pelanggan mereka secara langsung. Simpan bukti pembelian anda untuk sebarang tuntutan waranti.

9. Sokongan

If you require further assistance, technical support, or have questions not covered in this manual, please contact FOGATTI customer service. Contact information can typically be found on the product packaging or the official FOGATTI webtapak.
