pengenalan
The SHIDU H11 is a versatile 40W wireless voice amplifier designed to provide clear and powerful sound projection for various applications. This portable PA system features Bluetooth connectivity, support for USB, TF card, and Aux inputs, and includes both wireless headset and handheld microphones. Its robust design and long-lasting battery make it suitable for teachers, public speakers, tour guides, and karaoke enthusiasts.

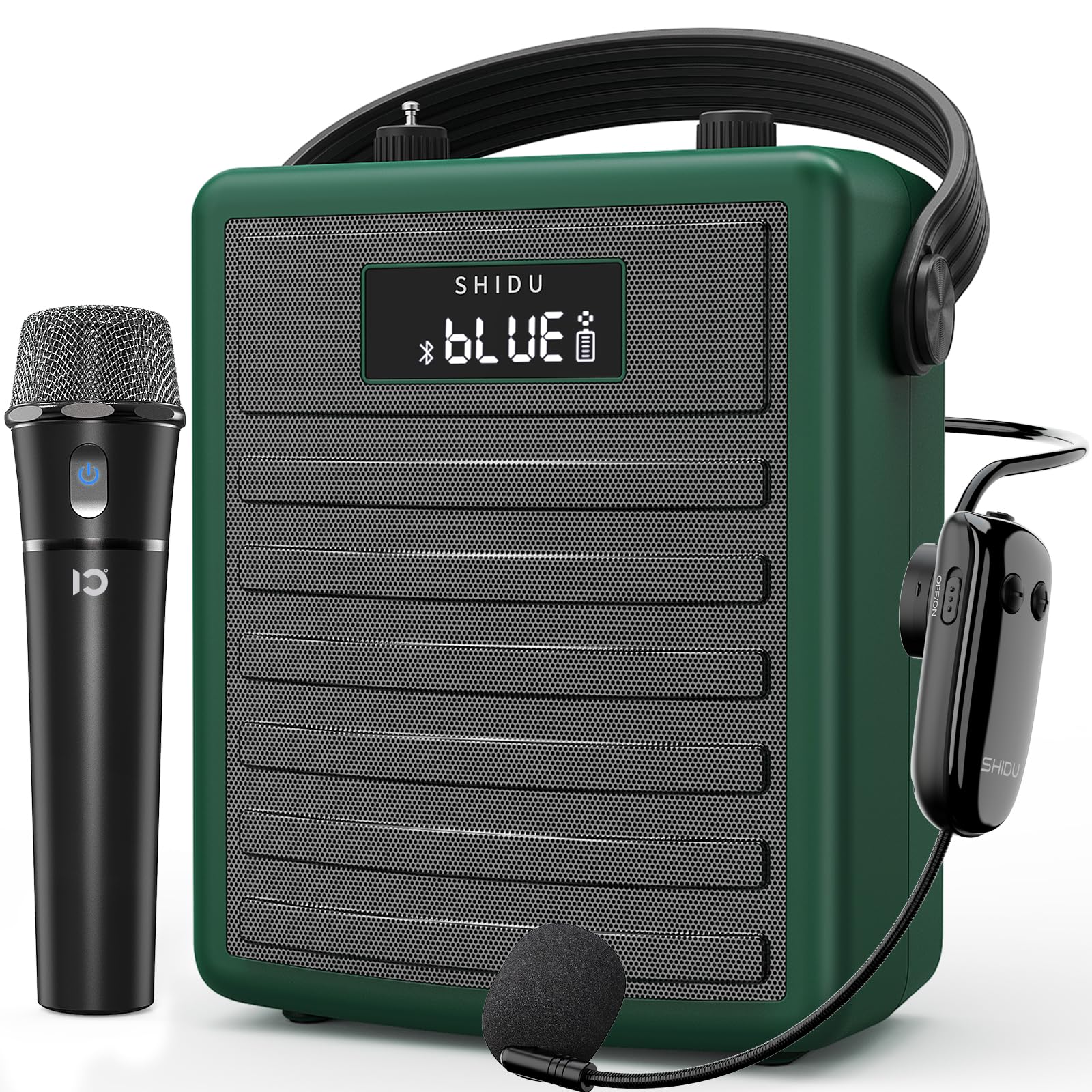

Figure 1: SHIDU H11 40W Wireless Voice Amplebih hidup
Kandungan Pakej
Sila semak pakej dengan teliti untuk memastikan semua item ada:
- SHIDU H11 Voice AmpUnit penguat
- Mikrofon Alat dengar Tanpa Wayar
- Mikrofon Pegang Tangan Tanpa Wayar
- Kabel Pengecasan Jenis-C
- Adjustable Carrying Strap
- Kabel Audio (3.5mm)
- Antena
Figure 2: All items included in the SHIDU H11 package.
Produk Selesaiview
Kawalan dan Pelabuhan Unit Utama
Rajah 3: Terperinci view of the SHIDU H11 controls and ports.
- Hidupkan/Mati Kuasa: Suis kuasa utama.
- Butang Mod: Switches between Bluetooth, FM, USB, TF Card, and AUX modes.
- Butang Sebelumnya/Seterusnya: Navigates tracks in music playback modes.
- Butang Main/Jeda: Mengawal main balik muzik.
- Fungsi RKM: Untuk merakam audio.
- Pad Nombor: For direct track selection or FM frequency input.
- Tombol Kelantangan Muzik: Adjusts the volume of music playback.
- Tombol Gema: Adjusts the echo effect for microphones.
- Instrument Input (INST): 6.35mm jack for connecting instruments like a guitar.
- Instrument Volume Knob (INST VOL): Melaraskan kelantangan instrumen yang disambungkan.
- Input Audio (AUX IN): Bicu 3.5mm untuk sumber audio luaran.
- Audio Output (AUX OUT): 3.5mm jack for connecting to other audio devices.
- Slot USB: Untuk pemacu kilat USB.
- Slot Kad TF: For TF (MicroSD) cards.
- Port Pengecasan DC 5V: Type-C port for charging the unit.
Butiran Mikrofon
Figure 4: Wireless Microphones
- Mikrofon Pegang Tangan Tanpa Wayar: Features an on/off switch, UHF pairing indicator light, and DC 5V charge jack. Provides 8-10 hours of work time.
- Adjustable Wireless Headset Microphone: Includes an indicator light, ON/OFF switch, volume controls (+/-), pairing key, and DC 5V charge port. Offers 3-5 hours of work time. The flexible gooseneck allows for distance adjustment.
Persediaan
1. Charging the Unit and Microphones
Before first use, fully charge the voice amplifier and both wireless microphones. Use the provided Type-C charging cable. The amplifier has a robust 4400mAh rechargeable battery.
Figure 5: Battery life and charging indication.
2. Memasang Antena
Screw the included antenna into the designated port on the top of the amplifier unit for optimal wireless signal reception, especially for FM radio and microphone connectivity.
3. Wearing the Amplebih hidup
Attach the adjustable carrying strap to the amplifier. You can wear it over your shoulder, across your body, or around your waist for hands-free operation.
Arahan Operasi
1. Hidupkan/Mati Kuasa
Untuk menghidupkan amplifier, turn the Power On/Off knob (1) clockwise. The display will light up. To power off, turn the knob counter-clockwise until it clicks.
2. Using Wireless Microphones
Turn on your preferred wireless microphone (headset or handheld) using its dedicated ON/OFF switch. The microphone will automatically pair with the amplifier. Adjust the microphone's volume using the volume controls on the headset or the main unit's master volume. Use the Echo knob (8) on the main unit to add or remove echo effects.
3. Berpasangan Bluetooth
Press the Mode button (2) until "BLUE" appears on the display. On your mobile device, search for "SHIDU H11" in the Bluetooth settings and connect. Once paired, you can play audio from your device through the amplifier. Adjust music volume using the Music Volume knob (7).
4. USB/TF Card/AUX Playback
- Kad USB/TF: Insert a USB flash drive into the USB Slot (13) or a TF card into the TF Card Slot (14). The amplifier will automatically switch to the corresponding mode and begin playback. Use the Previous/Next (3, 4) and Play/Pause (4) buttons to control playback.
- Input AUX: Connect an external audio device (e.g., smartphone, MP3 player) to the Audio Input (AUX IN) (11) using the 3.5mm audio cable. Press the Mode button (2) to select AUX mode.
5. Instrument Connectivity
Connect an instrument, such as a guitar, to the Instrument Input (INST) (9) using a 6.35mm cable. Adjust the instrument's volume using the Instrument Volume knob (INST VOL) (10).
Figure 6: Instrument connectivity for music and karaoke.
6. Recording Function (REC)
In USB or TF card mode, press the REC button (5) to start recording. Press it again to stop. Recordings will be saved to the inserted storage device.
Video 1: Official product video demonstrating the features and sound quality of the SHIDU H11 40W Wireless Voice Amplifier, including its design, controls, and usage in various settings.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | SHIDU |
| Nombor Model | H11 |
| Output Wattage | 40 Watt |
| Teknologi Ketersambungan | Bluetooth, AUX, USB |
| Input Audio | Microphone, Bluetooth, AUX, TF Card, USB Disk |
| Sumber Kuasa | Dikuasakan oleh Bateri (4400mAh boleh dicas semula) |
| Berat Barang | 1.71 Kilogram |
| Bahan Kepungan | Akrilonitril Butadiena Stirena (ABS) |
| Penilaian Kalis Air | IPX5 (kalis percikan) |
| Speaker Coverage | Up to 320 people / 22,000 square feet |
Penyelenggaraan
To ensure the longevity and optimal performance of your SHIDU H11 voice amplifier, ikut garis panduan penyelenggaraan ini:
- Pembersihan: Use a soft, dry cloth to clean the exterior of the unit and microphones. Avoid using harsh chemicals or abrasive cleaners.
- Storan: Simpan amplifier and accessories in a cool, dry place away from direct sunlight and extreme temperatures.
- Penjagaan Bateri: For long-term storage, charge the battery to about 50-70% every three months to prevent deep discharge.
- Tahan Air: The unit has an IPX5 waterproof rating, protecting it from gentle water sprays and splashes. Do not submerge the device in water.
Menyelesaikan masalah
If you encounter any issues with your SHIDU H11, please refer to the following common problems and solutions:
- Tiada Bunyi daripada Mikrofon:
- Pastikan kedua-dua amppenyangga dan mikrofon dihidupkan.
- Check if the microphone is properly paired with the amplebih hidup.
- Increase the volume on both the microphone and the amplebih hidup.
- Ensure the microphone is charged.
- Bunyi Maklum Balas:
- Alihkan mikrofon lebih jauh dari amplebih hidup.
- Reduce the volume of the microphone or the amplebih hidup.
- Adjust the position of the microphone to avoid pointing directly at the speaker.
- Isu Berpasangan Bluetooth:
- Memastikan amplifier berada dalam mod Bluetooth ("BIRU" dipaparkan).
- Matikan dan hidupkan Bluetooth peranti anda, kemudian cuba pasangkan semula.
- Ensure no other devices are currently connected to the amppenyambung melalui Bluetooth.
- USB/TF Card Not Playing:
- Memastikan amplifier is in the correct mode (USB or TF Card).
- Periksa sama ada audio files on the device are in a supported format.
- Ensure the USB drive or TF card is inserted correctly and is not corrupted.
Jika masalah berterusan, sila hubungi khidmat pelanggan.
Waranti dan Sokongan
The SHIDU H11 Voice Ampliifier dilengkapi dengan a Waranti Pengeluar 1 Tahun. SHIDU is dedicated to delivering superior sound quality and customer satisfaction. If you have any questions, require assistance, or experience any issues with your product, please do not hesitate to contact SHIDU customer support. We are always here to help.
