GASLAND UC60BS 60cm Double Motor Cooker Hood User Manual

1. Pengenalan

Thank you for choosing the GASLAND UC60BS 60cm Double Motor Cooker Hood. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read these instructions carefully before use and keep them for future reference.

2. Maklumat Keselamatan

For your safety and to ensure correct operation, please observe the following precautions:

• Pastikan bekalan elektrik sepadan dengan plat kadaran pada perkakas.
• Pemasangan mesti dijalankan oleh orang yang berkelayakan mengikut peraturan tempatan.
• Jangan flambé di bawah hud dapur.
• Bersihkan penapis gris secara kerap untuk mengelakkan bahaya kebakaran.
• Ensure adequate ventilation in the room when the cooker hood is used simultaneously with gas or other fuel-burning appliances.
• Udara ekzos tidak boleh dikeluarkan ke dalam saluran pembuangan yang digunakan untuk mengeluarkan asap dari peralatan yang membakar gas atau bahan bakar lain.
• Disconnect the appliance from the mains supply before any cleaning or maintenance.

3. Produk Lebihview

3.1 Komponen Termasuk

• GASLAND UC60BS Cooker Hood
• Paip ekzos
• CF133 Carbon Filter (pre-installed or included for recirculation mode)
• Perkakasan pemasangan (skru, palam dinding)

3.2 Ciri-ciri Utama

• Dual-Motor Design: Provides stronger suction power for efficient odor and vapor removal.
• Kapasiti Aliran Udara Tinggi: Achieves 333 m³/h for a fresh and clean kitchen environment.
• Panel Kawalan Sentuh: Intuitive sensor controls with 3 power levels for various cooking needs.
• Pencahayaan LED: Two 1.5W energy-efficient LED lamps illuminate your cooking area.
• 3-Layer Aluminum Grease Filter: Removable, washable, and dishwasher-safe for easy maintenance. Includes a retention damper to prevent greasy air return.
• Versatile Ventilation: Supports both external extraction (ducted) and internal recirculation (ductless) modes.
• Reka Bentuk Anggun: Black metal body with a black tempered glass control panel, compatible with GASLAND induction, ceramic, or gas hobs.

3.3 Produk Views dan Dimensi

The following images illustrate the key features and dimensions of the cooker hood.

Imej 1: The dual-motor design enhances suction power, efficiently removing cooking odors and vapors.

Imej 2: Illustrates the 333 m³/h suction capacity and the three available fan speed settings for different cooking intensities.

Imej 3: Terperinci view of the cooker hood's dimensions (595mm width, 135mm height, 336mm depth) and the touch control panel, highlighting the power button, fan speed controls, and light function.

4. Persediaan dan Pemasangan

The GASLAND UC60BS cooker hood is designed for under-cabinet mounting. It supports both external extraction and internal recirculation modes.

4.1 Choosing Ventilation Mode

• External Extraction (Ducted): Air is expelled outside through an exhaust pipe. This mode requires a suitable ducting system to the exterior. The exhaust pipe is included.
• Internal Recirculation (Ductless): Air is filtered through a carbon filter (CF133, included) and then returned to the kitchen. This mode is suitable when external venting is not possible.

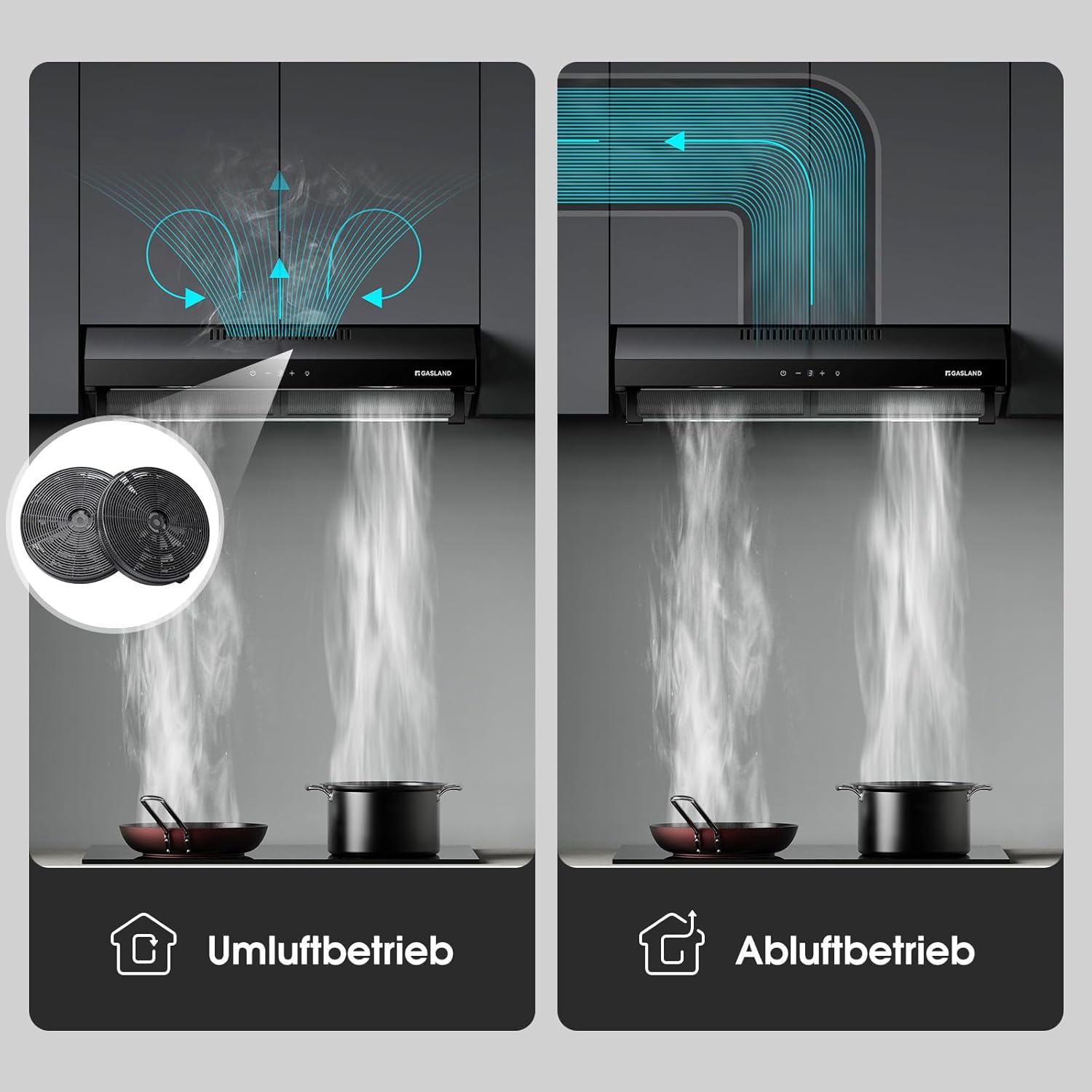

Imej 4: Visual representation of the two ventilation modes: recirculation (Umluftbetrieb) where air is filtered and returned, and extraction (Abluftbetrieb) where air is vented outside.

Imej 5: Further illustration of recirculation mode, showing air passing through carbon filters before returning, versus extraction mode, where air is ducted out.

4.2 Langkah Pemasangan (Garis Panduan Am)

1. Penyediaan: Ensure the installation area is clear and that you have all necessary tools and components. Measure the mounting height above your hob according to local safety regulations (typically 65-75 cm for electric hobs, 70-80 cm for gas hobs).
2. Penandaan: Mark the drilling points on the wall or underside of the cabinet according to the hood's mounting template.
3. Penggerudian: Drill holes at the marked positions and insert wall plugs.
4. Pemasangan: Secure the cooker hood to the wall or cabinet using the provided screws. Ensure it is level and securely fastened.
5. Ducting (for Extraction Mode): Connect the exhaust pipe to the hood's outlet and route it to the exterior vent. Ensure all connections are sealed to prevent air leaks.
6. Carbon Filter Installation (for Recirculation Mode): If not pre-installed, attach the CF133 carbon filters to the motor housing as per the instructions provided with the filters.
7. Sambungan Elektrik: Connect the cooker hood to a suitable power outlet. Ensure the power supply is off during connection.
8. Ujian: Turn on the power and test all functions of the cooker hood (fan speeds, lights).

For detailed installation instructions, please refer to the specific mounting template and diagrams included in your product packaging.

5. Arahan Operasi

The GASLAND UC60BS cooker hood features a user-friendly touch control panel.

5.1 Fungsi Panel Kawalan

Imej 6: Close-up of the touch control panel, indicating the power switch, fan speed adjustment buttons (- and +), and the light/delay function button.

• Butang kuasa (U): Press to turn the cooker hood ON or OFF.
• Fan Speed Decrease Button (-): Press to decrease the fan speed.
• Fan Speed Increase Button (+): Press to increase the fan speed. The hood has 3 speed levels.
• Light / Delay Function Button (☀): Press once to turn the LED lights ON or OFF. Press and hold to activate the delay shut-off function (e.g., 5-minute delay before turning off automatically).

5.2 Operasi Am

1. Hidupkan: Press the power button to start the hood. It will typically start at the lowest speed setting.
2. Laraskan Kelajuan Kipas: Use the '+' and '-' buttons to select the desired fan speed (1, 2, or 3) based on the intensity of cooking fumes.
3. Use Lighting: Press the light button to illuminate your cooking area.
4. Delay Shut-off: After cooking, you can activate the delay shut-off function to clear residual fumes. The hood will run for a set period (e.g., 5 minutes) and then turn off automatically.
5. Matikan: Press the power button again to turn off the hood, or allow the delay function to complete.

6. Penyelenggaraan dan Pembersihan

Penyelenggaraan yang kerap memastikan prestasi optimum dan memanjangkan jangka hayat hud dapur anda.

6.1 Membersihkan Penapis Gris Aluminium

The 3-layer aluminum grease filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to prevent grease buildup and maintain extraction efficiency.

1. Putuskan Kuasa: Always switch off and unplug the cooker hood before cleaning.
2. Alih Keluar Penapis: Locate the release latches on the filters and carefully unclip them.
3. Penapis Bersih: The filters are dishwasher-safe. Alternatively, wash them by hand in hot water with a mild detergent. Ensure all grease is removed.
4. Keringkan dan Pasang Semula: Allow the filters to dry completely before reinserting them into the hood. Ensure they are securely clipped in place.

6.2 Replacing the Carbon Filters (Recirculation Mode Only)

If you are using the hood in recirculation mode, the CF133 carbon filters absorb odors and must be replaced every 2-3 months, or more frequently with heavy use.

1. Putuskan Kuasa: Switch off and unplug the cooker hood.
2. Remove Grease Filters: Follow the steps above to remove the aluminum grease filters.
3. Remove Old Carbon Filters: The carbon filters are typically attached to the motor housing. Twist or unclip them to remove.
4. Install New Carbon Filters: Attach new CF133 carbon filters (ASIN: B0C23YBFTF) by twisting or clipping them into place.
5. Reinstall Grease Filters: Reinstall the aluminum grease filters.

6.3 Pembersihan Am

Clean the exterior surfaces of the cooker hood regularly with a soft cloth and a mild, non-abrasive cleaning agent. Avoid using harsh chemicals or abrasive pads that could damage the finish.

7. Penyelesaian masalah

Jika anda menghadapi masalah dengan hud dapur anda, rujuk masalah dan penyelesaian biasa berikut:

If the problem persists after attempting these solutions, please contact GASLAND customer support.

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact GASLAND customer service directly. Ensure you have your model number (UC60BS) and purchase details available when contacting support.
