DNA Motoring 6.5" Running Boards Side Steps Instruction Manual

1. Pengenalan

This manual provides instructions for the installation, operation, and maintenance of your DNA Motoring 6.5" Running Boards Side Steps. These running boards are designed to provide a convenient step for vehicle entry and exit, while also offering a durable and stylish addition to your vehicle.

The running boards are constructed from durable, rust-resistant stainless steel with ABS plastic components, ensuring long-lasting performance. They feature a polished finish and non-slip step pads for enhanced safety.

Imej 1.1: Detail of the running board construction, highlighting the stainless steel, non-slip ABS plastic step pads, and polished finish.

Imej 1.2: The running boards installed on a Toyota RAV4, demonstrating compatibility with Toyota RAV4 2019-2024 and RAV4 Prime 2021-2024 models.

2. Maklumat Keselamatan

Read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or damage to the product or vehicle.

• Always ensure the running boards are securely fastened before use.
• Do not exceed the maximum weight capacity of 350 pounds per running board.
• Exercise caution when stepping on or off the running boards, especially in wet or icy conditions.
• Regularly inspect the running boards and mounting hardware for any signs of wear, damage, or looseness. Tighten fasteners as needed.
• Keep hands and feet clear of moving parts during installation.

3. Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• 2 x Stainless Steel Running Boards
• Mounting Brackets (specific quantity may vary by vehicle model)
• Hardware (bolts, washers, nuts as required for installation)

Jika mana-mana bahagian yang hilang atau rosak, hubungi sokongan pelanggan dengan segera.

4. Persediaan & Pemasangan

Installation of these running boards is designed to utilize factory mounting points, typically requiring no drilling for most models. Professional installation is recommended if you are unfamiliar with vehicle modifications.

4.1. Alatan Diperlukan (Tidak Termasuk)

• Set Kunci Soket
• Sepana Tork
• Pita Pengukur
• Cermin Mata Keselamatan
• sarung tangan

4.2. Langkah Pemasangan

1. Sediakan Kenderaan: Park the vehicle on a level surface and engage the parking brake. For safety, consider lifting the vehicle with a jack and securing it with jack stands, or using a vehicle lift.
2. Kenal pasti Titik Pelekap: Locate the factory mounting points along the vehicle's frame or rocker panel. These are typically pre-drilled holes or existing bolts.
3. Lampirkan Kurungan: Secure the high-strength mounting brackets to the identified factory mounting points using the provided hardware. Ensure all bolts are hand-tightened initially.


Imej 4.1: Illustration of the mounting bracket attachment to the vehicle's factory mounting points. Note the no-drill installation for most models.

4. Position Running Boards: Carefully position the running boards onto the attached mounting brackets. Align the slots on the running boards with the bolts on the brackets.
5. Secure Running Boards: Attach the running boards to the brackets using the remaining hardware. Hand-tighten all bolts to allow for minor adjustments.


Imej 4.2: Terperinci view of the running board's end cap, mounting bolts, and the various bracket types included for installation.

6. Adjust and Final Tighten: Adjust the running boards for optimal alignment and desired position. Once satisfied, progressively tighten all bolts to the manufacturer's recommended torque specifications (refer to your vehicle's service manual or a professional for specific torque values if not provided with the running boards).
7. Sahkan Keselamatan: After tightening, firmly shake each running board to ensure it is securely mounted and stable.

Note: Crew cab models (four full doors) will require all included mounting brackets. For other cab models (standard, extended, access, double, etc.), while a minimum of two brackets per side are required, it is highly recommended to use as many of the included brackets as possible on each side for enhanced stability and strength.

5. Operasi

The running boards provide a stable and secure step for easier access to your vehicle's cabin. To use, simply step onto the board when entering or exiting the vehicle.

• Ensure your footwear has good traction, especially in adverse weather conditions.
• The maximum weight capacity for these running boards is 350 pounds. Do not exceed this limit.
• The non-slip design of the ABS plastic step pads helps prevent slipping.

Imej 5.1: A foot demonstrating use of the running board, emphasizing the 350 lbs maximum capacity and the UV/waterproof/rust-resistant features of the step pads.

6. Penyelenggaraan

Proper maintenance will ensure the longevity and appearance of your running boards.

• Pembersihan: Clean the running boards regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the polished finish or plastic components.
• Pemeriksaan: Periodically inspect all mounting hardware for tightness. Vibrations from driving can cause bolts to loosen over time. Re-tighten any loose fasteners to prevent rattling or instability.
• Pemeriksaan kakisan: Although made from rust-resistant stainless steel, inspect for any signs of corrosion, especially in areas exposed to road salt or harsh weather. Clean and apply appropriate protective treatments if necessary.

7. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi.

7.1. Loose or Rattling Running Boards

• Penyelesaian: Inspect all mounting bolts and nuts. Re-tighten them securely using appropriate tools. Ensure all brackets are properly seated against the vehicle's frame.

7.2. Difficulty with Installation

• Penyelesaian: Review the "Setup & Installation" section carefully. Ensure you are using the correct mounting points for your specific vehicle model and cab type. If issues persist, consider seeking professional installation assistance.

7.3. Product Damage or Missing Parts Upon Arrival

• Penyelesaian: Immediately contact the seller or manufacturer's customer service with details of the damage or missing components. Provide your order information and any relevant photos.

8. Spesifikasi

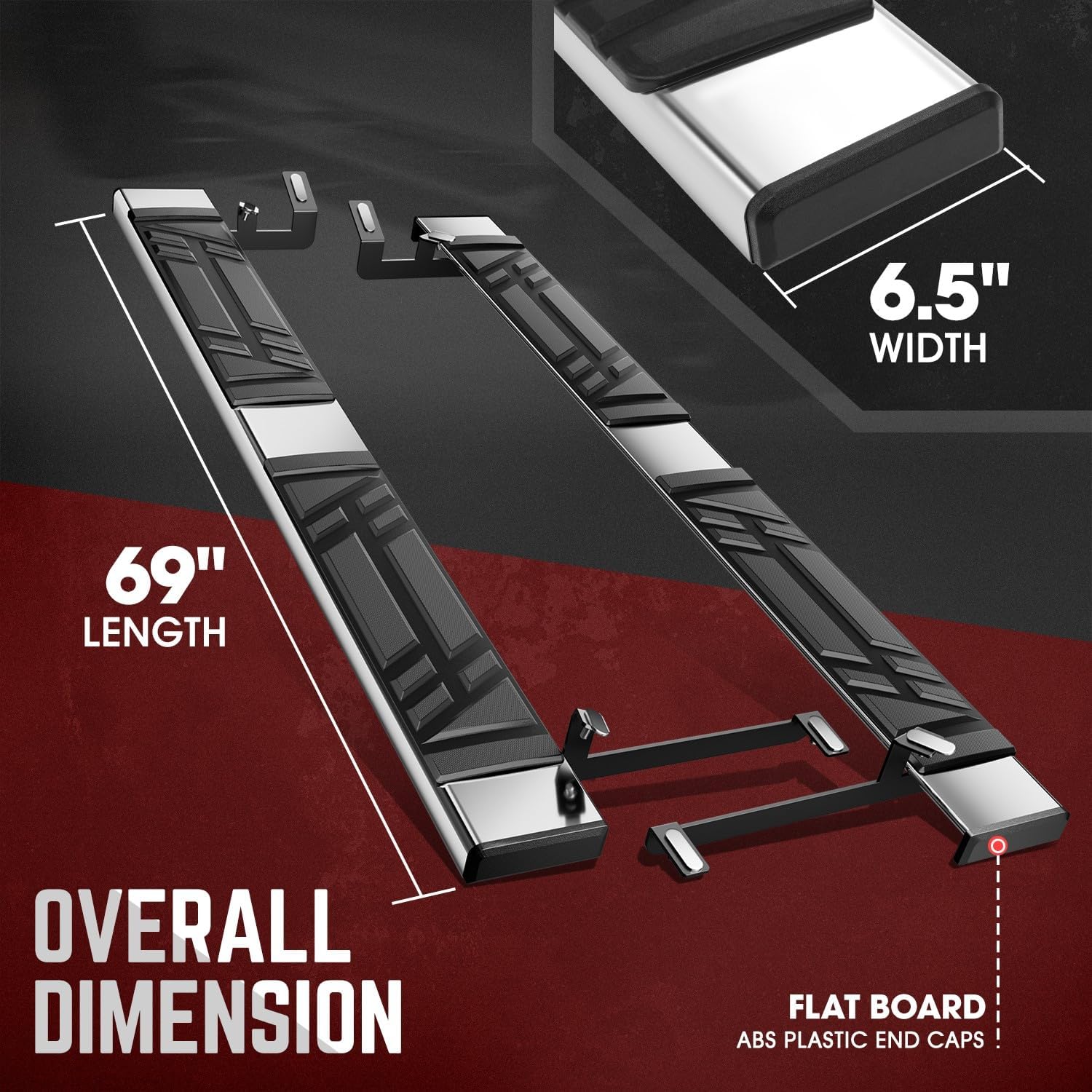

Imej 8.1: Overall dimensions of the running boards, indicating a length of 69 inches and a width of 6.5 inches.

9. Waranti & Sokongan

For warranty information regarding this product, please contact the seller directly. Warranty terms and conditions may vary.

For technical support, installation assistance, or to report missing/damaged parts, please contact DNA Motoring customer service through the retailer where the product was purchased or visit the official DNA Motoring webtapak.

Pengeluar: DNA Motoring

Jenama: DNA MOTORING
